External Wastegate's
Well after an exhaustive search I need some advice I haven't come across. I am currently running a oversized turbo I wish I could be more specific but I can't since the person I bought the car from had no idea what he put on. Currently I am running a 40mm HKS knockoff. Now its boost creeping on my **** so I know I need to upgrade to a bigger or better wastegate. Now after searching the tial website I saw something I haven't noticed which is a "rotary" wastegate. Now is this going to be better or just a more expensive wastegate? I guess I am really looking for advice from people making power. Also i don't really want to have to upgrade after this if I want to make more power. Any suggestions?
thanks
Josh
thanks
Josh
#3
Overboostin MoFo
Thread Starter
Join Date: Oct 2006
Location: Knoxville TN/Charleston SC
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
I am guessing your referring to this one
http://www.tialsport.com/prod_wg_46.htm
it says for the turbo rotary applications
http://www.tialsport.com/prod_wg_46.htm
it says for the turbo rotary applications
Trending Topics
#9
Overboostin MoFo
Thread Starter
Join Date: Oct 2006
Location: Knoxville TN/Charleston SC
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
flirting with "redline" for 10mins in full boost/boost creep. My turbo goes full red and starts going down to the vclamp to the downpipe. Maybe I have another issue?
#12
Overboostin MoFo
Thread Starter
Join Date: Oct 2006
Location: Knoxville TN/Charleston SC
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
its only creeping to 12psi. Yes my car has most of the other mods to support more boost. Minus a new IC and a stand alone. 85% of the time I am pedaling it to stay low in boost.
#17
Overboostin MoFo
Thread Starter
Join Date: Oct 2006
Location: Knoxville TN/Charleston SC
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Ok so I received my 46mm Tial Today and am going to install it but it seems that I might be missing a inlet gasket between the manifold and the wastegate. Is that something I don't need since I haven't found anything on Tial's website reguarding a gasket and before I go installing it I want to see if anyone knows the answer.
#19
Overboostin MoFo
Thread Starter
Join Date: Oct 2006
Location: Knoxville TN/Charleston SC
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
yea just found out my manifold wont work... So I need one of those too... blah this is turning into something I dont need right now.
#21
Overboostin MoFo
Thread Starter
Join Date: Oct 2006
Location: Knoxville TN/Charleston SC
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts

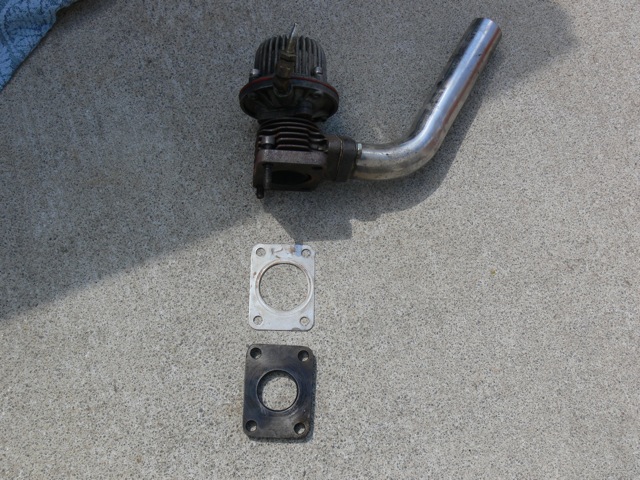

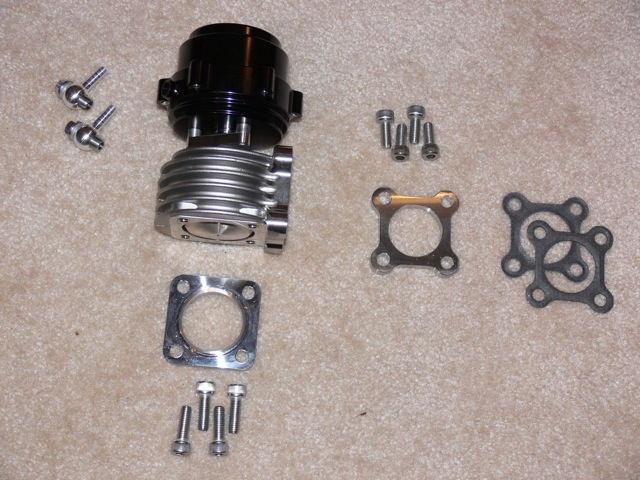

after some research.... I might have to make an adapter from the HKS to the Tial. But am I feel if I am missing a gasket/shim the 2 pics below are the HKS version with the gasket and the Tial without. Am I missing the gasket? Or dont you need one?
