Exhaust ports?
#3
rotorhead
iTrader: (3)
it may be partly for low end, but it also has a baffling effect to reduce noise. 20B-REW's (Cosmo 3 rotor) and 13B-RE's (Cosmo 2 rotor) also had baffles in the exhaust ports despite being turbo. Those were luxury cars and they needed to be smooth and quiet.
My old nonturbo engine did not have the baffles. It made it a lot harder to control noise and keep the tone from being harsh. But I imagine it picked up a few topend hp.
My old nonturbo engine did not have the baffles. It made it a lot harder to control noise and keep the tone from being harsh. But I imagine it picked up a few topend hp.
#4
In the shade
Thread Starter
Join Date: Jun 2009
Location: PA
Posts: 249
Likes: 0
Received 0 Likes
on
0 Posts
Awesome, thank you. I've been looking for a good page of info on porting, like the differences between a street port and bridgeport. I just want to see what's involved, see if there are any easy ways to clean up the ports a little w/o special equipment, and learn a bit. The diffuser is removed when a port job is done, is this correct? Any good pages on this? I saw some build threads in FAQ and search, but nothing that taught you anything about porting really, just that they did it.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes
on
1,848 Posts
the baffles help reduce noise just a tad, and take about 3hp away
Trending Topics
#8
Listen to King Diamond.
iTrader: (4)
Awesome, thank you. I've been looking for a good page of info on porting, like the differences between a street port and bridgeport. I just want to see what's involved, see if there are any easy ways to clean up the ports a little w/o special equipment, and learn a bit. The diffuser is removed when a port job is done, is this correct? Any good pages on this? I saw some build threads in FAQ and search, but nothing that taught you anything about porting really, just that they did it.
#9
In the shade
Thread Starter
Join Date: Jun 2009
Location: PA
Posts: 249
Likes: 0
Received 0 Likes
on
0 Posts
So, you're saying there is something to gain from taking these out.
Also wondering this.
I will start looking in there from now on, thank you.
That was a very good thread, thanks. I learned a lot from that.
Also wondering this.
Here's a pretty good porting thread: https://www.rx7club.com/showthread.php?t=619991
#10
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

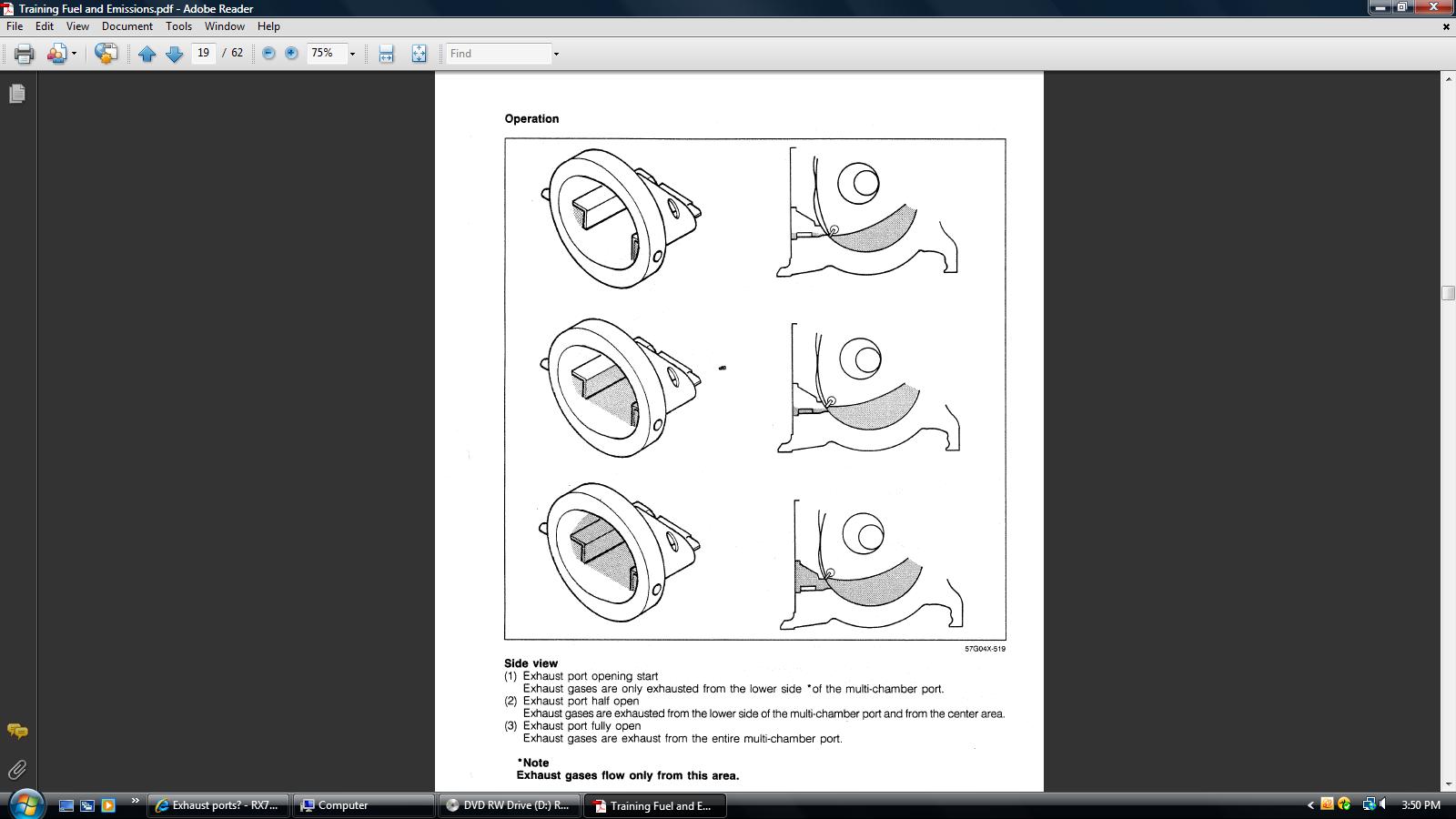

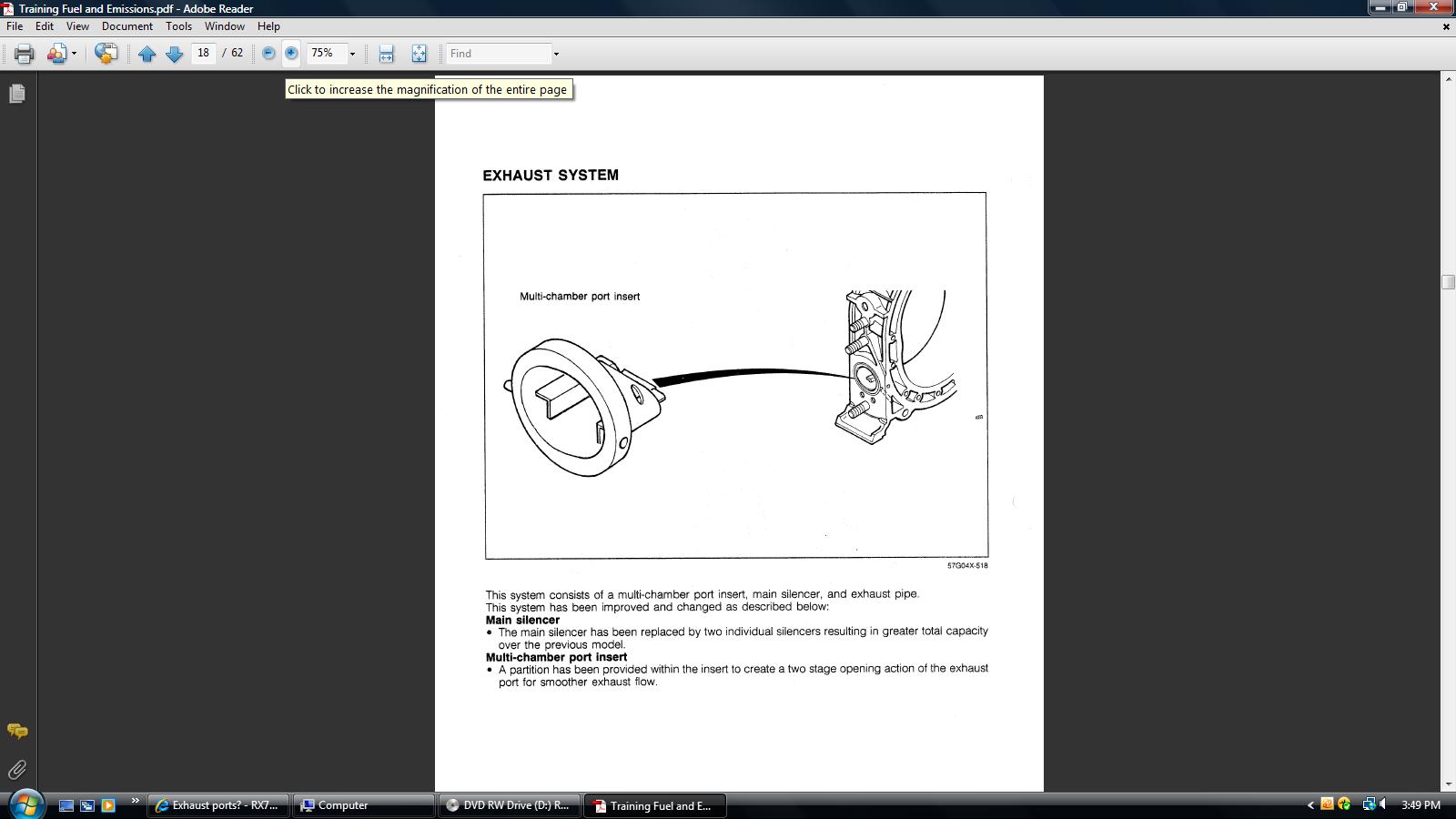

By golly, your right once again! All non turbo series four RX-7 had/have 'em. If it ain't there, someone took 'em out after they were installed at the factory. The jpgs are from the 1986 Training Manual that NZCONVERTIBLE made availabe on the net.
