Exhaust manifold gasket turbo two piece ?

Thread Tools

Search this Thread

Old Oct 10, 2014 | 08:19 PM
  #1
rotorpower27's Avatar
Thread Starter
Senior Member
Tenured Member 10 Years

Joined: May 2006
Posts: 307
Likes: 0
From: Northern california
CA Exhaust manifold gasket turbo two piece ?

I have been looking at the common failure of the turbo exhaust manifold gasket (from engine to manifold). Seems like they warp and pull inward as the center is not supported.

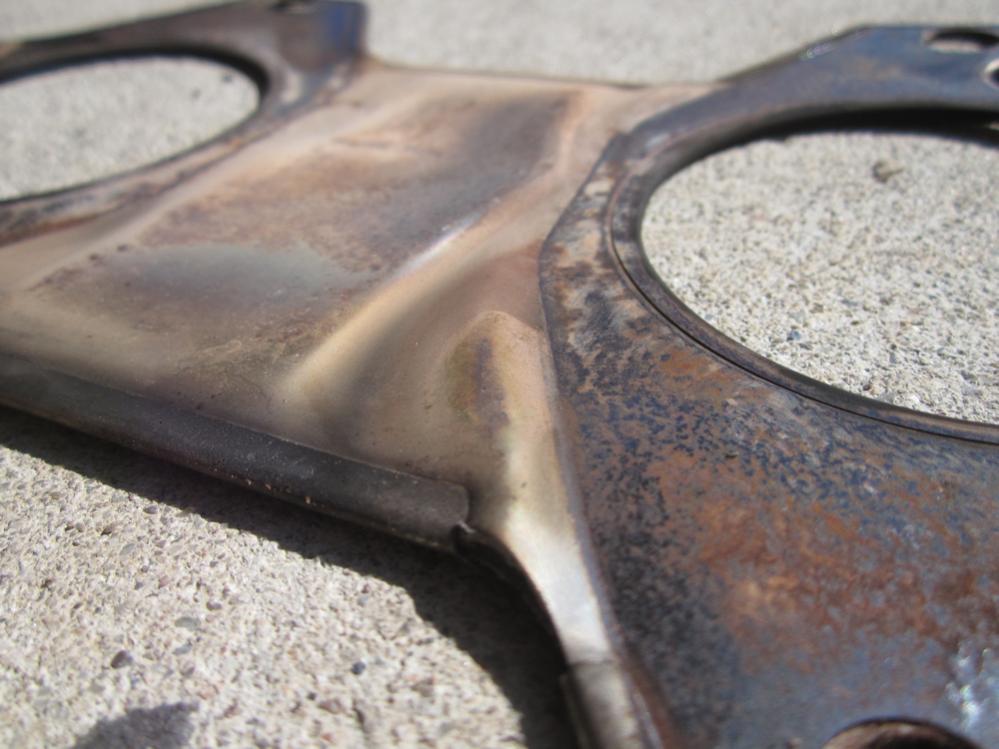

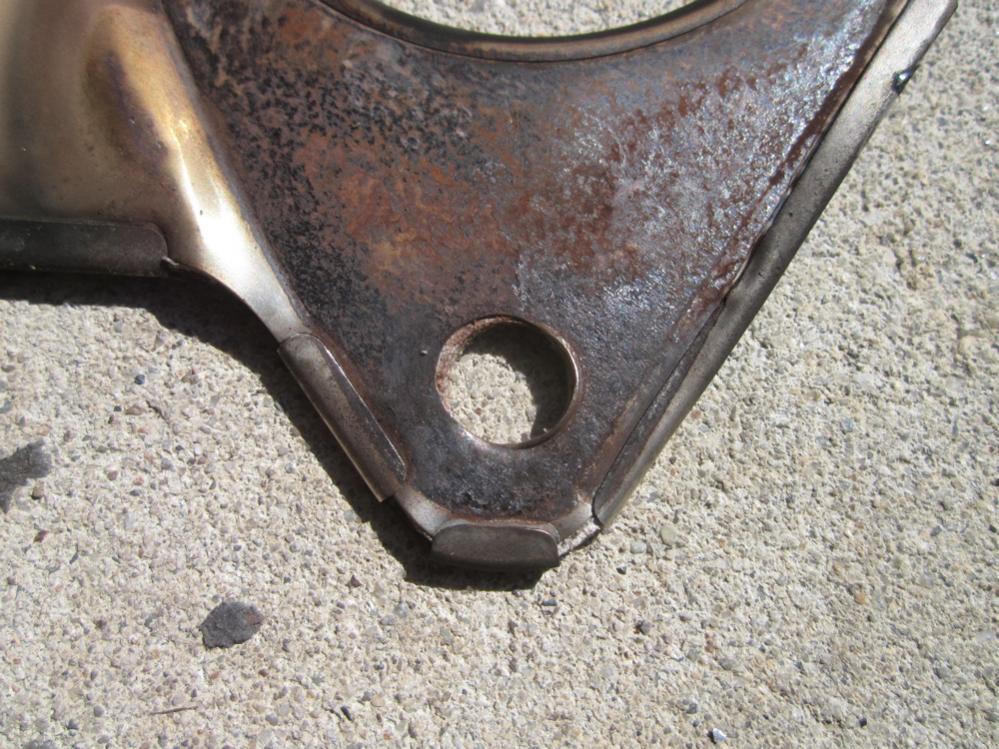

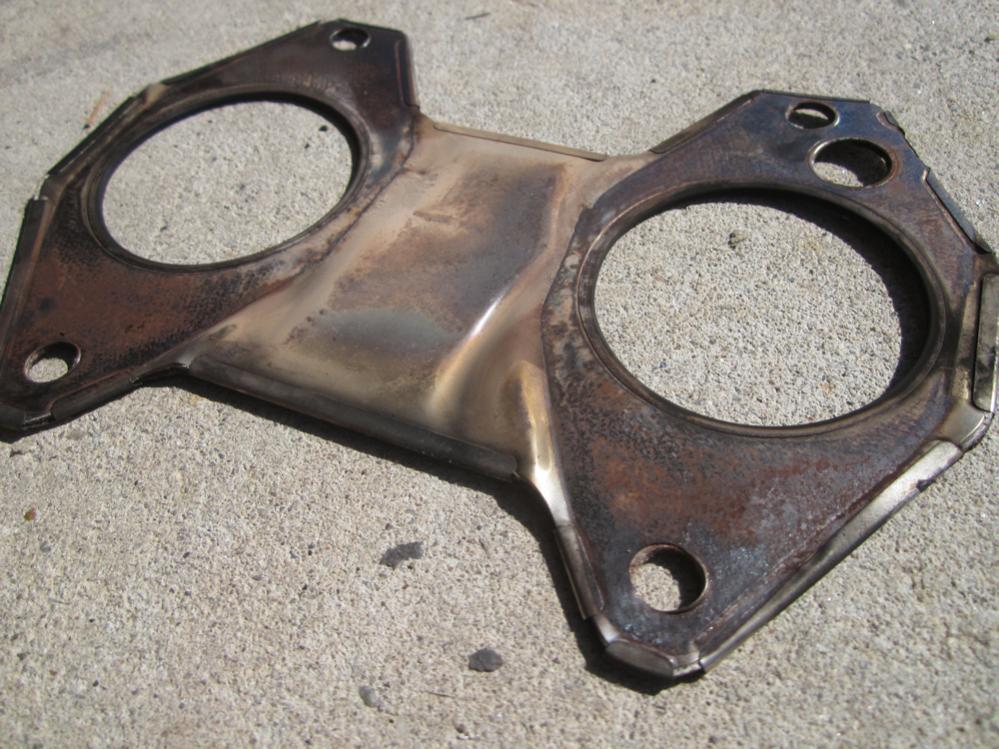

If you look at the image you can see how the center is pushed up and the outer edges are pulled inward. This causes the entire thing to warp and is shifting under the manifold.

Looking at the gasket for the FD it is a two piece design which would eliminate the issue described.
Is it okay to use the FD gaskets on the FC? more so is it okay to modify the FC gasket to be two piece?
Attached Thumbnails Exhaust manifold gasket turbo two piece ?-img_0238sm.jpg   Exhaust manifold gasket turbo two piece ?-img_0239sm.jpg   Exhaust manifold gasket turbo two piece ?-img_0240sm.jpg
Reply
Old Oct 11, 2014 | 10:18 AM
  #2
Jeff20B's Avatar
Lapping = Fapping
Tenured Member 15 Years
iTrader: (13)

Joined: Aug 2001
Posts: 15,725
Likes: 91
From: Near Seattle
If you cut it right down the middle it will "stress relieve" it. I do this on 81-85 12A gaskets to fit NA 13Bs. I haven't had any problems. Go for it.
Reply
Old Oct 11, 2014 | 10:25 AM
  #3
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,859
Likes: 3,243
From: https://www2.mazda.com/en/100th/
FD gaskets will work fine. i guess you could split the FC gasket too.

you have a "problem" and not really a problem. you're not really supposed to reuse that gasket anyways
Reply
Old Oct 11, 2014 | 10:34 AM
  #4
Aaron Cake's Avatar
Engine, Not Motor
Tenured Member: 20 Years
iTrader: (1)

Joined: Feb 2001
Posts: 29,798
Likes: 128
From: London, Ontario, Canada
Yeah, I've never seen one of those gaskets fail either.

The two piece FD gaskets are very handy for 13Bs which no longer have a commonly available gasket. Or 20Bs. Or 4 rotors...
Reply
Old Oct 11, 2014 | 12:51 PM
  #5
rotorpower27's Avatar
Thread Starter
Senior Member
Tenured Member 10 Years

Joined: May 2006
Posts: 307
Likes: 0
From: Northern california
I wont be reusing that gasket posted earlier. I want to use a new gasket, but cut it into two pieces to stress relieve it so that it doesn't buckle again.

Thanks for the input
Reply
Old Oct 11, 2014 | 01:04 PM
  #6
cone_crushr's Avatar
Money talks-mine says bye
Tenured Member: 20 Years
Liked
iTrader: (18)

Joined: May 2005
Posts: 729
Likes: 19
From: LBC, CA
Oddly, the FC gasket is ~$20 less than the FD, so cut the FC gasket and you're up beer money.
Reply
Old Oct 11, 2014 | 08:11 PM
  #7
wthdidusay82's Avatar
Rotary Power
Tenured Member 15 Years
iTrader: (15)

Joined: Sep 2004
Posts: 3,706
Likes: 4
From: Dinwiddie, Va
I've reused them and had no problems. I'd say it depends more on how bad it's condition is
Reply
Old Oct 20, 2014 | 12:59 AM
  #8
rotorpower27's Avatar
Thread Starter
Senior Member
Tenured Member 10 Years

Joined: May 2006
Posts: 307
Likes: 0
From: Northern california
Heres what I did

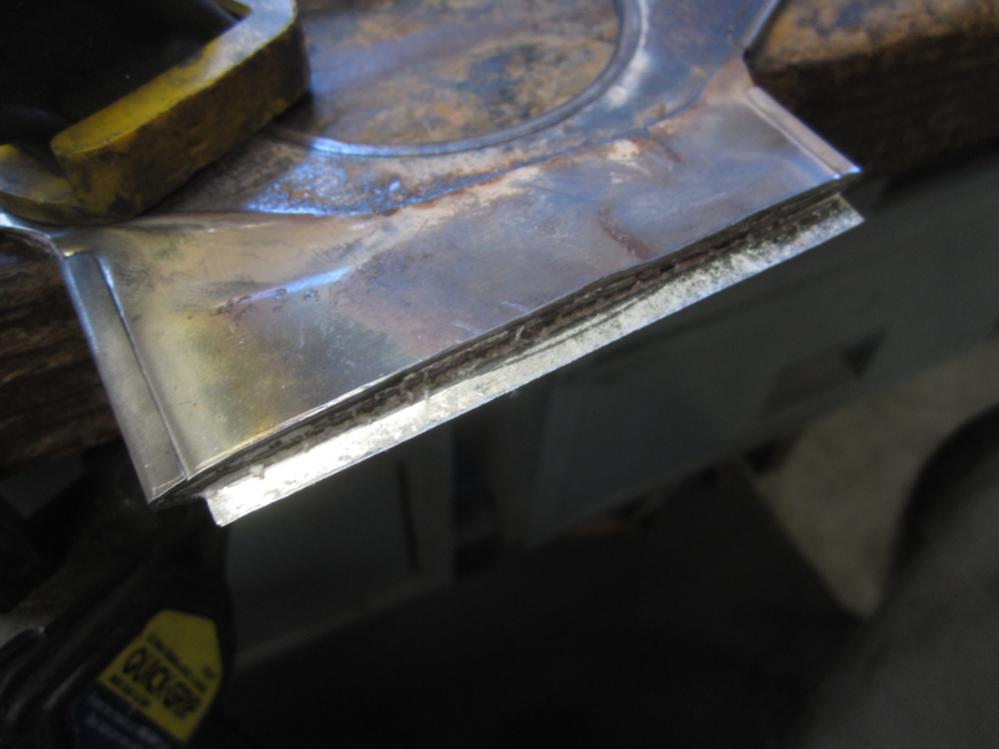

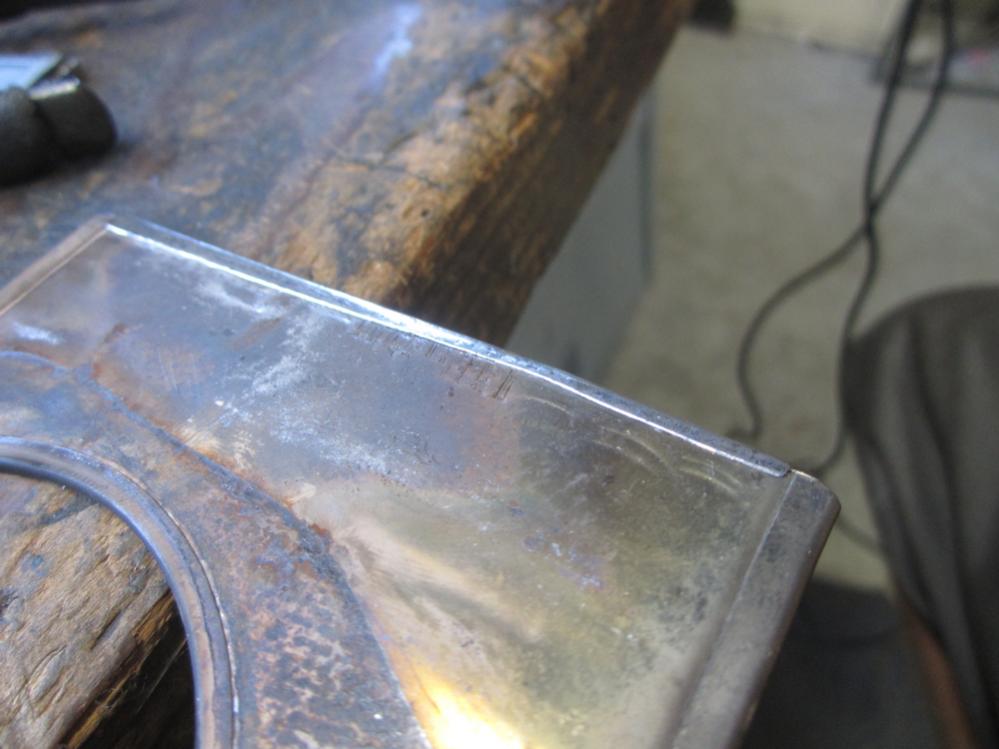

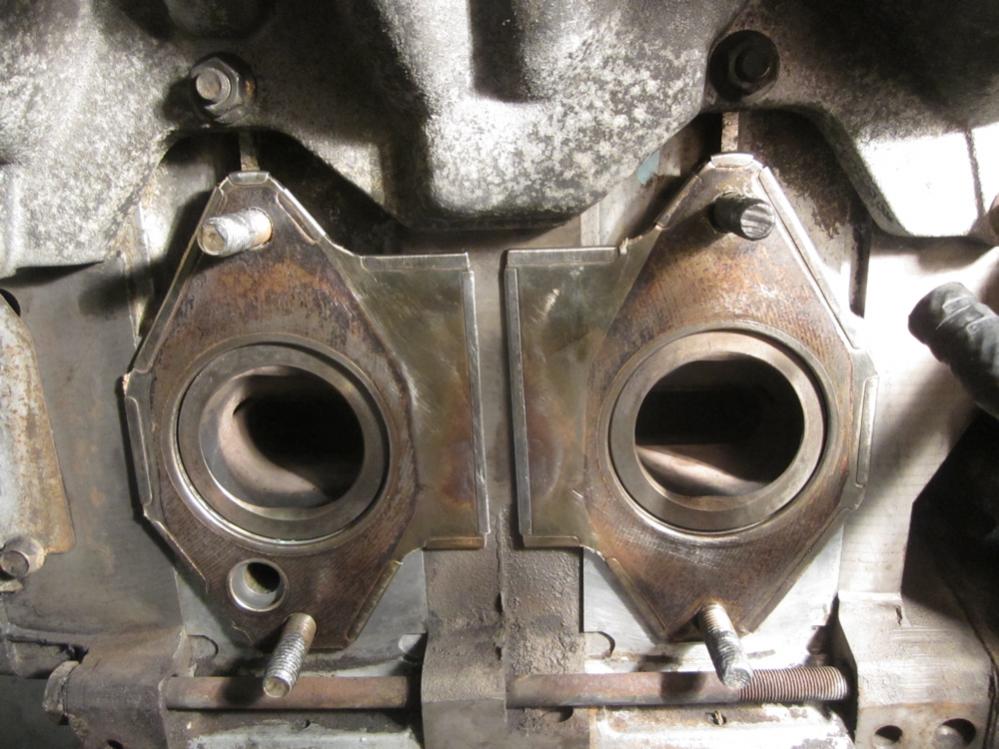

Attached Thumbnails Exhaust manifold gasket turbo two piece ?-img_0289s.jpg   Exhaust manifold gasket turbo two piece ?-img_0290s.jpg   Exhaust manifold gasket turbo two piece ?-img_0301s.jpg
Reply
Old Oct 20, 2014 | 12:04 PM
  #9
Jeff20B's Avatar
Lapping = Fapping
Tenured Member 15 Years
iTrader: (13)

Joined: Aug 2001
Posts: 15,725
Likes: 91
From: Near Seattle
That looks like it used to be a 12A gasket. I don't know if the fold-over was necessary but you did it so good job.
Reply
