exhaust inserts
Im rebuilding my 87 na and doing a mild streetport on the intake and exhaust. I did a search and came up with more questions than answers about removing the exhaust inserts, grinding the baffles out of the insert, or using tII inserts... Is completely removing them a bad idea? Where do I find the tII inserts? I know that it will be loader without the inserts (or with the tII inserts) any advice on this would be greatly appreciated.
04-15-11, 12:27 PM
#2
MECP Certified Installer
You can get rid of the baffle with a plasma cutter and then grind it smooth. Easier way, just get some TII inserts. Don't remove them and leave them out!
Inconel is some hard ****, if you try and grind the baffles out....I hope you are patient and have lot's of bits. If you can't get a hold of a plasma cutter, just get some TII inserts.
Inconel is some hard ****, if you try and grind the baffles out....I hope you are patient and have lot's of bits. If you can't get a hold of a plasma cutter, just get some TII inserts.
04-15-11, 02:32 PM
#4
The N/A inserts minimize exhaust gas reversion. They improve fuel economy, reduce noise, and widen the power band. You shouldn't port the exhaust on a street driven non-turbo engine. I would leave the stock non turbo inserts in the housings and do a mild port job on the intake ports.
Trending Topics
04-15-11, 09:34 PM
#8
MECP Certified Installer
Ummm, I have always been told, even by the guys a rotary performance, that the keep the engine from being too noisy by delaying full exhaust port opening right off the bat.
04-15-11, 09:49 PM
#10
The N/A inserts minimize exhaust gas reversion. They improve fuel economy, reduce noise, and widen the power band. You shouldn't port the exhaust on a street driven non-turbo engine. I would leave the stock non turbo inserts in the housings and do a mild port job on the intake ports.
- suck *** fuel economy (if its not the worst already, how much less mpg should I expect?)
- loud as f!@# (will it turn the car into a cop magnet ?)
- narrower power band ? (so only mid range rpm usable now ? or higher rpm ?)
Cuz Im thinking should I do a full street porting (intake & exhaust using Turbo housing)
04-15-11, 10:29 PM
#12
MECP Certified Installer
Low rpm suffers a tad but 3k and above is MUCH better.
04-16-11, 01:55 AM
#13
Rotary Freak
04-16-11, 02:44 AM
#14
http://www.mazdatrix.com/faq/6pexh.htm
For what it's worth, I put turbo exhaust sleeves into my S5 6port block when I rebuilt it. Also polished the exhaust ports and smoothed the intake runners. Port matched the intake manifolds. I can't comment on power gains because the engine was tired before the rebuild. It eventually lost an apex seal due to carbon buildup.
I have a main cat only on stock exhaust. I don't think it's loud but again, I don't have a benchmark.
For what it's worth, I put turbo exhaust sleeves into my S5 6port block when I rebuilt it. Also polished the exhaust ports and smoothed the intake runners. Port matched the intake manifolds. I can't comment on power gains because the engine was tired before the rebuild. It eventually lost an apex seal due to carbon buildup.
I have a main cat only on stock exhaust. I don't think it's loud but again, I don't have a benchmark.
04-16-11, 05:45 PM
#15
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2004
Location: San Leon
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts

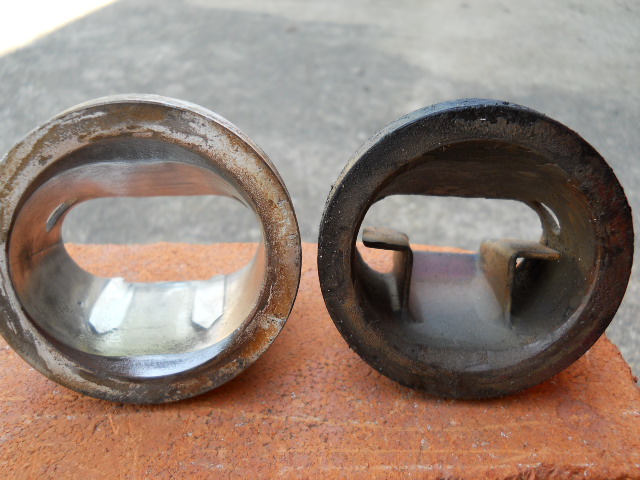

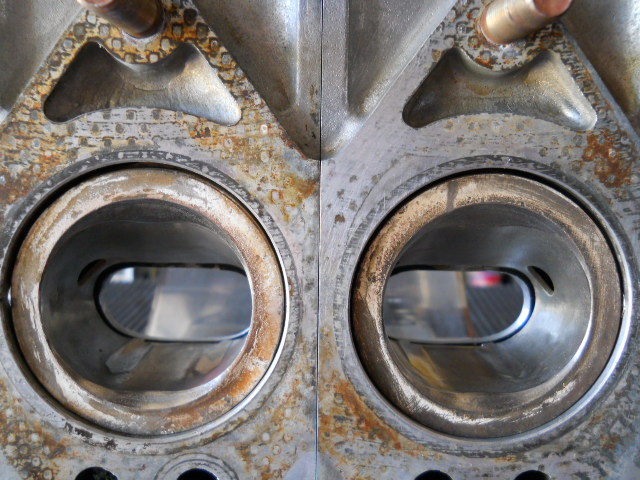

well i got the plasma cutter out and got to cutting and grinding, sanding. about 4 hours later, they look pretty good. (good enough for the ****** I go out with) I can post pictures tomorrow.
04-16-11, 09:49 PM
#16
MECP Certified Installer
Did you actually port them or just remove the diffuser?
04-17-11, 02:57 AM
#17
To answer your question, yes, there are people who run without them. I don't know much else about the subject though. I do know personally I'm going to keep my turbo inserts (on my turbo motor). If I ever do anything else with them I would port/polish them. I also plan on keeping a turbo on the motor, so this really doesn't apply to me...
04-17-11, 10:43 AM
#20
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Sorry, let me clarify. I meant not to remove the sleeve. The diffuser I can't say for sure if there is any effect on power, but it certainly makes the car a crapload louder. Mazda's primary reason for including them seemed to be to cause a more gradual opening of the exhaust port to reduce noise.
04-17-11, 10:46 PM
#23
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
Assume you're using Turbo housing for N/A Engine, would street porting it :
- suck *** fuel economy (if its not the worst already, how much less mpg should I expect?)
- loud as f!@# (will it turn the car into a cop magnet ?)
- narrower power band ? (so only mid range rpm usable now ? or higher rpm ?)
Cuz Im thinking should I do a full street porting (intake & exhaust using Turbo housing)
- suck *** fuel economy (if its not the worst already, how much less mpg should I expect?)
- loud as f!@# (will it turn the car into a cop magnet ?)
- narrower power band ? (so only mid range rpm usable now ? or higher rpm ?)
Cuz Im thinking should I do a full street porting (intake & exhaust using Turbo housing)
-fuel economy. this is more dependent on pumping losses, free up the exhaust and MPG improves, and it doesn't seem to matter what port you have. my friend had a bridgeport 13B with a holley, and it got 26mpg, which is just as good as my old gsl-se with RB exhaust.
-on a turbo car it will make more noise from the intake. the other thing is a ported engine needs to have a freer flow exhaust, which is usually louder.
- again, using new parts, they usually make more power everywhere. mazda's papers show that you do trade off low end for top end, so maybe new rotors, irons, and rotor housings make up for it? my friends old mild port S5 t2 motor was great, with a 60-1 turbo it made more power @2000 than my stock port stock turbo car, we both ran the RB turbo back. he made 392@12psi
04-18-11, 10:32 AM
#25
every ported motor i've ever dealt with has been built from mostly NEW parts, and was also using some kind of tunable ecu/fuel control.
-fuel economy. this is more dependent on pumping losses, free up the exhaust and MPG improves, and it doesn't seem to matter what port you have. my friend had a bridgeport 13B with a holley, and it got 26mpg, which is just as good as my old gsl-se with RB exhaust.
-on a turbo car it will make more noise from the intake. the other thing is a ported engine needs to have a freer flow exhaust, which is usually louder.
- again, using new parts, they usually make more power everywhere. mazda's papers show that you do trade off low end for top end, so maybe new rotors, irons, and rotor housings make up for it? my friends old mild port S5 t2 motor was great, with a 60-1 turbo it made more power @2000 than my stock port stock turbo car, we both ran the RB turbo back. he made 392@12psi
-fuel economy. this is more dependent on pumping losses, free up the exhaust and MPG improves, and it doesn't seem to matter what port you have. my friend had a bridgeport 13B with a holley, and it got 26mpg, which is just as good as my old gsl-se with RB exhaust.
-on a turbo car it will make more noise from the intake. the other thing is a ported engine needs to have a freer flow exhaust, which is usually louder.
- again, using new parts, they usually make more power everywhere. mazda's papers show that you do trade off low end for top end, so maybe new rotors, irons, and rotor housings make up for it? my friends old mild port S5 t2 motor was great, with a 60-1 turbo it made more power @2000 than my stock port stock turbo car, we both ran the RB turbo back. he made 392@12psi
One more question tho, I wonder if Stock ECU/tune would be able to run Street ported engine, at least for a while.
Cuz some family issue came up and I don't think I will be "Free" to get it tune or change the ECU to some stage1/2 setup for a while. but I can still push it/drive it without blowing it up? probably worst mpg ?
