European spec bi-colored turn signals
#26
Former Moderator. RIP Icemark.
Originally posted by deltr0n`
what we need is the whole turn signal setup behind the lense.
what we need is the whole turn signal setup behind the lense.
Tap the ground of the extra 194 bulb socket into the black wire, and atttach the feed wire for your new 194 bulb socket to the cut red/black.
#32
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Aug 2001
Location: MI 48111
Posts: 982
Likes: 0
Received 0 Likes
on
0 Posts
You don't need to *make* a divider. Once you have the assembly out you'll see. The reflector for the lens is long enough that you have to give it a little bend and that's what is used for the divider.
#33
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
WTF?! I wrote two big posts here last night and they're gone! Grrr... Oh well, here we go again...
Not quite right. The outer lense is clear, but the indicator section has a piece of transparent orange plastic glued behind it. Both the bulbs are just normal clear ones.
I removed the orange plastic with a screwdriver and replaced the indicator bulbs with orange ones. In my photos above you can see the bulb's reflection when viewed straight on but not when viewed at an angle.
There's no need to spend any money on JDM or Euro indicators when you can simply modify the housings as per Icemark's instructions above and use coloured bulbs.
Originally posted by Icemark
The S4 and S5 euro/Aus spec lenses are not bi-color. They are clear.
The reflection of the yellow bulb makes them look like there is two different colors in the plastic.
There really is not two different colors, according to everyone I have talked to in AUS and Europe about them. They are only clear with a yellow bulb on one side and a clear white bulb on the other.
The S4 and S5 euro/Aus spec lenses are not bi-color. They are clear.
The reflection of the yellow bulb makes them look like there is two different colors in the plastic.
There really is not two different colors, according to everyone I have talked to in AUS and Europe about them. They are only clear with a yellow bulb on one side and a clear white bulb on the other.
I removed the orange plastic with a screwdriver and replaced the indicator bulbs with orange ones. In my photos above you can see the bulb's reflection when viewed straight on but not when viewed at an angle.
There's no need to spend any money on JDM or Euro indicators when you can simply modify the housings as per Icemark's instructions above and use coloured bulbs.
#34
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally posted by jeremy
are those the j-spec ftp lights?
are those the j-spec ftp lights?
JDM cars don't have "flash-to-pass" lenses as such, but have an assembly with 5W front marker lights behind the lense. The headlights can't shine through them at all. When you flash the high beams with the headlights off they pop up and stay up until a couple of seconds after the last time they were flashed, then drop back down. For some reason this feature didn't work on my car. But since my car had the front marker lights with the indicators (see photo above), and the "FTP" lights weren't actually connected, I cut away the back of the housing leaving just the lense so they worked just like US ones.
#35
Moderator
iTrader: (7)
u guys are weird.....
Ya all want JDM or Euro parts and we here in Europe wants USDM parts...thats crazy ****....
Anyways....on our euro cars we got those S4 turn signals :
http://rx7cz.net/photos/works26/IMG_0128.JPG
Ya all want JDM or Euro parts and we here in Europe wants USDM parts...thats crazy ****....
Anyways....on our euro cars we got those S4 turn signals :
http://rx7cz.net/photos/works26/IMG_0128.JPG
#36
Former Moderator. RIP Icemark.
I had posted pictures... I guess when the sever crashed they got lost... I'll repost tonight.
Hey Jason, you send me a set of the Jspec turn signals and I'll send you a set of the US spec FTP
Hey Jason, you send me a set of the Jspec turn signals and I'll send you a set of the US spec FTP
#38
Former Moderator. RIP Icemark.

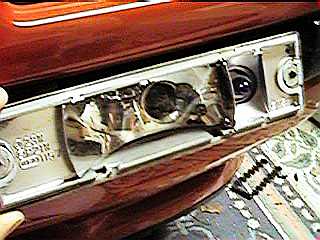

Light without lens.
Note the bent straight main reflector at the new bulb, and addional outboard bulb
Note the bent straight main reflector at the new bulb, and addional outboard bulb
Last edited by Icemark; 12-11-02 at 08:54 PM.
