Engine Bay Pics
#1
'86 N/A Phone Dials
Thread Starter
Join Date: Mar 2005
Location: Farmington, Minnesota
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Engine Bay Pics
I was bored so I went out and took these pictures. It's -4 degrees outside I think.

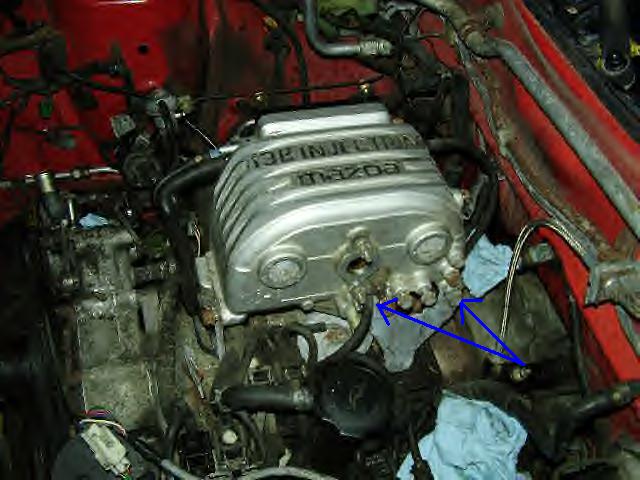

Here's the reason why I won't turn my engine on. The left bolt is busted in half and wont come out.
Until I get that figured out, i'm just gonna take as much of this car apart and clean and redo as much as I can this winter. So i went to take the UIM off, I have all the nuts and bolts out, and this side of the UIM just wont budge, (the nut is off).
And here are just some more shots for no particular reason.
Here's the reason why I won't turn my engine on. The left bolt is busted in half and wont come out.
Until I get that figured out, i'm just gonna take as much of this car apart and clean and redo as much as I can this winter. So i went to take the UIM off, I have all the nuts and bolts out, and this side of the UIM just wont budge, (the nut is off).
And here are just some more shots for no particular reason.
#2
kinda looks like mine. All today i spent hunting down vac leaks. I still can't find the one that causes her to idle @ 2k. Might be the tps, but I haven't gotten to it yet. Also the turbo glows after a period of "idling". Also I am about to remove the air pump (split air pipe is off and all associated hoses). Good luck, and clean her up good!
#4
Make Money.
iTrader: (6)
Originally Posted by unW7WZ
kinda looks like mine. All today i spent hunting down vac leaks. I still can't find the one that causes her to idle @ 2k. Might be the tps, but I haven't gotten to it yet. Also the turbo glows after a period of "idling". Also I am about to remove the air pump (split air pipe is off and all associated hoses). Good luck, and clean her up good!
Having incorrect timing etc. can cause your turbo to glow from incorrect AFR's. Also, do you still the stock cat(s)? They can become pretty restrictive with age/deterioration, adding to your glowing turbo problem.
#5
'86 N/A Phone Dials
Thread Starter
Join Date: Mar 2005
Location: Farmington, Minnesota
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Alex6969
that fan shroud makes an exalent self i must say, i love it
Yeah, i'm pretty sure I have a vacuum leak, and/or bad secondary injector. When I test my O2 sensor, it responds to a throttle snap in under 30ms, but when it's held constant, the O2 sensor puts out a Voltage of .07V. If i gas the intake with propane I can get it to jump up to .85V, but then it goes down immediately.
Also, when I just sit there, hold the clutch in and rev the engine, it's smooth as butter in the 3k-3.5k range, but then above that it's really rough, feels like it's out of balance or something. The thing is, it races up to redline no problem, does the same thing under load when i'm WOT accelerating in any gear.
I'll get a pic of my Secondary injectors up, they look different. They are the same injector, but it looks like they have had different work out programs their whole life you know what I mean? I'm gonna flow test them at school to see their spray pattern, maybe get them cleaned too.
Trending Topics
#8
The Silver Bullet
Join Date: Mar 2004
Location: Kansas City/Springfield, MO
Posts: 864
Likes: 0
Received 0 Likes
on
0 Posts
if yours is an 86 it over by the driver side strut tower, right behind the coil pack. not the best place for hot coolant to be. and there's no purge on it, its just a bottle with a top and the line to the rad.
#10
Full Member
iTrader: (1)
Originally Posted by Alex6969
if yours is an 86 it over by the driver side strut tower, right behind the coil pack. not the best place for hot coolant to be. and there's no purge on it, its just a bottle with a top and the line to the rad.
#14
Rx-hippie
iTrader: (1)
Join Date: Sep 2003
Location: Torrance CA
Posts: 2,076
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Needa13b
So i went to take the UIM off, I have all the nuts and bolts out, and this side of the UIM just wont budge, (the nut is off.
This might be a reason why your intake manifold won't come off.]
This might be a reason why your intake manifold won't come off.]
Not sure if thats it.. as I don't have a S4 n/a.. but i know on the S5 N/A it has two bolts holding the manfold down by the VDI. But seems like is holding it down from the picture.. hope that helps
#15
Banned. I got OWNED!!!
iTrader: (11)
that exact bolt has broken on 3 of my s4 motors. its an easy fix though. like mentioned before just drill it out and tap to the next biggest size or go all the way through with a nut on the other side. i dont trust helicoil.
and after 2 years and 4 months i finally hit 400 posts. feel like such a dirty *****.
and after 2 years and 4 months i finally hit 400 posts. feel like such a dirty *****.
#16
Junior Member
iTrader: (34)
Join Date: Nov 2004
Location: AZ
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
your intake could be being held down by the rats nest. there is a small 10mm bolt on the left side of the UIM. if you put your hand where the last of the four nuts on the left side are, then move it off the side and you should find it. hope all that makes sense.
#17
'86 N/A Phone Dials
Thread Starter
Join Date: Mar 2005
Location: Farmington, Minnesota
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trainwreck517
Not sure if thats it.. as I don't have a S4 n/a.. but i know on the S5 N/A it has two bolts holding the manfold down by the VDI. But seems like is holding it down from the picture.. hope that helps
#18
'86 N/A Phone Dials
Thread Starter
Join Date: Mar 2005
Location: Farmington, Minnesota
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dregg100
your intake could be being held down by the rats nest. there is a small 10mm bolt on the left side of the UIM. if you put your hand where the last of the four nuts on the left side are, then move it off the side and you should find it. hope all that makes sense.
#19
'86 N/A Phone Dials
Thread Starter
Join Date: Mar 2005
Location: Farmington, Minnesota
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Now the bolt on the far left of the UIM is in there solid, the nut came off though, so there should be nothing holding the UIM in place other than rust/gasket stuff? This is such a pain, and I haven't been out in the garage for a while during this cold snap, now it's warm but I'm no where near my car.
#20
Senior Member
Join Date: Nov 2005
Location: united states
Posts: 541
Likes: 0
Received 0 Likes
on
0 Posts
umm i dunno if youve gotten this off yet but you uim should be held to the lower intake manifold by 5 bolts/nuts. 2 in front two on the sides and 1 in the back you should take that off then remove the dynamik chamber. The dynamik chamber has 2 screws that go throw the UIM(if thats the name for it) that are much easier to get at when its removed
#22
Senior Member
iTrader: (1)
Join Date: Dec 2004
Location: Indianapolis
Posts: 529
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by iceblue
Use vice grips to get the bolt out its sticking up enough. Or a screw exsctractor, Or drill and heli coil it.
Here my engin bay :-D
Here my engin bay :-D
uh oh... someone is about to have a blingin engine bay.
how long did it take to close up all those holes?
#24
Passing life by
^ close a little longer. About 20 per hole weld. Some holes required metal to be placed behind. Grinding took about 15 to 40 per hole depending on how large the held got and waiting on my compressor ;-). It took 2 days to convert to RHD and 2 more to smooth the engin bay.
#25
'86 N/A Phone Dials
Thread Starter
Join Date: Mar 2005
Location: Farmington, Minnesota
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Phantomkid
umm i dunno if youve gotten this off yet but you uim should be held to the lower intake manifold by 5 bolts/nuts. 2 in front two on the sides and 1 in the back you should take that off then remove the dynamik chamber. The dynamik chamber has 2 screws that go throw the UIM(if thats the name for it) that are much easier to get at when its removed
Originally Posted by White87FC
Hey, are these out as well?
If all the nuts and bolts are loose, a quick whack with a rubber mallet should have the UIM off quickly.
Oh, and is your wiper motor blue?
If all the nuts and bolts are loose, a quick whack with a rubber mallet should have the UIM off quickly.
Oh, and is your wiper motor blue?
And yes, my wiper motor is blue. The guy I bought it from said it was rebuilt, and you can see it was spray painted if you look real close.
