emissions removal vac line question HELP ASAP PICS

What do i do with the five solenoid valves when i remove these vac lines im pretty sure I have to keep the twin scroll turbocharger solenoid valve (1)

also the switching actuator has a vac line that goes into the vac line what happens with that
Attached Files
File Type: pdf
vac .pdf (81.2 KB, 105 views)
File Type: pdf
vac1.pdf (81.2 KB, 95 views)
Old 10-19-09, 09:07 PM
  #2
lite rotary = easy push

Thread Starter
iTrader: (1)

barnett87rx7's Avatar

Join Date: Mar 2009
Location: Whitby
Posts: 1,385
Likes: 0
Received 0 Likes on 0 Posts
somebody please help
Old 10-19-09, 11:54 PM
  #3
lite rotary = easy push

Thread Starter
iTrader: (1)

barnett87rx7's Avatar

Join Date: Mar 2009
Location: Whitby
Posts: 1,385
Likes: 0
Received 0 Likes on 0 Posts
no body?
Old 10-20-09, 12:51 AM
  #4
Full Member


Gaber's Avatar

Join Date: Mar 2006
Location: Europe
Posts: 133
Likes: 0
Received 0 Likes on 0 Posts
You can remove twin scroll turbocharger solenoid valve...


https://www.rx7club.com/2nd-generation-specific-1986-1992-17/pic-request-emission-removal-s4-tii-836091/#post9185243
Old 10-20-09, 12:11 PM
  #5
lite rotary = easy push

Thread Starter
iTrader: (1)

barnett87rx7's Avatar

Join Date: Mar 2009
Location: Whitby
Posts: 1,385
Likes: 0
Received 0 Likes on 0 Posts

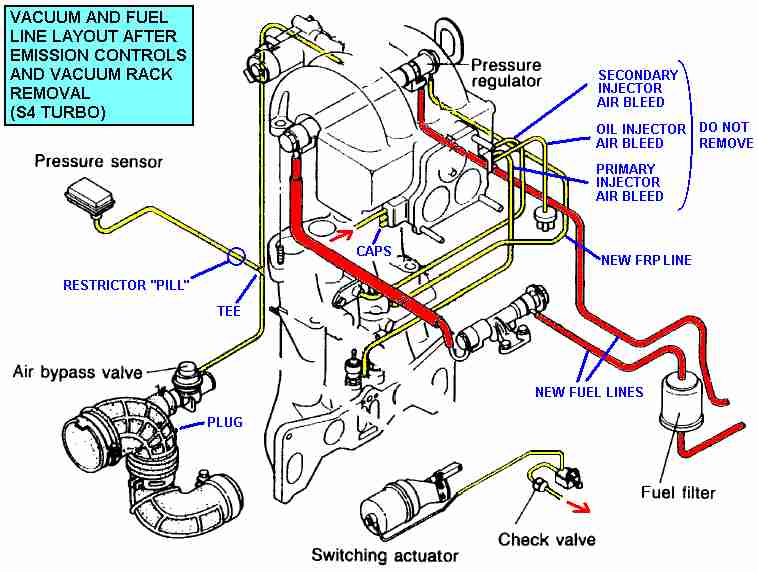

in this diagram it shows keeping the vac lines from the LIM to the back of the UIM are these necessary?
Attached Thumbnails emissions removal vac line question HELP ASAP PICS-s4-turbo-emissions-removal.jpg
Old 10-20-09, 12:52 PM
  #6
1308ccs of awesome

iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,189
Received 17 Likes on 15 Posts
Originally Posted by barnett87rx7
in this diagram it shows keeping the vac lines from the LIM to the back of the UIM are these necessary?
the picture says right in it "do not remove" so yes

they're the injector bleeds. you can remove the oil injector air bleeds if you got rid of your OMP (and are premixing)

you also have to keep the fuel pressure regulator vacuum line.
Old 10-20-09, 01:03 PM
  #7
lite rotary = easy push

Thread Starter
iTrader: (1)

barnett87rx7's Avatar

Join Date: Mar 2009
Location: Whitby
Posts: 1,385
Likes: 0
Received 0 Likes on 0 Posts
yah I have already removed my omp and i have an aftermarket fpr but i was wondering because the rotary ressurection write up blocks those nipples off so I was just wondering which was correct or which was better?
Old 10-20-09, 01:23 PM
  #8
1308ccs of awesome

iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,189
Received 17 Likes on 15 Posts
Originally Posted by barnett87rx7
yah I have already removed my omp and i have an aftermarket fpr but i was wondering because the rotary ressurection write up blocks those nipples off so I was just wondering which was correct or which was better?
the rotary resurrection write up is wrong. Keep the fuel injector bleeds, they're there for a reason and are not emissions related.
Old 10-20-09, 02:37 PM
  #9
lite rotary = easy push

Thread Starter
iTrader: (1)

barnett87rx7's Avatar

Join Date: Mar 2009
Location: Whitby
Posts: 1,385
Likes: 0
Received 0 Likes on 0 Posts
ok thanks alot
