electrical short (15A illum fuse)
#1
electrical short (15A illum fuse)
hey guys my 91 GXL keeps blowing my 15amp "illum" fuse... so all my gauges, parking lights, etc go out and i cant drive at night :-(
my question is have any of you had this problem? its not the infamous "headlight switch plug" and i even resoldered the headlight switch to no avail. i am hoping that a few people have had this happen so i can know where to start looking for the short. thanks
my question is have any of you had this problem? its not the infamous "headlight switch plug" and i even resoldered the headlight switch to no avail. i am hoping that a few people have had this happen so i can know where to start looking for the short. thanks
#2
omg i am going to punch babies if i dont find this short. i turned the e-fan off and the headlights off and the fuse still blew while driving. i dont have enough 15A fuses or enough time to unplug each light one at a time until i find the one that has the short...
Last edited by jacobcartmill; 07-28-03 at 08:16 PM.
#6
I had the same problem a few months ago. turned out to be a short behind my radio. I think it had something to do with the cig lighter. Theres a few connectors under the steering column. I think one is blue and the other is green. dissconecting them will split the wiring of that circuit in half.
goodluck
goodluck
Trending Topics
#8
Junior Member
Join Date: Nov 2004
Location: Thunder Bay
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
K im restarting this thread...having the EXACT same problem. I was driving around last year and all of a sudden my lights all went out ...idiot cluster lighting, marker lights etc. I put a fuse in and it immedietly pops...this has to be a problem with these cars if 3 of us have teh same problem. Who figured it out???
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The Illunination fuse has nothing to do with headlights.
Illumination fuse blows because there is a short iin the interior or front/rear side lighting or the plug AT the headlight switch is burnt up on the power wire there....green/white power wire I think.
To finger out what is wrong on a seires four, you pull that plug off the headlight switch. Then you get a piece of wire bare at each end. Put one end into the green/white socket on the elect plug. Then, with a brand new fuse, put the other end into the R/G socket/wire.

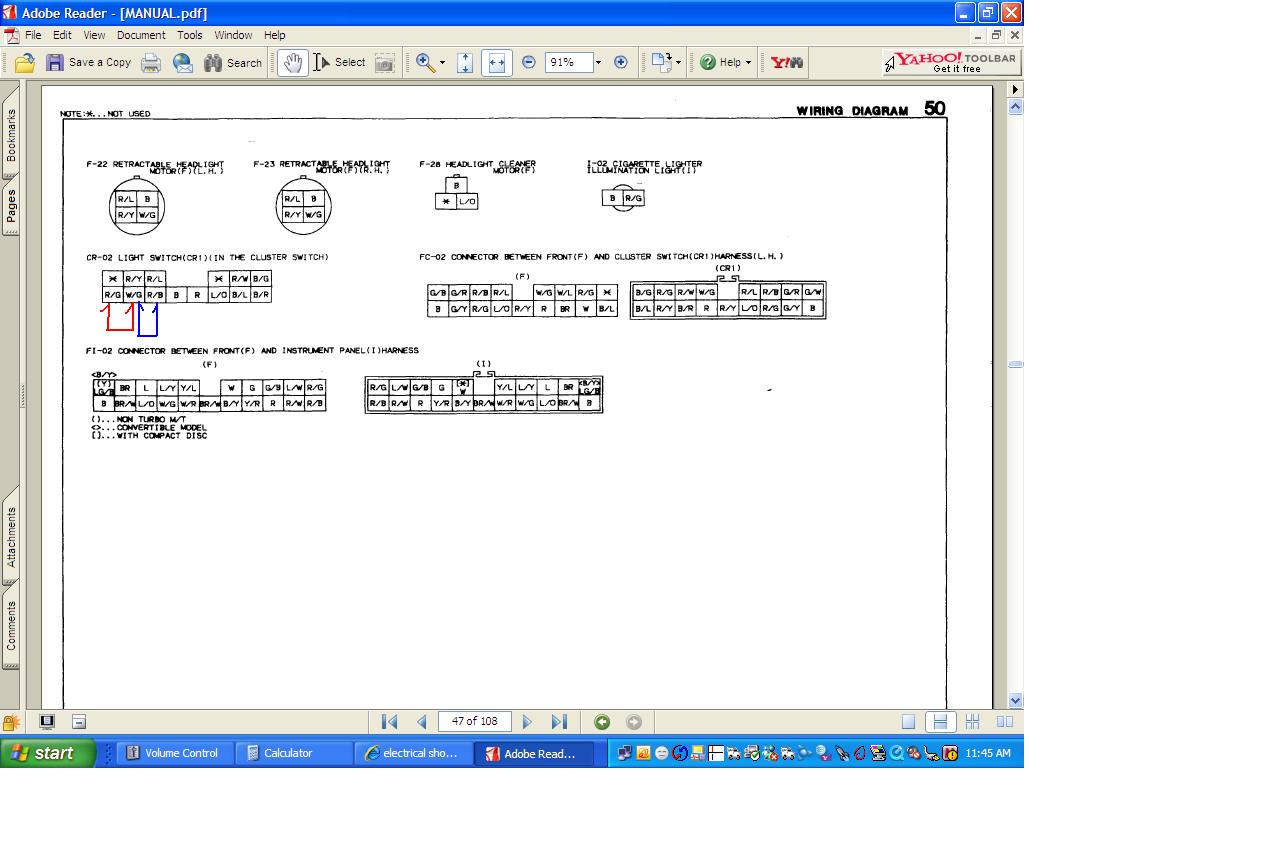

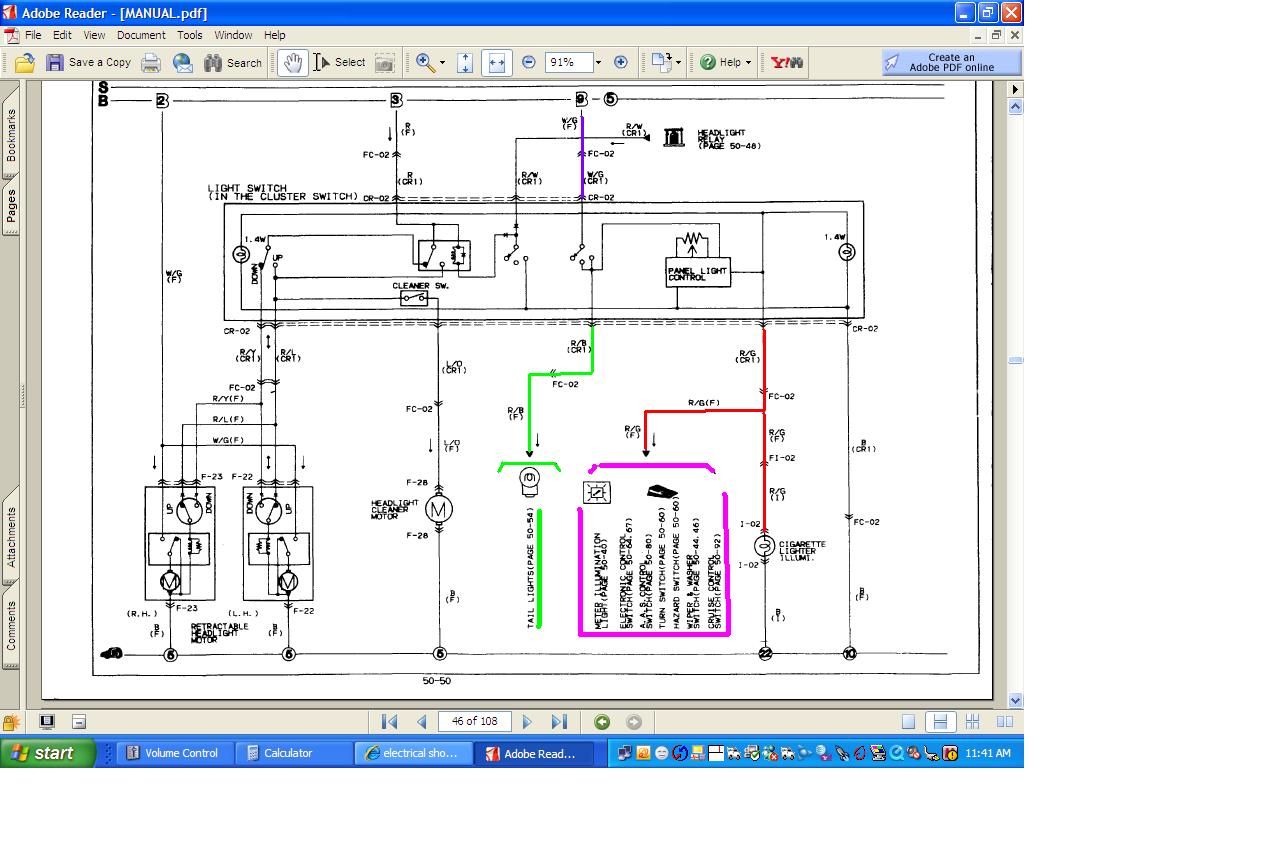

If the fuse blows doing that, then the problem is with one of the items listed in the attached jpg.
