EGR only in rear rotor?

Thread Tools

Search this Thread

Old 08-06-08, 05:41 PM
  #1
Weight Watcher

Thread Starter

Malefoda's Avatar

Join Date: Aug 2007
Location: France
Posts: 183
Likes: 0
Received 0 Likes on 0 Posts
EGR only in rear rotor?

Hi,
just confirm me if the EGR does only work the rear rotor, wich is " half housework " done for me : they do it fully or they don't, just find that strange...

Thanks.
Matthieu
Old 08-06-08, 06:13 PM
  #2
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts

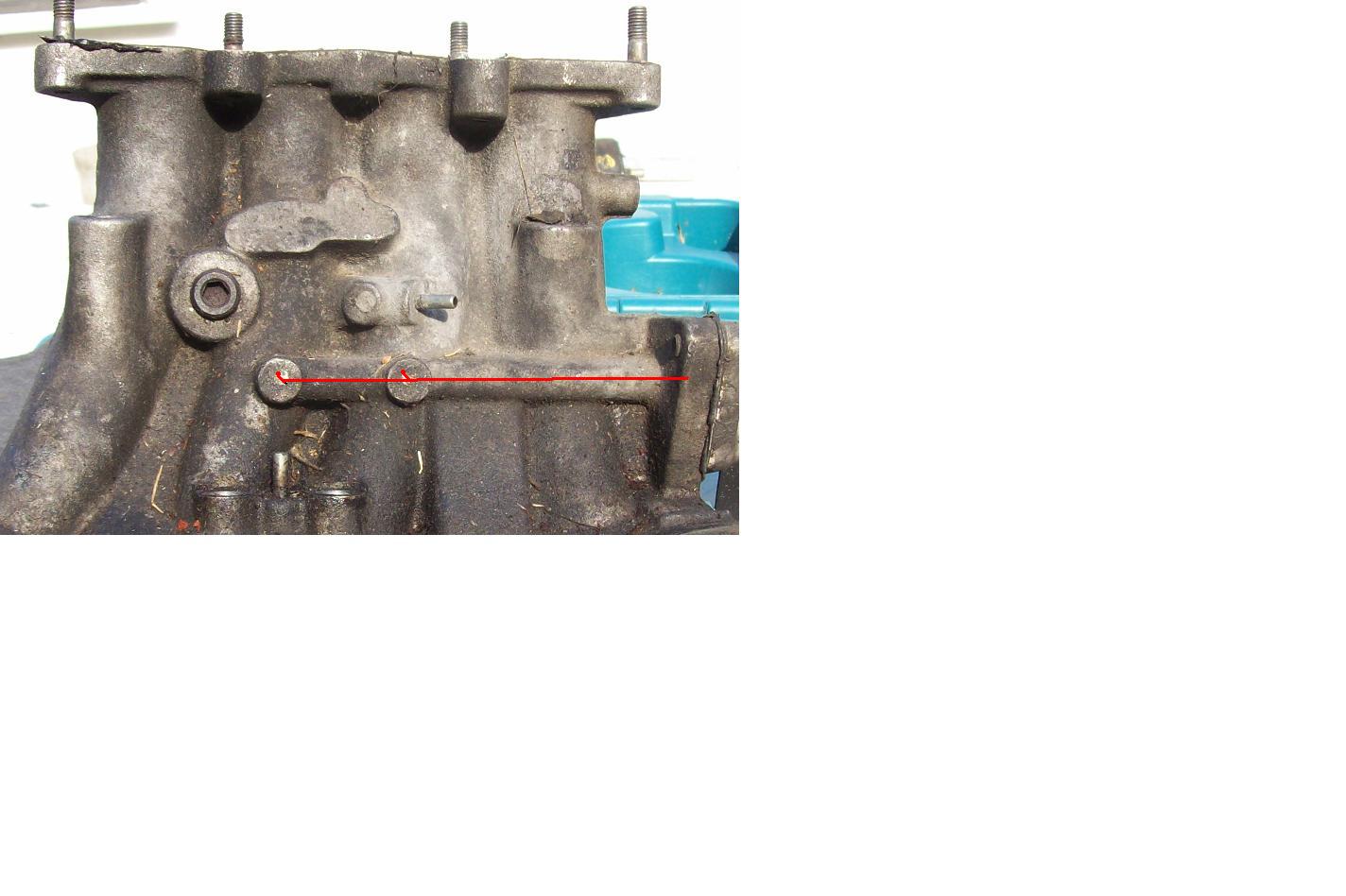

No. It feeds exhaust gas to both primary runners thru a internal path shown in the attached jpg.
Attached Thumbnails EGR only in rear rotor?-egrtwo.jpg
Old 08-06-08, 06:18 PM
  #3
Rotary Enthusiast
iTrader: (18)

Texas_Ace's Avatar

Join Date: May 2008
Location: Texas BABY!
Posts: 1,150
Likes: 0
Received 0 Likes on 0 Posts
Along these liness, i have heard a BB in the right hose will disable the EGR system, is this true?
Old 08-06-08, 06:23 PM
  #4
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
Just remove it's vacuum line should do it. Or block it's vacuum line with??? whatever. Or remove the EGR and put a flat piece of sheet metal b/t the EGR and the manifold should do it. Gaskets on both sides.
Old 08-06-08, 07:13 PM
  #5
Rotary Enthusiast
iTrader: (18)

Texas_Ace's Avatar

Join Date: May 2008
Location: Texas BABY!
Posts: 1,150
Likes: 0
Received 0 Likes on 0 Posts
Yeah, i want to be able ot reenable it though when i have it inspected, so if there is a way to just disable it temporaily then that is what i want. So i assume that the hose that goes to the valve on the top of the engine is the one i need to remove/block off?

Also, does nyone know what kind of HP gain disabling the EGR gives you?
Old 08-06-08, 11:00 PM
  #6
Turbo power, activate!

iTrader: (7)

Black Knight RX7 FC3S's Avatar

Join Date: Nov 2002
Location: Philadelphia
Posts: 1,708
Received 5 Likes on 5 Posts
basically none for horsepower gain.
Old 08-07-08, 11:39 AM
  #7
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
Originally Posted by Texas_Ace
Yeah, i want to be able ot reenable it though when i have it inspected, so if there is a way to just disable it temporaily then that is what i want. So i assume that the hose that goes to the valve on the top of the engine is the one i need to remove/block off?

Also, does nyone know what kind of HP gain disabling the EGR gives you?
Yes. Block the vacuum line that goes to the EGR. Not the EGR nipple.
Old 08-07-08, 12:56 PM
  #8
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes on 1,848 Posts
Originally Posted by Texas_Ace
Yeah, i want to be able ot reenable it though when i have it inspected, so if there is a way to just disable it temporaily then that is what i want. So i assume that the hose that goes to the valve on the top of the engine is the one i need to remove/block off?

Also, does nyone know what kind of HP gain disabling the EGR gives you?
just due to the nature of the rotary engine there is a lot of exhaust gas in the engine anyways at idle, the egr valve basically doesnt do anything.

hp gain would be 0.
