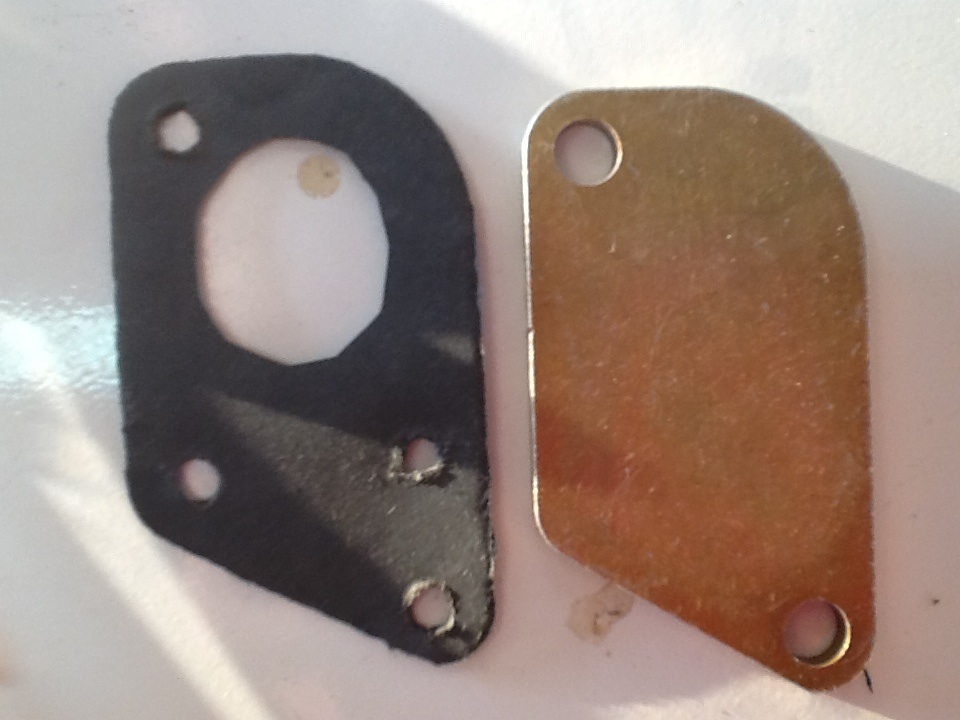

I made a egr block off gasket... I will be using the orange high temp silicone too on both sides.. Will my gasket work?



Another



And I mean work as in the holes for the egr holes... I wasn't sure if I covered them that vacuum or something would suck the gasket



Yea I see no reason it wouldn't work.

I used black rtv on mine and I haven't had an issue so far (8,000miles).



Thank you mr goodnight for the response. I will put it together now



If you use a gasket, I do not see why you would also need to use rtv. There isn't rtv there from the factory.



The RTV is just in case my home made gasket fails... Plus it's a little on the thin side.

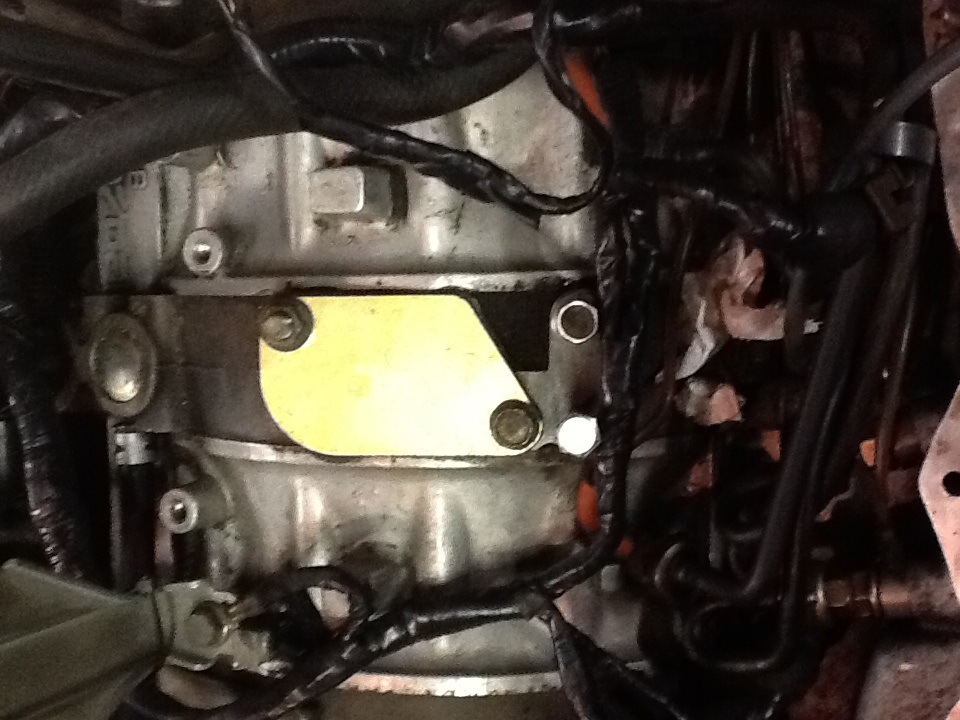

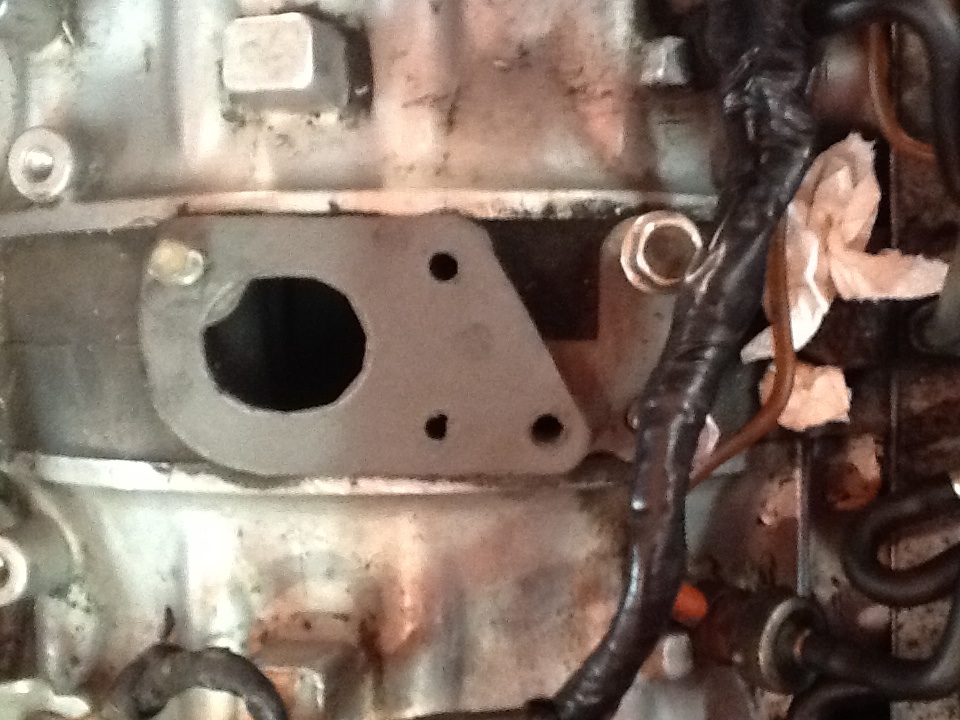

Pics of it done.. Just to finish off my thread.



because block off plates always warp when bolted down, even the thickest stamped steel ones always leak to some degree. i always use silicone on block off plates if you want the best results, regardless of the mess to clean up if you need to revert it, it's the price you pay.

the worst were some tin sheets with just a gasket, may as well have not put anything on there...
