ECU pin-out
I'm looking for the pinout voltages for my S4T2. I searched but haven't had any success.

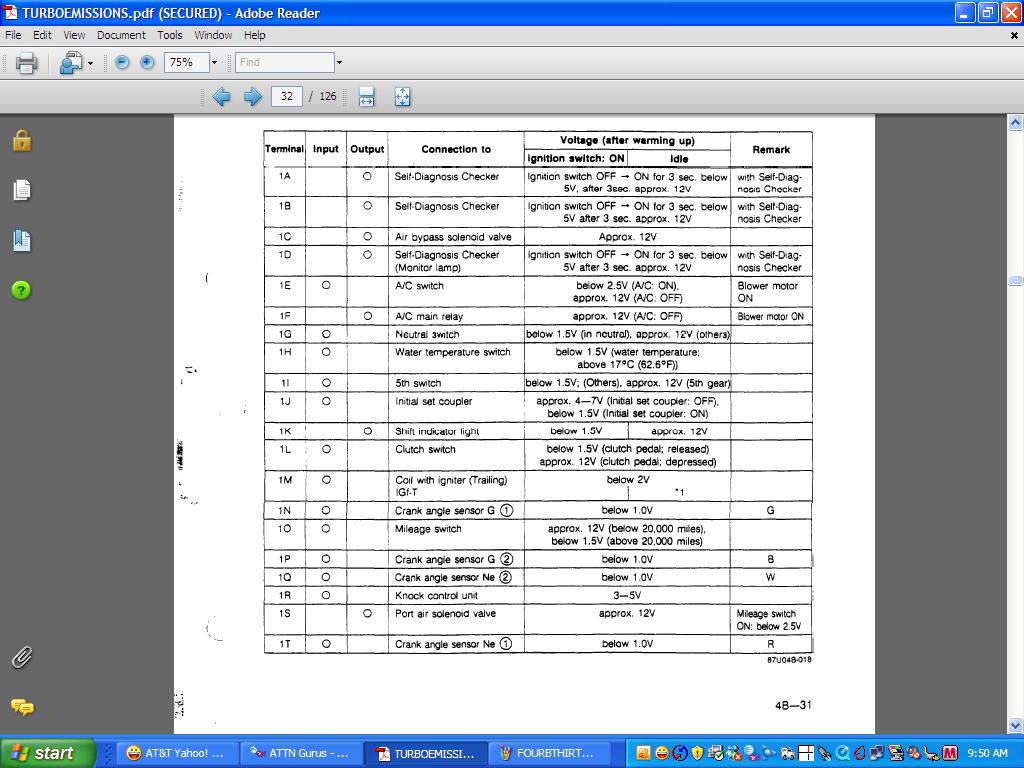

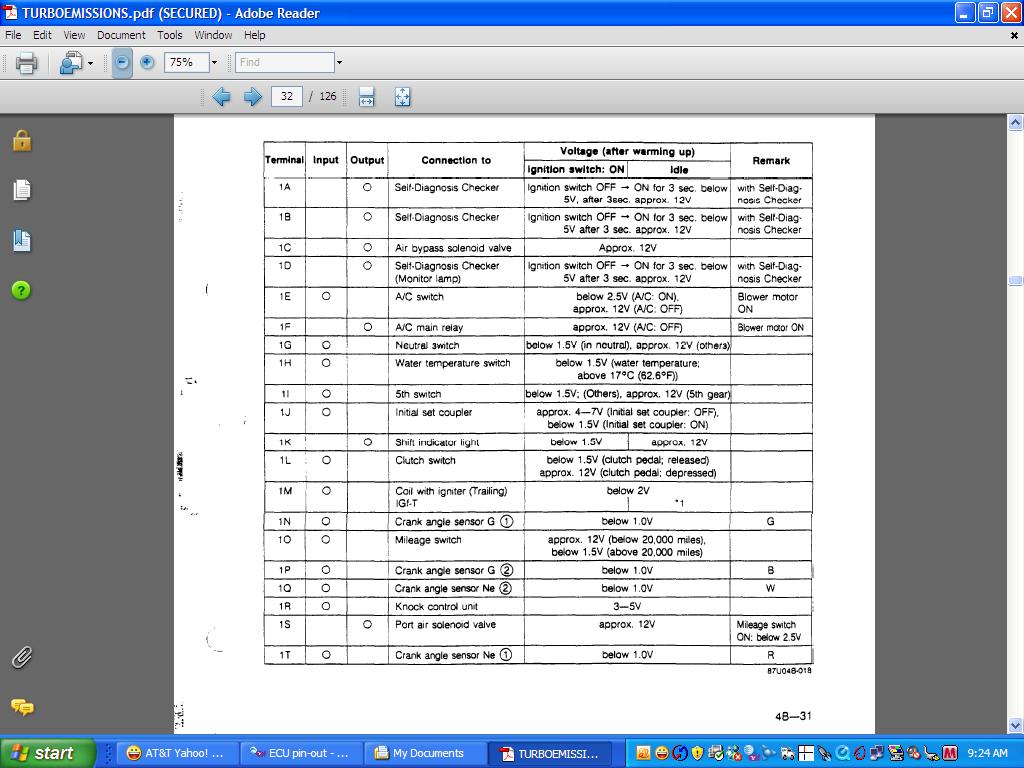

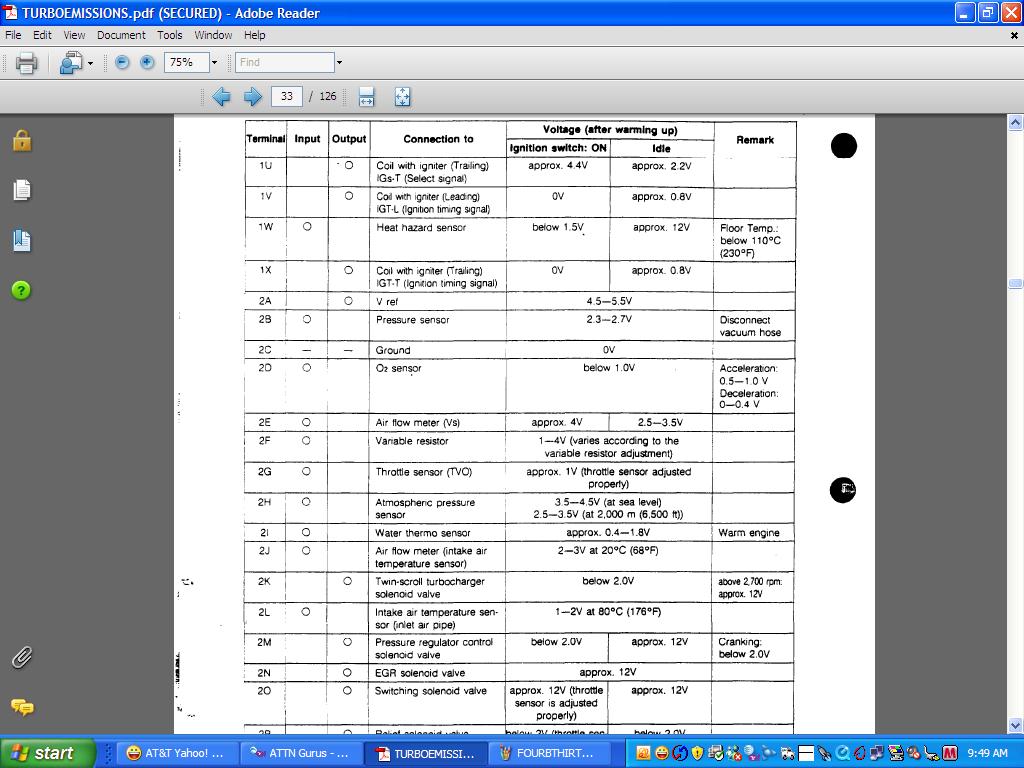

I found a chart in the FSM, page 4B-31. Can I use the voltages listed there?
I found a chart in the FSM, page 4B-31. Can I use the voltages listed there?
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Yeah. You can unbolt the ECU from its bracket and tilt it up so you can access the three plugs easier. The ECU does not need to be grounded itself.
I use one of the studs that holds the ECU to the bracket for the ground lead of the meter. Then, with all plugs connected up to the ECU and all other plugs on the car connected, turn the key to ON (or idle if required) and backprobe each wire. Then compare to the pages in the FSM.

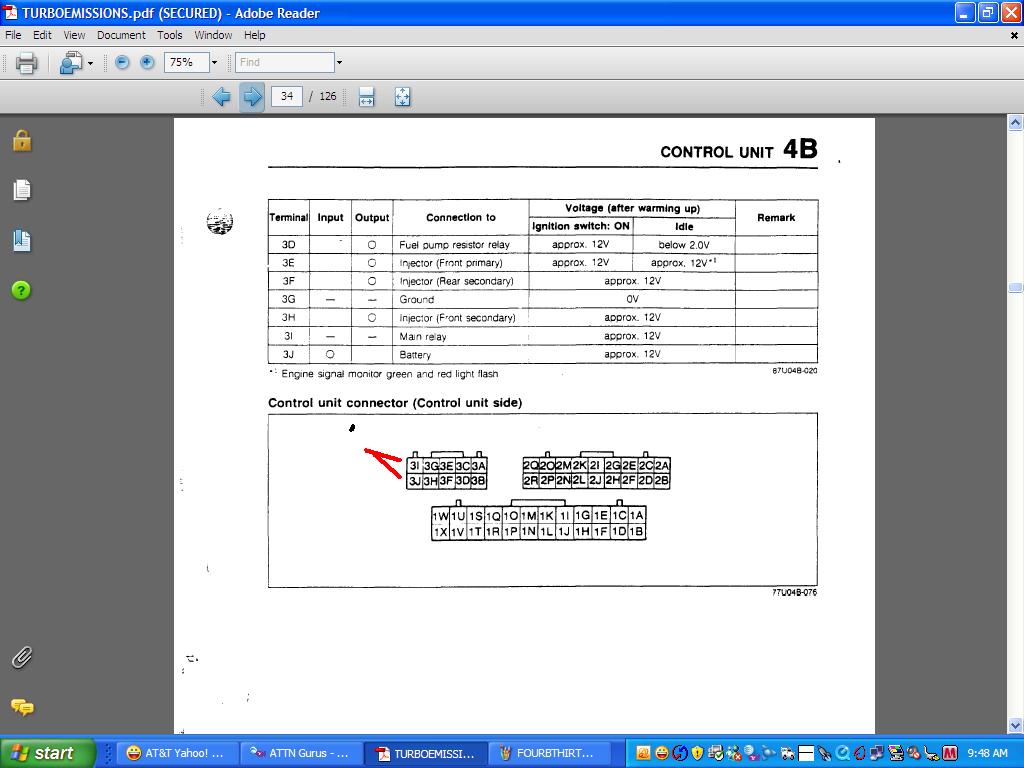

The pinouts are from looking into the WIRE end of the plug and reading from right to left in a up/down fashion.
I use one of the studs that holds the ECU to the bracket for the ground lead of the meter. Then, with all plugs connected up to the ECU and all other plugs on the car connected, turn the key to ON (or idle if required) and backprobe each wire. Then compare to the pages in the FSM.
The pinouts are from looking into the WIRE end of the plug and reading from right to left in a up/down fashion.
#7
1990 T2
Thread Starter
iTrader: (2)
Join Date: Aug 2006
Location: Weirton WV
Posts: 437
Likes: 0
Received 0 Likes
on
0 Posts
Great. Thanks for the info. My rebuild has about 800 miles on it and it still won't re-start after warming up. I'll give it a little longer but the rebuild I did last year, on an S4 NA, started right after warm-up.
Anyway........ thanks
Anyway........ thanks
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Then again, it could be something else.
