ECU Ground?
04-26-09, 01:39 AM
#1
'87 TII rx7
Thread Starter
iTrader: (1)
Join Date: Feb 2009
Location: Santa Ana, Southern Cali
Posts: 316
Likes: 0
Received 0 Likes
on
0 Posts
ECU Ground?
was checking the grounds and saw this one. correct me if im wrong, is it the ECU ground? http://s549.photobucket.com/albums/i...t=DSCN1607.flv
04-26-09, 11:42 AM
#4
I fix planes...
Join Date: Jan 2004
Location: Murica
Posts: 559
Likes: 0
Received 0 Likes
on
0 Posts
actually from the looks of it that looks like the ground that goes from the firewall to the bellhousing. Just to be sure can you see if it runs to the firewall? Also is there two black wires that connect to the ring connector.
04-26-09, 07:11 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

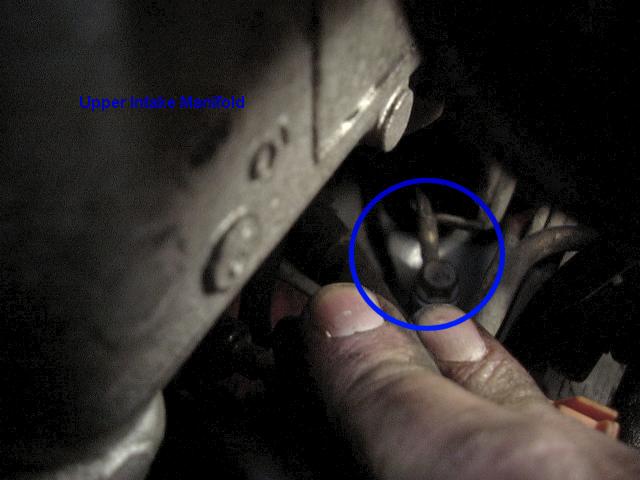

The ECU ground on a series four car is found on top of the rear rotor housing and cannot be seen without removing the upper intake. It is the two wires in the *ring* terminal shown in this picture attached. Those two wires go to the internals of the ECU via the EM harness.
The wire b/t the chassis and transmission is a bonding wire. Bonds the engine to the chassis. Talking the wire that is attached near the wiper motor to the transmisison.
The wire b/t the chassis and transmission is a bonding wire. Bonds the engine to the chassis. Talking the wire that is attached near the wiper motor to the transmisison.
04-27-09, 09:40 AM
#7
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
The ECU ground is unclear on my writeup?! Seriously? I had to disassemble a spare car to get a good picture, then ask the forum for pictures of S5 grounds. Is there any way I can improve the writeup, in your opinion? What part of it is unclear?
Trending Topics
04-27-09, 10:07 AM
#8
Aaron if I may make a small suggestion? I have seen this on several sites where individuals such as yourself provide a HUGE benefit to the community.
Basically you post a static image of semi-small size...and truth be told, yours are much better than the small pictures on the RR site. What would be great is if you installed a script such as lightbox so when an image is selected, a larger version appears.
If this interests you, I could take the time to help you with it. I hope you understand this is not bitching at all as I'm quite appreciative of your site...just something that might make it even better. =)
GG
Basically you post a static image of semi-small size...and truth be told, yours are much better than the small pictures on the RR site. What would be great is if you installed a script such as lightbox so when an image is selected, a larger version appears.
If this interests you, I could take the time to help you with it. I hope you understand this is not bitching at all as I'm quite appreciative of your site...just something that might make it even better. =)
GG
04-27-09, 01:32 PM
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The best I can tell, that is just a braided bonding strap going from the engine to?????????? NOT a ground for the ECU. Sorry, I have never looked at AARON CAKES site. I'll look today or ???
The picture I attached is most certainly the grounds for the internals of the ECU on a SERIES FOUR car. I own not a series five but know they are a bit different in the location(s).
Also I have no idea what series car you have. Was not stated on the thread.
************************************************** ************************************************** ************************************************** ********************
EDIT: I looked at Aaron Cakes site and can see why you are unsure about the ECU gnd on a series FOUR car. That picture looks more like a bonding strap than the ECU ground shown on my jpg and Cakes second picuture of a series FIVE ECU ground. I'd suggest removing that first picture and replacing it (the one showing the series four ECU ground).
Other than that his site looks like something I could learn a thing or two about. One suggestion is to show how to check voltage drop b/t the *B* terminal of the alternator and the positive post of the battery with the meter on volts dc. One lead on the alt B post and the other lead on the battery positve post. Then with the meter still on dcvolts ..one lead on the chassis of the alternator and the other on the negative post of the battery. If memory serves the voltage in both case shouldn't be over 0.02 vdc (memory). If it's a lot higher it indicates a bad connection b/t thealt and battery and or a bad connection of the alternators case to the engine and or engine to chassis. Something like that. I ain't no electrical sparky. Just a tire kicker.
And maybe a honorable mention that there are a number of wires internal to the harness that are mechanically crimped together. Like the brown/black wires that are ref voltage to the sensors in the engine bay. They all are crimped to each other somewhere in that harness and terminate at the ECU (pin 2A?). So I'm saying some of those crimps might be why a few cars out there have hesitation problem in transitioning to
the secondary injectors.
EDIT: See the following site and go half way down the page where you see the words VOLTAGE DROP. http://www.aa1car.com/library/charging_checks.htm That is what I was trying to describe earlier.
04-27-09, 01:59 PM
#14
They live We sleep
iTrader: (1)
Join Date: Feb 2009
Location: Dot Island
Posts: 919
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the writeup. Clear to me. I Found the photos very helpful. Also big. However If someone cant figure out how to copy and save the photo and make it even bigger. Thats there problem
04-27-09, 05:56 PM
#19
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
His site does NOT depict the ground #24 for the SERIES FOUR ECU ground. It depicts *another thing*.
Ground #24 consists of two black wires on a ring terminal, that come from the EM harness and go to the ECU.
That's a bonding strap in his SERIES FOUR jpg, not the ECU grounds. His jpg of the SERIES FIVE motor shows the proper ECU grounds and is applicable to the series four as long as you leave off the second series five jpg.
I can type replys all day and night long. Piece of cake.
His series four jpg is too dark. The second jpg which is his series five ECU gnd is the same for the series four and if it were me I'd just chunk the first dark jpg and replace it with the second jpg attached.
FYI: I believe the second jpg is of a series four non turbo engine anyway. Not a series five engine. Has a blckoff plate over where the EGR was.
EDIT: Ah never mind. Both of those jpgs are of a series four. I'd still get rid of the first picture.
Ground #24 consists of two black wires on a ring terminal, that come from the EM harness and go to the ECU.
That's a bonding strap in his SERIES FOUR jpg, not the ECU grounds. His jpg of the SERIES FIVE motor shows the proper ECU grounds and is applicable to the series four as long as you leave off the second series five jpg.
I can type replys all day and night long. Piece of cake.
His series four jpg is too dark. The second jpg which is his series five ECU gnd is the same for the series four and if it were me I'd just chunk the first dark jpg and replace it with the second jpg attached.
FYI: I believe the second jpg is of a series four non turbo engine anyway. Not a series five engine. Has a blckoff plate over where the EGR was.
EDIT: Ah never mind. Both of those jpgs are of a series four. I'd still get rid of the first picture.
