Ecu... Elimination Round...
I am Cutting and sealing every unneeded,wire comming from the ecuto the inside of teh car and drivers side fenderwell, I am NOT cutting anything from the passenger side fenderwell, so i am only needing a cut list for the "LONG" connector..1A-1X. The motor is in an 85 gs. Here are the wiring pinouts. someone MS paint the sockets red I can eliminate and have the car run in stock form...thx..

trevor..

This oughta go well...

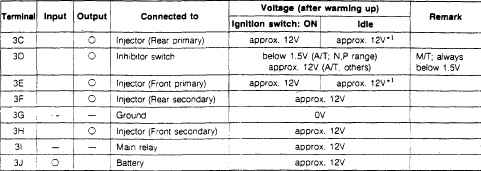

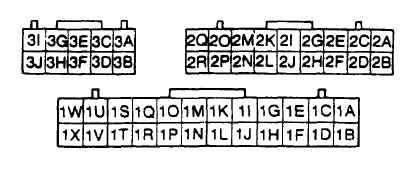

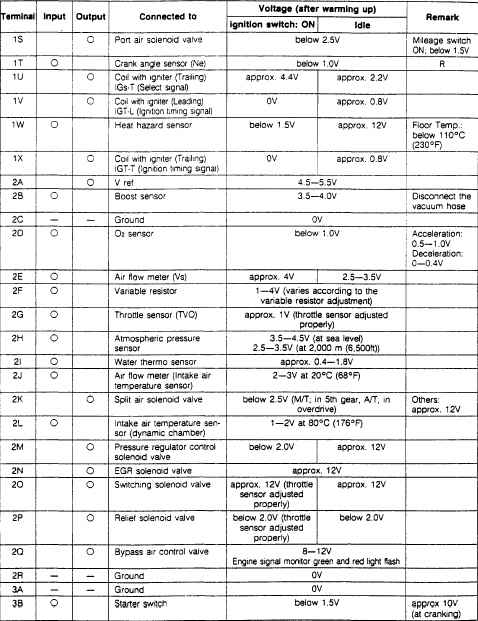

Attached Thumbnails Ecu... Elimination Round...-faqdiagnosing1.jpg   Ecu... Elimination Round...-faqdiagnosing2a.jpg   Ecu... Elimination Round...-faqdiagnosing2b.jpg   Ecu... Elimination Round...-faqdiagnosing2c.jpg
Last edited by RRTEC; 02-11-05 at 02:42 AM.
RRTEC is offline
Reply Like
Old 02-11-05, 11:42 AM
  #2
Rotartist

Thread Starter
iTrader: (13)

RRTEC's Avatar

Join Date: Sep 2003
Location: Spring Hill TN 37174
Posts: 7,252
Likes: 0
Received 2 Likes on 2 Posts
did it myself..... check out the link and let me know if i screwed up.
RRTEC is offline
Reply Like
Old 02-11-05, 11:43 AM
  #3
Rotartist

Thread Starter
iTrader: (13)

RRTEC's Avatar

Join Date: Sep 2003
Location: Spring Hill TN 37174
Posts: 7,252
Likes: 0
Received 2 Likes on 2 Posts
did it myself..... check out the link and let me know if i screwed up.

https://www.rx7club.com/showthread.p...45#post4024245
RRTEC is offline
Reply Like
Old 02-11-05, 02:35 PM
  #4
N/A is teh WIN!


onePOINTthree's Avatar

Join Date: Jan 2005
Location: Center of your palm, MI
Posts: 165
Likes: 0
Received 0 Likes on 0 Posts
thanks for the pics! i'll do this when i start doing my TII swap with no rats nest :bigtumb:
