E fans and the Interstate....how effective are they really?
#26
rotorhead
iTrader: (3)

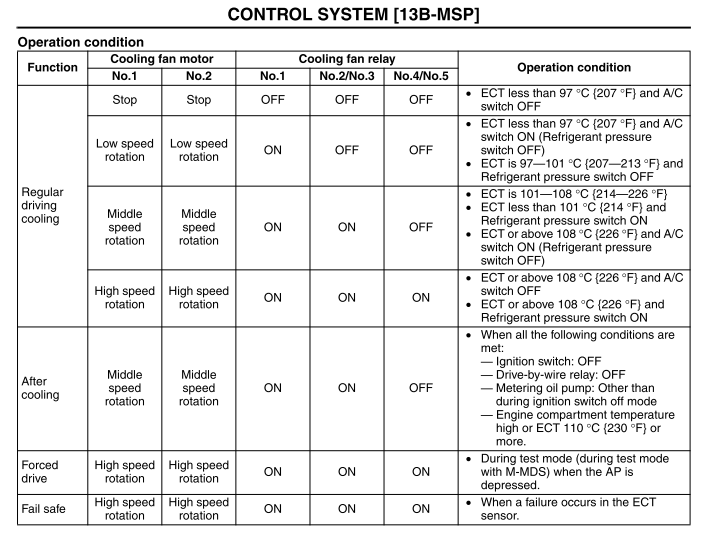

So I've been looking through the fan control tables I have on several 100% OEM applications. This is programming from OEM engineers on modern cars. 2009 Rx-8's don't slow down their electric fans as the engine speed increases. In fact, they don't have vehicle speed based logic at all. They have 3 speed fans based on A/C load and water temperature:

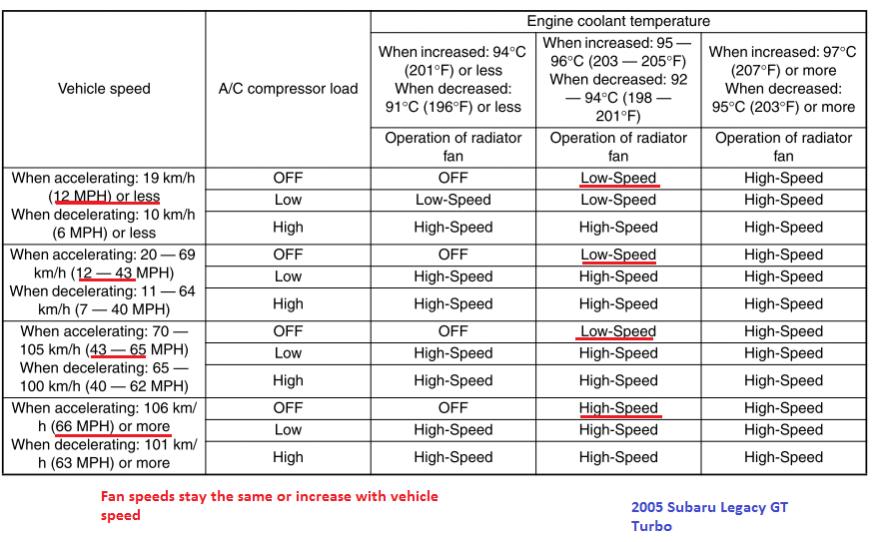

Subarus have two fans that can run at low or high speed. Subaru increases the speed of the fans as vehicle speed increases, but it isn't done on a smooth/continuous bases. Basically if the A/C is off the fans run at low speed until the car gets on the highway, where it will (counter-intuitively) increase the speed of the fans. The fan control table below is from a 2005 Subaru Legacy 2.5GT, the turbo model which has an engine sort of like the 2009 WRX. Subarus have factory top-mount intercoolers.
Finally, here are part of the fan control tables on a stock Evo 9. The Evo 9 has a smaller fan (labeled A/C fan) in front of the radiator as a "pusher." This fan is almost always running at full speed. The fan behind the radiator (the main "puller" fan) is duty controlled like the aftermarket Spal fan controller. It's like a clutch fan but better. This fan will run at lower duty cycle as vehicle speed increases, but only when engine water temp is below 100C/212F in the case of the A/C being deactivated. Remember that Evos have factory front-mount intercoolers.
Subarus have two fans that can run at low or high speed. Subaru increases the speed of the fans as vehicle speed increases, but it isn't done on a smooth/continuous bases. Basically if the A/C is off the fans run at low speed until the car gets on the highway, where it will (counter-intuitively) increase the speed of the fans. The fan control table below is from a 2005 Subaru Legacy 2.5GT, the turbo model which has an engine sort of like the 2009 WRX. Subarus have factory top-mount intercoolers.
Finally, here are part of the fan control tables on a stock Evo 9. The Evo 9 has a smaller fan (labeled A/C fan) in front of the radiator as a "pusher." This fan is almost always running at full speed. The fan behind the radiator (the main "puller" fan) is duty controlled like the aftermarket Spal fan controller. It's like a clutch fan but better. This fan will run at lower duty cycle as vehicle speed increases, but only when engine water temp is below 100C/212F in the case of the A/C being deactivated. Remember that Evos have factory front-mount intercoolers.
#27
Cake or Death?
iTrader: (2)
I'll admit I was partially seduced by the "efficiency of the Efan", the ability to run when needed, and and shut off when appropriate. Guess thats just a Canadian fairytale....(not a slight towards Canada, but a reference to temperate climates where just about any cooling solution will work)
My car has no cooling problems on our high altitude highways or the highways of the midwest (specifically Chicago...does that count as "not temperate"?).
I agree that the stock shroud is a wonderful thing but with the less-than-ideal shroud of the Taurus fan, I can feel air being pulled in the nose when the fan is on.
In other words, your experience is 180° different than mine.
#28
Rotary $ > AMG $
iTrader: (7)
I just re read the original post. I'll bet 5 forum bucks that at high speed the air is crawling right under the radiator like it is a wall, the electric fan can only draw air through the core in the area it covers and that may not be enough to cool the engine at the power level on the highway.
I don't understand your bet?
#29
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Anyone have an experience with this type of controller for a electric fan?
http://www.mikeszshop.com/auto_cool.html
http://losangeles.backpage.com/AutoP...rature/9999680
http://www.mikeszshop.com/auto_cool.html
http://losangeles.backpage.com/AutoP...rature/9999680
Rethinking what you said: The hub on my Taurus fan is pretty large. This is a design decision on part of the engineers. The reason for a large hub is as follows: there is little air moved by the blades in the center of a fan, most of the air is moved at the outer portion of the blade. Under high static pressure conditions, there is actually reverse airflow through the center of the fan. Thus the hub is made larger. This blocks the reverse flow but detracts very little from the capacity of the fan. Under high static pressure the fan is more effective. Could the hub of my Taurus fan be blocking some of the free airflow? Hmmm. Food for thought.
Is the GM fan a large hubbed fan or is it small hubbed?
Is the GM fan a large hubbed fan or is it small hubbed?
#30
rotorhead
iTrader: (3)
Properly installed electric fans work fine on the highway, and they are helpful for controlling temperatures. Just ask the people who configure OEM electric fans for a living.
#32
Rotary $ > AMG $
iTrader: (7)
If it's a "fairytale", it's a Colorado one, too.
My car has no cooling problems on our high altitude highways or the highways of the midwest (specifically Chicago...does that count as "not temperate"?).
I agree that the stock shroud is a wonderful thing but with the less-than-ideal shroud of the Taurus fan, I can feel air being pulled in the nose when the fan is on.
In other words, your experience is 180° different than mine.
My car has no cooling problems on our high altitude highways or the highways of the midwest (specifically Chicago...does that count as "not temperate"?).
I agree that the stock shroud is a wonderful thing but with the less-than-ideal shroud of the Taurus fan, I can feel air being pulled in the nose when the fan is on.
In other words, your experience is 180° different than mine.
OTOH, I really am pleased with my T-fan in all respects to cooling and A/C use. I have no complaints. I 'play too much' with things and have tried quite a few variations, including switch temp, switch location, radiator capacity, different fans etc.
Steve, we should all head out to Seven Stock and drive these cars in the same conditions!
#34
GET OFF MY LAWN
iTrader: (1)
When I raced a VW's years ago the stock radiator had a full shroud with the little doors on it. The doors are rubber and at high speed they are pushed out of the way of the opening they cover. When the fan kicks on they are sucked against the shroud from the negative pressure created by the fan from the resistance caused by the radiator core.
Something to think about, even on the street, I can cool a 250hp NA at all ambient temps and speeds above 35mph through a slot that is about 8"x24". It will stay cool at low power levels at a fast walking pace.
About the bet, I was just pulling my betting money out of my pocket even though you suggested I keep it in there
Last edited by jgrewe; 08-23-10 at 04:30 PM.
#35
Now this is what I'm talking about! I knew I wasn't crazy.
My problem is NOT overheating, as the fan controls the temps just fine while its on, i just wish it didn't need to be on all the time; from an effieciency stand point. Even if the stock fan is providing 25% of maximum flow when "disengaged" that is hardly the difference between
185* and 217*.
Additionally it seems we are well on our way to debunking the "glorious undertray" myth as well. Perhaps in race cars with no fans, no obstructions and no heat exchangers , that rely on ducting as their sole source of cooling it makes a significant difference, but this fan shroud /fan hub design issue seems to be the solution for street cars. (Remember w/ no tray on the stock fan/shroud setup it would barely break 180 in the city and 185 highway and that was WITH the a/c condenser, clearly an undertray is not neccessary for proper cooling)
Now about these flaps.... would it be more advantageous to have flaps that open, or full time vents like the shroud pictured above? I would imagine the flaps allow for better suction and only open when needed, but to do that would they need to be lightly spring loaded?
(edit): I saw you posted about the VW flaps right after I posted...
Once I get my a/c components cleaned and my o-rings come in I will be reinstalling the condenser, and adding a FMIC between the condeser and rad, so I'm trying to get this cooling issue sorted out before a quick blast from low speed won't be enough to bring the temps down.
thanks
My problem is NOT overheating, as the fan controls the temps just fine while its on, i just wish it didn't need to be on all the time; from an effieciency stand point. Even if the stock fan is providing 25% of maximum flow when "disengaged" that is hardly the difference between
185* and 217*.
Additionally it seems we are well on our way to debunking the "glorious undertray" myth as well. Perhaps in race cars with no fans, no obstructions and no heat exchangers , that rely on ducting as their sole source of cooling it makes a significant difference, but this fan shroud /fan hub design issue seems to be the solution for street cars. (Remember w/ no tray on the stock fan/shroud setup it would barely break 180 in the city and 185 highway and that was WITH the a/c condenser, clearly an undertray is not neccessary for proper cooling)
Now about these flaps.... would it be more advantageous to have flaps that open, or full time vents like the shroud pictured above? I would imagine the flaps allow for better suction and only open when needed, but to do that would they need to be lightly spring loaded?
(edit): I saw you posted about the VW flaps right after I posted...
Once I get my a/c components cleaned and my o-rings come in I will be reinstalling the condenser, and adding a FMIC between the condeser and rad, so I'm trying to get this cooling issue sorted out before a quick blast from low speed won't be enough to bring the temps down.
thanks
#36
Rotary $ > AMG $
iTrader: (7)
Thanks for the Pic Aaron. I don't think the center is that much smaller than the Taurus hub, maybe a little. I think there is not an issue with the hub size. Next time I am at the wrecker, I will check out a GM unit.
I also looked for a pic of my old Mark VII fan on the Griffin Rad but couldn't find it. The rad core is 19x20. The Mighty Mark VII was 18"+. I trimmed the shroud to fit the core, so there was very little shroud, just a little in the corners; it was pretty much wall to wall fan. Imagine about the same proportion as the GM pic posted except covering the entire core. The shroud was about 3" deep so there was plenty of clearance between the hub and the core.
There was plenty of free air space. There was no room for 'flaps'. That fan cooled exactly the same as the Taurus, ie worked fine, fine A/C needed to run when the car was on the highway in warm temps. I abandoned it because it was not a 2-speed fan-it was like running the Taurus fan on high speed only.
I also looked for a pic of my old Mark VII fan on the Griffin Rad but couldn't find it. The rad core is 19x20. The Mighty Mark VII was 18"+. I trimmed the shroud to fit the core, so there was very little shroud, just a little in the corners; it was pretty much wall to wall fan. Imagine about the same proportion as the GM pic posted except covering the entire core. The shroud was about 3" deep so there was plenty of clearance between the hub and the core.
There was plenty of free air space. There was no room for 'flaps'. That fan cooled exactly the same as the Taurus, ie worked fine, fine A/C needed to run when the car was on the highway in warm temps. I abandoned it because it was not a 2-speed fan-it was like running the Taurus fan on high speed only.
#37
FC guy
iTrader: (8)
arghx- the fan speed on my pontiac can be set for every temp and for percentage that the fans will be on, when we tuned the car we obviously set everything to come on sooner and at more speed, I guess similar to the EVO table you posted, but the settings were more all over the place then that
#38
Rotary $ > AMG $
iTrader: (7)
Now this is what I'm talking about! I knew I wasn't crazy.
My problem is NOT overheating, as the fan controls the temps just fine while its on, i just wish it didn't need to be on all the time; from an effieciency stand point. Even if the stock fan is providing 25% of maximum flow when "disengaged" that is hardly the difference between
185* and 217*.
Additionally it seems we are well on our way to debunking the "glorious undertray" myth as well. Perhaps in race cars with no fans, no obstructions and no heat exchangers , that rely on ducting as their sole source of cooling it makes a significant difference, but this fan shroud /fan hub design issue seems to be the solution for street cars. (Remember w/ no tray on the stock fan/shroud setup it would barely break 180 in the city and 185 highway and that was WITH the a/c condenser, clearly an undertray is not neccessary for proper cooling)
Now about these flaps.... would it be more advantageous to have flaps that open, or full time vents like the shroud pictured above? I would imagine the flaps allow for better suction and only open when needed, but to do that would they need to be lightly spring loaded?
(edit): I saw you posted about the VW flaps right after I posted...
My problem is NOT overheating, as the fan controls the temps just fine while its on, i just wish it didn't need to be on all the time; from an effieciency stand point. Even if the stock fan is providing 25% of maximum flow when "disengaged" that is hardly the difference between
185* and 217*.
Additionally it seems we are well on our way to debunking the "glorious undertray" myth as well. Perhaps in race cars with no fans, no obstructions and no heat exchangers , that rely on ducting as their sole source of cooling it makes a significant difference, but this fan shroud /fan hub design issue seems to be the solution for street cars. (Remember w/ no tray on the stock fan/shroud setup it would barely break 180 in the city and 185 highway and that was WITH the a/c condenser, clearly an undertray is not neccessary for proper cooling)
Now about these flaps.... would it be more advantageous to have flaps that open, or full time vents like the shroud pictured above? I would imagine the flaps allow for better suction and only open when needed, but to do that would they need to be lightly spring loaded?
(edit): I saw you posted about the VW flaps right after I posted...
I think Steve -clokker- has experienced the same thing, at speed no temp difference with or without the tray.
Once I get my a/c components cleaned and my o-rings come in I will be reinstalling the condenser, and adding a FMIC between the condeser and rad, so I'm trying to get this cooling issue sorted out before a quick blast from low speed won't be enough to bring the temps down.
thanks
thanks
#39
GET OFF MY LAWN
iTrader: (1)
We have two oil coolers stuffed into the shrouding in front of the radiator. One is right against the radiator core at the top and the other is about even with round tube between the frame rails. The cooler under the tube has its own exit out the bottom and doesn't feed its exhaust air to the radiator
The air that gets to the radiator has to go above the tube so it probably goes through a slot about 4" tall and the width of the frame rails. My shroud only draws air through the stock grill holes and is sealed up pretty well.
Figuring your system might work without a fan the way it is on the highway , it looks like the fan shroud is your problem. If it still gets hot on the highway with the fan removed work on sealing up all the places air can go around the radiator. With all the other stuff you're going to add, air control is going to be important.
The air that gets to the radiator has to go above the tube so it probably goes through a slot about 4" tall and the width of the frame rails. My shroud only draws air through the stock grill holes and is sealed up pretty well.
Figuring your system might work without a fan the way it is on the highway , it looks like the fan shroud is your problem. If it still gets hot on the highway with the fan removed work on sealing up all the places air can go around the radiator. With all the other stuff you're going to add, air control is going to be important.
#40
Turbo power, activate!
iTrader: (7)
I have the same problem with my Efan also. its also the Mercury villager efan.
It stays at a nice 180-190 in the city with ambient air at 90F, but on the highway, it rises to 200F and this is at 40mph and more.
Whats funny is that before I had the mercury villager efan, I had a crappy mishimoto 16 inch fan with no fan shroud, and it sucks in the city but on the highway, my temps drops from 200 with the Villager efan, to a nice 170-180F with the Mishimoto fan.
I have my under tray on also. I am guessing that on the highway, the air restriction on the Villager Efan is the outlet which is if I remember 18 inch diameter. The Shroud covers the entire radiator (Koyo rad). Also, the shroud itself is only at most 2 inches deep. If it was thicker, and angled more, air would probably flow out faster.
I will probably experiment on the weekend with adding vents on the shroud and see if that works.
In my case, the problem that keeps popping up in my head when I am trying to think of a solution is air flow. Now that I got a FMIC installed, my temps on the highway is going to be a bit higher lol. Need to reroute some air.
It stays at a nice 180-190 in the city with ambient air at 90F, but on the highway, it rises to 200F and this is at 40mph and more.
Whats funny is that before I had the mercury villager efan, I had a crappy mishimoto 16 inch fan with no fan shroud, and it sucks in the city but on the highway, my temps drops from 200 with the Villager efan, to a nice 170-180F with the Mishimoto fan.
I have my under tray on also. I am guessing that on the highway, the air restriction on the Villager Efan is the outlet which is if I remember 18 inch diameter. The Shroud covers the entire radiator (Koyo rad). Also, the shroud itself is only at most 2 inches deep. If it was thicker, and angled more, air would probably flow out faster.
I will probably experiment on the weekend with adding vents on the shroud and see if that works.
In my case, the problem that keeps popping up in my head when I am trying to think of a solution is air flow. Now that I got a FMIC installed, my temps on the highway is going to be a bit higher lol. Need to reroute some air.
#43
B O R I C U A
iTrader: (14)
***I did not read the entire thread***
I have been using a flex a lite black magic efan for close to 2 decades now, without any of the issues that you guys mention (except when I put a NPR FMIC on the front of the FC). I drove the FC back in PR (where temps RARELY go below 87F, and where avg temps are mid 90s). Water temps never went over low 190 (192-193F).
Same deal here in the states, the temps rearely go over 187F, thats city or highway.
However, throw a FMIC (at least the custom NPR) and temps would start climbing pretty fast, regardless if I was on the city or highway. The worst part was that the oil would follow the water temp shortly after
BTW - All readings were compared between an autometer electric water gauge, and the E6K
I have been using a flex a lite black magic efan for close to 2 decades now, without any of the issues that you guys mention (except when I put a NPR FMIC on the front of the FC). I drove the FC back in PR (where temps RARELY go below 87F, and where avg temps are mid 90s). Water temps never went over low 190 (192-193F).
Same deal here in the states, the temps rearely go over 187F, thats city or highway.
However, throw a FMIC (at least the custom NPR) and temps would start climbing pretty fast, regardless if I was on the city or highway. The worst part was that the oil would follow the water temp shortly after
BTW - All readings were compared between an autometer electric water gauge, and the E6K
#44
On my clutch fan car, I could tell no difference with or without the undertray on the road. At idle parked, the temps ran warmer without the tray. You could feel hot air under the car coming back into the front inlet of the bumper. I think the tray is primarily intended to prevent hot air from the back of the radiator from being sucked back in the front of the rad when stopped. I could be wrong...
I think Steve -clokker- has experienced the same thing, at speed no temp difference with or without the tray.
I think Steve -clokker- has experienced the same thing, at speed no temp difference with or without the tray.
I would advise the intercooler in front of the condenser in ront of the radiator. You could have 150* air coming through that condenser. Not good for charge cooling.
I will probably experiment on the weekend with adding vents on the shroud and see if that works.
In my case, the problem that keeps popping up in my head when I am trying to think of a solution is air flow. Now that I got a FMIC installed, my temps on the highway is going to be a bit higher lol. Need to reroute some air.
In my case, the problem that keeps popping up in my head when I am trying to think of a solution is air flow. Now that I got a FMIC installed, my temps on the highway is going to be a bit higher lol. Need to reroute some air.
Youre problem may be that old radiator, Aaron has thatexact fan on his car, and has no problems...
#47
version 2.0
iTrader: (17)
Jack, I miss my Griffin..... how does $120 sound? Haha...
This is somewhat of a tangent, but has anyone that about spraying the radiator? A guy around here has a sweet 10th Ann and has rerouted his windshield sprayers to spray over his IC to lower intake temps.... sweet idea, and I know this thread is about constant temps, but it would be neat to see a similar system..... useful? maybe..... interesting, yes.
Carry on...
This is somewhat of a tangent, but has anyone that about spraying the radiator? A guy around here has a sweet 10th Ann and has rerouted his windshield sprayers to spray over his IC to lower intake temps.... sweet idea, and I know this thread is about constant temps, but it would be neat to see a similar system..... useful? maybe..... interesting, yes.
Carry on...
#48
i got a koyo copper
http://i37.tinypic.com/10cjjwg.jpg
http://i37.tinypic.com/10cjjwg.jpg
