E-fan quit working. Is my fuse blown?
12-11-16, 06:07 PM
#1
Information Regurgitator
Thread Starter
E-fan quit working. Is my fuse blown?

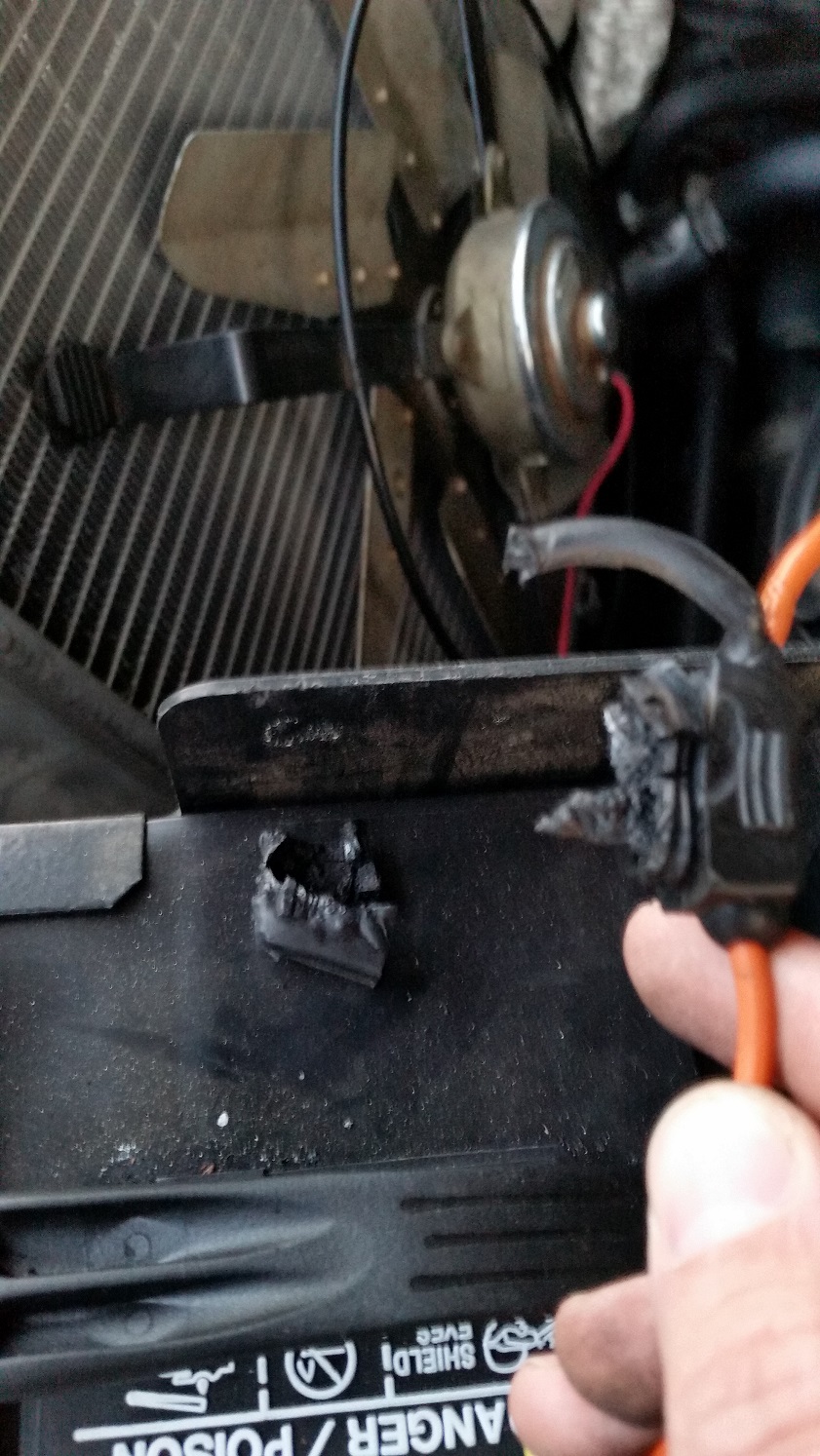

Yes. More like burnt to a crisp. Noticed my car getting hot yesterday while in some traffic. 210 on my Autometer gauge. Which was odd since it was 30 degrees out and it hasn't got that hot, in traffic, in the summer since I put the Godspeed radiator in. Anyway got where I was going and pooped the hood and the fan's not working. Upon investigation this is what I found the whole fuse holder was burnt. Checked the fan resistance. Looks to be 2 to 3 ohms. Going by the rated current draw for it that seems about right. Replaced the fuse holder and fuse and it works like a champ. Only thing I can figure is the fan says it needs a 30A fuse for start-up and maybe I used a 20A 'cause it's all I had and never put the right one in. That was 15 years ago so I don't remember.
Now after some internet investigation about fuses melting but not blowing I've come to a possible reason. I'm thinking over the years the fuse may have gotten to where it wasn't making good contact with the terminals of the fuse holder. This caused resistance between the contacts which caused it to heat up but not blow. Over time it would just get worse until it finally melted everything away and finally broke the connection.
Now after some internet investigation about fuses melting but not blowing I've come to a possible reason. I'm thinking over the years the fuse may have gotten to where it wasn't making good contact with the terminals of the fuse holder. This caused resistance between the contacts which caused it to heat up but not blow. Over time it would just get worse until it finally melted everything away and finally broke the connection.
12-11-16, 06:33 PM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
There is usually a lot of current flowing to keep that fan going and sometimes the fuse holder is not sufficient to take the draw or running amperage,.It will get hot and eventually melt.
One way you could find out which size fuse to put in is to hook up an ammeter in series with the fan and test it on Start up and Running.
My fan wires melted at the relay when I had my setup wired up.That told me that I needed some GOOD connectors and a better higher amped relay.
*if you had a 20 or 30 on there I would would be highly suspicious of that low of an amperage of fuse running such a high draw circuit.
One way you could find out which size fuse to put in is to hook up an ammeter in series with the fan and test it on Start up and Running.
My fan wires melted at the relay when I had my setup wired up.That told me that I needed some GOOD connectors and a better higher amped relay.
*if you had a 20 or 30 on there I would would be highly suspicious of that low of an amperage of fuse running such a high draw circuit.
12-11-16, 08:11 PM
#4
My fan wires melted at the relay when I had my setup wired up.That told me that I needed some GOOD connectors and a better higher amped relay.
*if you had a 20 or 30 on there I would would be highly suspicious of that low of an amperage of fuse running such a high draw circuit.
*if you had a 20 or 30 on there I would would be highly suspicious of that low of an amperage of fuse running such a high draw circuit.
I even found the (relatively) rare fuse assembly which puts a separate 30a resettable breaker on each fan leg.
I've never tripped a breaker in over five years of daily running.
The relay and fuse assembly will even power the big Lincoln 18" fan which I put in a few years ago.
12-12-16, 12:42 AM
#5
Information Regurgitator
Thread Starter
There is usually a lot of current flowing to keep that fan going and sometimes the fuse holder is not sufficient to take the draw or running amperage,.It will get hot and eventually melt.
One way you could find out which size fuse to put in is to hook up an ammeter in series with the fan and test it on Start up and Running.
My fan wires melted at the relay when I had my setup wired up.That told me that I needed some GOOD connectors and a better higher amped relay.
*if you had a 20 or 30 on there I would would be highly suspicious of that low of an amperage of fuse running such a high draw circuit.
One way you could find out which size fuse to put in is to hook up an ammeter in series with the fan and test it on Start up and Running.
My fan wires melted at the relay when I had my setup wired up.That told me that I needed some GOOD connectors and a better higher amped relay.
*if you had a 20 or 30 on there I would would be highly suspicious of that low of an amperage of fuse running such a high draw circuit.
Which is why I recommend snagging the entire Volvo fan & relay assembly and using it complete.
I even found the (relatively) rare fuse assembly which puts a separate 30a resettable breaker on each fan leg.
I've never tripped a breaker in over five years of daily running.
The relay and fuse assembly will even power the big Lincoln 18" fan which I put in a few years ago.
I even found the (relatively) rare fuse assembly which puts a separate 30a resettable breaker on each fan leg.
I've never tripped a breaker in over five years of daily running.
The relay and fuse assembly will even power the big Lincoln 18" fan which I put in a few years ago.
12-12-16, 10:27 AM
#6
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Those inline fuse holders suck. A lot. In most cases they are just spade connectors which grip poorly. The poor grip leads to excess heat, which leads to a bad connection, which leads to more heat, forming a feedback loop until it melts.
12-12-16, 10:58 AM
#7
Information Regurgitator
Thread Starter
I may get one of these: https://www.amazon.com/Jex-Electroni...ribution+block or something similar to clean things up. Then I could have one cable from the battery then split out to my fan and my amp.
