Driveshaft differences? (pic)
This afternoon, I swapped out my driveshaft for another because part of my front U-joint was frozen, making the car vibrate like mad about 20mph.

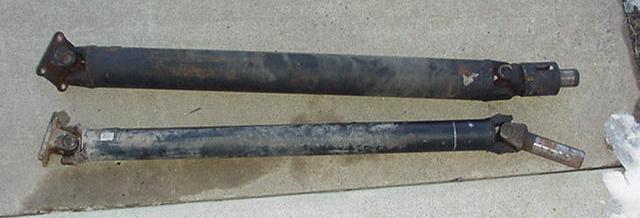

While I had the old one out, I noticed the two looked different. The one on top, the original driveshaft from my early 86 Sport, is fat and has a dustcover for the input side. The lower is the one I scavanged today from a guy in my neighborhood, it came from an S4 GXL (year unknown.) It looks pathetically thinner, but it fits and works just fine.
Anyone know the story on the thin one?
While I had the old one out, I noticed the two looked different. The one on top, the original driveshaft from my early 86 Sport, is fat and has a dustcover for the input side. The lower is the one I scavanged today from a guy in my neighborhood, it came from an S4 GXL (year unknown.) It looks pathetically thinner, but it fits and works just fine.
Anyone know the story on the thin one?
Last edited by Kai; 01-31-04 at 05:54 PM.
#2
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
Now that is werid, never seen a S4 tailshaft that is that skinny?! Only ever have seen them the size of the large one in the pic.
Obviously has a new yoke on the front(no dust cover). Maybe it was bodged up from some other car with a new front yoke put on? (maybe early first gen '7?)
Obviously has a new yoke on the front(no dust cover). Maybe it was bodged up from some other car with a new front yoke put on? (maybe early first gen '7?)
#3
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
My friend's Sport had the same thick driveshaft. I'm not really up on the pre-88 parts because I bought my first RX-7 in 1988, and the 88 manual is the only reference I have for the S4 RX-7, but the thin driveshaft is the standard NA driveshaft on the 88 and later models. I'm not sure if the thick driveshaft is unique to the Sport, or if it was just the standard driveshaft on the earlier models. Maybe some of the 86 RX-7 owners can help?
#4
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Evil Aviator
My friend's Sport had the same thick driveshaft. I'm not really up on the pre-88 parts because I bought my first RX-7 in 1988, and the 88 manual is the only reference I have for the S4 RX-7, but the thin driveshaft is the standard NA driveshaft on the 88 and later models. I'm not sure if the thick driveshaft is unique to the Sport, or if it was just the standard driveshaft on the earlier models. Maybe some of the 86 RX-7 owners can help?
My friend's Sport had the same thick driveshaft. I'm not really up on the pre-88 parts because I bought my first RX-7 in 1988, and the 88 manual is the only reference I have for the S4 RX-7, but the thin driveshaft is the standard NA driveshaft on the 88 and later models. I'm not sure if the thick driveshaft is unique to the Sport, or if it was just the standard driveshaft on the earlier models. Maybe some of the 86 RX-7 owners can help?
Also another mate with a S4 turbo has the same thick tailshaft(different yokes/length obviously).
Every single FC i've ever seen in Aus has had the thick tailshaft. Admitadly I havn't had a look at too many S5's, but for S4's at least it would seem its the only tailshaft there was?
Maybe this was just some US thing you guys lucked out on or something.
#5
bottom is s5 shaft, top is s4 shaft. Just different series.
for example, my '90 n/a is identical to the bottom shaft.
WhiteFC's shafts for his '85 are identical to the top.
problem solved
for example, my '90 n/a is identical to the bottom shaft.
WhiteFC's shafts for his '85 are identical to the top.
problem solved
#6
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
Hmmm strange, wonder why they did that to the S5's? Was it for weight purposes?
Was it just on the S5 N/A's? or did the S5 turbo have the same small one aswell?
Was it just on the S5 N/A's? or did the S5 turbo have the same small one aswell?
#7
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
Originally posted by hpram99
bottom is s5 shaft, top is s4 shaft. Just different series.
for example, my '90 n/a is identical to the bottom shaft.
WhiteFC's shafts for his '85 are identical to the top.
problem solved
bottom is s5 shaft, top is s4 shaft. Just different series.
for example, my '90 n/a is identical to the bottom shaft.
WhiteFC's shafts for his '85 are identical to the top.
problem solved
Trending Topics
#8
I came, I saw, I boosted.
Join Date: Apr 2001
Location: Windsor, Ontario, Canada
Posts: 1,921
Likes: 0
Received 0 Likes
on
0 Posts
I can't really relate the thickness of my 90 GXL... it could be either, but I can definately state that there is no dust boot over the tranny output shaft.
#9
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
No dust cover generally means its an aftermarket yoke.
I'm near on 100% certain my mates 88 has the thicker t/shaft...
So does anyone know why the moved to the smaller tailshaft? is it much lighter (if at all..)?
I'm near on 100% certain my mates 88 has the thicker t/shaft...
So does anyone know why the moved to the smaller tailshaft? is it much lighter (if at all..)?
#11
Senior Member
Join Date: Apr 2001
Location: Dublin, VA
Posts: 593
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by White_FC
No dust cover generally means its an aftermarket yoke.
I'm near on 100% certain my mates 88 has the thicker t/shaft...
So does anyone know why the moved to the smaller tailshaft? is it much lighter (if at all..)?
No dust cover generally means its an aftermarket yoke.
I'm near on 100% certain my mates 88 has the thicker t/shaft...
So does anyone know why the moved to the smaller tailshaft? is it much lighter (if at all..)?
I think all 3 drive shafts I have (1 OEM '86, 1 OEM '91 and the one from mazdatrix) are all the smaller dia. I'd have to double check to be sure though.
All for N/A 5-speeds.
#13
Rotary Enthusiast
Originally posted by White_FC
No dust cover generally means its an aftermarket yoke.
I'm near on 100% certain my mates 88 has the thicker t/shaft...
So does anyone know why the moved to the smaller tailshaft? is it much lighter (if at all..)?
No dust cover generally means its an aftermarket yoke.
I'm near on 100% certain my mates 88 has the thicker t/shaft...
So does anyone know why the moved to the smaller tailshaft? is it much lighter (if at all..)?
Also, the NA S5 trannys have an internal balance weight on the output shaft whereas the NA S4 trannys have no internal balance weight. I've always thought that the thing you folks are calling a "dust cover" was actually a weight that was added to the NA S4 driveshafts since the NA S4 tranny does not have an internal balance weight.
Hot_Dog
90 RX7 GXL
02 Acura RSX-S
