door panel on driver side ???
07-15-07, 02:06 PM
#1
Senior Member
Thread Starter
Join Date: Oct 2003
Location: CALIFORNIA
Posts: 402
Likes: 0
Received 0 Likes
on
0 Posts
door panel on driver side ???
there are 4 screws on the bottom 4 screws in the arm rest part. when popping this panel off is there anything i should be looking for? i have a door panel pin poper wrench for poping the plastic pins , just wodering how many there are on a vert door if any. its a 90 vert in case that helps . thanks gil
07-15-07, 04:19 PM
#4
Senior Member
Thread Starter
Join Date: Oct 2003
Location: CALIFORNIA
Posts: 402
Likes: 0
Received 0 Likes
on
0 Posts
ok so i got the panel off , hot dam i was sweating that , lol came off no prob. now i hooked the power switch back up to see whats going on , it seems like the power window regulator is working , but it just kinda spins in place , are there cables hooked up to the regulator? from what im looking at in the haynes manual it looks like it, but im not sure. thanks gil
07-15-07, 07:23 PM
#5
Senior Member
Thread Starter
Join Date: Oct 2003
Location: CALIFORNIA
Posts: 402
Likes: 0
Received 0 Likes
on
0 Posts
heres a pic of the brace that comes with the power regulator motor for the window
, now looking at the middle bracket , thats the one that comes out with the motor, it has two bolts up top and one down at the bottom, but the bracket also has two bolts it looks like that need to be unscrewed from the inside where the bracket hooks up to the window. and theres a smaller bracket that guides the window up and down to the left of it that looks like it needs to come out also, i was reading the manual and it says just the main bracket and the motor come out, does the whole fricken window have to come out also???? please advise before i f-----ck this thing up , lol thanks
, now looking at the middle bracket , thats the one that comes out with the motor, it has two bolts up top and one down at the bottom, but the bracket also has two bolts it looks like that need to be unscrewed from the inside where the bracket hooks up to the window. and theres a smaller bracket that guides the window up and down to the left of it that looks like it needs to come out also, i was reading the manual and it says just the main bracket and the motor come out, does the whole fricken window have to come out also???? please advise before i f-----ck this thing up , lol thanks
07-15-07, 08:36 PM
#6
Senior Member
Thread Starter
Join Date: Oct 2003
Location: CALIFORNIA
Posts: 402
Likes: 0
Received 0 Likes
on
0 Posts
people come on i cant beleave , none of you have not done this type of work on your power windows, i really need some help here, pleaseeeeeeeeeeeeeeeee thanks
this is what it looks like
Trending Topics
07-17-07, 08:57 AM
#9
We're a good bunch here
so to justify the lack of responses, not a lot of us have probably done this job on convertibles (I have on coupes and I'm sure a lot of us have too). The design is similar. You have your regulator *motor* spining, but the cables are probably toast. Yes, you definitely have to remove the window. As far as the regulator is concerned, you just have to focus on the bolts that hold the regulator and motor.

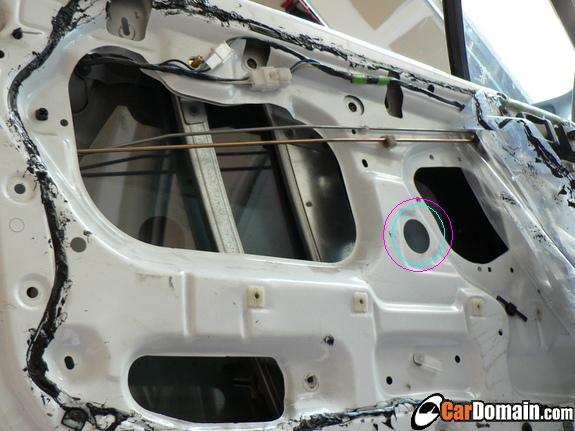

Once again, I haven't done this on a convertible, but you shouldn't in principle have to worry about window guides. To remove the window, you have to move the window up and down until the two bolts (or one at a time) align with holes or cutouts in the door frame. The bolts usually screw into a plastic clip that is clipped on to the glass and tightens around it when the screw is in. I hope this helps somewhat...see below - one pic. shows a very suspicious hole in the frame that a window bolt may lign up with, the other pic shows where the glass usually bolts up to the regulator. Take your time. As you pull out the window, when it's half way, you may have to tilt the back up - you're gentle and try a few positions, it'll come out
so to justify the lack of responses, not a lot of us have probably done this job on convertibles (I have on coupes and I'm sure a lot of us have too). The design is similar. You have your regulator *motor* spining, but the cables are probably toast. Yes, you definitely have to remove the window. As far as the regulator is concerned, you just have to focus on the bolts that hold the regulator and motor.Once again, I haven't done this on a convertible, but you shouldn't in principle have to worry about window guides. To remove the window, you have to move the window up and down until the two bolts (or one at a time) align with holes or cutouts in the door frame. The bolts usually screw into a plastic clip that is clipped on to the glass and tightens around it when the screw is in. I hope this helps somewhat...see below - one pic. shows a very suspicious hole in the frame that a window bolt may lign up with, the other pic shows where the glass usually bolts up to the regulator. Take your time. As you pull out the window, when it's half way, you may have to tilt the back up - you're gentle and try a few positions, it'll come out
