do i need the SPLIT AIR PIPE???
#1
87 T2
Thread Starter
Join Date: Jun 2002
Location: florida
Posts: 924
Likes: 0
Received 0 Likes
on
0 Posts
do i need the SPLIT AIR PIPE???
I have clogged CAT's need to rplace them, Im thinking of the RB down pipe/presilancer combo. My question is what exactly is the SPLIT AIR PIPE for i searched and got mixed answers. also any suggestions on CAT replacement would be great, i dont have much money to spend so im looking for cheep.
THANKS J GREENE
THANKS J GREENE
#2
If you don't have to pass emissions any time soon, I would replace the cat with a straight pipe to eliminate it all together. The split air pipe is controlled by the ACV and injects air fromt he air pump into your cat to cool it. Without that, your cat will overheat and burn out quickly. So to answer your question, if you have a cat then you need it. If not, you can ditch it as far as I know. I mainly know about TII's though, so if this does not apply to N/A's then someone correct me.
-Joe
-Joe
#3
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
... Ermm.. Well as far as the chemical composition of cat's...
The Catatlyic converter needs force 02 to opperate *well*. At least as goes for stock cats. Aftermarket cats use slight beefed catalyst that use 02 from the combustion.

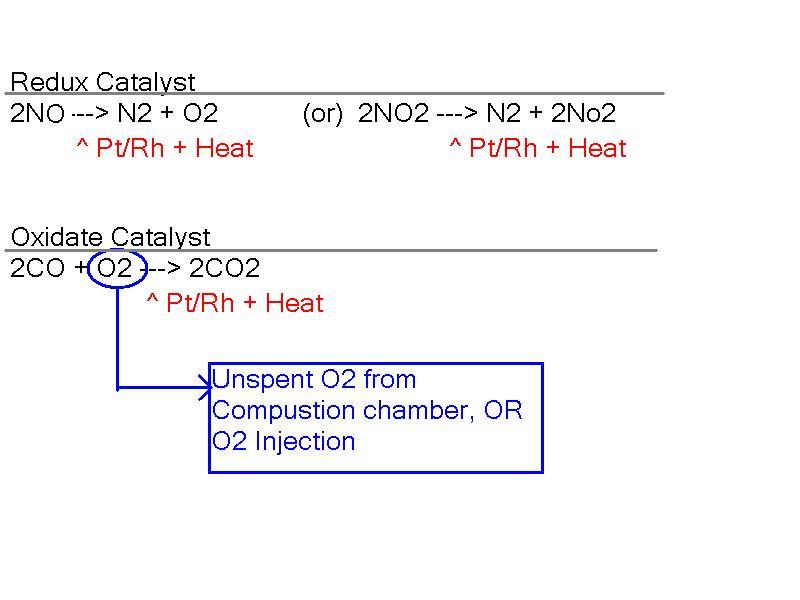

Anyhow the reduction catalist is something like 2NO --> 2N + O2, or 2NO2--> N2 + O2. Catalist is generaly platinum, rhobidium, or a mix of both.
The Oxidization Catalyst goes something like 2CO+O2 --> 2CO2
---
Generaly on your standard car, the 02 sensor tells the ECU how much O2 is entering the cat. The computer decideds if this is enough or not enough 02 to completely oxidize the carbondioxide and to redux the nitrogen-crap. If the ECU senses there is too little oxygen, it can do one of two things:
1) Change fuel ratio/injector width's
2) Inject O2 Directly into the exhaust/cat.
Generaly just changing the fuel ratio isn't substantial enough to feed the cats enough o2. This is especially true at startup. During startup, the car runs rich, and little unburnt 02 is making it to the exhaust. Not to mention that the O2 sensor isn't hot enough to provide the ecu with an even close to half assed accurate O2 reading at during startup. Anyhow during startup 02 is hence injected idrectly into the exhaust via the airpump and ACV to makeup for the loss.
Also, if you were to constantly inject 02 into the cat, it woudl burn the cat out in less than a month. O2 is not used to cool the catalytic converter. Infact, the Cat would run *much* hotter feeding it 02 constantly. 02 is fed during cold starts as well to help heat the cataylic coverter, not cool it.
Just the same, not feeding it o2 will clog the catalyitc coverter ebcause it won't have enough o2 to keep the catalyst running to spec.
Force 02 all the time
1) burnt cat in a few months
2) hot cat
3) but cat would be effective until quickly dies off, excess 02 just makes its way to the muflers
Force O2 never
1) Cat will take longer to heat up
2) cat not as affective
3) Cat will clog.
There are however, as i mentioned earlier catalytic converters that use a different, more beefy cataylist that require less O2. These type can usually suffice well off what O2 is not burnt from the combustion process. The ECU can usually accomadate enough fuel ratio change to keep the cataylist more than busy/happy.
Final thought:
If you remove your cat and put in either a straightpipe, or DP/Silence combo, you will no longer have a use for the split air pipe/o2 injection. You can leave teh line uncapped at that point, or start removing all emissions crap since you'll be dumping crap that creates O3-ozone into the atmousphere
Oh, and No Cat:
1) You won't pass emissions without
a) a hookup
b) tank partially full of alcohol
c) standalone running your car friggin lean as hell, still probably wouldn't work though.
2) Understand why Fc'ers complain about exhaust smell. You probably have never smelled uncorked rotary exhaust. Prepare your eyes... prepare your eyes! You have been warned.
chem114 guys
The Catatlyic converter needs force 02 to opperate *well*. At least as goes for stock cats. Aftermarket cats use slight beefed catalyst that use 02 from the combustion.
Anyhow the reduction catalist is something like 2NO --> 2N + O2, or 2NO2--> N2 + O2. Catalist is generaly platinum, rhobidium, or a mix of both.
The Oxidization Catalyst goes something like 2CO+O2 --> 2CO2
---
Generaly on your standard car, the 02 sensor tells the ECU how much O2 is entering the cat. The computer decideds if this is enough or not enough 02 to completely oxidize the carbondioxide and to redux the nitrogen-crap. If the ECU senses there is too little oxygen, it can do one of two things:
1) Change fuel ratio/injector width's
2) Inject O2 Directly into the exhaust/cat.
Generaly just changing the fuel ratio isn't substantial enough to feed the cats enough o2. This is especially true at startup. During startup, the car runs rich, and little unburnt 02 is making it to the exhaust. Not to mention that the O2 sensor isn't hot enough to provide the ecu with an even close to half assed accurate O2 reading at during startup. Anyhow during startup 02 is hence injected idrectly into the exhaust via the airpump and ACV to makeup for the loss.
Also, if you were to constantly inject 02 into the cat, it woudl burn the cat out in less than a month. O2 is not used to cool the catalytic converter. Infact, the Cat would run *much* hotter feeding it 02 constantly. 02 is fed during cold starts as well to help heat the cataylic coverter, not cool it.
Just the same, not feeding it o2 will clog the catalyitc coverter ebcause it won't have enough o2 to keep the catalyst running to spec.
Force 02 all the time
1) burnt cat in a few months
2) hot cat
3) but cat would be effective until quickly dies off, excess 02 just makes its way to the muflers
Force O2 never
1) Cat will take longer to heat up
2) cat not as affective
3) Cat will clog.
There are however, as i mentioned earlier catalytic converters that use a different, more beefy cataylist that require less O2. These type can usually suffice well off what O2 is not burnt from the combustion process. The ECU can usually accomadate enough fuel ratio change to keep the cataylist more than busy/happy.
Final thought:
If you remove your cat and put in either a straightpipe, or DP/Silence combo, you will no longer have a use for the split air pipe/o2 injection. You can leave teh line uncapped at that point, or start removing all emissions crap since you'll be dumping crap that creates O3-ozone into the atmousphere
Oh, and No Cat:
1) You won't pass emissions without
a) a hookup
b) tank partially full of alcohol
c) standalone running your car friggin lean as hell, still probably wouldn't work though.
2) Understand why Fc'ers complain about exhaust smell. You probably have never smelled uncorked rotary exhaust. Prepare your eyes... prepare your eyes! You have been warned.
chem114 guys
Last edited by Kenteth; 07-22-04 at 08:43 AM. Reason: Quality Assurance, biamiatich!
#4
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
And incase you didn't already know...
the split air pipe is connected to a line that goes to the ACV. When the ECU Deems appropriate, it opens a solenoid valve that forces 02 (via the airpump) into the split air pipe and down intot he catalyitc converter for redux and oxdiate reactions.
the split air pipe is connected to a line that goes to the ACV. When the ECU Deems appropriate, it opens a solenoid valve that forces 02 (via the airpump) into the split air pipe and down intot he catalyitc converter for redux and oxdiate reactions.
#6
Why am I here ?
Join Date: May 2002
Location: Boston, MA
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
split air pipe has dual purpose:
- opening of aux. ports
http://www.geocities.com/huguesdc1/intakeair.html
- feeding air to main cat directly under certain driving conditions
http://www.geocities.com/huguesdc1/secondary.html
hugues-
- opening of aux. ports
http://www.geocities.com/huguesdc1/intakeair.html
- feeding air to main cat directly under certain driving conditions
http://www.geocities.com/huguesdc1/secondary.html
hugues-
Trending Topics
#9
Why am I here ?
Join Date: May 2002
Location: Boston, MA
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
The aux. ports actuators are connected to the split air pipe via a tee .. that's how they get their pressure to open from the exhaust backpressure.
The split air pipe is just a pipe that conducts air/pressure from one point to the other.
One could argue that the air pump might have something to do with it also under certain driving conditions since it tees into that actuator line, but that would confuse people. The general consensus is that exhaust back pressure is the only responsible for opening the aux ports (I don't fully agree but it's probably moot point).
you could probably ask HAILERS to monitor the pressure at the actuators at different rpms/load.
Hugues-
The split air pipe is just a pipe that conducts air/pressure from one point to the other.
One could argue that the air pump might have something to do with it also under certain driving conditions since it tees into that actuator line, but that would confuse people. The general consensus is that exhaust back pressure is the only responsible for opening the aux ports (I don't fully agree but it's probably moot point).
you could probably ask HAILERS to monitor the pressure at the actuators at different rpms/load.
Hugues-
Last edited by hugues; 07-22-04 at 11:13 AM.
#10
Former Moderator. RIP Icemark.
Originally Posted by hugues
The aux. ports actuators are connected to the split air pipe via a tee .. that's how they get their pressure to open from the exhaust backpressure.
The split air pipe is just a pipe that conducts air/pressure from one point to the other.
One could argue that the air pump might have something to do with it also under certain driving conditions since it tees into that actuator line, but that would confuse people. The general consensus is that exhaust back pressure is the only responsible for opening the aux ports (I don't fully agree but it's probably moot point).
you could probably ask HAILERS to monitor the pressure at the actuators at different rpms/load.
Hugues-
The split air pipe is just a pipe that conducts air/pressure from one point to the other.
One could argue that the air pump might have something to do with it also under certain driving conditions since it tees into that actuator line, but that would confuse people. The general consensus is that exhaust back pressure is the only responsible for opening the aux ports (I don't fully agree but it's probably moot point).
you could probably ask HAILERS to monitor the pressure at the actuators at different rpms/load.
Hugues-
If you look at how RB makes their pre-silencer it makes much more sense to say exhaust pressure, rather than back pressure.
The dump for the ACV into the stream happens in 5th gear everytime, so that pretty much rules out the thought that the air pump feed through the ACV and split air pipe have any effect on the stock aux port operation on a 84-88 13B.
#12
If you own an 87 NA, as your username "tagline" seems to indicate, you'll want to leave it connected to operate your 6th ports (unless they're removed or wired open). You don't need it connected to the air pump, though.
-=Russ=-
-=Russ=-
#18
Is that thing Turbo?
Join Date: Jan 2004
Location: Maryland
Posts: 1,411
Likes: 0
Received 0 Likes
on
0 Posts
depending on what catbak you run you may not have enough back pressure to actuate the aux ports. If your still running stock cat back it should be fine but i'd go ahead and do it and if the aux ports don't open then do a search as there are alternative methods to open them
#19
Lives on the Forum
iTrader: (7)
Originally Posted by totallimmortal
depending on what catbak you run you may not have enough back pressure to actuate the aux ports. If your still running stock cat back it should be fine but i'd go ahead and do it and if the aux ports don't open then do a search as there are alternative methods to open them
#21
Banned. I got OWNED!!!
Join Date: Nov 2002
Location: San Jose, CA
Posts: 312
Likes: 0
Received 0 Likes
on
0 Posts
I have the SAME PROBLEM.........except that I do not have the pipe on the engine....it is gone. Do I need to cover it up with a block off plate to drive or can I leave it open?
#22
Former Moderator. RIP Icemark.
Originally Posted by josh greene
so if i buy the Racing Beat down pipe and presilancer and leave the the hose for the split air pipe disconnected will i be fine???
