Hypertek

iTrader: (3)

found this on some japanese site.. pic looks self explanatory.
*i think thats an FD in the pic but shouldnt matter*

trim a circle into the dust shield, some holes, ziptie to brake duct tubing (usually slinky air conditioner ducting at your local hardware store)

coxxoc

iTrader: (3)

That would be OK for the extremely budget minded, but the you really need to focus that airflow for optimal cooling. The angle of entry and area of the rotor seeing this new air should be considered. I'm sure that design will work to some extent, but it could be so much better for not much money.

Josh

Black91n/a

I'd be worried about the hose melting and getting a proper seal so that the air goes where you want it to, but it'll be better than nothing. There's special high temp hose that you can get from racing supply places, and you can get proper backing plates with hose attachments for just over $100. A better arrangement for the ducting is to have all the air enter into the center of the rotor so that it evenly cools both sides from the inside, and make sure that the center is more or less sealed so that the air doesn't just escape out the back.

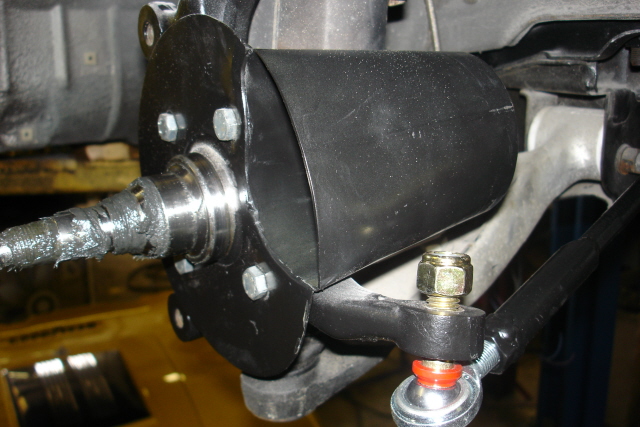

Here's an example that jgrewe did.

Hypertek

iTrader: (3)

well you could always bend the dust sheild forward closer to teh rotor. use some metal zipties to resist heat

WingsofWar

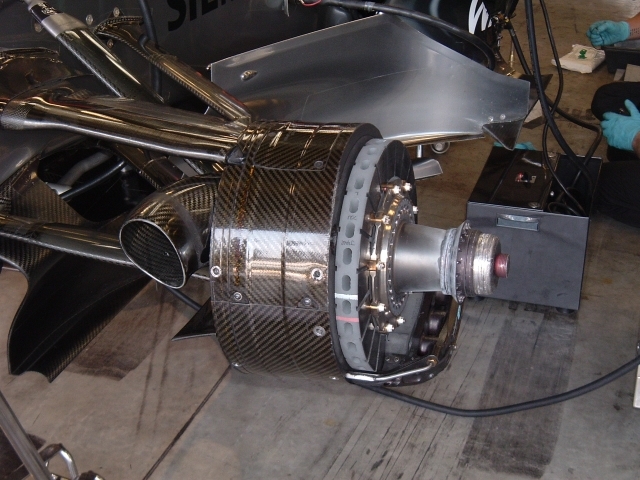

why cant we have **** like this?

Chaotic_FC

you could
but i hope you have VERY deep pockets
those look like carbon ceramic breaks to me

fastrotaries

because you don't have the skill or the steady hands to pull off a procedure like that. SO HA!

magus2222

iTrader: (22)

damn, carbon kevlar/ceramic breaks. carbon arms, lemans car anyone?

peace

RXJIM

iTrader: (3)

I was thinking F1

l4nc3r

What is this off of? Looks nice

Fault Bucket

F1 front brakes. Looks like a West Mercedes-McLaren from a few seasons back.

STM-RX

That's pretty pimp. I have a special place in my heart for well executed ingenuity like this. Gangster.

dwb87

iTrader: (22)

I was thinking about doing something very similar... to the OP picture ofcourse.

WingsofWar

ouch! in my face!

Turbo23

iTrader: (4)

i run these

l4nc3r

And how do they work? And where do you get them. You know your gonna get that question. :P

Turbo23

iTrader: (4)

remove your dust shield, install them, run hose, cool brakes You can get them from awrracing.com They work very well, no complaints
