A Different TID Mod Idea
#1
Nothing to see here.
Thread Starter
A Different TID Mod Idea
http://www.turbohoses.com/45%20Degree.htm
For about ~$90 US you can build a custom 3" TID with a 3?2.25" transition to the turbo.
The 45º bend is $50 and made of 2-ply fiberglass reinforced silicone.
Add in the nipples and it gets to be a little expensive. I may just buy the transitions unless someone knows where I can them cheaper.
Brian
For about ~$90 US you can build a custom 3" TID with a 3?2.25" transition to the turbo.
The 45º bend is $50 and made of 2-ply fiberglass reinforced silicone.
Add in the nipples and it gets to be a little expensive. I may just buy the transitions unless someone knows where I can them cheaper.
Brian
#2
...
I just made my TID mod and it cost me about $20 not including the air filter. Its 3" all the way with a transition to the turbo at the end.
Why would you waste your money on something like that?
I just made my TID mod and it cost me about $20 not including the air filter. Its 3" all the way with a transition to the turbo at the end.
Why would you waste your money on something like that?
#4
Nothing to see here.
Thread Starter
Personally, I'm going 45º, 3" aluminum, I came across this stuff looking for silicone couplers and transitions. I can't imagine why that 45º bend is $50! I posted it for those that like that stuff--to each his own.
Brian
Brian
#5
#6
Nothing to see here.
Thread Starter
$10 for 45º, 12" aluminumized steel tube, $10 for rubber couplers, $12 for brass, spring-loaded checkvalve, 2 clamps for $1, 3/4 to 1/2" fitting was $3 and a free 6" length of 3/4" hose. TOTAL $36 and the car runs/idles PERFECTLY. Fixed all vacuum leaks, and can now hold idle at 750 pulling 18" Hg. Added an extra pound of boost as an added bonus.
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,849
Received 2,613 Likes
on
1,852 Posts
it will suck a hose closed, you need some kinda of metal/plastic pipe in there
mike
mike
Trending Topics
#8
Nothing to see here.
Thread Starter

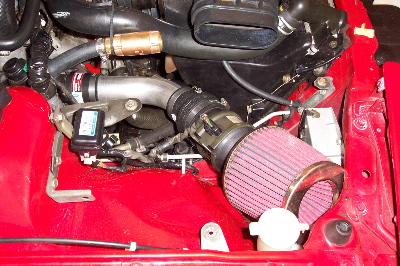

Here's the fitment of the DIY BOV and TID. I'm going to pull the stickers off the couplers and spray the pipe with aluminum enamel paint. I think I'll spray the BOV to match.
Brian
Brian
