Black7Conv

Any help in finding style bars like the mx-5 ones? I've searched a lot but I can't find any info. R-Magic offers one but I don't like it.
Thanks in advance.

George

13bpower

I don't know about style bars, but the only roll bar I have seen for the vert is made by Kirk Racing.

Bukwild

Yeah Kirk racings bar is ok but I don't like the way it looks. I was thinking of buying the Kirk bar for fittement and dimentions but then building a one off bar that has duel loops like the Audi tt. Plus the kirk bar does not have a front to back support bar whick worries me about this. You have to aleast have one bar going back to make a triangle when it bolts the the chassis. I should get around to it this summer.

Black7Conv

Is there any site info for the Kirk racing bar? Bukwild I have a photo showing a TII with an Audi TT or Mx-5 style bar but I can't find any info on that.
I'll try to see if the Mx-5 bar fits into my TII

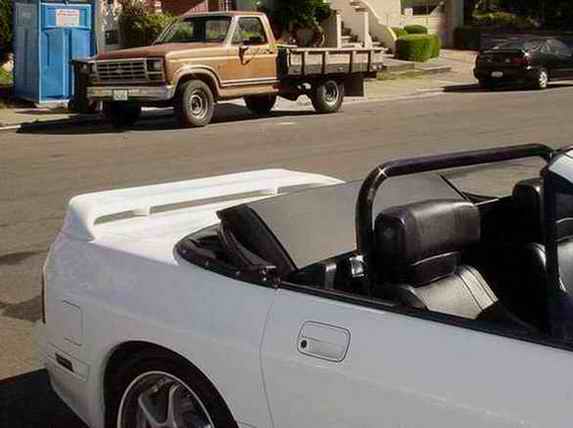

Black7Conv

see?

Bukwild

yeah that is what I am looking at fabing up. I will make mine a real roll bar with a three point stance. Hopefully I can make them available in the 300 dollar range. Chrome of course will be in the 5's.

venomrx7

i'm doing a full roll cage in mine, and making the back half where i can still get the top down

Gene

iTrader: (1)

Do you want a bar that will look cool or do you want one that will keep you from smearing your brain on the pavement if you flip the car?

venomrx7

for me, its so it will be safer of course, and more likely to be accepted during track inspection.

Madrx7racer

I want the latter........

Kenteth

thats pretty spiffy... wouldn't want to roll in it.. but you know

Black7Conv

I think it's difficult to have a bar that looks both cool and saves your life when the bad moment comes...so for the time being I choose the first option...
Bukwild when you are ready send me a PM.

FDreaming

http://www.aerodyne.net/

under R-magic picture MC11

Bukwild

yes this bar is cool looking but it does not have 2 bars going back to bolt up to give this a real "roll" safety. If you roll with this bar it will help kill you not save you.
My roll bar will be much safer

RX-Heven

iTrader: (1)

Both those bar shown suck gorilla nuts. They only bolt into the seat belt post. The kirk bar at least mounts to the floor and the seat belt post for a "4 point" connection. It's not really a 4 point but since it is a single bar, it needs to have that many connect points at least. It will pass tech for track events also. Those others will not. The problem with triangulating the bar towards the back is then there is no room to operate the top without having to remove the targa section halfway up EVERY time. The only other option is to have a removable bar, via a pin connection, that triangulates it back so you can have the best of both worlds. You can run a bar forward, but that creates many other issues.

http://www.cris.com/~Asam/index.html

Bukwild

yeah I was trying to see if I want to extend the bars forward and climb over them every time I get in the car or make a removable pin connection. Their is a guy in PA that has a supercharged vert and he has his down the center by the shifter. It looks like it has to suck to me.

nization

Can anyone post a pic of, or place to get an 'ugly' roll bar that will still allow you to put the top down? I don't think they could look that bad, as long as I can paint it black to match my car 8)

Bukwild

do a search of a kirk racing rollbar. Their website shows one.

RX-Heven

iTrader: (1)

Here is a bar with rear supports. Do not know the brand or if you have to remove the supports to raise and lower the top. It does look as if they leave room for hassle free operation of the top. The RXX-7 has the same bar also.

RX-Heven

iTrader: (1)

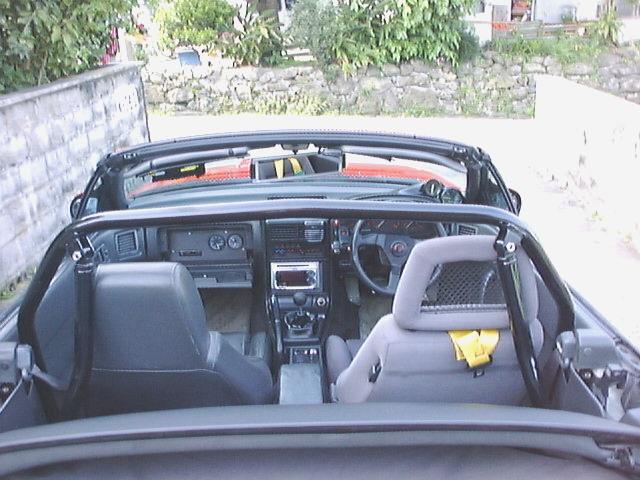

Here is a pic of my Kirk bar.

Here is a write up by fc3s.org on the install of the kirk bar. It has plenty of pictures.

http://www.fc3s.org/how_tos/safety/c...e_rollbar.html

vaughnc

One of my friends has a real role bar in his convertible that bolts to the floor and it doesn't interfear with his top.

RX-Heven

iTrader: (1)

How about some pics? Are you sure it's not the Kirk bar?

RX-Heven

iTrader: (1)

I have to correct myself. The RXX-7 i.e. George Samuels 3 rotor vert does not have the same roll bar. It is a one off custom unit that does allow full operation of the top still.

Attila the Fun

iTrader: (1)

Hi, Dave. I'm not trying to be argumentative, but the RXX-7 has a custom-made rollbar. At the time it was made, there was nothing on the market that would allow full top operation AND be track legal.

Mitch Piper made the bar. It is (or was at the time) SCCA Solo I legal, but NOT race legal. People taller than 5'7" would have difficulty getting past a flinty-eyed tech inspector, unless they had a severe spinal deformity. I only drive it in DE events, so no one complains.

The only drawback is that passenger seat travel is limited. This means I can't date any tall girls. (In addition to the stricture from the rollbar, my short wife would also object.)

John Becker, President of the Mazda Sportscar Club of Washington, D.C. had the original model of this rollbar in his '88 convertible. Since his 5'7" wife refused to ride in the car, he had Mitch change the diagonal brace to allow greater seat travel. (Mitch grumped that the modification had decreased the integrity of the bar.)

Hope all that helps.

RX-Heven

iTrader: (1)

Beat you to the correction....thanks for the prompt response btw.
