JustJeff

iTrader: (13)

My father has a S5 convertible with the typical leaking top that drips right on your left leg. My question is, if he gets the OEM door seal https://www.mazdatrix.com/product/do...-92-conv-left/ will that fix the typical drip right where the top and the door meet? I know everyone eventually has a problem at that spot but will replacing with OEM seal fix it, or once the factory seal fails it's always a problem?

Shainiac

iTrader: (7)

JustJeff

iTrader: (13)

How've you been?

I'm hoping once I've settled into the new house and new job to start working on my car

Shainiac

iTrader: (7)

Good, man. Glad to see you're back at it. Let me know when you're ready to put a real ECU and big turbo on that thing

JustJeff

iTrader: (13)

I'll need your advice and help once I get there. Still planning on doing MS3

mwpayne

I’m pretty sure mine is caused by the seal on the top not overlapping the driver side window.

Driftology

Is there really a fix for this. I assumed it was normal to leak there lol

PnoyRx7

iTrader: (3)

Factory OEM Mazda H2O

Best way to prevent leaks .... don't drive it in the rain and or park underground/tarp it.

JustJeff

iTrader: (13)

They didn't leak new and both my father and I have driven ours for years before the leaks developed

Driftology

I gave up on it. I replaced all of the seals. My local Mazda mechanic says he remembered them leaking on the car lots. So I just bring a towel if it rains. If someone has a fix please do share.

mwpayne

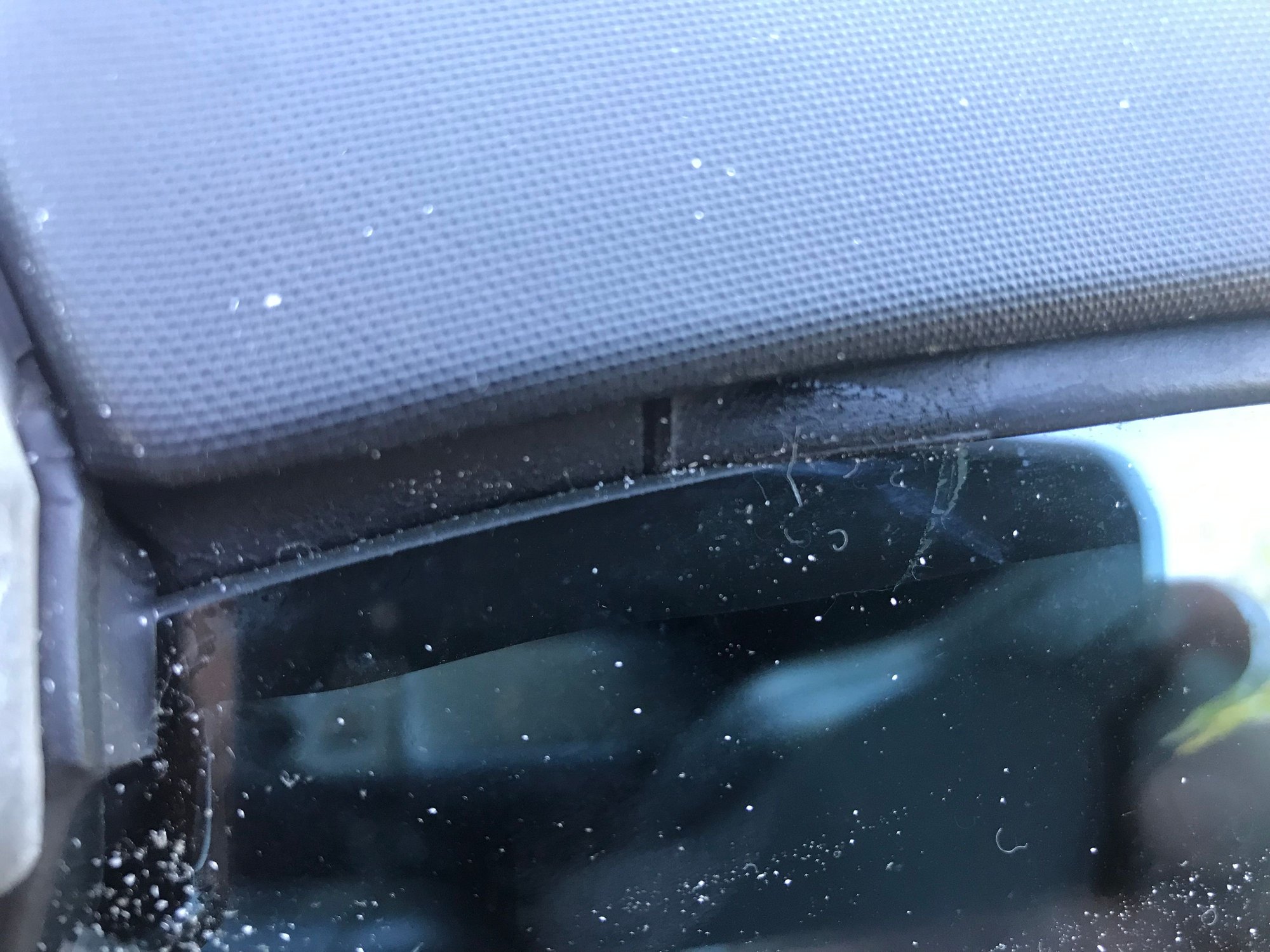

I think this seal on the top section is the culprit. Notice how it doesn’t overlap the window towards the front, exactly where my leak is. The passenger side overlaps .. no leak.

Driftology

My side seal overlaps as it should but I still leak in that corner. My door seal doesn't look like yours tho. May be my problem.

mwpayne

I've ordered the top seal, will post results

JustJeff

iTrader: (13)

I've owned 3 convertibles, any that have developed leaks do it in the same spot. And yes Mwpayne, right where you have posted a pic is where they all leak. My father's is absolutely pristine and he's 70+. He has no tolerance at his age for things not working. He bought a seal which was not OEM when it arrived. I'm sure he'll buy the OEM stuff instead and probably pay someone to put it on for him. I'll post results also.

mwpayne

That new seal fixed it. I still have a tiny gap on the bottom right side where that seal doesn’t quite touch the window. But no more leak!

JustJeff

iTrader: (13)

Did you put the seal on yourself, or pay a shop?

mwpayne

Put in myself, took about 10 minutes no biggie
