MO CAS trigger edge versus TDC
Trying to understand how stock ECU/PFC interprets CAS signal, are they using rising or falling edge, where is the point on waveform the ECU thinks the TDC is right now?

Does anyone have combined waveforms of CAS signal versus Spark on locked to 5ATDC or 0ATDC timing?


wongfei is offline
Reply Like
Old 06-02-19, 10:14 AM
  #2
Rotary Enthusiast


Hot_Dog's Avatar

Join Date: Nov 2001
Location: Alexandria, VA
Posts: 1,308
Received 149 Likes on 123 Posts
Maybe this link will help answer your question: De-Mystifying
Hot_Dog is offline
Reply Like
Old 06-02-19, 10:44 AM
  #3
Junior Member
Thread Starter

wongfei's Avatar

Join Date: Oct 2017
Location: Kiev
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts

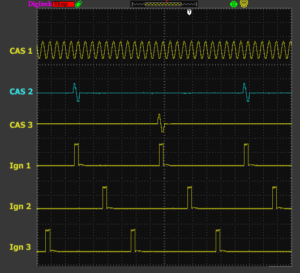

seen that, nice article but doesn't have the most important CAS -> IGL figure:



this one is the best i found somewhere but quality makes it useless
wongfei is offline
