Connector near BAC

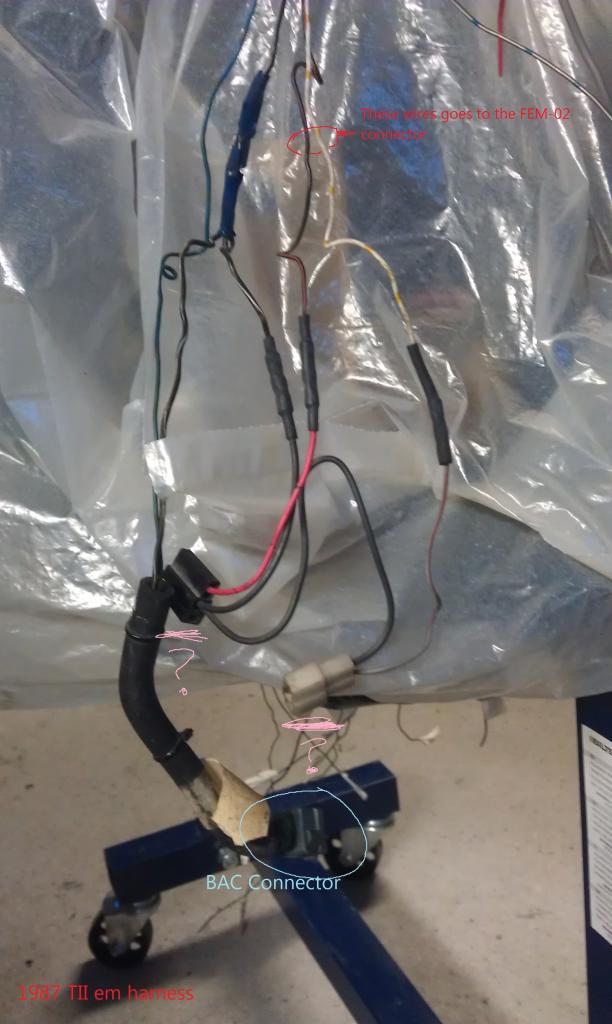

I am wondering what these two connectors underlined in pink does.
This is a harness out of a 1987 TII.
The two connectors sits near the BAC plug, and the black/red and white wires goes to the two pin furthest left in the FEM-02 connector.
This is a harness out of a 1987 TII.
The two connectors sits near the BAC plug, and the black/red and white wires goes to the two pin furthest left in the FEM-02 connector.
03-03-15, 12:13 PM
#2
Junior Member
Thread Starter
Join Date: Apr 2011
Location: Norway
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts

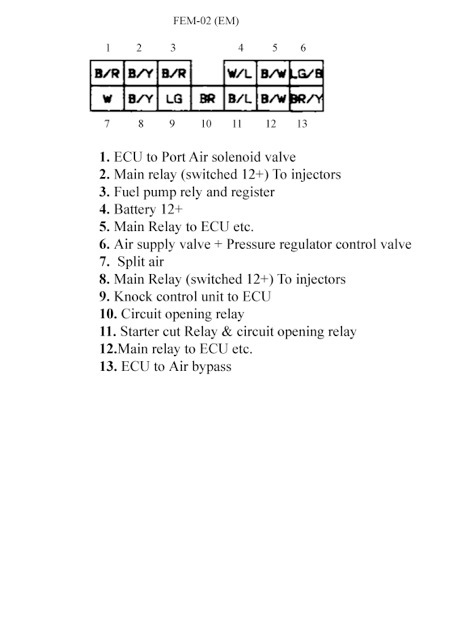

I figured it out. Found a picture on the forum that explains it.
1 ECU to port air solenoid valve
7 split air
Still not 100% sure though as it seems the previous owner did some splicing here, and the two plugs was connected together...
1 ECU to port air solenoid valve
7 split air
Still not 100% sure though as it seems the previous owner did some splicing here, and the two plugs was connected together...
03-03-15, 12:28 PM
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
they do share the same black/white power wire...
