Complete Automatic to Manual Conversion Write UP
03-05-06, 10:43 PM
#105
Junior Member
Join Date: Feb 2006
Location: Los Angeles, CA
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
hmmm i bought the car and he threw in the manual tranny.... i wonder if the trannys from the s5.... ehh ill figure it out.. i guess i gotta read through this post agian...
how much do u want from the brackets? + shipping to 90065
how much do u want from the brackets? + shipping to 90065
03-06-06, 09:43 PM
#107
if you read that far back, then either you know what you need to do or you missed it.
i just don't have time to spoon feed you the info... you need to study this thread.
look at the post about the cross member and mounting point differences... auto 2nd gens are only compatible with certain s5 transmissions when using these straight stepped down bar adapters... otherwise there's other stuff you have to do that makes it worth it just to go ahead and get a s5 transmission.
it's all here in this thread! just read!
i just don't have time to spoon feed you the info... you need to study this thread.
look at the post about the cross member and mounting point differences... auto 2nd gens are only compatible with certain s5 transmissions when using these straight stepped down bar adapters... otherwise there's other stuff you have to do that makes it worth it just to go ahead and get a s5 transmission.
it's all here in this thread! just read!
Last edited by alexdimen; 03-06-06 at 09:45 PM.
03-07-06, 12:10 AM
#109
Junior Member
Join Date: Feb 2006
Location: Los Angeles, CA
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Hey, since you done it w/ a s4 Tranny... whenever you have time or if ur car is ever up in the air for no reason hahaha, would u mind taking a picture of how u did it... so i have an idea on how to do it correctly... if it aint to much of a problem ofcourse.... but yeah, thnx for the help...
04-10-06, 09:55 PM
#111
Newbie
Join Date: Apr 2006
Location: Aust
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Having followed this article and not even started the job yet. I find myself worried that both of these methods seem slightly less than perfect espescially the crossmember adaptor method am I correct in that there is not side mounting at all in this method?
Is it possible to combine the two methods?
Unfortunately I dont have the welding experience to weld the original mounts from a donor car. Can anyone give experiences/testimonies on living with these conversions.
I just cant see how there can not be side effects with a highly modded car and the crossmember adaptor method?
Is it possible to combine the two methods?
Unfortunately I dont have the welding experience to weld the original mounts from a donor car. Can anyone give experiences/testimonies on living with these conversions.
I just cant see how there can not be side effects with a highly modded car and the crossmember adaptor method?
04-11-06, 09:33 AM
#112
Rotary Enthusiast
Join Date: Mar 2004
Location: St Louis
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by wallace23
Having followed this article and not even started the job yet. I find myself worried that both of these methods seem slightly less than perfect espescially the crossmember adaptor method am I correct in that there is not side mounting at all in this method?
Is it possible to combine the two methods?
Unfortunately I dont have the welding experience to weld the original mounts from a donor car. Can anyone give experiences/testimonies on living with these conversions.
I just cant see how there can not be side effects with a highly modded car and the crossmember adaptor method?
Is it possible to combine the two methods?
Unfortunately I dont have the welding experience to weld the original mounts from a donor car. Can anyone give experiences/testimonies on living with these conversions.
I just cant see how there can not be side effects with a highly modded car and the crossmember adaptor method?
06-20-06, 11:22 PM
#113
Full Member
Join Date: Jun 2006
Location: Ogden, UT
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts
Very nice thread. Wish I would have had all this info when I did my swap two years ago. I could have had it done in one day instead of two. I like your idea of the fabricated mount extensions but I also like the other way which was pulling off the mounts from a donor car. Both are sturdy. It just depends on how much time you want to spend. Either way you go it hardly seems that either would be half assed. Anyways, EXCELLENT thread. Should help ALOT of people.
06-21-06, 12:10 AM
#114
Bongolio
Damn this thread is old. Anyway follow the tranny bracket instruction's to the tee i used this writeup to do my swap and everything is legit. The hardest part was installing the new pedal assembly other than that i did this swap in 2 day's have fun!
03-01-07, 01:15 PM
#117
ProJect FC3S
Join Date: Jun 2006
Location: Washington
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts
sorry this question has probably been asked a bunch of times in this thread. but what are all the parts you would need to swap into a manual? I have a 89 Auto that my parents just bought me.. this will probably be my first project on this car..any help will be appreciated. thanks.
03-01-07, 02:44 PM
#119
Rotary Freak
Thread Starter
Originally Posted by MrR3dR3d
sorry this question has probably been asked a bunch of times in this thread. but what are all the parts you would need to swap into a manual? I have a 89 Auto that my parents just bought me.. this will probably be my first project on this car..any help will be appreciated. thanks.
God this is old.
Tranny (obvious)
Shifter with interior trim type stuff that goes around the shifter
Pedal Pack (need that 3rd pedal)
Clutch Master Slave Cylindar
Driveshaft
Manual Computer (I think? been a long time)
The Brackets mentioned in this thread or something similar
Your best bet, buy a wrecked donor car and put them side by side and do the swap
05-23-10, 12:41 PM
#125

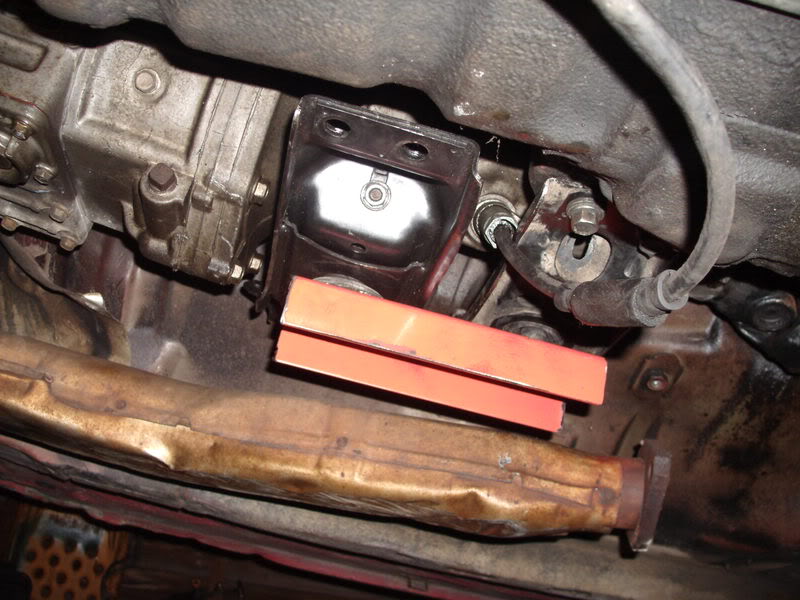

For a stock-ish car, using 1/4" thick flat iron is more than sufficient. I used 1/4" thick by 1 1/4" wide flat iron from Tractor Supply Company for my brackets. For the year that they were in use on my S4 GXL, I didn't notice any distortion at all. Also, this design should work with both S4 and S5 cars. For the record, V8kilr switched to 1/2" thick stuff when introducing nitrous and/or forced induction
