Comp test results on a motor thats out of the car...
05-21-08, 10:07 PM
#1
I "lost" my emissions....
Thread Starter
Comp test results on a motor thats out of the car...
ok so lets say theres a s4 n/a mazda reman thats been sitting for a couple months, that is out of the car.
by jumping the starter you get 100 psi of compression on both rotors.
what could you reasonably expect to see on that block when warm?
thanks
ben
by jumping the starter you get 100 psi of compression on both rotors.
what could you reasonably expect to see on that block when warm?
thanks
ben
05-22-08, 02:37 AM
#3
Road Rotary Aviator
Join Date: Apr 2004
Location: Oregon
Posts: 499
Likes: 0
Received 0 Likes
on
0 Posts
isn't compression guaranteed to be higher when warm? With all the metal expanding and extra oil sloshed all over the rotors that sure seems like it would be the case. That motor might be near perfect compression.
05-22-08, 10:59 AM
#5
iRussian
iTrader: (3)
Join Date: Oct 2006
Location: midwest IL, USA
Posts: 947
Likes: 0
Received 0 Likes
on
0 Posts
how did you do this exaclty? I got a used motor sitting right now, and i was assured that it would run because it did when the PO took it out of his car and it was still running. Could you explain how you hooked up the starter? is it connected to the transmission? I want to do this on an engine stand. thanks.
05-22-08, 12:23 PM
#6
how did you do this exaclty? I got a used motor sitting right now, and i was assured that it would run because it did when the PO took it out of his car and it was still running. Could you explain how you hooked up the starter? is it connected to the transmission? I want to do this on an engine stand. thanks.
Trending Topics
05-22-08, 03:47 PM
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
how did you do this exaclty******************************************* ****************

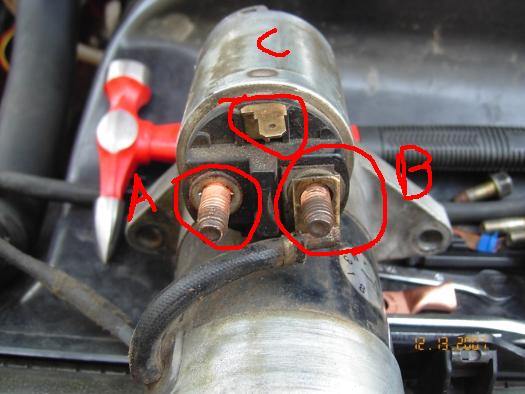

Jumper cables from battery. Positive cable to *B* in the jpg. Negative cable from the battery to preferably the LONG bolt the holds the starter on or at least one of the bolts that hold the transmission to the engine.
Then bridge the gap b/t *B* and the SMALL terminal on the starter solenoid. Use a screwdriver shank if needed to bridge the gap.
Starter now rotates the engine if the battery is any good.
Jumper cables from battery. Positive cable to *B* in the jpg. Negative cable from the battery to preferably the LONG bolt the holds the starter on or at least one of the bolts that hold the transmission to the engine.
Then bridge the gap b/t *B* and the SMALL terminal on the starter solenoid. Use a screwdriver shank if needed to bridge the gap.
Starter now rotates the engine if the battery is any good.
