Closing Heater Core
#6
Theoretical Tinkerer
iTrader: (41)

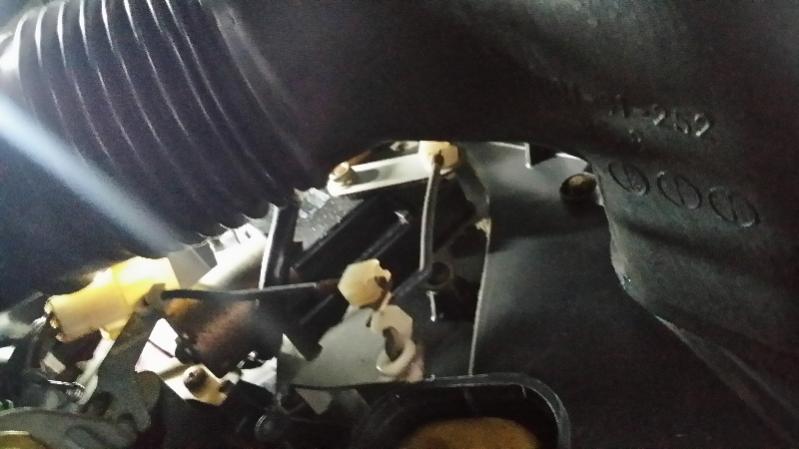

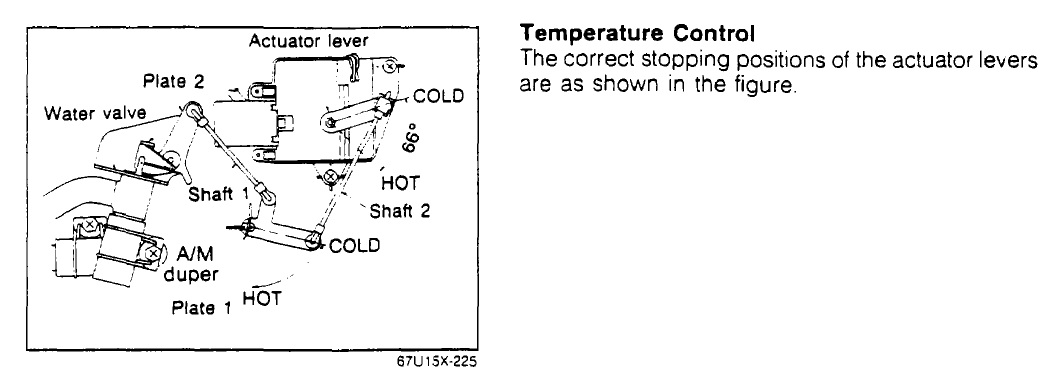

Looking up at the hvac from the driver's side footwell, you should see the mechanism in the attached picture. As practice, print out the picture and tape it to the bottom of a chair. Now try to look at it while sitting on the chair. That's the posture you'll need during the initial investigation.
Trending Topics
#9
Full Member
iTrader: (1)

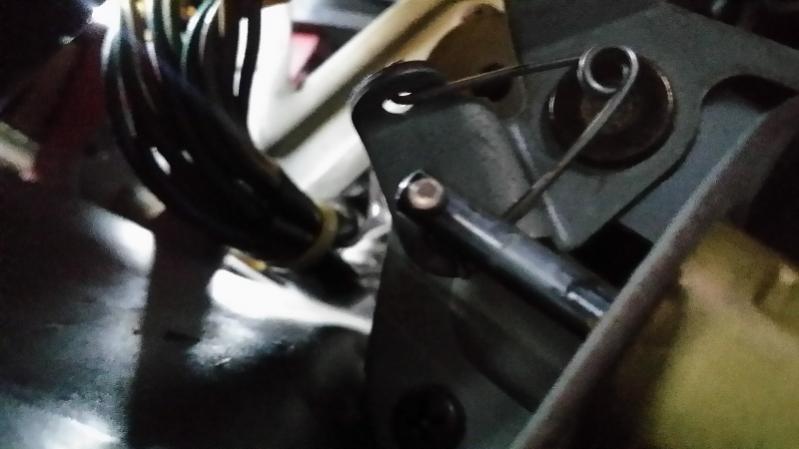

ok, in the bottom left of your second pic, you see whats holding in the little aluminum rod? its hard to describe but its the plastic thing on the end of it? if you look closely you can see how it holds the rod in place. you need to rotate it away from the rod. one half is open, and one is closed. youll see what i mean when you stick your head in there again.
btw, these are the same as door lock rod clips. if you google it youll see a pic of them from all sides and instantly understand how they work.
rotate the clip to free the rod. then adjust the flapper door however you see fit (hot/cold)
btw, these are the same as door lock rod clips. if you google it youll see a pic of them from all sides and instantly understand how they work.
rotate the clip to free the rod. then adjust the flapper door however you see fit (hot/cold)
