ibeljin

iTrader: (1)

Car is a 1990 NA gxl. I sent out my injectors for cleaning and in the meantime replace some of the old vacuum hoses in the car. Got the injectors back and put everything back together. The car had made 90+psi on all faces up untill this point.
I go to start her up and she fires up to 3k rpm as normal and then gets very lumpy and rough and just cuts out. The second time i start it up, she fires up to 4-5k rpm and the front rotor grenaded. 0psi on all faces on the front rotor now.

Anybody want to wager a guess what the heck happened? Car never moved, this was just on startup. Im going to be pulling the car apart in a week to figure out what the cause was. Really bummed, i know i fucked something up royal and this was my first rotary

Tui

iTrader: (2)

Something dropped down the injector hole?

misterstyx69

iTrader: (142)

car improperly stored,bad injector connector,vac leak at injector..
Small animal got into front rotor?.Stuck seal and FFFT..gone.
These and other stories on the Discovery Channel.
(discover when you take it apart!)

*ahem..now ya know how I feel Ivan!..Sucks don't it!

NativeBeggars

iTrader: (1)

I have to agree. If it just all of a sudden grenaded after you pulled the injectors out and replaced them, usually something falls in there causing it. DUCT TAPE IS YOUR FRIEND!

Like Styx said, you'll have to tear it apart and find out. I hope you didn't lose a diffuser. They're tiny and very expensive.

ibeljin

iTrader: (1)

the intake was taped up during the whole process, the new seals between the injectors in the manifold weren't a tight fit but i thought they would still seal fine. My guess is that i was wrong, and due to a massive vac leak rotor one went.
If anybody has an S5 NA keg around, im looking

misterstyx69

iTrader: (142)

I read your mind..look at your Pm's

NativeBeggars

iTrader: (1)

I used a drop of Krazy Glue to hold the two pieces together and then a third drop to keep them in the right spots. I have an S4 keg around, properly stored and wrapped, pulleys to flywheel if anything falls throigh with Styx!

philiptompkins

iTrader: (4)

I had a seal get stuck after being not run a few months. Got a friend to help me pull start it using a rope and another car. If you can get the engine spinning a few k rpm it may fire up.

RotaryEvolution

iTrader: (30)

an engine doesn't pop a rotor due to idling with lean mixtures, plenty of people suffer from vacuum leaks and engine failures aren't going left and right as a side effect.

either something got dropped into the intake while you had the tape removed or it was merely coincidentally time for the engine to go.

Mr.JTurboII

What makes you think it grenaded? maybe the injector is stuck open and it flooded?

ibeljin

iTrader: (1)

I compression tested it with 0psi on the front face. engine is done
also one of the nuts from the intake plenum misteriously went missing, it is possible i got distracted when taking them off and drop one down the intake upon assembly. God damn i feel like an idiot haha

lduley

iTrader: (1)

Schnit happens man, could've done worse and left the fuel lines loose and burnt the car to the ground lol

ibeljin

iTrader: (1)

This is true, I'm still disappointing in myself nonetheless. I was super excited to drive the car again and this is a real bummer. I just want to get the car running as soon as possible and preferably at a cost that wont have me considering a part out

NativeBeggars

iTrader: (1)

Well Styx said he had an S5 engine for sale, and I definitely have 2 complete S4 engines that ran when pulled and stored, that you could buy and salvage parts from. You could use just your S5 rotors, eshaft and stat gears if you somehow didn't trash the front rotor too. S4 keg and S5 everything else if it would work? Stella is S4 irons, S5 eshaft, stat gears, and all manifolds and ancilliaries, then FD rotors and housings.

SHOW PICS OF CARNAGE! Please? Sorry for your loss, bud. We'll be able to help out!

ibeljin

iTrader: (1)

Oh, im definately posting pictures of the absolute **** show that went down in this engine. I m going to start pulling it appart in two days, i have some commitments i have to get to first. As for the engine parts, im going to try to source as much as i can to avoid shipping it in from states because its a major pain in the ****. If i need any parts i will Pm ya

NativeBeggars

iTrader: (1)

Yeah my being in FL does make it a pain sometimes...

misterstyx69

iTrader: (142)

No.I don't have a s5 engine For Sale but gave him a decent lead on one.
ahem..got a S4 TII keg disassembled though.I could paint the crate like a big Easter egg.,.
Brappy Rabbit..Bunny Styx...Easter Eccentric Shaft Hunt..

Claytons91

in for the pics.

NativeBeggars

iTrader: (1)

His rotary will rise from the dead, Styx!

Hit me up if you're interested in that S4 keg. I do have a transmission should you need it too. I'm not afraid to prep it for shipping if you're willing to pay the price. I'm not sure where you're located but let me know.

ibeljin

iTrader: (1)

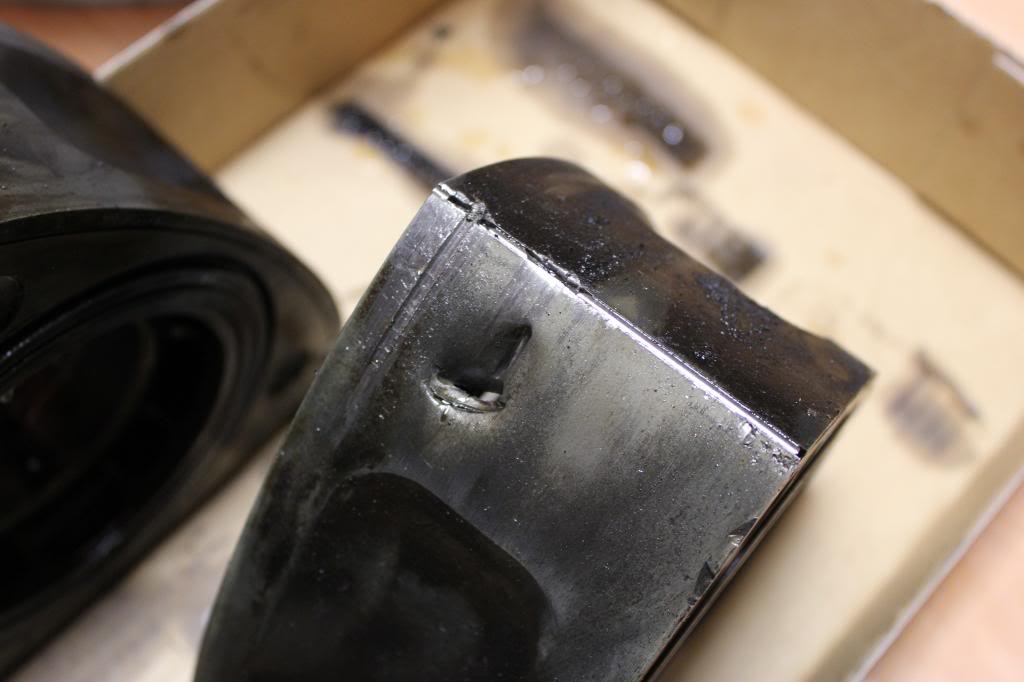

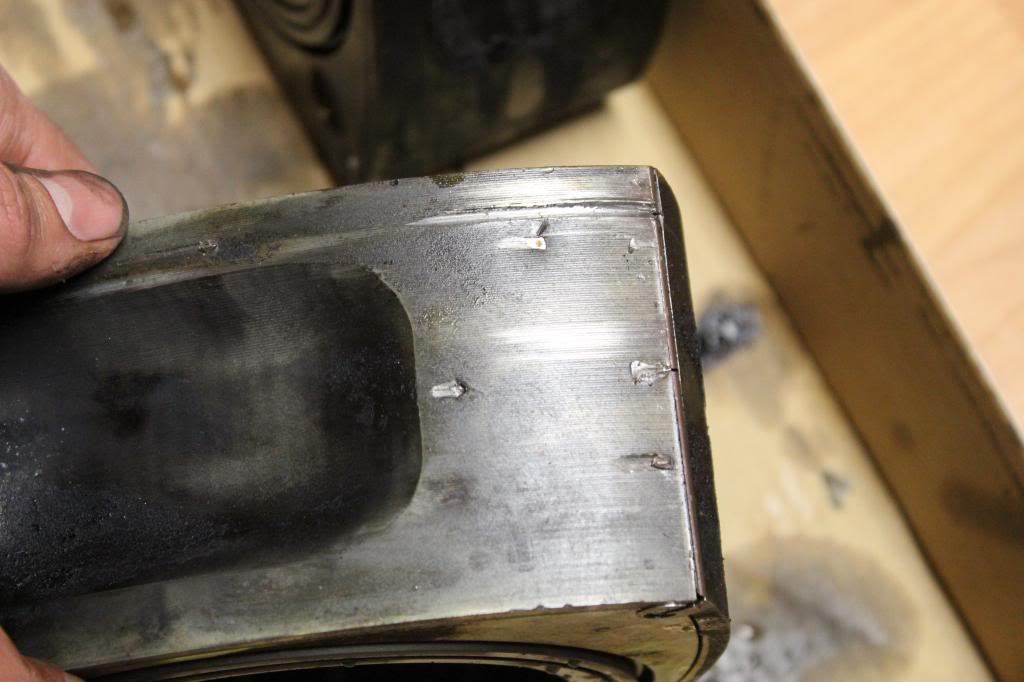

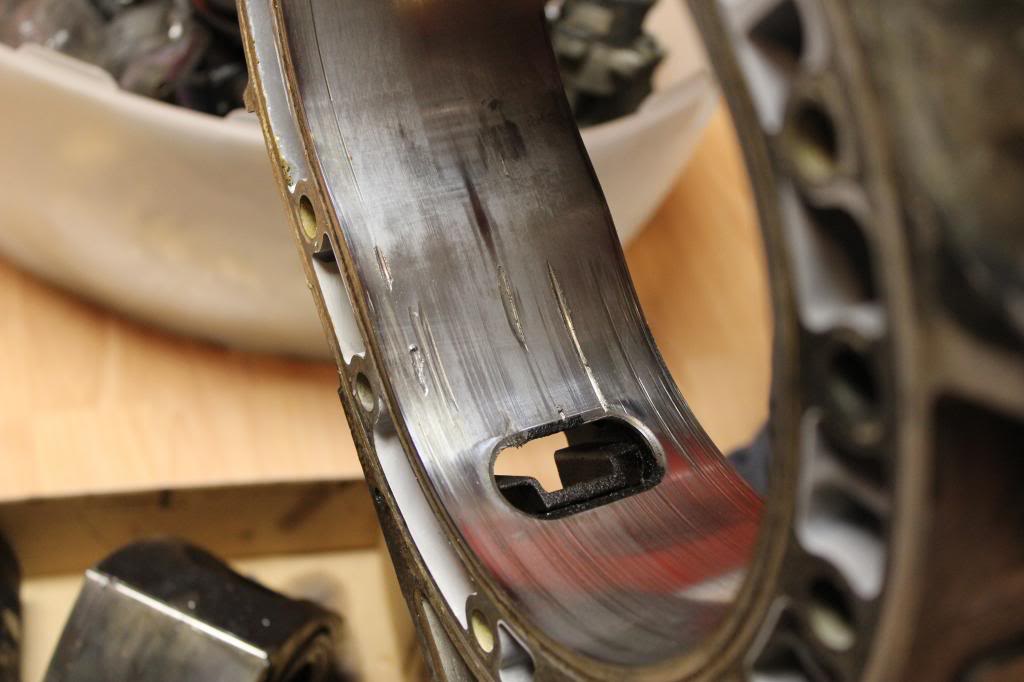

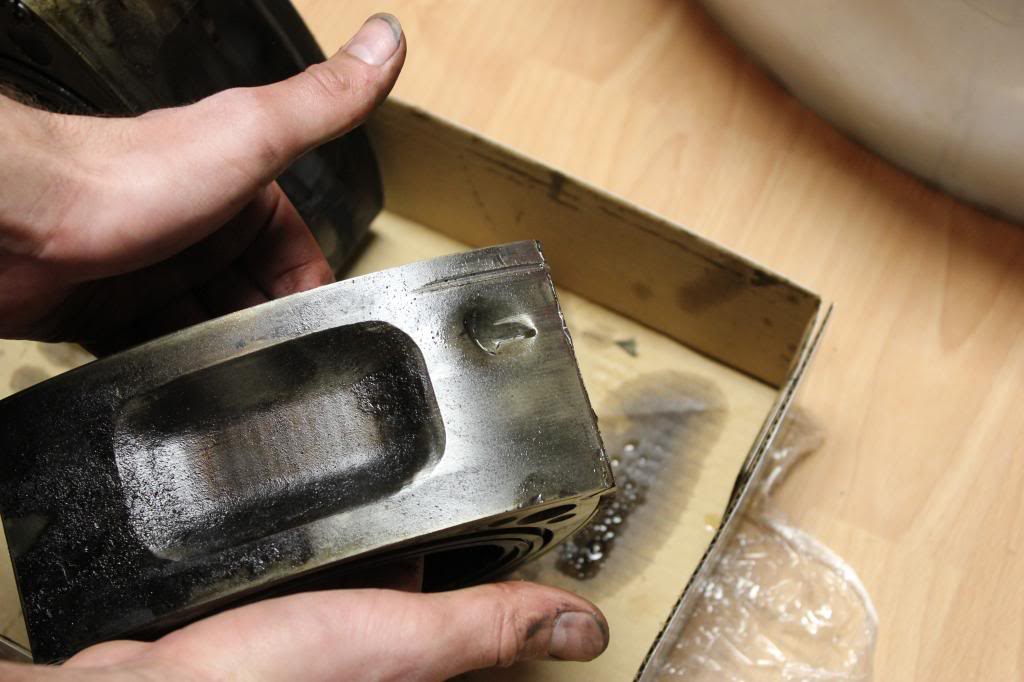

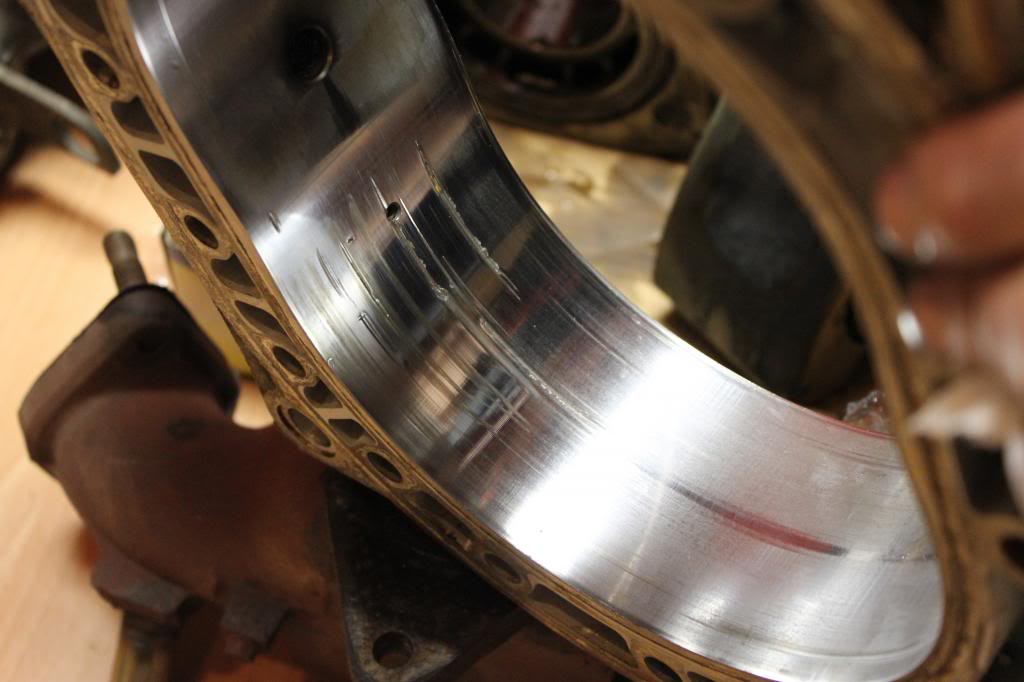

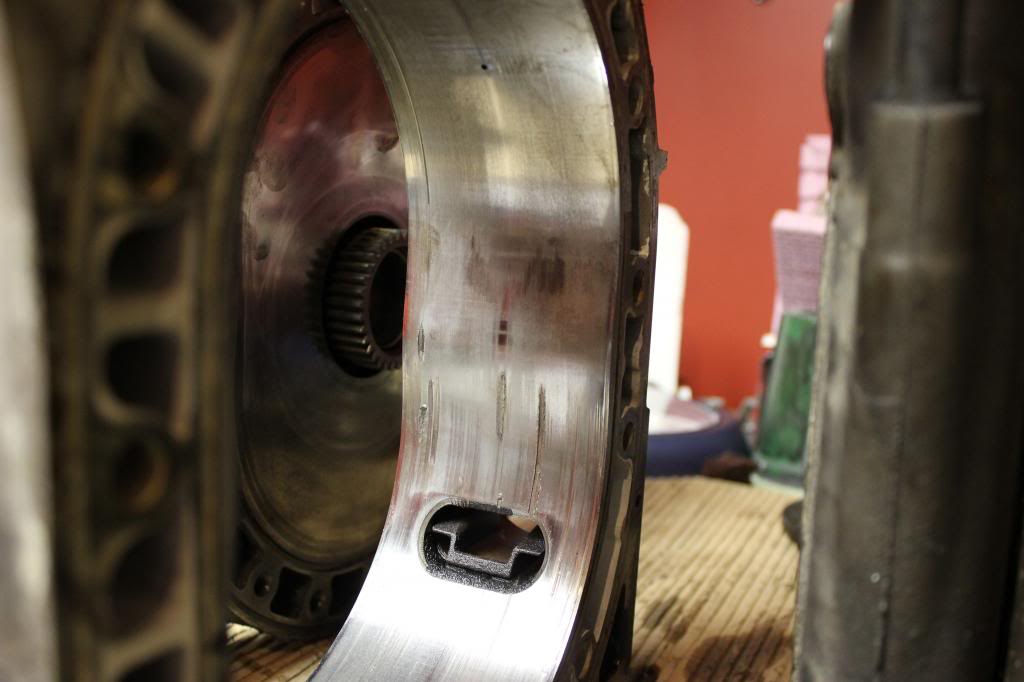

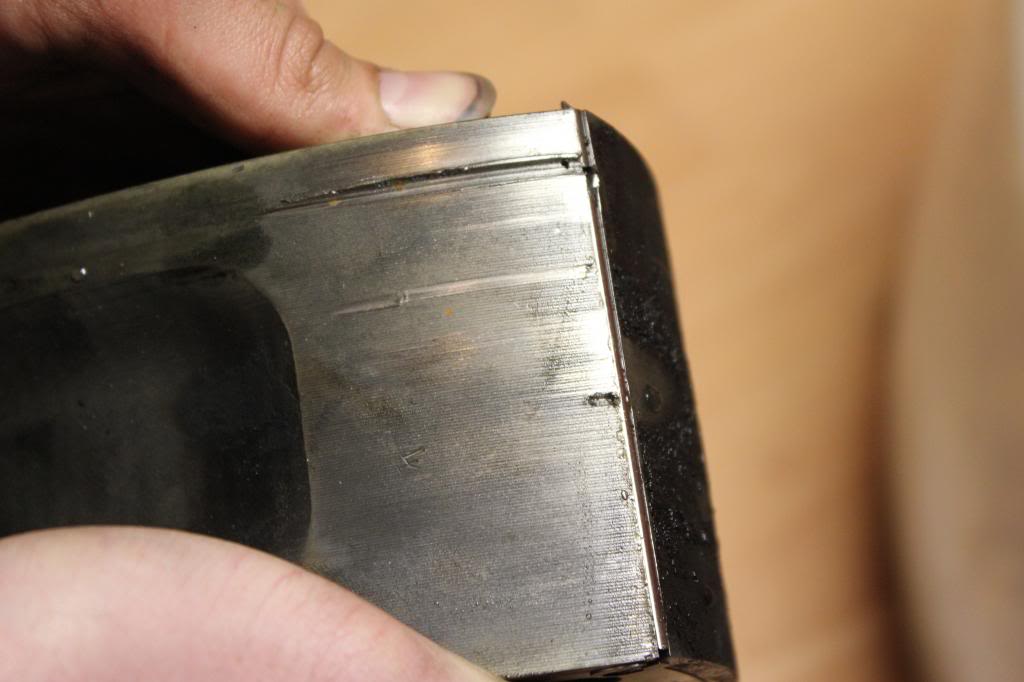

Sorry it took so long to get pictures of the damage, here they are.

HRnico

iTrader: (7)

you find the nut ? In the Muffler maybe?

ibeljin

iTrader: (1)

I found it sliced in half, sitting in the intake runners

NativeBeggars

iTrader: (1)

Damn. That is a sad set of photos, brother. I can't see the middle three on my phone but the rotor whew. It really does pay to completely bag and label everything and tape up runners. I hope your rebuild goes well.

KompressorLOgic

iTrader: (6)

ouch! is that hole torn through the rotor? it looks like I can see inside of it?

misterstyx69

iTrader: (142)

YEP..there is a slight hole where he was losing compression..lol!

Frankly we tore this thing down to see WTF happened and was quite surprised to see the big *** hole in it..the nut sheared in half in the Intake..

The New Engine will run on Orange/strawberry/banana Tropicana..
(we went through a gallon of that during the Teardown..lol!)
