Check Engine Light!!!
I Need help In locating the FUEL PUMP RESISTOR Relay Please. That is the only Trouble Code that I get when I run the self-Diagnostic. Or if anybody has any other info on this problem. Thanks Speedy_AZ
Last edited by speedy_az; 01-01-08 at 02:40 PM. Reason: Spelling Errors
#3
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Both the location of the relay and resistor and the error code troubleshooting procedure are in the FSM Fuel Systems chapter. I recommend you read it and do what it says.
If you don't have the FSM, click here and download it in PDF format for free.
If you don't have the FSM, click here and download it in PDF format for free.
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I really don't see how the ECU can tell if the relay is kaput or not. There is but one wire b/t it and the ECU and that is a green/red wire that puts a gnd on the relay when there is no load on the system. It's possible the ECU also looks back thru the relays coil at the voltage to the coil OR is looking at the current at the green/red wire that runs b/t the coil and ECU. Got me. I've a series four that won't throw a code like that even if I cut the green/red wire.
If it were me, after I did the above, I'd tap into the fuel pumps input wire with a meter and look at the voltage going to the pump. It should be batt voltage during starting and just after starting the voltage should drop to about 9vdc. Then go for a drive. You should see approx 9vdc when cruising along. Stomp the pedal and it should go to full Batt voltage. Done.
I take it your car runs/drives ok because you did not mention it not working. Just the code 51.
If it were me, after I did the above, I'd tap into the fuel pumps input wire with a meter and look at the voltage going to the pump. It should be batt voltage during starting and just after starting the voltage should drop to about 9vdc. Then go for a drive. You should see approx 9vdc when cruising along. Stomp the pedal and it should go to full Batt voltage. Done.
I take it your car runs/drives ok because you did not mention it not working. Just the code 51.
#6
My friends call me SPEEDY
Thread Starter
Join Date: Dec 2007
Location: Tucson, AZ
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
I really don't see how the ECU can tell if the relay is kaput or not. There is but one wire b/t it and the ECU and that is a green/red wire that puts a gnd on the relay when there is no load on the system. It's possible the ECU also looks back thru the relays coil at the voltage to the coil OR is looking at the current at the green/red wire that runs b/t the coil and ECU. Got me. I've a series four that won't throw a code like that even if I cut the green/red wire.
If it were me, after I did the above, I'd tap into the fuel pumps input wire with a meter and look at the voltage going to the pump. It should be batt voltage during starting and just after starting the voltage should drop to about 9vdc. Then go for a drive. You should see approx 9vdc when cruising along. Stomp the pedal and it should go to full Batt voltage. Done.
I take it your car runs/drives ok because you did not mention it not working. Just the code 51.
If it were me, after I did the above, I'd tap into the fuel pumps input wire with a meter and look at the voltage going to the pump. It should be batt voltage during starting and just after starting the voltage should drop to about 9vdc. Then go for a drive. You should see approx 9vdc when cruising along. Stomp the pedal and it should go to full Batt voltage. Done.
I take it your car runs/drives ok because you did not mention it not working. Just the code 51.
#7
My friends call me SPEEDY
Thread Starter
Join Date: Dec 2007
Location: Tucson, AZ
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Both the location of the relay and resistor and the error code troubleshooting procedure are in the FSM Fuel Systems chapter. I recommend you read it and do what it says.
If you don't have the FSM, click here and download it in PDF format for free.
If you don't have the FSM, click here and download it in PDF format for free.
Trending Topics
#8
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
This system runs the fuel pump at two different speeds depending on engine load; reduced speed at low load and full speed at high load. If the relay has failed off (most likely) then the pump will be running at full speed all the time, which will result in richer low-load mixtures and increased fuel consumption. If it's failed on (unlikely but possible) then the pump will be running at reduced speed all the time, which will result in leaner full-load mixtures. Neither will have noticeable effects, but obviously lean mixtures could result in engine damage. I highly recommend you check the fuel pump voltage as Hailers suggested.
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

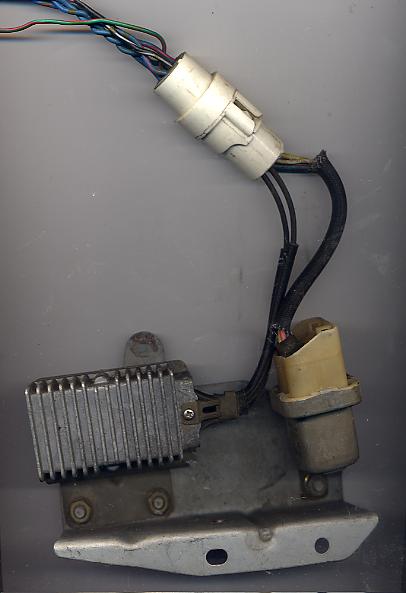

There's a jpg attached of the Resistor/Relay assy. There should be a green/red wire coming into the large white plug from the EM harness. It goes to the ECU.
That relay even looks expensive. Have you ever tried to clear the codes from your ECU? Per the FSM?
Even if the relay failed, to me a worst case scenario would be your fuel pump seeing full batt voltage all the time and never seeing the cutback voltage of approx 9vdc. In other words it would fail *safe*. Much like a water thermo sensor failing to a safe 179*F or the air temp sensor failing to a safe figure.
That relay even looks expensive. Have you ever tried to clear the codes from your ECU? Per the FSM?
Even if the relay failed, to me a worst case scenario would be your fuel pump seeing full batt voltage all the time and never seeing the cutback voltage of approx 9vdc. In other words it would fail *safe*. Much like a water thermo sensor failing to a safe 179*F or the air temp sensor failing to a safe figure.
Last edited by HAILERS; 01-02-08 at 08:31 AM.
#10
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
It probably is it you buy it from Mazda, but you could replace a failed one with a generic 5-pin DPDT replay for just a few bucks.

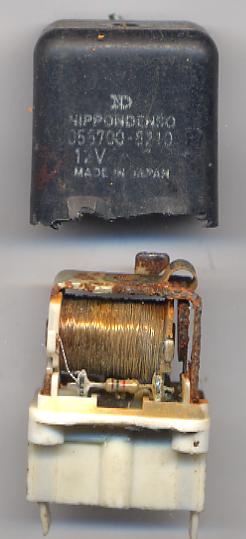

RETed had a case of the relay getting water in it and rusting everything, eventually causing it to fail in the "on" state, i.e. running the pump at reduced speed constantly. This is the only example I've heard of this happening though. Failing "off" like you said is far more likely.
Even if the relay failed, to me a worst case scenario would be your fuel pump seeing full batt voltage all the time and never seeing the cutback voltage of approx 9vdc. In other words it would fail *safe*.
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Here's a Headlight Retract Relay from a early series four. It look nice in the wrecking yard, but pull the cover off and walla! It was located near where the fuel pump resistor relay is located. Same bulkhead but off to the right.
#13
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Fixing the problem is easy and cheap. No half-assing required.
#14
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

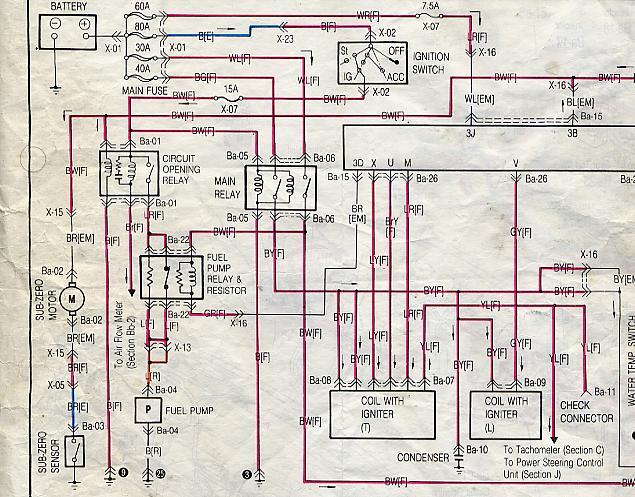

Might as well give this thread some legs....here's a schematic of the resistor/relay. It's out of a series four FSM, but the series five works the same. Different pins on the ECU though.
I'm throwing in this jpg of a T-34 from WWII being pulled out of a lake in eastern Europe a few years ago.
I'm throwing in this jpg of a T-34 from WWII being pulled out of a lake in eastern Europe a few years ago.
Last edited by HAILERS; 01-02-08 at 06:10 PM.
#15
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
BS, the reason for replacing it with a standard relay is to get rid of the check engine light, if the relay switching circuit is left open then the check engine light will stay on. So effectively the relay isn't switching anything, and yes this could be done with a resister, but many people have a very basic understanding of electronics that doesn't extend to the level of picking out the correct resister.
And as to increased fuel consumption the fuel pump on NA car's is no walbro (which arent that great either), I seriously doubt that there would be increased consumption.
Do you understand how a fuel pressure regulator works? I'm sure you do, and I'm sure you know that increasing the fuel pressure by a marginal amount before the FPR would merely bypass more fuel back to the tank.
Now if he put a rewired walbro on the car, it would probably overcome the stock FPR and increase consumption, but an OEM NA fuel pump I don't think so.
I have a stock 13b-rew fuel system yes this is different from his NA or your turbo2, I have a rewired modified supra pump that supposed to be good to well over 300+LPH, no resister.. Guess what, it makes no different to the base fuel pressure. The car has the same base fuel pressure as a stock FD.
And as to increased fuel consumption the fuel pump on NA car's is no walbro (which arent that great either), I seriously doubt that there would be increased consumption.
Do you understand how a fuel pressure regulator works? I'm sure you do, and I'm sure you know that increasing the fuel pressure by a marginal amount before the FPR would merely bypass more fuel back to the tank.
Now if he put a rewired walbro on the car, it would probably overcome the stock FPR and increase consumption, but an OEM NA fuel pump I don't think so.
I have a stock 13b-rew fuel system yes this is different from his NA or your turbo2, I have a rewired modified supra pump that supposed to be good to well over 300+LPH, no resister.. Guess what, it makes no different to the base fuel pressure. The car has the same base fuel pressure as a stock FD.
This makes little sense. If you want to rewire the pump for full voltage, you would delete the relay not replace it. And doing that is silly anyway, because all you'll achieve is increased fuel consumption.
Fixing the problem is easy and cheap. No half-assing required.
Fixing the problem is easy and cheap. No half-assing required.
#16
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
BS, the reason for replacing it with a standard relay is to get rid of the check engine light, if the relay switching circuit is left open then the check engine light will stay on. So effectively the relay isn't switching anything, and yes this could be done with a resister, but many people have a very basic understanding of electronics that doesn't extend to the level of picking out the correct resister.
And as to increased fuel consumption the fuel pump on NA car's is no walbro (which arent that great either), I seriously doubt that there would be increased consumption.
Do you understand how a fuel pressure regulator works? I'm sure you do, and I'm sure you know that increasing the fuel pressure by a marginal amount before the FPR would merely bypass more fuel back to the tank.
#17
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
Nope, compensating for upstream pressure changes is exactly what they are there for, upstream is everything in line with the fuel pump up to the FPR itself.
I have tested this myself with a fuel pressure gauge. (yes I have a 13b-rew, but the principle is the same)
If its not there to compensate for upstream pressure changes then what exactly do you think its there for?
I have tested this myself with a fuel pressure gauge. (yes I have a 13b-rew, but the principle is the same)
If its not there to compensate for upstream pressure changes then what exactly do you think its there for?
I do know how FPR's work, and I know that they can't compensate for upstream pressure changes. That's not what they're there for. It has been shown before that manually changing the pump speed on the engine while it's idling results in an AFR change. I believe Hailers was the one who proved this.
Last edited by slo; 01-02-08 at 06:55 PM.
#18
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The resistance of the circuit from the green/red to the black/white is given in the FSM, Fuel section...... 68-92 ohms.
The last time I looked, if you have the engine running, then disconnect the green/red from the ECU, the afr changes and I'm going to have to go look tomorrow, I do believe the fuel rail pressure changed also. Just from memory of the above from a couple of yrs ago. I had made a bet about this.......and lost.
Actually, that is what the poster of this thread should do. Pull the relay/resistor out and ohm out the coil/resistor and see how close to 68-92 ohms it is. That should give you a clue if the relay is good/bad. There's no contacts that open/shut for this coil, so what you read is what you get. If it reads like the above, maybe, just maybe, unplugging the connector and cleaning the contacts on the PLUG, and then reattaching the plug could make things ok again. Just clear the codes and restart the engine and see if the code reappears ....or not.
The last time I looked, if you have the engine running, then disconnect the green/red from the ECU, the afr changes and I'm going to have to go look tomorrow, I do believe the fuel rail pressure changed also. Just from memory of the above from a couple of yrs ago. I had made a bet about this.......and lost.
Actually, that is what the poster of this thread should do. Pull the relay/resistor out and ohm out the coil/resistor and see how close to 68-92 ohms it is. That should give you a clue if the relay is good/bad. There's no contacts that open/shut for this coil, so what you read is what you get. If it reads like the above, maybe, just maybe, unplugging the connector and cleaning the contacts on the PLUG, and then reattaching the plug could make things ok again. Just clear the codes and restart the engine and see if the code reappears ....or not.
Last edited by HAILERS; 01-02-08 at 06:55 PM.
#19
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
The last time I looked, if you have the engine running, then disconnect the green/red from the ECU, the afr changes and I'm going to have to go look tomorrow, I do believe the fuel rail pressure changed also. Just from memory of the above from a couple of yrs ago. I had made a bet about this.......and lost.
On the 13B-rew the circuit controlling the fuel pump resister also affects a vacuum solenoid inline with the FPR, that would cut vacuum to the FPR if there was a malfunction in the system. Since at idle there is lots of vacuum pulling the fuel system pressure down this causes the fuel pressure to go up (not allot) but if you where to directly connect the FPR vacuum nozzle too the manifold so that this solenoid doesn't come into play this wouldn't happen.
I have never looked that deep into the stock NA fuel system but I suspect that this may be whats happening.
Next AFR's should not be the basis for this test, it should be fuel pressure.
#20
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Do you have any other explanation for the proven example I gave above?
#21
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
Varying fuel pressure based on manifold pressure, is secondary to keeping the fuel pressure constant with a source that varies in flow with voltage, age and load (as in the injectors at WOT removing pressure from the lines) the FPR increases or decreases the amount it bypasses to compensate for fluctuations in pressure that happen, yes you guessed it upstream of it.
So you really don't understand what an FPR does.
So you really don't understand what an FPR does.
C'mon, this is basic EFI stuff. The FPR is there is keep a constant pressure differential across the injectors, so that their flow rate remains constant irrespective of load. As manifold pressure goes up, fuel pressure goes up by the same amount. As manifold pressure goes down, fuel pressure goes down by the same amount. That's all it's there for.
Do you have any other explanation for the proven example I gave above?
Do you have any other explanation for the proven example I gave above?
#23
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
Two things are possible, the ECU may be reacting to what it perceives as a dangerous situation (which would be the fuel system stuck in low pressure resister mode). If it actually where the car would lean out under heavy load because the pump wouldn't be pumping enough.
Note that the pressure at low load in resister mode will always exceed the base fuel pressure.
It may react to this by increasing the injection duration, or possibly switching and electrical solenoid in between the FPR and manifold causing it to not see vacuum. The FD has this solenoid and if resistance is not present on any of the 2 fuel control relay's it goes into limp mode (making the car super rich and preventing any boost) and trips the solenoid.
Second the FPR could be overwhelmed by the flow of the fuel pump. I have heard than NA's will do this is a walbro is wired in without the fuel pump resister, but I seriously doubt this will happen with the stock NA pump simply rewired.
An added rewired walbro won't change the base fuel pressure on a T2 or FD and my supra pump doesn't change the base fuel pressure on an REW.
Again this test should only be testing actual fuel pressure and not AFR, seeing as there are many other things which can affect AFR.
Note that the pressure at low load in resister mode will always exceed the base fuel pressure.
It may react to this by increasing the injection duration, or possibly switching and electrical solenoid in between the FPR and manifold causing it to not see vacuum. The FD has this solenoid and if resistance is not present on any of the 2 fuel control relay's it goes into limp mode (making the car super rich and preventing any boost) and trips the solenoid.
Second the FPR could be overwhelmed by the flow of the fuel pump. I have heard than NA's will do this is a walbro is wired in without the fuel pump resister, but I seriously doubt this will happen with the stock NA pump simply rewired.
An added rewired walbro won't change the base fuel pressure on a T2 or FD and my supra pump doesn't change the base fuel pressure on an REW.
Again this test should only be testing actual fuel pressure and not AFR, seeing as there are many other things which can affect AFR.
Last edited by slo; 01-02-08 at 08:01 PM.
#24
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
It may react to this by increasing the injection duration...
...or possibly switching and electrical solenoid in between the FPR and manifold causing it to not see vacuum.
The FD has this solenoid and if resistance is not present on any of the 2 fuel control relay's it goes into limp mode (making the car super rich and preventing any boost) and trips the solenoid.
Second the FPR could be overwhelmed by the flow of the fuel pump.
An added rewired walbro won't change the base fuel pressure on a T2...
#25
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
I could provide a line by line retort to each of your statments but that getting off the real subject your statement:
That is exactly what an FPR does.
Second just because the S4 doesn't have a CEL doesn't meant that it doesn't have and react to engine codes.
And finally, a fuel pressure regulator in some form is on every single Gas fuel injected vehicle ever made, and most carbed vehicles with a fuel pump.
A fuel pump resister is not on most fuel injected vehicles.
You are failing to understand what an FPR does.
If pressure and consequently flow increase with greater upstream pressure as in from a larger pump, then this is most likely a result of the FPR not keeping up with the pump, this does not change the basic nature of the part or how it works, it ca only bypass so much fuel.
Second just because the S4 doesn't have a CEL doesn't meant that it doesn't have and react to engine codes.
And finally, a fuel pressure regulator in some form is on every single Gas fuel injected vehicle ever made, and most carbed vehicles with a fuel pump.
A fuel pump resister is not on most fuel injected vehicles.
You are failing to understand what an FPR does.
If pressure and consequently flow increase with greater upstream pressure as in from a larger pump, then this is most likely a result of the FPR not keeping up with the pump, this does not change the basic nature of the part or how it works, it ca only bypass so much fuel.
