This cause a vac leak?

Thread Tools

Search this Thread

Old 03-29-06, 08:31 PM
  #1
Famous Phil's Cheesteaks

Thread Starter

RenofHeavens's Avatar

Join Date: Mar 2006
Location: Los Feliz/LA, CA
Posts: 314
Likes: 0
Received 0 Likes on 0 Posts
This cause a vac leak?
Might be a dumb question but I have a nipple in my LIM that is exposed. Not sure if it is supposed to be capped or not. Running a Microtech LT10s, 1600cc secondaries, and 850cc primaries, Aeromotive FPR.

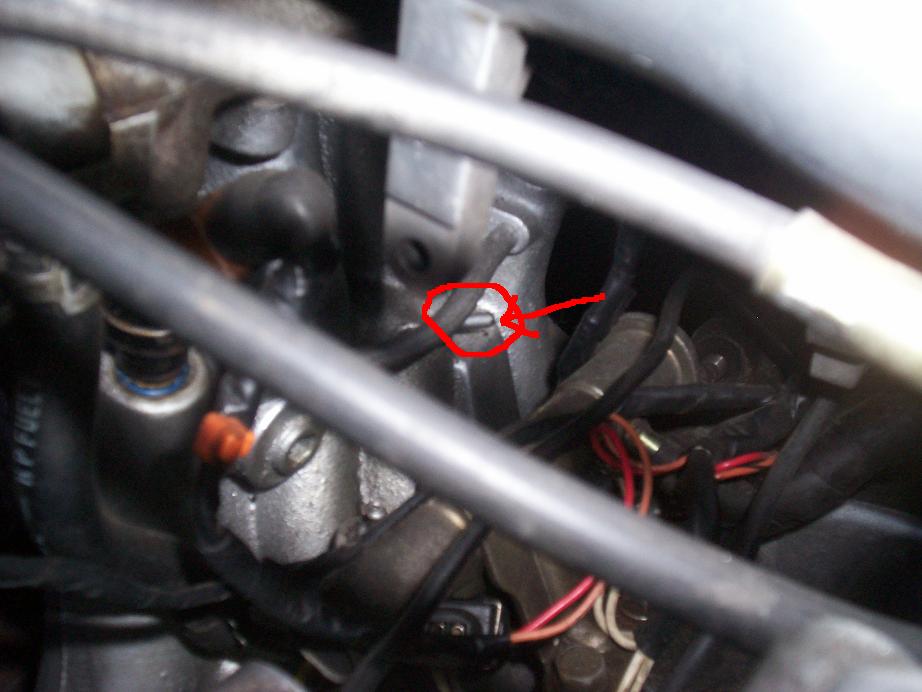

Suspect nipple is circled in pic.
Attached Thumbnails This cause a vac leak?-vacleak.jpg
RenofHeavens is offline
Reply Like
Old 03-29-06, 08:35 PM
  #2
MattB


MattB's Avatar

Join Date: Apr 2005
Location: Haverhill, MA
Posts: 1,124
Likes: 0
Received 0 Likes on 0 Posts
yes, vac leak...search for a vac diagram to see where it goes...we need more info...emissions? no emissions?
MattB is offline
Reply Like
Old 03-29-06, 08:45 PM
  #3
Senior Member


driftin8ez's Avatar

Join Date: Sep 2005
Location: NJ
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
if you running no emissions and no vac rack just cap it off. either way it is def. a vac leak.
driftin8ez is offline
Reply Like
Old 03-29-06, 11:36 PM
  #4
Famous Phil's Cheesteaks

Thread Starter

RenofHeavens's Avatar

Join Date: Mar 2006
Location: Los Feliz/LA, CA
Posts: 314
Likes: 0
Received 0 Likes on 0 Posts
Running with no emissions. I just didn't know if it was fuel related, and I don't think it is so I was concerned on whether to cap it or not.
RenofHeavens is offline
Reply Like
Old 03-30-06, 12:20 AM
  #5
FC3S


Pilx's Avatar

Join Date: Aug 2003
Location: Australia
Posts: 72
Likes: 0
Received 0 Likes on 0 Posts
Looks like it's left over from the removal of the solenoid rack, i've got 2 nipples left over from that and no vac leak. Just cap it up if you're not sure
Pilx is offline
Reply Like
Old 03-30-06, 12:24 AM
  #6
5 and counting.

iTrader: (7)

FC3S Murray's Avatar

Join Date: Jan 2006
Location: Montana
Posts: 1,651
Likes: 0
Received 3 Likes on 2 Posts
it is for the fuel vapor purge valve in the rats nest(orange connector). That cap is for a vac line that went to your secondary fuel rail. Just cap it off if rats nest is removed.
FC3S Murray is offline
Reply Like
Old 03-30-06, 12:27 AM
  #7
5 and counting.

iTrader: (7)

FC3S Murray's Avatar

Join Date: Jan 2006
Location: Montana
Posts: 1,651
Likes: 0
Received 3 Likes on 2 Posts
wait, that line went to a line in the rats nest going to the purge solenoid, the other goes to your fuel rail, all in all will cuase a vac leak. Damn RATS NEST!!
FC3S Murray is offline
Reply Like

Trending Topics

Old 03-30-06, 12:45 AM
  #8
Full Member


RotaryForce13B's Avatar

Join Date: Aug 2002
Location: Baton Rouge, La.
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts

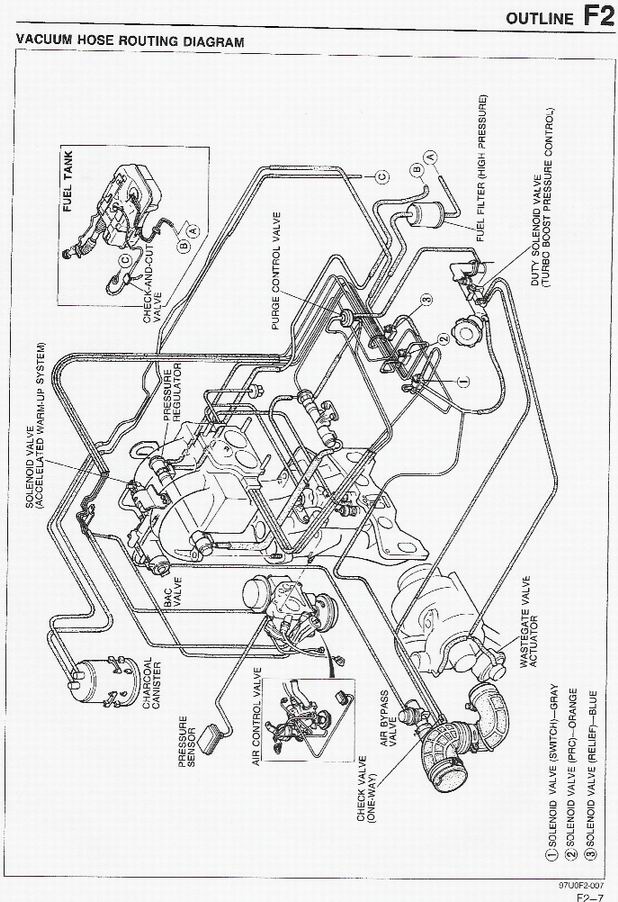

This might help
Attached Thumbnails This cause a vac leak?-001.jpg
RotaryForce13B is offline
Reply Like
Old 03-30-06, 04:42 AM
  #9
I'm a boost creep...


NZConvertible's Avatar

Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes on 8 Posts
That nipple is where the FPR is supposed to be connected...
NZConvertible is offline
