Can a T2 to N/a drive shaft still fit on a complete na transmission and rear end?
01-21-13, 09:50 AM
#1
Rotary Enthusiast
Thread Starter
iTrader: (17)
Join Date: Dec 2007
Location: Texas
Posts: 785
Likes: 0
Received 0 Likes
on
0 Posts
Can a T2 to N/a drive shaft still fit on a complete na transmission and rear end?
The reason I am asking is because I happened to go to the junkyard and I found a car that had either a t2 engine with an na flywheel and transmission or a 6port turbo setup. The engine was already pulled so I couldn't verify. Anyway the transmission and everything further back was still there. Once I got under the car I noticed that it was an N/A transmission but the driveshaft was tons bigger than the skimpy N/A ones that I have been using for years. Once I got home I matched it up to an N/A one and it is a bit longer. Just to make sure it wasn't a turbo driveshaft I put it up to my turbo rear end and the bolt holes did not line up as expected being an N/A shaft. With this shaft I'm wondering if this was a custom job or if it is the T2 to N/A shaft from mazdatrix. I will try to get pics today.
01-21-13, 11:13 AM
#2
Senior Member
iTrader: (5)
Join Date: Apr 2007
Location: Dallas, TX
Posts: 441
Likes: 0
Received 0 Likes
on
0 Posts

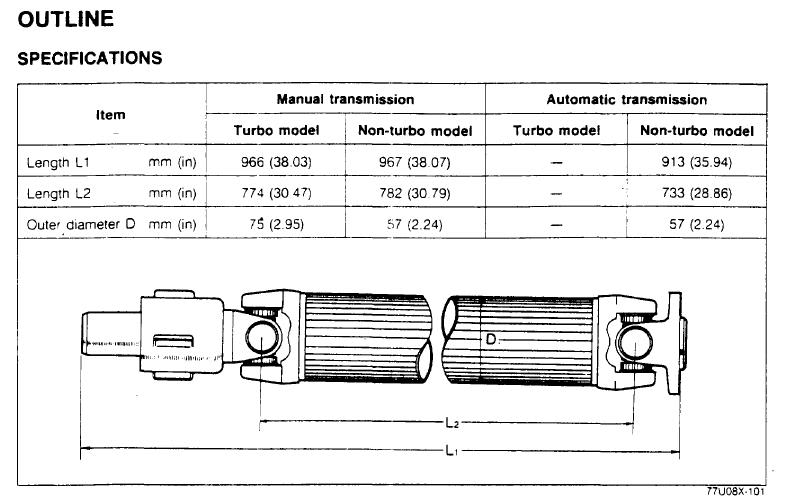

Snagged that from this thread: https://www.rx7club.com/2nd-generati...issue-1014009/
That should help to identify if it's a stock drive shaft or a custom.
01-21-13, 11:47 AM
#3
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
The are 2 different diameter drive shafts for the N/A.
Both fit.
The TII drive shaft has a bigger input shaft to the Trans,so it will not fit into the tail stock of the N/A.
Both fit.
The TII drive shaft has a bigger input shaft to the Trans,so it will not fit into the tail stock of the N/A.
01-21-13, 01:21 PM
#4
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
Snagged that from this thread: https://www.rx7club.com/2nd-generati...issue-1014009/
That should help to identify if it's a stock drive shaft or a custom.
01-21-13, 05:11 PM
#5
Some of the N/A shafts were much thicker. I have one from my S4, and one from an S5 that's at least 1/2 again as big. And to answer, you have to use the driveshaft that matches the transmission for the input shaft, but I believe you can mill out the holes on a TII driveshaft to fit the N/A diff (still need a TII tranny), and probably vice-versa.
Last edited by My5ABaby; 01-21-13 at 05:17 PM.
