Can someone scan a 13BT exhaust manifold gasket for me?
#1
I'm a boost creep...
Thread Starter
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Can someone scan a 13BT exhaust manifold gasket for me?
I'm swapping an S5 turbo onto my 'vert, so I'm replacing all the exhaust gaskets. Because I've ported the manifold and turbine housing and am making a downpipe with a custom backplate, I've had the turbo-manifold and turbo-downpipe gaskets made by a specialist gasket maker. Since these can be made for much less than Mazda charges, I'm getting them to make the engine-manifold gasket too. I'd like to use a genuine gasket as a pattern, but haven't been able to get hold of a spare one. I could just make a pattern off the manifold but from the photos on the Mazdatrix and RB sites it looks like the exhaust port holes on the gasket are quite a bit bigger than the manifold ports, and I'd like to mimic that on my gasket to allow for a bit more porting if possible. I was hoping one of you guys could scan one and post it up for me. I'd be really grateful.
#2
Sharp Claws
iTrader: (30)
just make sure he uses the right materials, there is a reason the oem gaskets are so expensive. i tried playing with copper, though the melting point should have stood up to the heat it did not, mainly because of the backpressure pushing on the gasket as well. i have used copper on V8 headers with good results but in turbo applications it would have to be a high grade steel or ceramic.
#3
I'm a boost creep...
Thread Starter
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
I'll get some photos tomorrow of what I've already got. It's a sandwich construction like the OEM gaskets with copper lining on the inside edge. I don't know how they do it for the price. I haven't used these yet, but a mechanic mate of mine has had the same place make many exhaust gaskets for customer cars and had no problems.
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

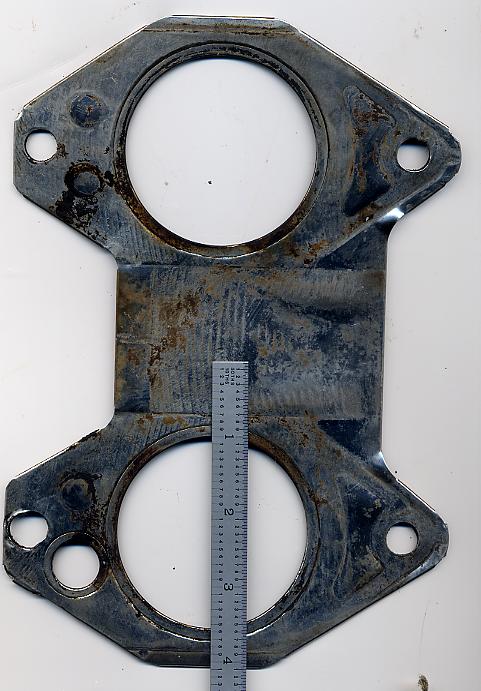

This shows the side facing the rotor housings.
This one is used and a gonna get used again and again and again til it leaks. BUT, I will offer it up for sale for the generous sum of one hundred fifty USA dollars. Remember, it's a proven gasket.....humor.
IF there is something that needs measurement, just ask. But you have one. So, maybe this isn't what you want. You want a series five gasket scanned? Or???
EDITED.....EDITED.....EDITED......FOR GROSS ERRORS. Wait a half hour and real measurements will be shown. I kinda goofed up with the calipers.
This one is used and a gonna get used again and again and again til it leaks. BUT, I will offer it up for sale for the generous sum of one hundred fifty USA dollars. Remember, it's a proven gasket.....humor.
IF there is something that needs measurement, just ask. But you have one. So, maybe this isn't what you want. You want a series five gasket scanned? Or???
EDITED.....EDITED.....EDITED......FOR GROSS ERRORS. Wait a half hour and real measurements will be shown. I kinda goofed up with the calipers.
Last edited by HAILERS; 03-29-07 at 11:44 AM.
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

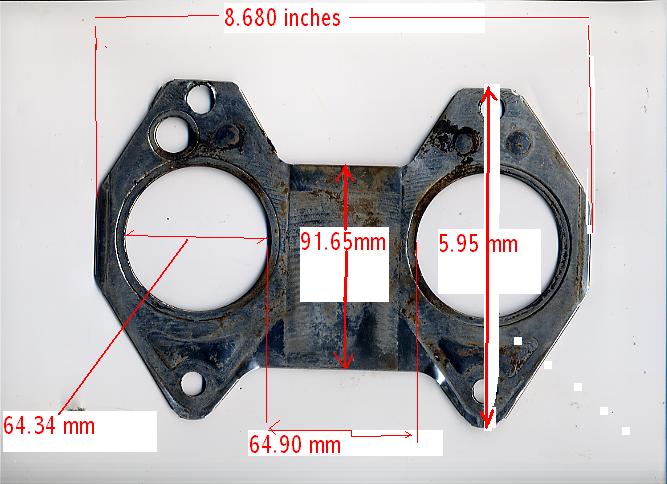

A little better

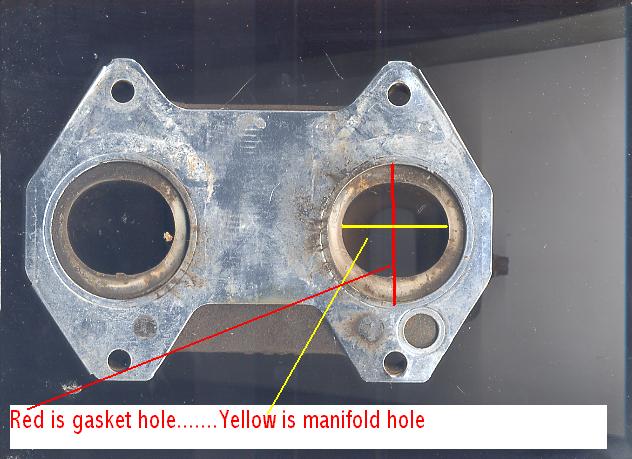

The hole in the gasket is quite a bit larger than the exaust port hole.
Tell you what. I just picked up a gasket that I assumed was turbo. Maybe I need to go compare other gaskets I have laying about. Not in the next few hours though. Much later.
The hole in the gasket is quite a bit larger than the exaust port hole.
Tell you what. I just picked up a gasket that I assumed was turbo. Maybe I need to go compare other gaskets I have laying about. Not in the next few hours though. Much later.
Last edited by HAILERS; 03-29-07 at 12:15 PM.
Trending Topics
#10
Sharp Claws
iTrader: (30)

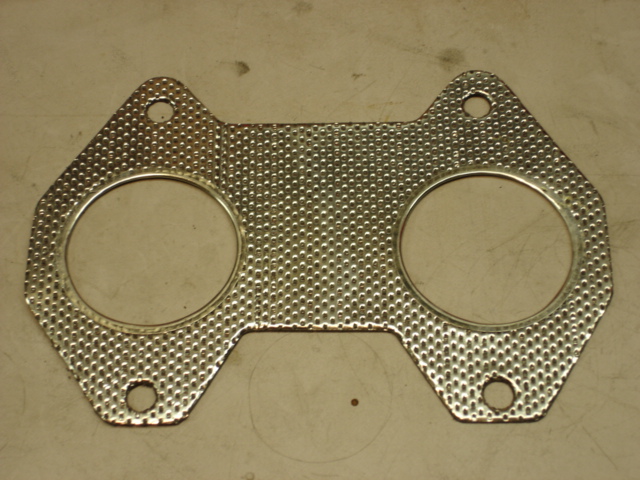

the one you pictured is of a TII block to manifold gasket Hailers, the n/a gasket still has the same dimensions but it is a mesh style gasket instead of the solid steel surface appearance.
and i can get these gaskets for $65 from Atkins for OEM, they are pricey but it's not like they are that bad and are going to break your wallet. is spending 2 hours dealing with a machine shop really worth all that hassle?
and i can get these gaskets for $65 from Atkins for OEM, they are pricey but it's not like they are that bad and are going to break your wallet. is spending 2 hours dealing with a machine shop really worth all that hassle?
#11
I'm a boost creep...
Thread Starter
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by HAILERS
IF there is something that needs measurement, just ask. But you have one. So, maybe this isn't what you want. You want a series five gasket scanned?
The hole in the gasket is quite a bit larger than the exaust port hole.
Originally Posted by Karack
yep but this is a rotary after all.
and i can get these gaskets for $65 from Atkins for OEM, they are pricey but it's not like they are that bad and are going to break your wallet. is spending 2 hours dealing with a machine shop really worth all that hassle?
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

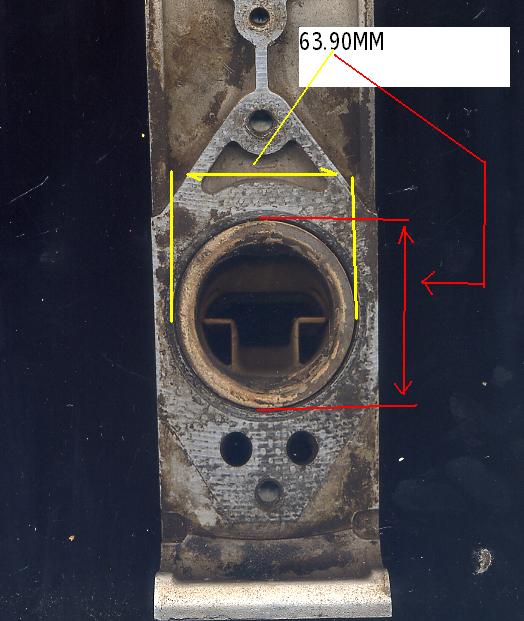

Some of what you want is here. Some isn't.
I don't have a spare TURBO housing to scan. They're on a engine.
But the sleeves are the same diameter as the NONTURBO one in the jpg that's attached.
It's a little difficult to measure the inner diameter of the exaust ports on the housings. If needed I might measure them. But you know the inner part of the sleeve is tapered? Slanted? Ain't prefectly round so to speak.
I don't have a spare TURBO housing to scan. They're on a engine.
But the sleeves are the same diameter as the NONTURBO one in the jpg that's attached.
It's a little difficult to measure the inner diameter of the exaust ports on the housings. If needed I might measure them. But you know the inner part of the sleeve is tapered? Slanted? Ain't prefectly round so to speak.
Last edited by HAILERS; 03-30-07 at 12:16 PM.
#13
I'm a boost creep...
Thread Starter
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
That's great, that tells me what I wanted to know. The width of the manifold ports is about the same as the width of the exhasut port, but the height is less, so there's a step at the top and bottom which I guess could cause turbulence. I'm going to take those steps out by making the manifold ports circular.
I've scaled your first photo of the gasket on a photocopier to make it into a perfect template. I'll get that underway on Monday. Thanks again!

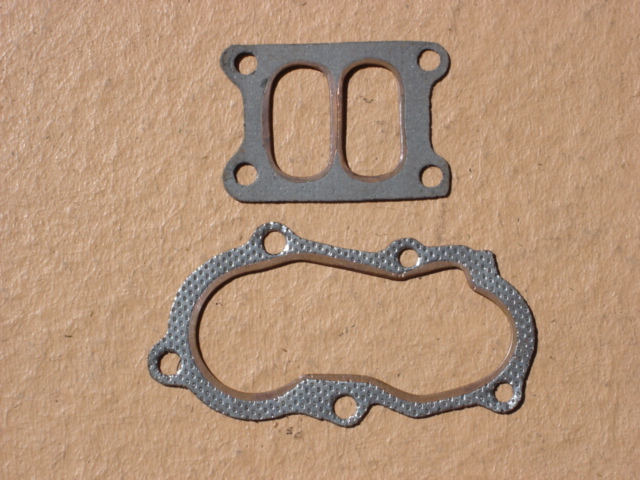

Here are the gaskets I've already had made. Note the copper lining in the inside edge.
I've scaled your first photo of the gasket on a photocopier to make it into a perfect template. I'll get that underway on Monday. Thanks again!
Here are the gaskets I've already had made. Note the copper lining in the inside edge.
#14
I'm a boost creep...
Thread Starter
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts

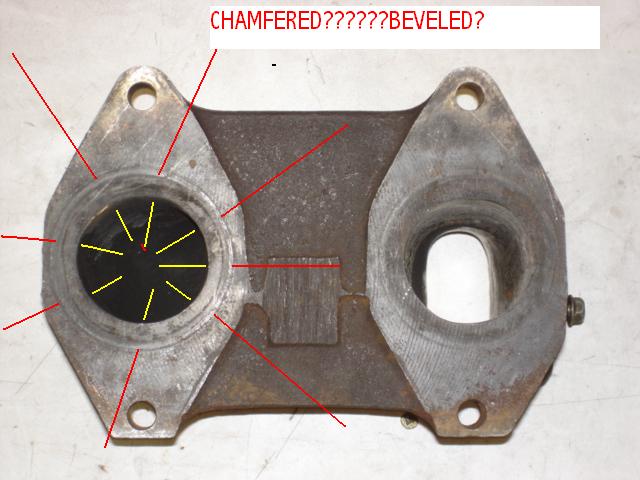

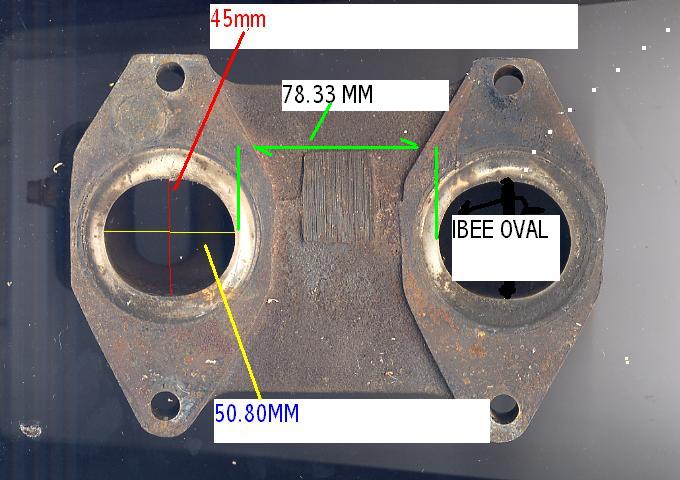

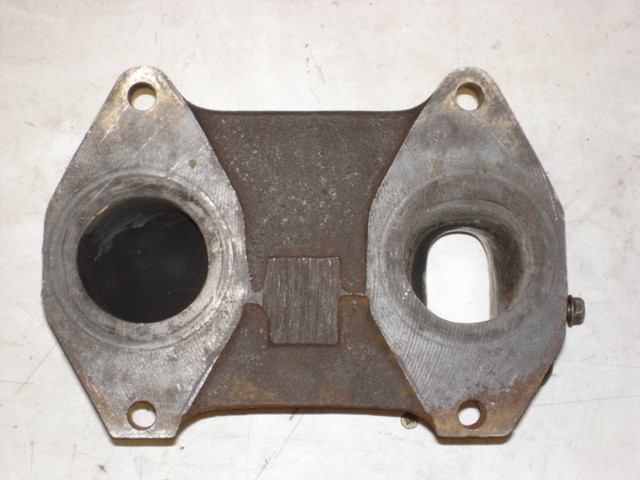

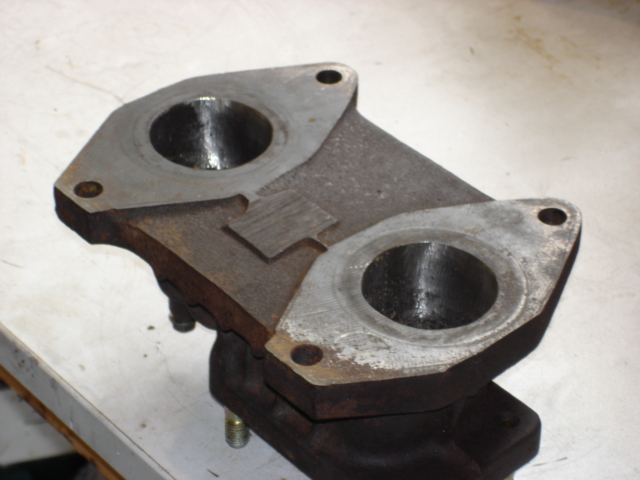

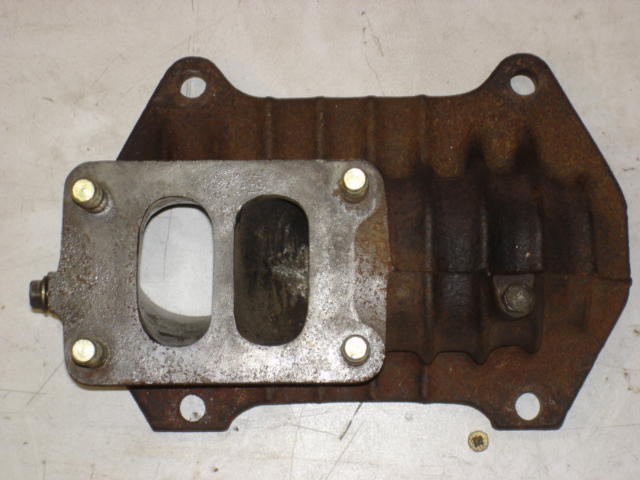

Here's what I've done to the manifold. The engine-side ports should now be pretty close to the shape and size of the engine's exhaust ports. The turbo-side ports have been widened, and matching work done to the turbine housing (as well as wastegate porting).
#16
I'm a boost creep...
Thread Starter
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Nope, it's a perfectly flat surface. It's just marks left behind by the original gasket, which has much bigger holes. The lighting makes the openings look different sizes too, but they're the same.
#19
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
*******Also, is there any reason why I shouldn't just get two small gaskets made like the FD's, rather than one big one? It'd probably be cheaper.
************************************************** **********************
That's a good question, because when you look at the price, just one of the FD cost73.50 and you need two. But the second gen cost only 59 bucks USA.
Seems a FD owner would get a saw out and cut a second gen gasket out and save serious money. Soooooooo........there must be a serious difference somewhere in the exaust ports b/t the two engines. Got me as to what.
************************************************** **********************
That's a good question, because when you look at the price, just one of the FD cost73.50 and you need two. But the second gen cost only 59 bucks USA.
Seems a FD owner would get a saw out and cut a second gen gasket out and save serious money. Soooooooo........there must be a serious difference somewhere in the exaust ports b/t the two engines. Got me as to what.
#21
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Originally Posted by NZConvertible
I saw that crazy FD price. I really hope that's for a pair...
http://www.mazdatrix.com/getprice.as...m=13-4610-N3A1
