Broken water seal groove: fixable?
#1
Card-carrying Rotorhead
Thread Starter
Join Date: May 2006
Location: Quebec
Posts: 457
Likes: 0
Received 0 Likes
on
0 Posts
Broken water seal groove: fixable?

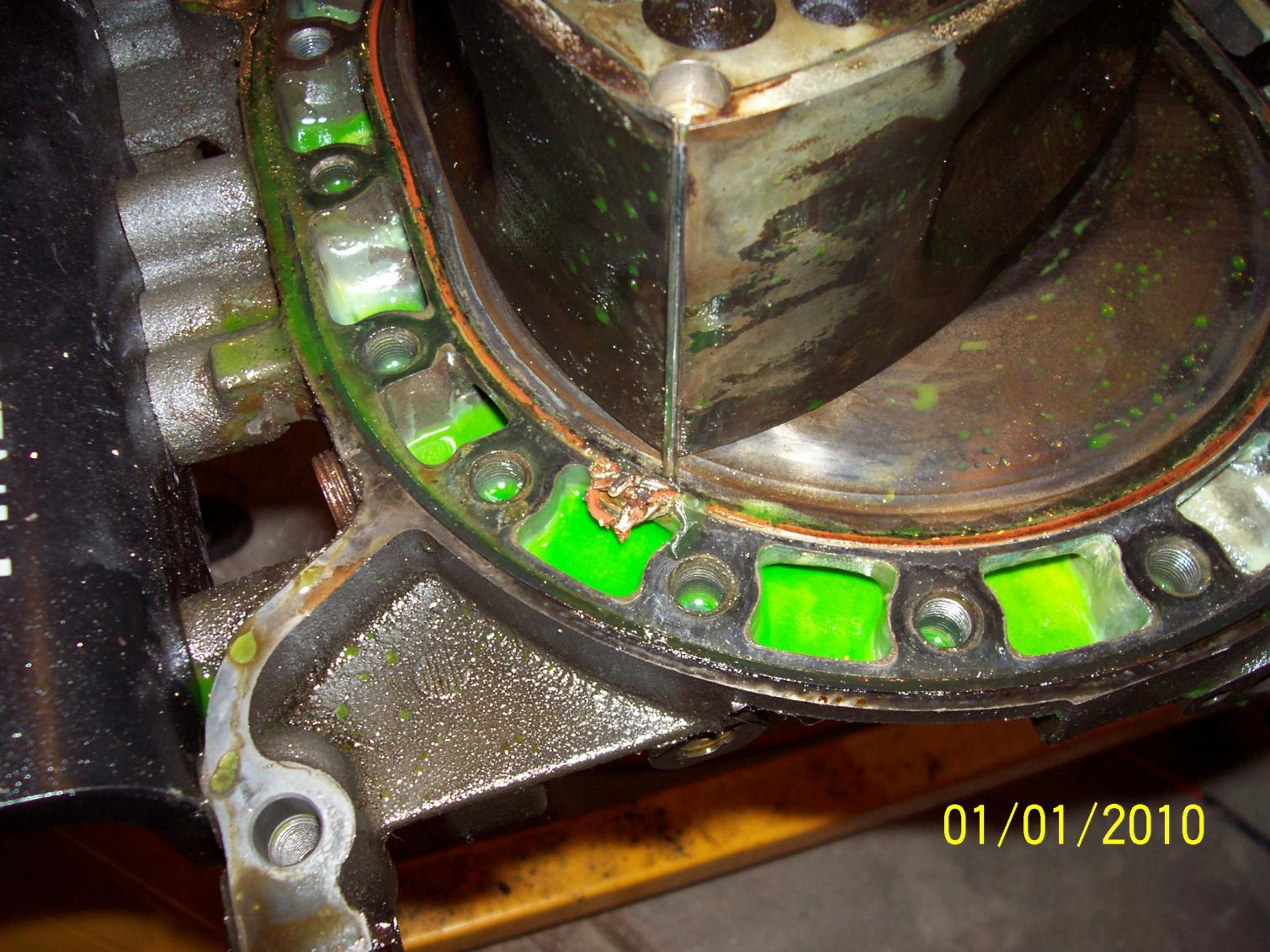

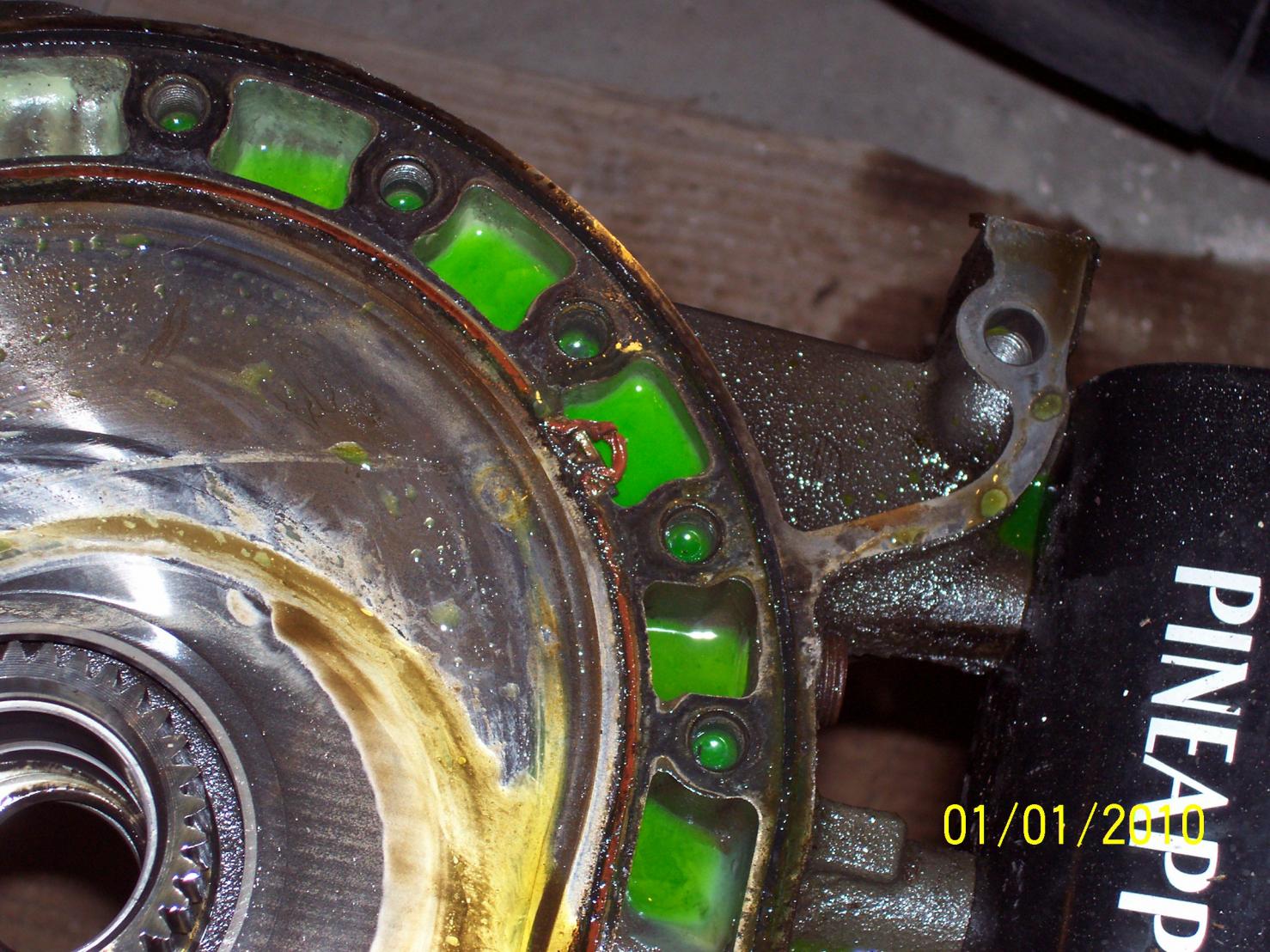

I'm currently rebuilding my 6 port 13B (due to a coolant leak) and disovered the source of my coolant leak...broken groove on the front iron (see pics). My dad took a look at it and he figured he could weld it up no-problem. The iron will probably be lapped slightly anyway so any uneveness from the weld should not be a problem.
My only real concern is that the heat from the weld will adversly affect the nitride coating on the rotor surface. Will this be a problem? Any other things I should be aware of?
Thanks,
Devan
My only real concern is that the heat from the weld will adversly affect the nitride coating on the rotor surface. Will this be a problem? Any other things I should be aware of?
Thanks,
Devan
#6
Card-carrying Rotorhead
Thread Starter
Join Date: May 2006
Location: Quebec
Posts: 457
Likes: 0
Received 0 Likes
on
0 Posts
its an '87 (made in '86) 6 port, MT. The front cover oil o-ring boss is an old style.
Why would you say that? Welding is free to me, and lapping can't cost more than a used iron can it? Wouldn't you have to lap that used iron anyway? I'm not trying to justify fixing it, I'm just asking.
How common is it for irons to break water seal grooves like this?
However, why get it welded then lapped? You can find tons of 6 port irons cheap, you're better off just buying a used one in good shape.
How common is it for irons to break water seal grooves like this?
#7
Banned. I got OWNED!!!
iTrader: (4)
Join Date: Oct 2009
Location: az
Posts: 1,110
Likes: 0
Received 0 Likes
on
0 Posts
its very uncommon because there is alot of labor involved in the welding and cleaning up the weld etc..you will need to tig weld with nickel if im not mistaken. lapping is a bad idea anyways...ideally you should surface grind not lap.
Trending Topics
#10
Wire monkey
Join Date: Nov 2006
Location: Camberley, Surrey, UK
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts
I'd change it - it can never be as good welded - and for sure it will be corroded elsewhere and go somewhere else - better off with a good 2nd hand iron with good edge on the groove.
#15
Card-carrying Rotorhead
Thread Starter
Join Date: May 2006
Location: Quebec
Posts: 457
Likes: 0
Received 0 Likes
on
0 Posts
lapping is a bad idea anyways...ideally you should surface grind not lap.
Ok I'll buy a used one(if you have one, fire me a pm), but I think I'll still let my dad have a go at mine just to see how it turns out, maybe use it on a future build or something.
#17
Rotary Freak
iTrader: (16)
Pardon my ignorance, but what exactly is the difference? I always thought lapping was similar to deglazing a cylinder. What type of surface finish do you want for a good rebuild? Many of the rebuild threads online show pics of irons with a dark dull grey color, not the shiney chrome look when its first disassembled. Do you even need to do anything, can it go back together just as it is (assuming no excess wear)?
Ok I'll buy a used one(if you have one, fire me a pm), but I think I'll still let my dad have a go at mine just to see how it turns out, maybe use it on a future build or something.
Ok I'll buy a used one(if you have one, fire me a pm), but I think I'll still let my dad have a go at mine just to see how it turns out, maybe use it on a future build or something.
#18
ANTI-REPUBLICAN
iTrader: (4)
Join Date: Feb 2008
Location: Strasbourg, PA
Posts: 143
Likes: 0
Received 0 Likes
on
0 Posts
Although most people would not recommend it, if you were attempting a budget rebuild and properly prepared the area before and after welding, then it could be done with success. Don't JB Weld it.
#19
Sharp Claws
iTrader: (30)
you can weld it, it is just a pita.
just because it's a non turbo iron doesn't mean they will be around and available forever, people who tell everyone to pitch parts are dumb and don't think about what is down the road 10 years from now for the rotary engine. i already can't find 7's in the wrecking yards.
just because it's a non turbo iron doesn't mean they will be around and available forever, people who tell everyone to pitch parts are dumb and don't think about what is down the road 10 years from now for the rotary engine. i already can't find 7's in the wrecking yards.
#20
Banned. I got OWNED!!!
iTrader: (11)
ive welded a few. if memory serves, the early s5 turbo irons have this issue somewhat commonly. just weld it lap it and file the groove. it will not affect it in any way. also see if you have any other thin parts of the iron seal wall and reinforce them to prevent other breaks.
the surface you want on your iron is not completely smooth. oil should bead up, not just slick off but most people dont lap so as long as that weld doesnt bother it, you should be fine without lapping the surface area.
the surface you want on your iron is not completely smooth. oil should bead up, not just slick off but most people dont lap so as long as that weld doesnt bother it, you should be fine without lapping the surface area.
#23
The Doctor
iTrader: (1)
Join Date: Apr 2008
Location: Cedar Rapids, IA
Posts: 1,185
Likes: 0
Received 0 Likes
on
0 Posts
Welding + surface grinding + lapping seems like it may be the way to go. If it doesn't work, the only thing your out on is a little bit of weld and time.
#24
Rotary Freak
iTrader: (16)
What have you been smoking?
http://www.jbweld.net/faq.php
500F continuous
Since the coolant doesn't go above 230F JB Weld will work fine.
http://www.jbweld.net/faq.php
500F continuous
Since the coolant doesn't go above 230F JB Weld will work fine.
