brake caliper trouble

Thread Tools

Search this Thread

Old 01-22-07, 07:34 PM
  #1
707

Thread Starter

RX7 allnight's Avatar

Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes on 0 Posts
brake caliper trouble

iam putting new pads on and my rear calipers.their piston is frozen.. it wont go all the way in so i can install the new ones, the fronts were really stuck so i had to pry them open (the pistons) to install the new ones how do i get the rears to open.. both bleeders are open any help thanks
Old 01-22-07, 07:40 PM
  #2
707

Thread Starter

RX7 allnight's Avatar

Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes on 0 Posts
btw 88 vert.
Old 01-22-07, 08:22 PM
  #3
Eats, Sleeps, Dreams Rotary

iTrader: (1)

Turbonut's Avatar

Join Date: Feb 2002
Location: NJ
Posts: 3,963
Received 54 Likes on 44 Posts
The rear pistons turn clockwise, they are not pushed into the bore. If they won't turn, time for another set. Same as fronts, if you find the pistons push in extremely hard, better replace them, or they will freeze in the bores. Chances are it's the lower pistons on the fronts if 4 piston calipers.
Old 01-22-07, 09:42 PM
  #4
Working on my car.

iTrader: (7)

Eva001Ikari's Avatar

Join Date: May 2006
Location: Los Angeles, CA
Posts: 594
Likes: 0
Received 0 Likes on 0 Posts
yea i just replaced my pads and rotors yesterday, you gotta spin the rear pistons clockwise to make em go in and ur gonna have a hell of a time bleeding those btw.........i couldnt even do it......jeez good luck
Old 01-23-07, 04:47 AM
  #5
Rotary Freak

iTrader: (7)

Go48's Avatar

Join Date: Feb 2005
Location: Mont Alto, PA
Posts: 1,608
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by RX7 allnight
iam putting new pads on and my rear calipers.their piston is frozen.. it wont go all the way in so i can install the new ones, the fronts were really stuck so i had to pry them open (the pistons) to install the new ones how do i get the rears to open.. both bleeders are open any help thanks

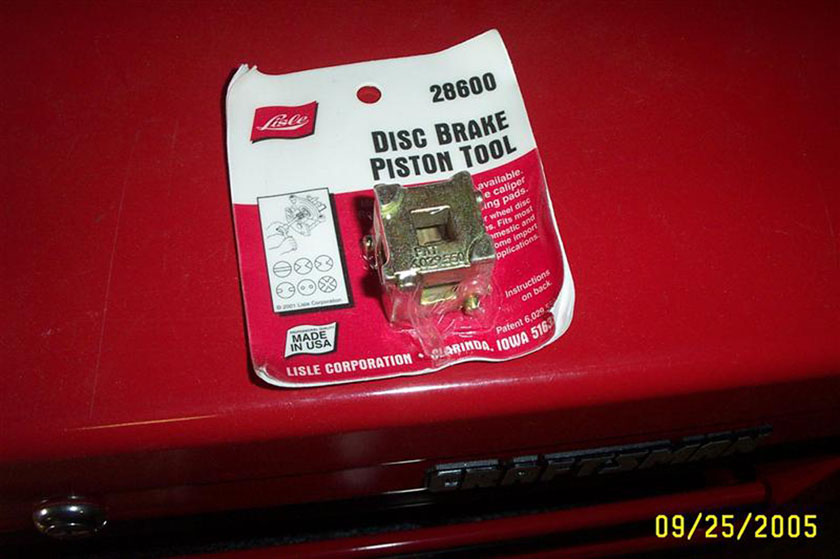

Yeah, one of these makes the job much easier.
Attached Thumbnails brake caliper trouble-brake-tool.jpg
Old 01-23-07, 02:24 PM
  #6
707

Thread Starter

RX7 allnight's Avatar

Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Turbonut
The rear pistons turn clockwise, they are not pushed into the bore. If they won't turn, time for another set. Same as fronts, if you find the pistons push in extremely hard, better replace them, or they will freeze in the bores. Chances are it's the lower pistons on the fronts if 4 piston calipers.

what happens when they freeze in the bores?(no brakes???) they turned but kinda tough although i didnt have proper tools it wasent that easy... also the rear calipers have two bleeders do both of these need to be bleed? or is it for convenince?
Old 01-23-07, 03:48 PM
  #7
Rotary Revolutionary

iTrader: (16)

sharingan 19's Avatar

Join Date: May 2006
Location: Jacksonville, Tampa & Tallahassee
Posts: 3,881
Received 2 Likes on 2 Posts
Originally Posted by Go48
Yeah, one of these makes the job much easier.
I tried using that. It did nothing for me. I had to take the calipers in to the shop I work at and one of the brake guys had a special corkscrew looking device that braced against the plate that the pad sits on. Guess its time for new ones, or a rebuild. Has anyone used that rebuild kit from racing beat? how difficult is the process?

As for those duel bleeder valves, I'm not sure what the bottom one is all about, but I was able to bleed mine using the top one only
.
Old 01-23-07, 07:24 PM
  #8
Eats, Sleeps, Dreams Rotary

iTrader: (1)

Turbonut's Avatar

Join Date: Feb 2002
Location: NJ
Posts: 3,963
Received 54 Likes on 44 Posts
Having the pistons freeze in their bores will cause the pads to stay against the rotor, and not release. The pads will wear quickly, and cause binding. A way to check is that at a light, or stopped, the car should roll very easily, forward or backwards with the clutch in. If the car doesn't roll, the brakes are creating resistance. I'm not speaking of being on a hill, just flat pavement and the car will roll into an indentation in the asphalt, or a groove in the cement.

As far as the bleeders, the top is used to bleed an already existing system, while the bottom, then the top are used to bleed a new caliper installation.
Old 01-23-07, 08:45 PM
  #9
Upside-umop Racing

iTrader: (1)

Bama420's Avatar

Join Date: Nov 2006
Location: Naples, Fl
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts
Check us out. <a href="http://photobucket.com/" target="_blank"><img src="http://i132.photobucket.com/albums/q39/bamamanama420/0indexlog.jpg" border="0" alt="Photobucket - Video and Image Hosting"></a>
Old 01-23-07, 08:46 PM
  #10
Upside-umop Racing

iTrader: (1)

Bama420's Avatar

Join Date: Nov 2006
Location: Naples, Fl
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts
hmm, I forgot no html. Here.

http://www.iscracing.net/index.html
Old 01-23-07, 08:59 PM
  #11
Anti-rice Superstar


skrewloose78's Avatar

Join Date: Sep 2002
Location: huntsville,alabama
Posts: 949
Likes: 0
Received 0 Likes on 0 Posts
yeah you can. your supposed to use [img] addy [/img]
