Bottom strut bolt broke, what do I need?
#1
Hail Dented 7
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Vermont
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Bottom strut bolt broke, what do I need?
Hey all, while trying to replace the rear struts on my 87, the bolt wouldn't budge (after heating and pb blaster) then it just snapped off inside. Not enough to grab with anything.
Could a machine/metal shop possible drill it out and retap? Or what will I need to try and find, parts wise? If you could help me with what I will need and I could post a wanted ad or look in the parts for sale. I don't know what I will need.
Thanks all, hopefully it could be an easy fix. Thoughts?
Could a machine/metal shop possible drill it out and retap? Or what will I need to try and find, parts wise? If you could help me with what I will need and I could post a wanted ad or look in the parts for sale. I don't know what I will need.
Thanks all, hopefully it could be an easy fix. Thoughts?
Last edited by VermontRX7; 10-29-10 at 04:01 PM.
#2
Are you experienced?
iTrader: (18)
Having a bolt strip or break is the best feeling in the world.
A machine shop will extract it and get you all set again. You would have to remove the whole trailing arm through (via the one big bolt that adjust TOE on the subframe). Give them the bolt from the other side so they know what the thread pitch should be.
A machine shop will extract it and get you all set again. You would have to remove the whole trailing arm through (via the one big bolt that adjust TOE on the subframe). Give them the bolt from the other side so they know what the thread pitch should be.
#3
Hail Dented 7
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Vermont
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Would it be easier to just replace the whole rear knuckle/hub/spindle? Im going to pick one up from a member on here. Less running around.
But is that what I need or anything else? I can do the work, just want to get all the parts correct first.
But is that what I need or anything else? I can do the work, just want to get all the parts correct first.
#5
Hail Dented 7
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Vermont
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
What the guy was selling me was, complete with the spindle, bearing and 5lug hub. Thats not what I need? What does the strut attach to?
Last edited by VermontRX7; 10-29-10 at 04:45 PM.
Trending Topics
#8
Are you experienced?
iTrader: (18)
To remove the trailing arm, just THE one, you will have to remove that toe bolt. Follow the trailing arm (the big metal thing your bolt broke inside of) up towards the front of the car. It will end right behind the seats and attaches to a sub frame that goes stretches from the driver to passenger side. You will see the giant bolt that attaches the trailing arm to the subframe.
Also, you will need to remove the small vertical link that attaches the subframe to the trailing arm. Those two things and it comes out. Follow the trailing arm around and look for those two things. Its the only two things that keep it secure on there.
However, I haven't attempted to remove the trailing arm with the subframe still in the car, it may require that you lower the whole assemble down to remove the toe bolt, you will see what I am talking about when you look at it. It may be possible to do it with everything still in the car, I haven't tried it though.
EDIT: forgot, the lateral links. You need to remove those too.
Also, you will need to remove the small vertical link that attaches the subframe to the trailing arm. Those two things and it comes out. Follow the trailing arm around and look for those two things. Its the only two things that keep it secure on there.
However, I haven't attempted to remove the trailing arm with the subframe still in the car, it may require that you lower the whole assemble down to remove the toe bolt, you will see what I am talking about when you look at it. It may be possible to do it with everything still in the car, I haven't tried it though.
EDIT: forgot, the lateral links. You need to remove those too.
#10
Hail Dented 7
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Vermont
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Can anyone confirm if I have to remove the subframe? If I do whats the difficulty involved and would I need any special tools, tips, tricks? I can do most work, but somethings are beyond me and might have to seek a shops help. Dont want to get half done and be, oh crap..
Thanks all!
Thanks all!
#12
Hail Dented 7
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Vermont
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
The strut needed to be replaced if you hit a bump the rear would bounce basically off the ground. It seemed. Going over bridges on the interstate was a chore and you had to hold on and hope the rear wasn''t going to come around too far.
ALos didn't pass inspection because of them, and kinda had to.
ALos didn't pass inspection because of them, and kinda had to.
#15
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Silverfc88 has the answer. Been there and done that. The only thing is, those mounts aren't available any more at the dealer so you need to get one from the wreckers or a parts car. And one thing to be aware of is that Mazda changed the thread pattern internally at some point. So while you can screw any year mount into any year trailing arm, the bolt that holds the strut may be a course thread or a fine thread. Just keep that in mind and hit the fastener store on the way home for the correct bolt.
#16
Hail Dented 7
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Vermont
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Thanks all, that would be much, much easier than taking the whole trailing arm off lol.
Anyone got one, know of someone that does on here? Ill post a wanted ad but what it called?
Strut mount on trailing arm or......
If that fails I could just maybe give it a shot extracting it, I have taps, bits, and could rethread if I can't fine the threaded part on here. If I can't find it, its either take off the trailing arm (really don't want to do that) drill, tap, rethread, or drill, tap, screw it up, then Im at taking off the trailing arm anyways lol. Ill try the easiest first, then move on.
Been bugging me all night at work trying to figure this out.
Thanks all, big help.
Anyone got one, know of someone that does on here? Ill post a wanted ad but what it called?
Strut mount on trailing arm or......
If that fails I could just maybe give it a shot extracting it, I have taps, bits, and could rethread if I can't fine the threaded part on here. If I can't find it, its either take off the trailing arm (really don't want to do that) drill, tap, rethread, or drill, tap, screw it up, then Im at taking off the trailing arm anyways lol. Ill try the easiest first, then move on.
Been bugging me all night at work trying to figure this out.
Thanks all, big help.
#17
Hail Dented 7
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Vermont
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts

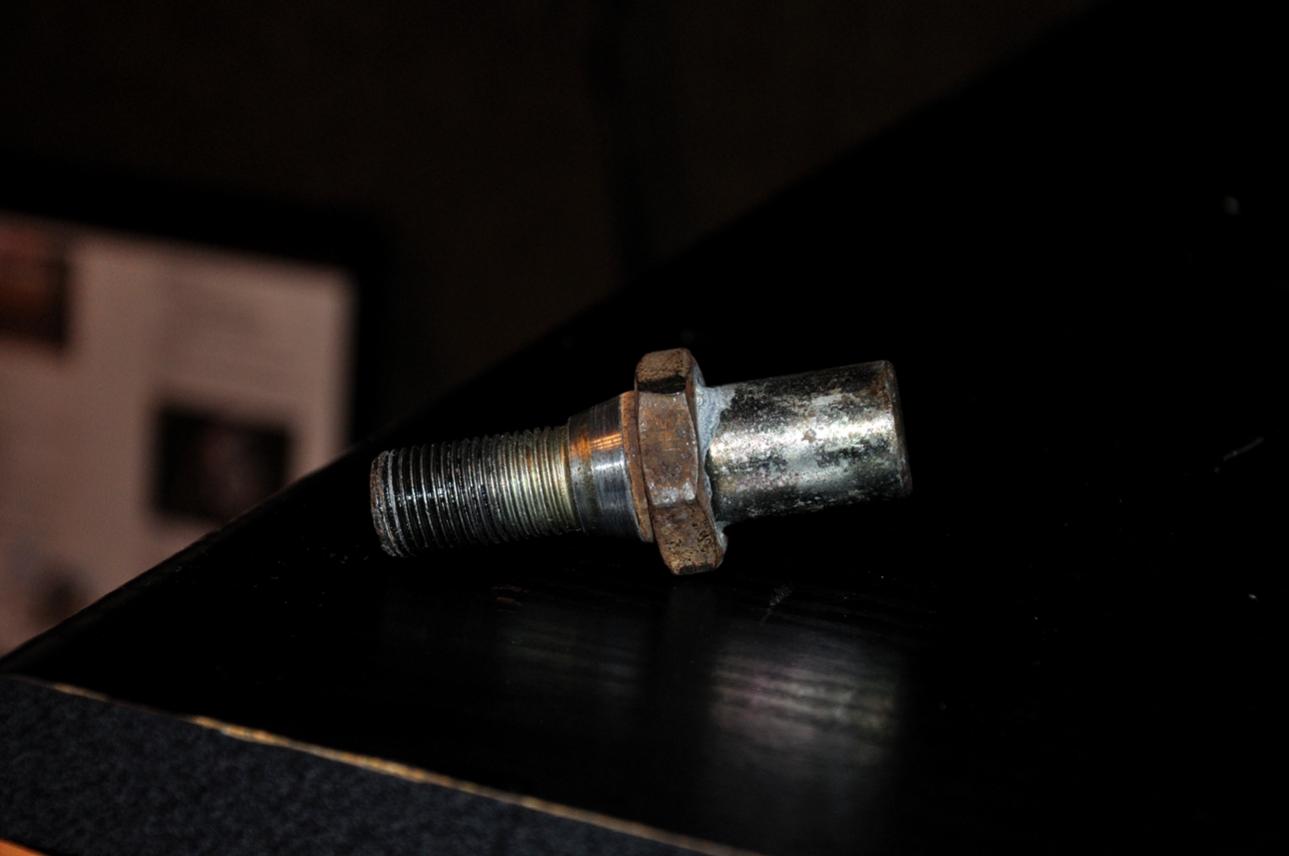

Phew, thanks all. I found the strut mount from a member here.
Thank god someone else chimed in and said that the mount/bolt can be replaced. Or Id be under the car for days taking out that trailing arm (work and kids, not much time....)
Many thanks all...
Thank god someone else chimed in and said that the mount/bolt can be replaced. Or Id be under the car for days taking out that trailing arm (work and kids, not much time....)
Many thanks all...
