Body CPU Repair (FC66)

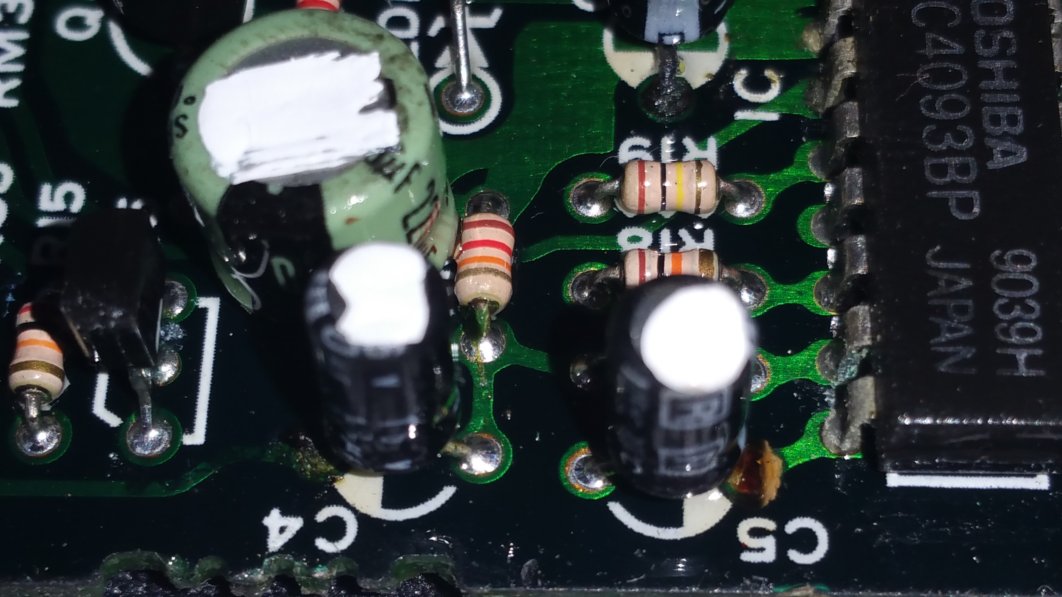

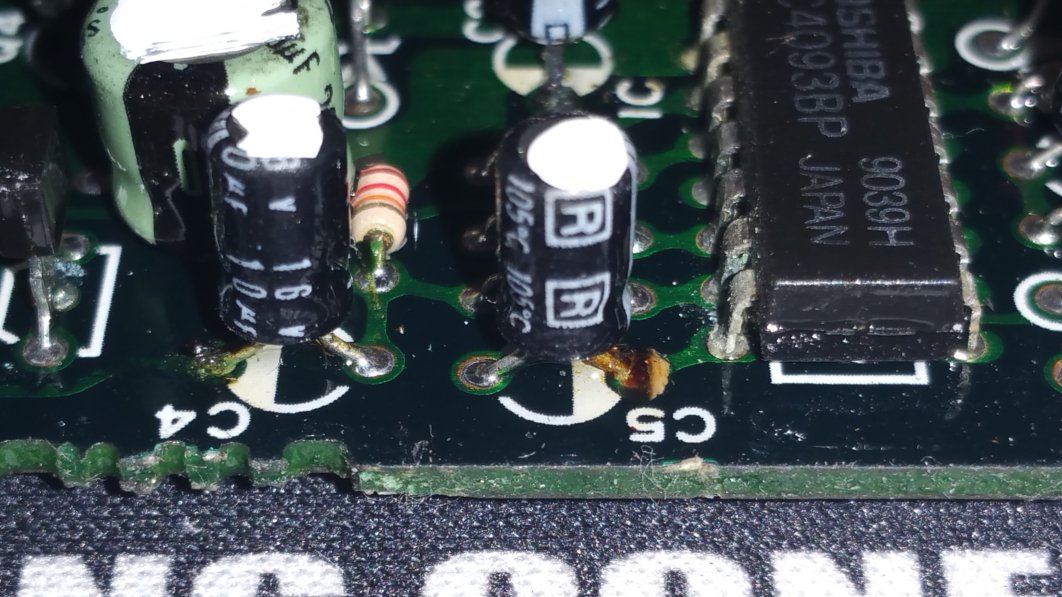

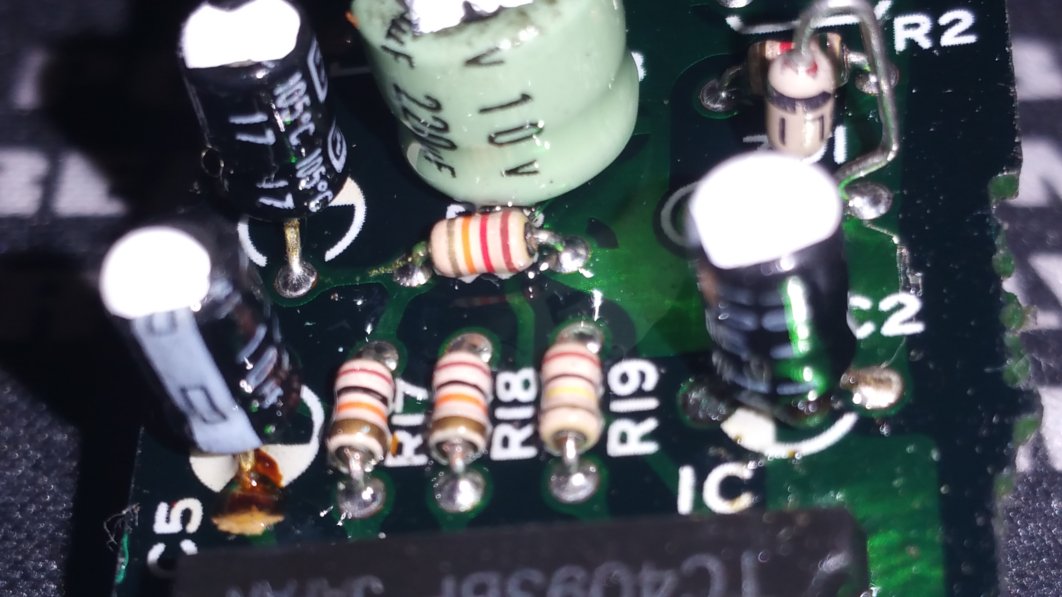

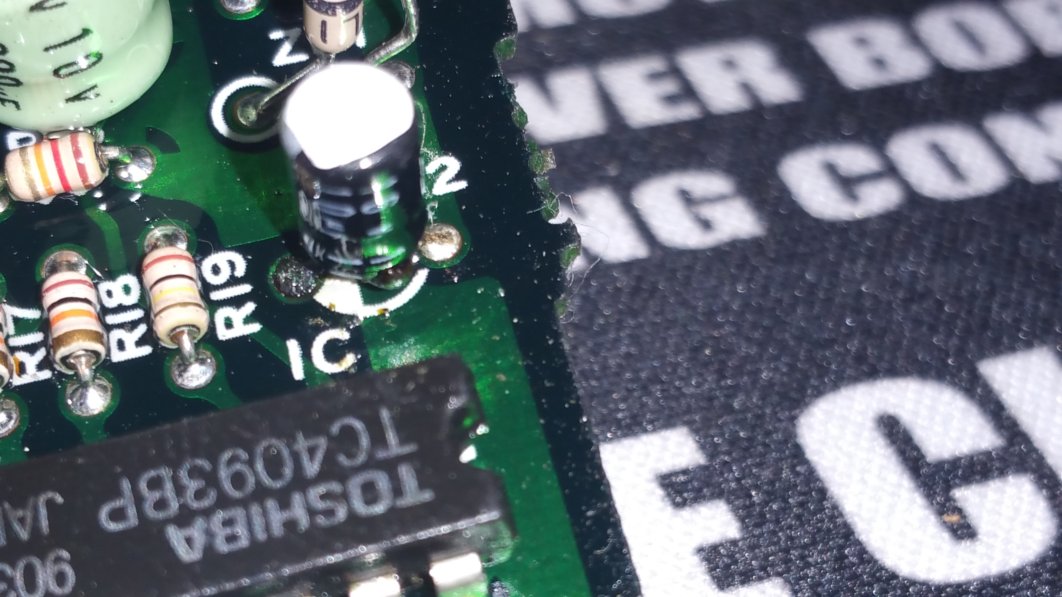

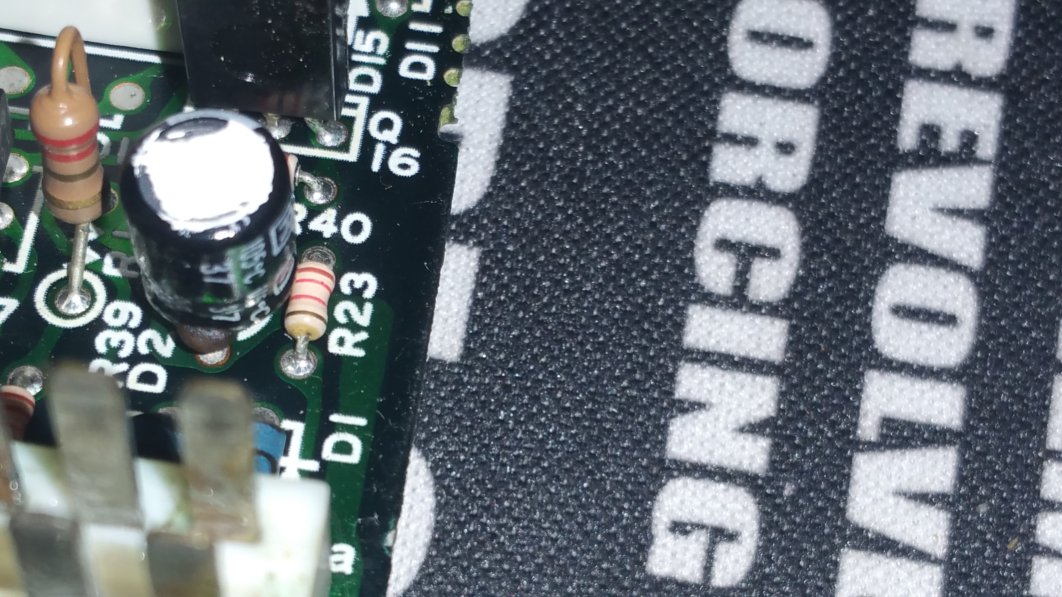

I replaced my body CPU because it took a serious voltage hit. The replacement unit fixed the major issue but it wasn't perfect. The high beams and buzzer do not work among other smaller issues. So a visual inspection confirmed these bad components on the board. Note, the main board is an FC66-67-564 P/N (for a 91 Vert). The bad components are: Buzzer, C1, C2, C3, C4, C5, and C6. Refer to the attached photos for the details.
Based upon the values printed on each solid state component, Mouser Electronics had them in stock. Here are the values and part numbers for these components:
Comp - Mouser P/N - Manufacturer - Values
C1 - 667-EEA-GA1C470 - Panasonic - 16V, 47uf, 105*C
C2 - 667-EEA-GA1C100 - Panasonic - 16V, 10uf, 105*C (also for C4, C5, C6)
C3 - 667-ECE-A1AN221U - Panasonic - 10V, 220uf, 85*C
Q15 - 512-FJN4302RTA - Fairchild - See spec sheet link below (potential bad)
Buzzer - 497-TE162012-5 - DB Unlimited - 2.048kHz, 85dB, 115Ohm (Primary)
Buzzer - 539-PB1622PQ - Mallory Sonalert - 2.048kHz, 85dB, 140Ohm (Alternate)

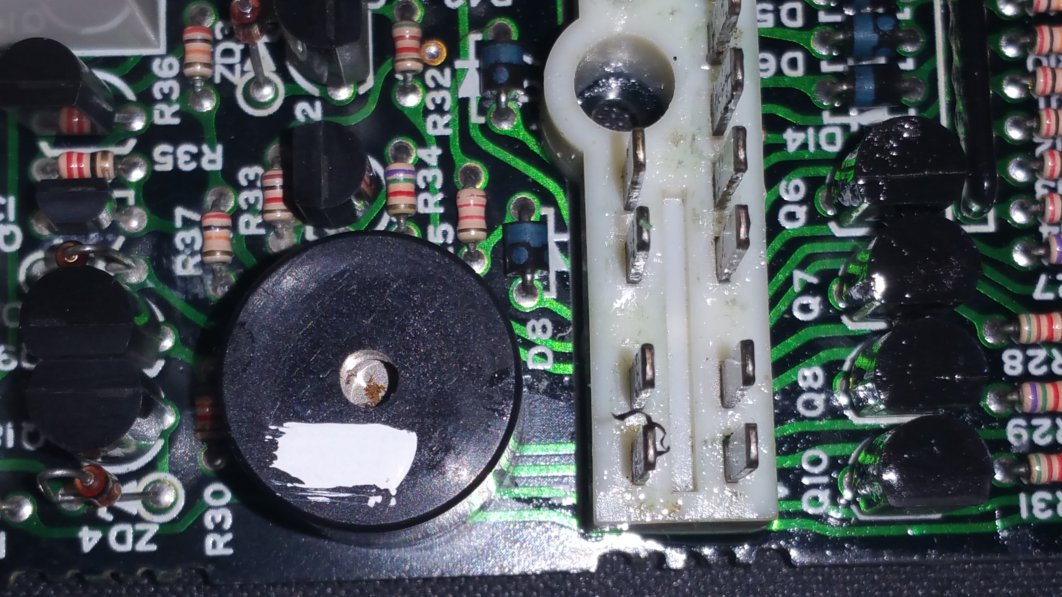

The buzzer was difficult to research because it is stamped "RMX-12, STAR, 90' H". I found a couple of websites that helped identify the specifications however, it cannot be verified 100%. That is why I selected an alternate based upon external spec sheets found here:
http://datasheet.octopart.com/TMB05-...eet-514145.pdf (Goto Pg 16)
http://www.challengeelectronics.com/...-24P6.5LHR.pdf Challenge Electronics
http://www.mouser.com/ds/2/252/PB-1622PQ-26757.pdf Mallory Sonalert Specs
http://www.mouser.com/ds/2/683/TE162012-5-359434.pdf DB Unlimited Specs
Additionally, Q15 may need to be replaced because its legs looks dull. Perhaps the conformal coating is discolored. I wasn't able to get a good pic of it. The P/N on the transistor is "1202 0F" and had a difficult time verifying the specifications. In the event it must be replaced, I found this spec sheet for a RN1202 transistor manufactured by Toshiba:
TOSHIBA - datasheet pdf
The closest thing Mouser has for Q15 is this transistor from Fairchild:
http://www.mouser.com/ds/2/149/FJN3302R-889141.pdf

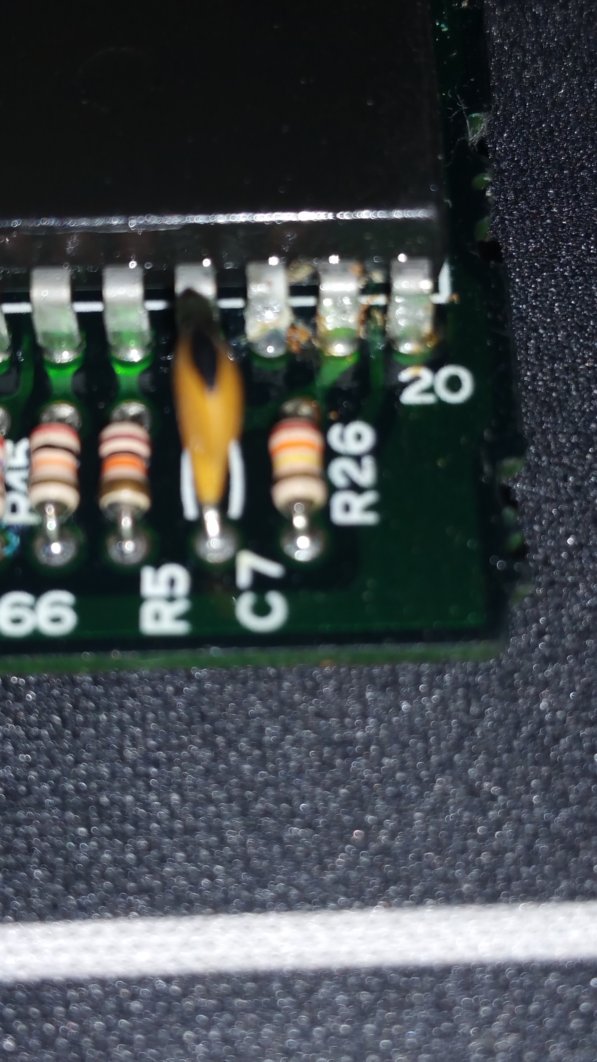

Finally, the 40-pin IC looks like it has some build up around 2 or 3 of its legs. See attached pic. I wasn't able to find a P/N online yet, but if anyone has any recommendations please respond. The P/N on the IC is D7507C(A), manufactured by NEC Japan.
I appeal to any electrical engineers who may have better recommendations on the buzzer, Q15, or the IC.
I will provide updates when the parts are replaced. Thanks for reading and any additional findings/input.
Btw if interested, this is why the original main board was replaced: https://www.rx7club.com/2nd-generati...arity-1102713/
Based upon the values printed on each solid state component, Mouser Electronics had them in stock. Here are the values and part numbers for these components:
Comp - Mouser P/N - Manufacturer - Values
C1 - 667-EEA-GA1C470 - Panasonic - 16V, 47uf, 105*C
C2 - 667-EEA-GA1C100 - Panasonic - 16V, 10uf, 105*C (also for C4, C5, C6)
C3 - 667-ECE-A1AN221U - Panasonic - 10V, 220uf, 85*C
Q15 - 512-FJN4302RTA - Fairchild - See spec sheet link below (potential bad)
Buzzer - 497-TE162012-5 - DB Unlimited - 2.048kHz, 85dB, 115Ohm (Primary)
Buzzer - 539-PB1622PQ - Mallory Sonalert - 2.048kHz, 85dB, 140Ohm (Alternate)
The buzzer was difficult to research because it is stamped "RMX-12, STAR, 90' H". I found a couple of websites that helped identify the specifications however, it cannot be verified 100%. That is why I selected an alternate based upon external spec sheets found here:
http://datasheet.octopart.com/TMB05-...eet-514145.pdf (Goto Pg 16)
http://www.challengeelectronics.com/...-24P6.5LHR.pdf Challenge Electronics
http://www.mouser.com/ds/2/252/PB-1622PQ-26757.pdf Mallory Sonalert Specs
http://www.mouser.com/ds/2/683/TE162012-5-359434.pdf DB Unlimited Specs
Additionally, Q15 may need to be replaced because its legs looks dull. Perhaps the conformal coating is discolored. I wasn't able to get a good pic of it. The P/N on the transistor is "1202 0F" and had a difficult time verifying the specifications. In the event it must be replaced, I found this spec sheet for a RN1202 transistor manufactured by Toshiba:
TOSHIBA - datasheet pdf
The closest thing Mouser has for Q15 is this transistor from Fairchild:
http://www.mouser.com/ds/2/149/FJN3302R-889141.pdf
Finally, the 40-pin IC looks like it has some build up around 2 or 3 of its legs. See attached pic. I wasn't able to find a P/N online yet, but if anyone has any recommendations please respond. The P/N on the IC is D7507C(A), manufactured by NEC Japan.
I appeal to any electrical engineers who may have better recommendations on the buzzer, Q15, or the IC.
I will provide updates when the parts are replaced. Thanks for reading and any additional findings/input.
Btw if interested, this is why the original main board was replaced: https://www.rx7club.com/2nd-generati...arity-1102713/
Last edited by Gen2n3; 08-23-16 at 04:01 PM. Reason: Added BTW note
#4
Super Moderator
Thread Starter
iTrader: (1)
OK, so I found a datasheet for the 40-pin DIP IC chip. See the attached PDF. I wonder if any 7507 or 7508 IC would work? Now the harder part...find the chip for sale!
#5
Super Moderator
Thread Starter
iTrader: (1)
There are two versions of the main board for the FC66 CPU. One has the D7507C(A) IC chip, a big 40-pin chip that takes up the width of the board. The other main board has a smaller 42-pin IC chip, with part number D75P008CU. Does anyone have a good picture of the second board that clearly shows the part number? Mine is faded and could only be seen under magnification. See for yourself!
Conformal coating masks the part number on this 42-pin IC
Conformal coating masks the part number on this 42-pin IC
#7
Super Moderator
Thread Starter
iTrader: (1)
That's a great question! I am unaware if Mazda requested a unique program set from the chip manufacturer or if the chip has a default program set that Mazda used to suit. Similar to what an Intel i7 processor chip is to a mother board. An i7 is an i7 regardless of the device it is installed in.
Trending Topics
#8
MECP Certified Installer
It's a Math Processing Unit, it just takes inputs and gives you an ouput.
I wouldn't worry about that MPU, I'd worry about the gakk'd traces next to it.
I wouldn't worry about that MPU, I'd worry about the gakk'd traces next to it.
#10
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
That's a great question! I am unaware if Mazda requested a unique program set from the chip manufacturer or if the chip has a default program set that Mazda used to suit. Similar to what an Intel i7 processor chip is to a mother board. An i7 is an i7 regardless of the device it is installed in.
#11
Super Moderator
Thread Starter
iTrader: (1)
AAron & JJ, After reading more of the spec sheets on the D7507 and D75P008 IC chips I found this info:
1. The uPD7507 and uPD7508 4-bit, single-chip CMOS microcomputers have the uPD7500 series architecture.
2. The uPD7507 and uPD7508 execute 92 instructions of the uPD7500 series A instruction set with a 5-usec instruction cycle time.
3. Differences between the features of the uPD7507 and uPD7508 are:
6. The 75xxC and 75xxCU chips operate on a 400kHz clock.
7. The D75P008CU series IC has more capability in the following areas:
9. It may appear that the D75P008CU IC will need a program set as it has a PROM. That will need to be verified.
Armed with this info, it would make sense to replace a suspect D7507C(A) with a D7507C(A) IC because of the memory limitations and the special application that the IC will operate in. The same logic applies to the D75P008CU IC on the newer board.
I attached both spec sheets here for faster reference.
1. The uPD7507 and uPD7508 4-bit, single-chip CMOS microcomputers have the uPD7500 series architecture.
2. The uPD7507 and uPD7508 execute 92 instructions of the uPD7500 series A instruction set with a 5-usec instruction cycle time.
3. Differences between the features of the uPD7507 and uPD7508 are:
a. 7507 - Program ROM has 2048 *8-bit ROM
b. 7508 - Program ROM has 4096 *8-bit ROM
c. 7507 - Data RAM has 128*4-bit
d. 7508 - Data RAM has 224*4-bit
4. Differences between the 75xxC & 75xxCU are:b. 7508 - Program ROM has 4096 *8-bit ROM
c. 7507 - Data RAM has 128*4-bit
d. 7508 - Data RAM has 224*4-bit
a. the 75xxC is a 40-pin DIP
b. the 75xxCU is a 40-pin shrink DIP
c. Shrink DIP = A denser version of a DIP with a 0.07 in. (1.778 mm) lead pitch.
5. The devices in the uPD75008 family (reference to the 75P008CU chip) are available in standard or special quality grade devices Special grade devices have the symbol (A) embedded in the part number. A standard grade device will not bear any suffix. Therefore, a uPD75008CU is a standard grade and a uPD75008CU(A) is a special grade device. Special devices applications include automotive equipment.b. the 75xxCU is a 40-pin shrink DIP
c. Shrink DIP = A denser version of a DIP with a 0.07 in. (1.778 mm) lead pitch.
6. The 75xxC and 75xxCU chips operate on a 400kHz clock.
7. The D75P008CU series IC has more capability in the following areas:
a. PROM - 8kb
b. RAM - 512 nibbles
c. Clock Freq - 32-35kHz
d. Program counter is 13-bit
8. I verified the part number of the 75P008CU IC chip, it has no (A) suffix.b. RAM - 512 nibbles
c. Clock Freq - 32-35kHz
d. Program counter is 13-bit
9. It may appear that the D75P008CU IC will need a program set as it has a PROM. That will need to be verified.
Armed with this info, it would make sense to replace a suspect D7507C(A) with a D7507C(A) IC because of the memory limitations and the special application that the IC will operate in. The same logic applies to the D75P008CU IC on the newer board.
I attached both spec sheets here for faster reference.
#12
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
I'm following this and look forward to seeing the results.
But...at what point do you say "Screw it!", grab an Atmel Mega, make a PCB that turns it into a generic I/O and then write some code?
But...at what point do you say "Screw it!", grab an Atmel Mega, make a PCB that turns it into a generic I/O and then write some code?
