blocking port air in lower manifold
i'm putting an S5 intake manifold on an S4 block, and i've noticed that the port air on the lower manifolds are different between S4 and S5. looks like you have to block it off. i'm just wondering though, if this is blocked off, what won't function correctly? i'm assuming the ACV uses that port to dump air into the intake?
thanks
thanks
05-01-05, 08:21 AM
#3
DON'T PANIC
Join Date: Feb 2004
Location: Old Hickory, TN
Posts: 194
Likes: 0
Received 0 Likes
on
0 Posts
I'm assuming you're doing this to get the benefits of VDI. I would suggest using the s4 LIM mated to the VDI manifold: there's much less headache involved, and since you're not blocking any ports it will probably be better for performance. I did it this way and have been more than pleased with the results.
05-01-05, 02:24 PM
#4
ERTW
Thread Starter
iTrader: (1)
Join Date: Oct 2002
Location: Ottawa, Canada
Posts: 4,328
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
The ACV puts air into the EXAUST PORTS. That is why it is called PORT air.
Originally Posted by Jaguarx7
I'm assuming you're doing this to get the benefits of VDI. I would suggest using the s4 LIM mated to the VDI manifold: there's much less headache involved, and since you're not blocking any ports it will probably be better for performance. I did it this way and have been more than pleased with the results.
and i also must use the entire S5 manifold, so using the S4 is not an option
Last edited by coldfire; 05-01-05 at 02:28 PM.
05-01-05, 02:32 PM
#5
ERTW
Thread Starter
iTrader: (1)
Join Date: Oct 2002
Location: Ottawa, Canada
Posts: 4,328
Likes: 0
Received 0 Likes
on
0 Posts

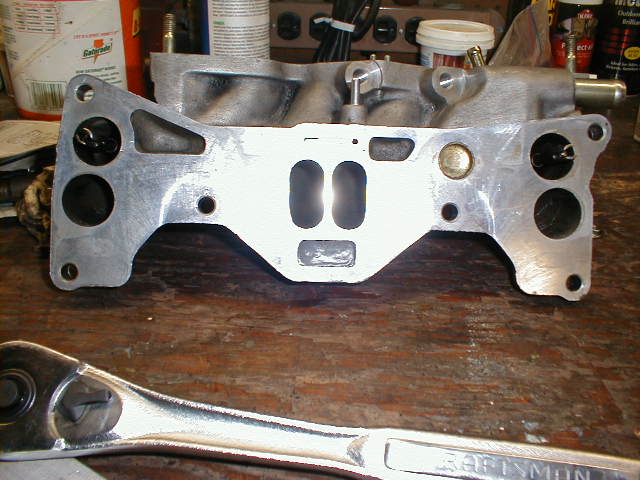

i've attached this pic to show what i am talking about. notice the lower port below the 2 main intake ports in the middle, and how it is has been blocked off.
i'm just wondering what this will effect? i.e what won't work or what will work differently, etc.
i'm just wondering what this will effect? i.e what won't work or what will work differently, etc.
05-01-05, 04:28 PM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
It's only going to effect emissions. No path to the front and rear side housings to pass the *port air* to the exaust ports in the rotor housings.
A series four manifold sends the acv air to the end of the manifold where it exits the somewhat square openings on each end of the manifold, into the front and rear side housings, where it goes straight down to the bottom of the front and rear side housings and exits into a passage that leads to the rotor housings and then into a hole hidden by the exaust diffussers.
That path exists no more with the series five manifold.
A series four manifold sends the acv air to the end of the manifold where it exits the somewhat square openings on each end of the manifold, into the front and rear side housings, where it goes straight down to the bottom of the front and rear side housings and exits into a passage that leads to the rotor housings and then into a hole hidden by the exaust diffussers.
That path exists no more with the series five manifold.
