Black and yellow wires Driver harness

Finished bringing the driver side harness into the cabin, but noticed theres a cluster of snipped and taped black and yellow wires. Any idea where these are supposed to go to originally?
Reply
Old Mar 10, 2013 | 12:18 AM
  #2
misterstyx69's Avatar
Retired Moderator, RIP
Tenured Member: 20 Years
iTrader: (142)

Joined: Sep 2005
Posts: 25,581
Likes: 136
From: Smiths Falls.(near Ottawa!.Mapquest IT!)
optional grenade launcher?
Take a pic and show location J dude!
Reply
Old Mar 10, 2013 | 04:25 PM
  #3
jaggermouth's Avatar
Thread Starter
Will TIG for 20b
Tenured Member 10 Years
iTrader: (1)

Joined: Mar 2008
Posts: 1,422
Likes: 3
From: Nanaimo
Its really close to the trailing connectors and same colours. I wont be using the stock coils so I will be getting rid of some crap.

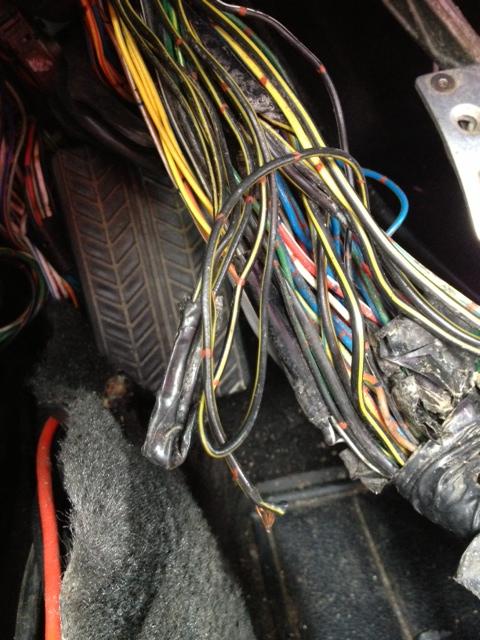

Pic: its the bunch thats taped
Name:  wiring_zps69457aae.jpeg
Views: 21
Size:  61.9 KB
Reply
Old Mar 10, 2013 | 07:56 PM
  #4
satch's Avatar
Moderator
Tenured Member: 20 Years
iTrader: (1)

Joined: Jun 2005
Posts: 11,738
Likes: 16
From: tulsa,ok.
There are two B/Y wires that power the trailing coil. They would have voltage w/key to on. If the EGI INJ fuse is pulled then the voltage would cease. This wire would have continuity to the B/Y wire in the four wire Main Relay plug.
Reply
Old Mar 10, 2013 | 08:01 PM
  #5
jaggermouth's Avatar
Thread Starter
Will TIG for 20b
Tenured Member 10 Years
iTrader: (1)

Joined: Mar 2008
Posts: 1,422
Likes: 3
From: Nanaimo
When I was trying to deflood the car before I rebuilt it, I pulled the the INJ fuse. I forgot about it and days later went to start it and it started and ran without the fuse in. I am assuming that maybe this cluster of wires is hardwired somewhere so I guess the only way to find out is dig in deeper
