AWR Racing Engine Mount Height Compared To Stock?
Does anyone have a set of AWR Racing FC engine mounts?
http://www.awrracing.com/store/produ...products_id=76

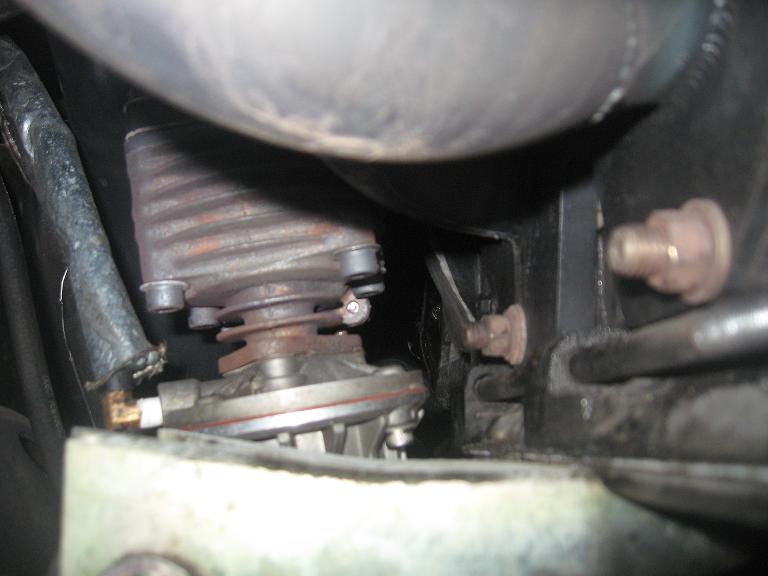

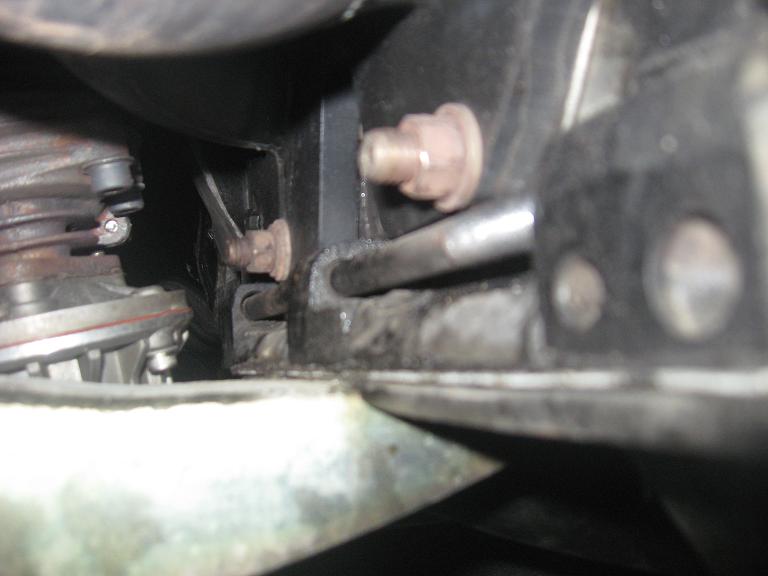

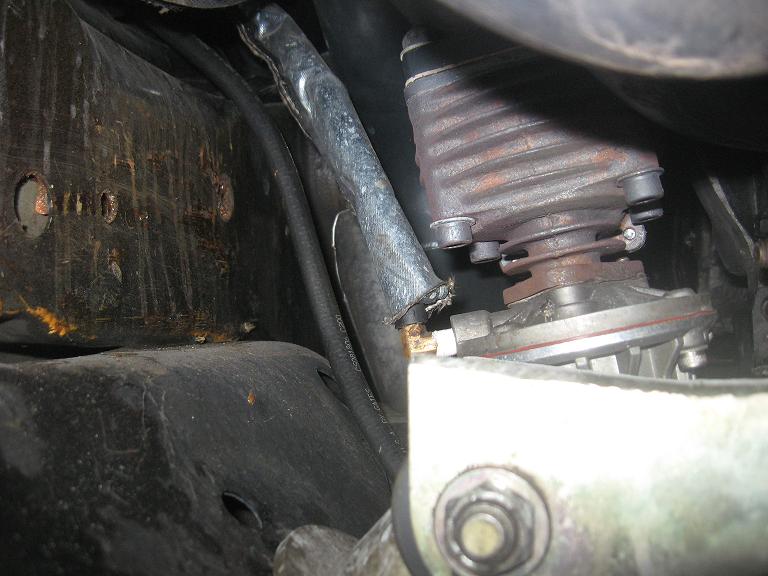

I pulled my stock mounts a few days ago in preparation to install these mounts but realized that they might be a lot higher then stock. If that is the case, I doubt I have clearance due to my turbo manifold runners. There is only about 1" between the lower runner and the stock mounts.
So does anyone have a set of these mounts? If so, can you give me an idea as to whether they take up more vertical space then the stock mount? It does not appear so, but I would like to be very sure before I order.
Thanks!
http://www.awrracing.com/store/produ...products_id=76
I pulled my stock mounts a few days ago in preparation to install these mounts but realized that they might be a lot higher then stock. If that is the case, I doubt I have clearance due to my turbo manifold runners. There is only about 1" between the lower runner and the stock mounts.
So does anyone have a set of these mounts? If so, can you give me an idea as to whether they take up more vertical space then the stock mount? It does not appear so, but I would like to be very sure before I order.
Thanks!
#2
1308ccs of awesome
iTrader: (9)
that probably all depends on whether your current mounts are dead and sagging
I don't know why they would have made them a different size than stock for seemingly no reason. judging by the pictures they look more or less the same size. definitely not anywhere close to an inch or even half an inch bigger.
If you email Tony @ AWR I'm sure you'll get a strait answer, he's always been really helpful when I've had questions.
why are you going with them instead of mazdaspeed mounts? 95 durometer is pretty serious...
I don't know why they would have made them a different size than stock for seemingly no reason. judging by the pictures they look more or less the same size. definitely not anywhere close to an inch or even half an inch bigger.
If you email Tony @ AWR I'm sure you'll get a strait answer, he's always been really helpful when I've had questions.
why are you going with them instead of mazdaspeed mounts? 95 durometer is pretty serious...
#3
PedoBear
iTrader: (4)
Im just kinda curious, whats so good about stiffer Engine mounts?
I understand that if I have large amount of HP going to the ground then yeah I might need something stiffer to hold the engine in place. but seriously for regular Street and maybe some track application, do I need such engine mounts ? Wouldn't it effect the "comfort" quality ?
My FC came with Mazdaspeed mounts (I never checked them tho, how to tell anyway lol), so I can't tell between Stock mounts and Mazdaspeed mounts.
I understand that if I have large amount of HP going to the ground then yeah I might need something stiffer to hold the engine in place. but seriously for regular Street and maybe some track application, do I need such engine mounts ? Wouldn't it effect the "comfort" quality ?
My FC came with Mazdaspeed mounts (I never checked them tho, how to tell anyway lol), so I can't tell between Stock mounts and Mazdaspeed mounts.
#4
MECP Certified Installer
Im just kinda curious, whats so good about stiffer Engine mounts?
I understand that if I have large amount of HP going to the ground then yeah I might need something stiffer to hold the engine in place. but seriously for regular Street and maybe some track application, do I need such engine mounts ? Wouldn't it effect the "comfort" quality ?
My FC came with Mazdaspeed mounts (I never checked them tho, how to tell anyway lol), so I can't tell between Stock mounts and Mazdaspeed mounts.
I understand that if I have large amount of HP going to the ground then yeah I might need something stiffer to hold the engine in place. but seriously for regular Street and maybe some track application, do I need such engine mounts ? Wouldn't it effect the "comfort" quality ?
My FC came with Mazdaspeed mounts (I never checked them tho, how to tell anyway lol), so I can't tell between Stock mounts and Mazdaspeed mounts.
Also, stiffer mounts can help with clutch chatter, which you can get by getting a higher coefficient of friction disc.
#6
Engine, Not Motor
Thread Starter
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
My mounts are actually quite new but they are just too squishy for a bridgeported engine. It rocks a lot in its mounts and I don't like the way it stresses all the pipe connections.
The reason I asked is because I did email AWR several days ago and have not received a response.
While the AWR mounts do look like they don't change the height at which the engine is mounted (I would not expect them to do so), it appears that the passenger side mount may be taller physically. The stock piece that bolts to the oil pan/center iron curves down and then bolts to the stock rubber mount. The AWR piece sticks straight out. That is what I am wondering about.
I guess if no one has these mounts I will just have to wait to hear back from AWR.
The reason I asked is because I did email AWR several days ago and have not received a response.
While the AWR mounts do look like they don't change the height at which the engine is mounted (I would not expect them to do so), it appears that the passenger side mount may be taller physically. The stock piece that bolts to the oil pan/center iron curves down and then bolts to the stock rubber mount. The AWR piece sticks straight out. That is what I am wondering about.
I guess if no one has these mounts I will just have to wait to hear back from AWR.
Trending Topics
#9
Engine, Not Motor
Thread Starter
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
I thought I was clear with my question. Maybe not...
Does the AWR Racing passenger side engine mount take up any more space vertically in the engine bay then the stock engine mount?
Does the AWR Racing passenger side engine mount take up any more space vertically in the engine bay then the stock engine mount?
#10
Do you feel lucky punk!!!
I just installed solid ones on the engine and stock rubber mount on the tranny. The vibration is a little bit and the engine quickly reacts when you press the accelerator pedal. I'm happy with my mounts.
#11
Engine, Not Motor
Thread Starter
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Wow, I really wish people would have read my question before replying. I was not asking about how these mounts felt or whether they were better then stock.
Anyway, I received an email back from Tony after I resent the message yesterday. Apparently the mounts are 3.75" tall where they meet the subframe. I measured last night and it looks like I have the space, so I ordered a set of mounts an hour ago.
Thanks to the person who replied and actually understood what I was asking.
Anyway, I received an email back from Tony after I resent the message yesterday. Apparently the mounts are 3.75" tall where they meet the subframe. I measured last night and it looks like I have the space, so I ordered a set of mounts an hour ago.
Thanks to the person who replied and actually understood what I was asking.
#14
Engine, Not Motor
Thread Starter
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
As it turns out, the AWR mounts do indeed take up a load more vertical space then the stock mounts. On the passenger side specifically, it was impossible to fit the mount with my turbo manifold.
I'm currently modifying the passenger side so that it sits far lower. I've basically had to redesign the passenger side to bring the bushing down near flush with the subframe and angle the oil pan section down heavily to it.
Not that I expect anyone else to have this issue of course, but it was worth updating the thread.
I'm currently modifying the passenger side so that it sits far lower. I've basically had to redesign the passenger side to bring the bushing down near flush with the subframe and angle the oil pan section down heavily to it.
Not that I expect anyone else to have this issue of course, but it was worth updating the thread.
