atkins engine stand adapter
#2
Senior Member
I made one out of 3x3x1/4" angle iron for about $10. It took about an hour.
Regarding your other question, people on this site have frequently stated that they are able to bolt the motor directly to their stand. I never tried.
Regarding your other question, people on this site have frequently stated that they are able to bolt the motor directly to their stand. I never tried.
#4
FCs** the new Pokemon
iTrader: (3)
Join Date: Nov 2006
Location: Lexington, KY
Posts: 256
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by buttsjim

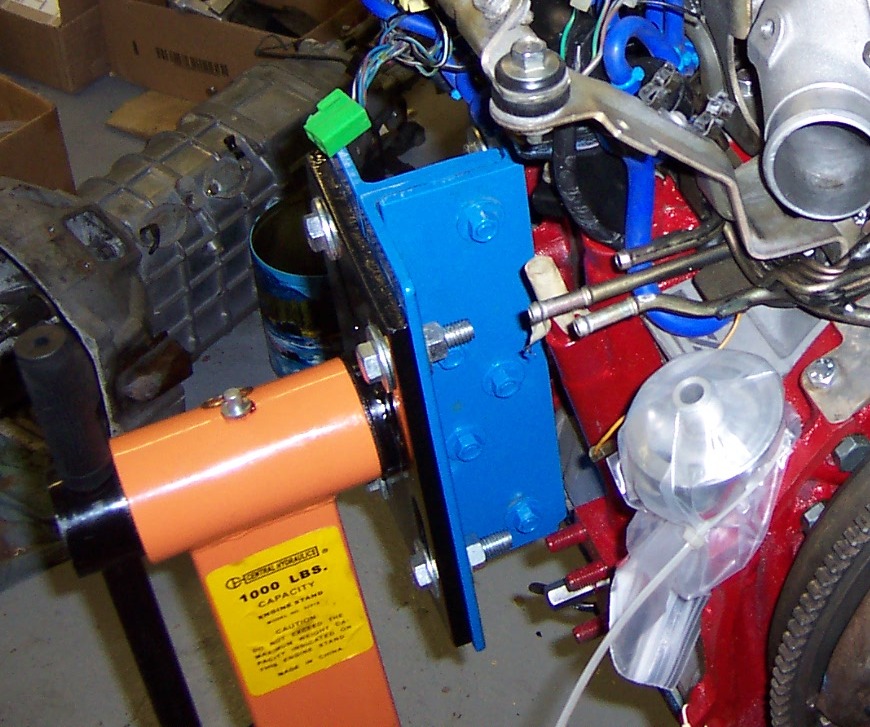

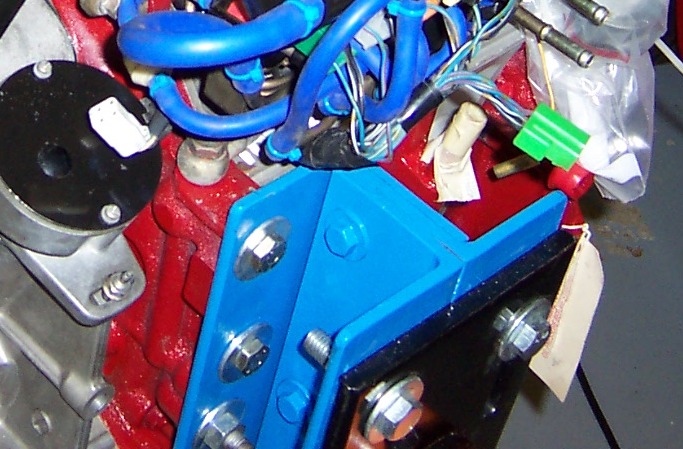

Here are a couple of pics of what I made. It was pretty easy.
#5
Senior Member
I tend to engineer on-the-fly, so no drawings. I made the motor mounting hole pattern by placing an appropriately-sized piece of poster board on the motor, pushing and poking it with my finger to locate the holes, and then cutting them out with a craft knife. If you eyeball one hole (for the stud), cut it, and then bolt the template in place, it will keep it from moving while you do the remaining three holes. The process took about 5 minutes, and the result lined up perfectly, with no slop. I can measure mine for you, but I think you're better off making your own pattern.
If you decide to make one like this, put the piece of angle that mounts to the engine on the left side of the other two pieces, instead of to the right of them as shown in the picture. This will distribute the motor's weight better when mounted to the stand.
If you decide to make one like this, put the piece of angle that mounts to the engine on the left side of the other two pieces, instead of to the right of them as shown in the picture. This will distribute the motor's weight better when mounted to the stand.
#7
FCs** the new Pokemon
iTrader: (3)
Join Date: Nov 2006
Location: Lexington, KY
Posts: 256
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by buttsjim
If you decide to make one like this, put the piece of angle that mounts to the engine on the left side of the other two pieces, instead of to the right of them as shown in the picture. This will distribute the motor's weight better when mounted to the stand.
Trending Topics
#9
tom port.. AKA streetport
Thread Starter
iTrader: (6)
Join Date: Jan 2005
Location: ludlow, pa
Posts: 4,659
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by hondahater
just you a 5 gallon bucket
LOL,

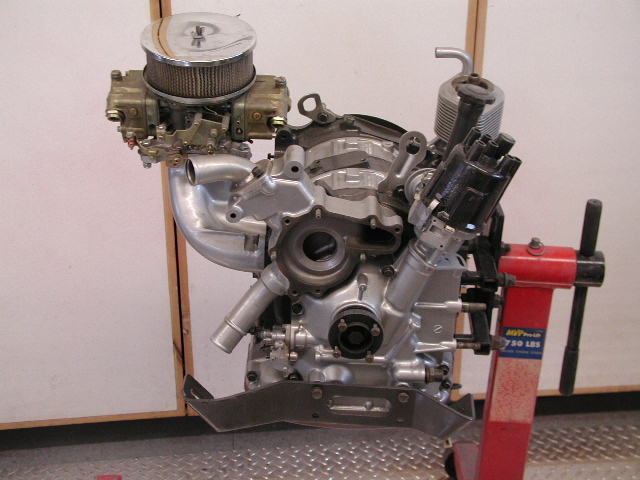

i want a stand so the engine sits upright..that way when i reip it down i just oull the housings UPWARDS instead of straight out...
#13
spending too much money..
iTrader: (2)
Originally Posted by 88rxn/a
LOL,
i want a stand so the engine sits upright..that way when i reip it down i just oull the housings UPWARDS instead of straight out...
i want a stand so the engine sits upright..that way when i reip it down i just oull the housings UPWARDS instead of straight out...
