Anybody mount the FMIC like this?
12-26-09, 11:04 PM
#1
Full Member
Thread Starter
Join Date: Apr 2004
Location: iowa
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
Anybody mount the FMIC like this?
I have a turbo ls1 swap non intercooled right now.

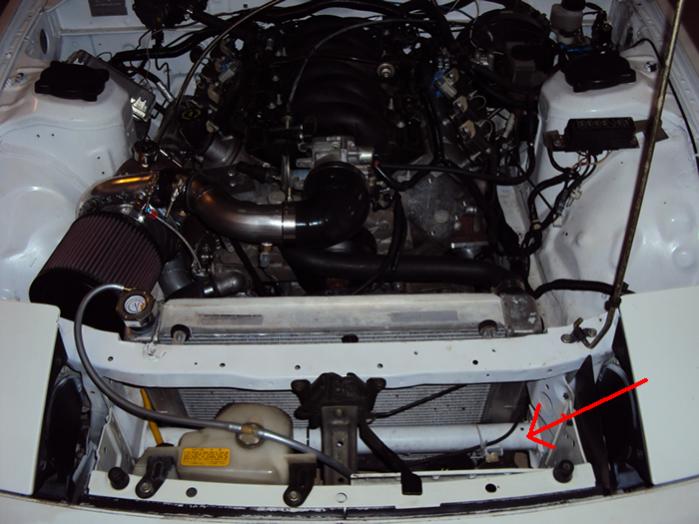

Was wondering if you rotary guys ever mounted the intercooler farther behind the bumper in the middle section where the coolant reservoir and hood latch is? I can't remember but I think that area may be where the oil cooler is on a rotary setup.
Wanted to know your pros and cons of each location? Some quick measurements show that the middle section can hold a 26L * 16h * 4.5" core.
Was wondering if you rotary guys ever mounted the intercooler farther behind the bumper in the middle section where the coolant reservoir and hood latch is? I can't remember but I think that area may be where the oil cooler is on a rotary setup.
Wanted to know your pros and cons of each location? Some quick measurements show that the middle section can hold a 26L * 16h * 4.5" core.
12-26-09, 11:23 PM
#4
Full Member
Thread Starter
Join Date: Apr 2004
Location: iowa
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
No, a straight vertical intercooler setup in front (toward bumper) of the radiator but not tucked under the bumber like the traditional fmic. In the same area as where the coolant overflow is.
12-27-09, 10:35 AM
#9
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts

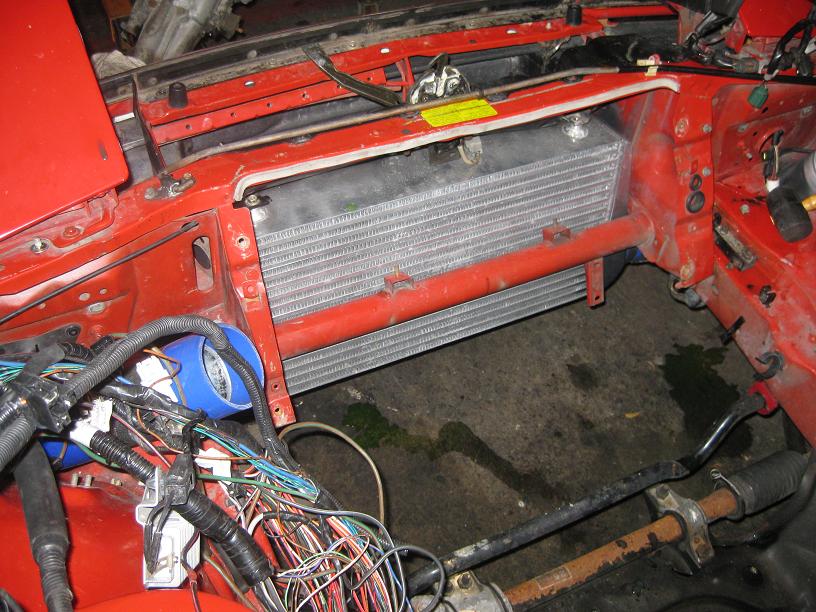

That's exactly how I have mounted my intercooler.
It is behind the bumper support and fairly far back near the rad. As my car is an '86, my coolant bottle was somewhere else so I didn't have to move it.
It is behind the bumper support and fairly far back near the rad. As my car is an '86, my coolant bottle was somewhere else so I didn't have to move it.
12-27-09, 11:21 AM
#10
Full Member
Thread Starter
Join Date: Apr 2004
Location: iowa
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
Anyone have any links or pics of the install or where to buy the core?
stock starion and evo fmic's probably not be big enough. I need a big one that will support 700whp. I'll probably have to buy a custom made core.
stock starion and evo fmic's probably not be big enough. I need a big one that will support 700whp. I'll probably have to buy a custom made core.
12-27-09, 04:15 PM
#14
Rotary Enthusiast
did you have to move your oil cooler?or did you have enough clearance?I am thinking aout mounting mine is same location but i may have a slightly larger intercooler than yours. not sure though from the pics
12-27-09, 10:06 PM
#18
Senior Member
iTrader: (2)
Join Date: Oct 2003
Location: San Jose
Posts: 361
Likes: 0
Received 0 Likes
on
0 Posts
I have mine mounted there as well, didnt have to relocat the oil cooler but did have to move the overflow. Fits nicely though only problem is that my piping hits my headlight motors a little bit.
12-28-09, 10:39 AM
#20
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
I believe my cooler is 24 x 16 (or 18) x 3. I did have to make new end tanks which pointed the inlet/outlet pipes towards the engine bay though.
12-28-09, 01:36 PM
#22
You can't weld stainless (or any steel for that matter) to aluminum. Their ALL for the most part 100% aluminum, some OEM's using platic end tanks. The reason some are HEAVY is because its most likely bar and plate instead of tube and fin construction. Both have merits and downfalls.
~Mike.............
~Mike.............
12-30-09, 10:26 AM
#23
Full Member
Thread Starter
Join Date: Apr 2004
Location: iowa
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
The ebay intercoolers thats run cheap for big core/endtanks are not aluminum.
Just to let you know.
More like polished stainless or smething. I know this because my brother bought a bigger replacment for his evo and it weighs an obviously weights more by holding both in your hands.
Just to let you know.
More like polished stainless or smething. I know this because my brother bought a bigger replacment for his evo and it weighs an obviously weights more by holding both in your hands.
12-30-09, 10:34 AM
#24
Full Member
Thread Starter
Join Date: Apr 2004
Location: iowa
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
I think most people mount them about 6"-8" farther to the front tucked into the bumper. Probably required bumber triming and maybe support trimming. That would allow you to run a wider cooler. But in the coolant overflow area you can have a taller fmic and no bumber modification.
12-31-09, 07:45 PM
#25
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts

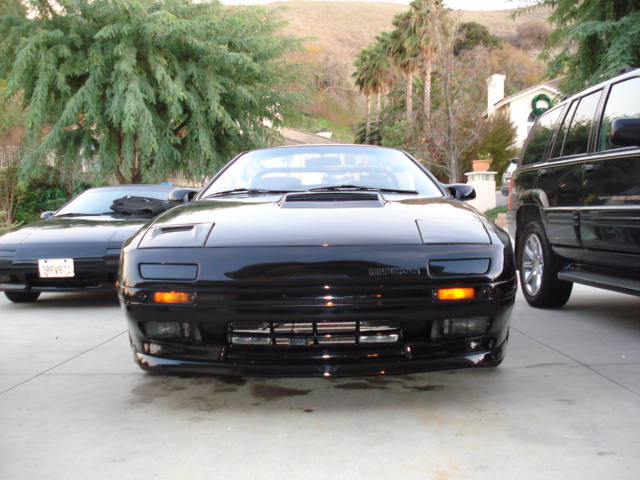

Old School FMIC
No bumper cutting
No Air Pump removal
No PS pump relocation
No Battery relocation
Just one little 3" by 3" hole made next to the resistor pac was the total modification needed to install.
No Air Pump removal
No PS pump relocation
No Battery relocation
Just one little 3" by 3" hole made next to the resistor pac was the total modification needed to install.
