another dumb question from yours truly
#3
Rotary Freak
iTrader: (7)
Wait a minute! If you have an S5, you do not need different hubs at either end. For the front calipers, you need the hard lines. Existing soft lines will work, although it might be a good idea to change out all soft lines for SS lines. The TII rear calipers require a different rotor. The proportioning valve is different on the TII, but you don't have to replace that for the system to work.
And do yourself a favor. Rebuild the calipers before installing them.
And do yourself a favor. Rebuild the calipers before installing them.
#4
Former Moderator. RIP Icemark.
And remember very very few models didn't come with the Sport/Turbo heavy duty 4 piston brakes anyway.
If you have a Sport, GXL, Turbo, Convertible, 88 GTU, 89-90 GTUs, or 91 Coupe with A and B packages, you already have the heavy duty brakes.
Only if you have a Base, Luxury coupe, SE, 89-90 GTU, or 91 coupe without A and B packages; then you will have the single piston front brakes and solid rear rotors.
If you have a Sport, GXL, Turbo, Convertible, 88 GTU, 89-90 GTUs, or 91 Coupe with A and B packages, you already have the heavy duty brakes.
Only if you have a Base, Luxury coupe, SE, 89-90 GTU, or 91 coupe without A and B packages; then you will have the single piston front brakes and solid rear rotors.
#5
new to the rotary world
Thread Starter
thanks. i was just looking at going to napa and get a reman 4pis brake kit. i just didnt konw what else iwould have needed. i was looking at getting a whole new set up, ie new cali, rotor, springs the whole deal.
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts

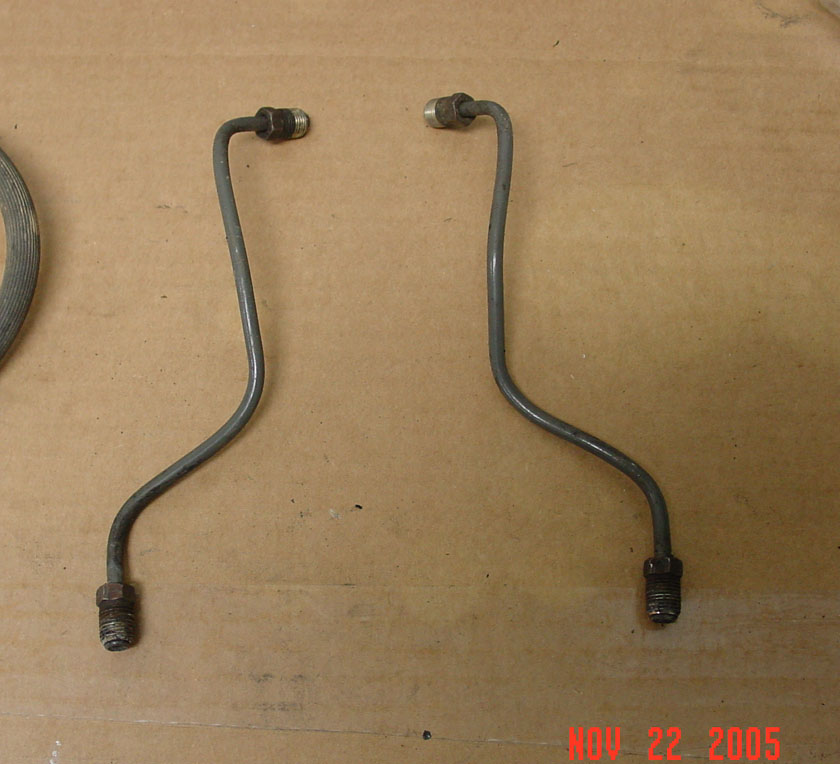

on an s5 all you need are the calipers, brake pads, and that little hard line
