2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

annoying water leak

Thread Tools

Search this Thread

Old Apr 12, 2007 | 10:42 PM
  #1
NCross's Avatar
Thread Starter
I have a rotary addiction
Tenured Member: 15 Years
iTrader: (18)

Joined: Jun 2006
Posts: 4,815
Likes: 24
From: Columbia, Tennessee
annoying water leak

everytime it rains or i wash my car it leaks into the driver floor board. i caught it in the act for the first time the other day and its dripping from somewhere behind the guage cluster. it doesnt leak into the engine bay so it cant be the brake/clutch cylinder holes or the speed cable hole.

it has to be leaking in through somewhere on the outer wiper bezel. are there any holes or drain tubes in the wiper grill tray that could lead inside?
Reply
Old Apr 13, 2007 | 06:08 AM
  #2
clokker's Avatar
Cake or Death?
Tenured Member 10 Years
iTrader: (2)

Joined: Jan 2007
Posts: 10,249
Likes: 64
From: Mile High
Could be the windshield isn't properly sealed.
There aren't any drains from the cowl that enter the car.
Reply
Old Apr 13, 2007 | 10:08 AM
  #3
NCross's Avatar
Thread Starter
I have a rotary addiction
Tenured Member: 15 Years
iTrader: (18)

Joined: Jun 2006
Posts: 4,815
Likes: 24
From: Columbia, Tennessee
ive taken the grill off a couple times and its too hard to see down in there. my first thought was the sunroof was leaking, but its dripping from behind the guage cluster so its impossible. there has to be a plg or screw or something that was unconciously removed.
Reply
Old Apr 13, 2007 | 10:10 AM
  #4
Spectator's Avatar
Rotary Enthusiast
Tenured Member 10 Years
iTrader: (1)

Joined: Aug 2005
Posts: 1,315
Likes: 0
From: Canada
Dry your carpet, use a hose and see where it comes from. Do you have any rust on your car?
Reply
Old Apr 13, 2007 | 11:08 AM
  #5
buttsjim's Avatar
Senior Member
Tenured Member 20 Years

Joined: Mar 2002
Posts: 637
Likes: 2
From: San Antonio TX
There are drain holes in the cowl area under the hood. I don't remember exactly where, and don't have my car to look at, but I believe they are at either side of the firewall area, near each fender. I can't remember if they are under that black trim piece, next to it, or where. But, they are there somewhere and, if they are clogged, can cause the leak you describe.
Reply
Old Apr 13, 2007 | 01:50 PM
  #6
NCross's Avatar
Thread Starter
I have a rotary addiction
Tenured Member: 15 Years
iTrader: (18)

Joined: Jun 2006
Posts: 4,815
Likes: 24
From: Columbia, Tennessee
how would using a hose help me find where its coming from? lol. i know where its from i just need tips on where there are suppposed to be drain holes inside the cowl. theres a little rust on the driver side rear under panel but its from 21 years of road salt im sure.
Reply
Old Apr 13, 2007 | 02:09 PM
  #7
buttsjim's Avatar
Senior Member
Tenured Member 20 Years

Joined: Mar 2002
Posts: 637
Likes: 2
From: San Antonio TX

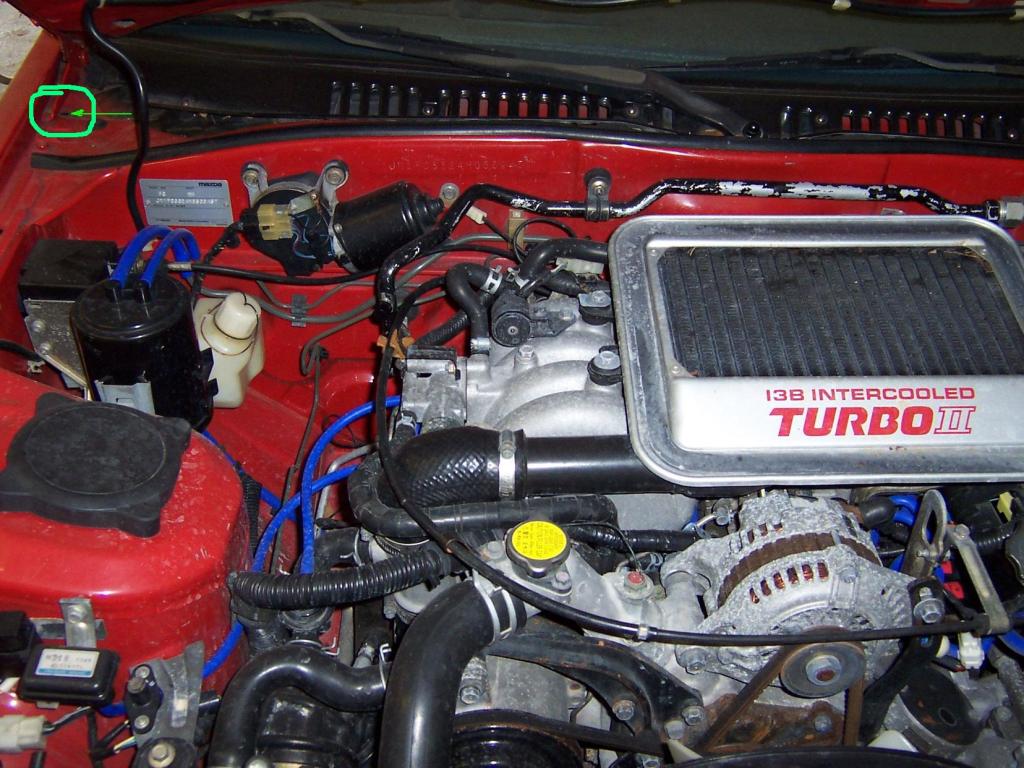

Here's the best pic I could find on my computer, but it's not very good. It shows the drain hole on the passenger side; I believe it's a similar location on the driver's side.
Attached Thumbnails annoying water leak-100_0089e.jpg
Reply
Old Mar 1, 2009 | 10:16 AM
  #8
Rotary Enthusiast
Tenured Member 10 Years
iTrader: (1)

Joined: Aug 2001
Posts: 1,271
Likes: 0
From: Atlanta.Georgia
did you ever find the hole? my 1st gen is doing the same thing now and its killing me
Reply
Old Mar 1, 2009 | 10:22 AM
  #9
Aaron Cake's Avatar
Engine, Not Motor
Tenured Member: 20 Years
iTrader: (1)

Joined: Feb 2001
Posts: 29,798
Likes: 128
From: London, Ontario, Canada
Originally Posted by Detriuch
did you ever find the hole? my 1st gen is doing the same thing now and its killing me
The 1st and 2nd gen bodies share nothing in common, so solving this issue on a 2nd gen probably won't help you.

In your case, I would check to see if the windshield is sealed at the top. Additionally, if the door seals are dried out then water will tend to run through the a-pillar and end up under the dash.
