2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

88 na no pulse on rear injector

Thread Tools

Search this Thread

Old Oct 19, 2008 | 05:31 PM
  #1
GB7's Avatar
GB7
Thread Starter
Full Member
Tenured Member: 15 Years
iTrader: (1)

Joined: Jan 2008
Posts: 215
Likes: 1
From: hoschton Ga.
88 na no pulse on rear injector

so my son drags this 88 fc home. its been sitting up 2 or 3 years, we clean the gas tank ,new filters ,plugs and poof cranks and runs on front rotor . I have compression and spark on rear but no injector pulse . I'm thinking ecu [anyone?]
Reply
Old Oct 19, 2008 | 05:47 PM
  #2
KhanArtisT's Avatar
Former FC enthusiast
Tenured Member 15 Years
iTrader: (2)

Joined: Dec 2004
Posts: 2,841
Likes: 2
From: Northern VA
It could be the ECU, but unless you have a spare to test it with you can rule out the injector or wiring by:

*checking for 12v at the rear rotor primary injector pin to rule out a wiring problem. See FUEL AND EMISSIONS section in FSM (FAQ) for the pins.
*remove the intakes and apply 12v/Ground to injector and listen for a click. Then pressurize the fuel system (jump yellow test connector), key ON and take note of the spray pattern if any.
Reply
Old Oct 19, 2008 | 06:00 PM
  #3
GB7's Avatar
GB7
Thread Starter
Full Member
Tenured Member: 15 Years
iTrader: (1)

Joined: Jan 2008
Posts: 215
Likes: 1
From: hoschton Ga.
yeah did the 12 volts to the injector and it fires , and have voltage at the injector plug . so i'm still thinking ecu
Reply
Old Oct 19, 2008 | 11:08 PM
  #4
KhanArtisT's Avatar
Former FC enthusiast
Tenured Member 15 Years
iTrader: (2)

Joined: Dec 2004
Posts: 2,841
Likes: 2
From: Northern VA
Yeah I would say its the ECU then.
Reply
Old Oct 20, 2008 | 02:48 AM
  #5
CrazyJason's Avatar
Full Member
Tenured Member 05 Years

Joined: Nov 2005
Posts: 79
Likes: 0
From: Vancouver, bc
Are you checking the primary rear injector or secondary rear injector? I think the secondaries dont fire on start up. Also, make you plug in the injector clips to the right injectors. Otherwise you will be punching yourself in the face later on...
Reply
Old Oct 20, 2008 | 05:26 AM
  #6
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA

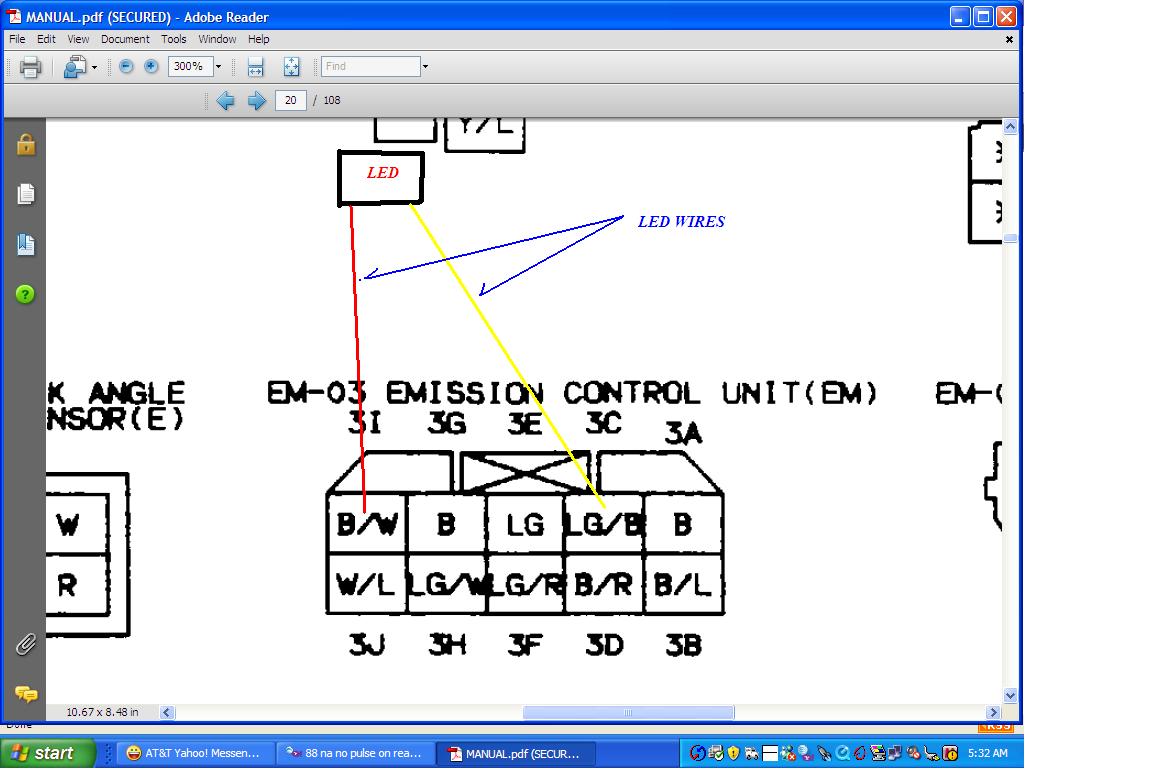

Buy a LED from Radio Shack. Put the LED red lead into the small plugs wire on the far left that is black/white. Put the other LED lead into the fuel injector wires socket.

Crank the engine over. The LED will blink if the injector and ECU are working.

Clarification: you would bare the ends of the LED wires and shove them up the backside of where the respective wires enter the plug so they would make contact with the wire/contact inside the plug. It is the small plug on a series four ECU.

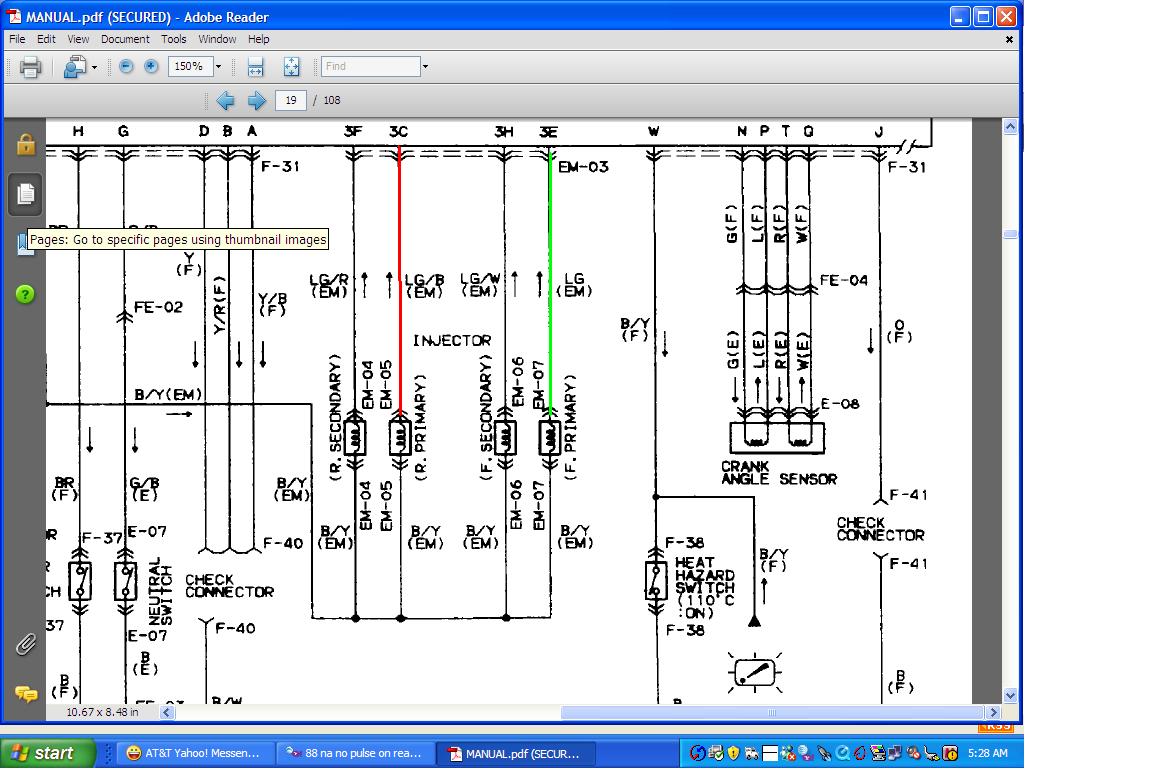

Attached Thumbnails 88 na no pulse on rear injector-fuelinjector.jpg   88 na no pulse on rear injector-ledwires.jpg

Last edited by HAILERS; Oct 20, 2008 at 05:36 AM.
Reply
