JPG attached that I stole off this site of someone elses engine and ACV. It tells about ten percent of what was asked.
01-19-08, 05:25 PM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The ACV itself has two solenoids on the USA ACV's. They have pigtails about a foot long and there are mating plugs on the EM harness just around the front of the airpump area. No picture available.
The rear most solenoid has little to nothing to do withe Passing emissions. The one most fwd is the Port air solenoid and has a marginal effect on Passing emissions. The key to the ACV is the vacuum hoses from the Switching and Relief solenoids on the other side of the engine and the proper routing of the vacumm hoses b/t the ACV and those solenoids. Proper setting of the TPS also effects the correct operation of those two solenoids (relief and swtiching).
The rear most solenoid has little to nothing to do withe Passing emissions. The one most fwd is the Port air solenoid and has a marginal effect on Passing emissions. The key to the ACV is the vacuum hoses from the Switching and Relief solenoids on the other side of the engine and the proper routing of the vacumm hoses b/t the ACV and those solenoids. Proper setting of the TPS also effects the correct operation of those two solenoids (relief and swtiching).
01-20-08, 06:24 AM
#7
All Blacked Out
Thread Starter
iTrader: (2)
Join Date: Aug 2007
Location: Virginia
Posts: 411
Likes: 0
Received 0 Likes
on
0 Posts
Cool, at the moment im waiting on a new harness, because the one i have is shot to hell.
Would anyone by any chance have a picture of where the wires plug into the harness?
Thanks,
Sean
Would anyone by any chance have a picture of where the wires plug into the harness? Thanks,
Sean
Trending Topics
01-20-08, 11:45 AM
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

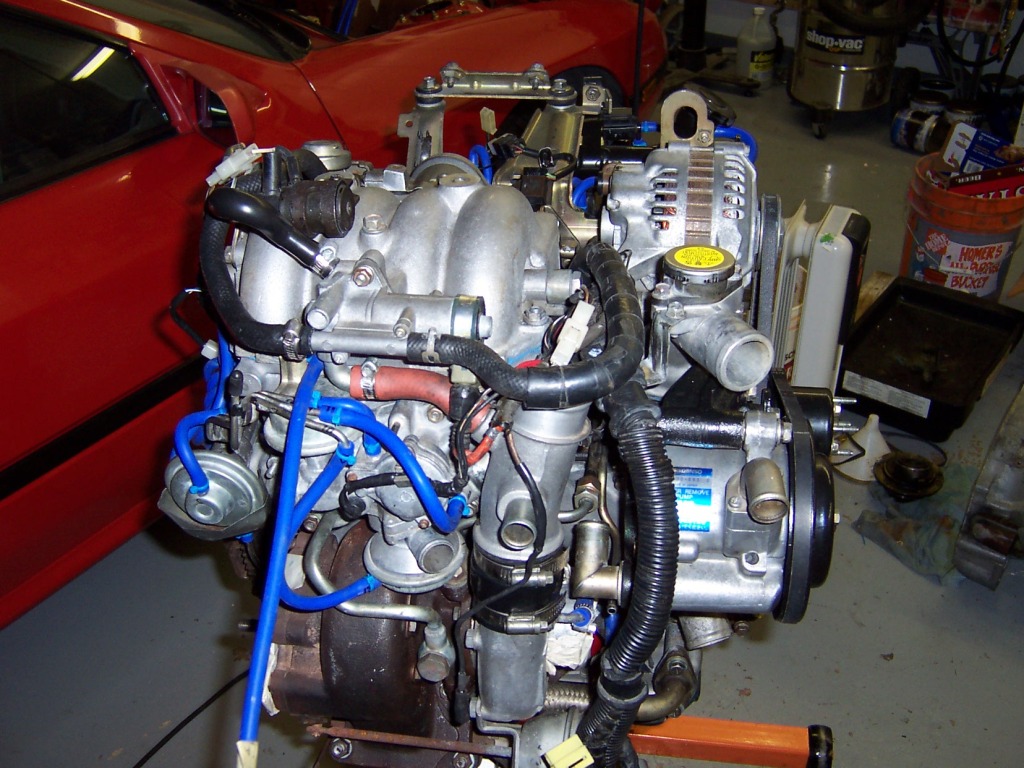

Look at the attached jpg. See the radiator cap? Yes. See the radiator hose clamp just below the radiator cap? Yes. See the thick black harness running just below that clamp? Yes. See the WHITE electrical plug just below that radiator hose, about two inches down? Yes. Well that is one of the ACV solenoids attachment points. If you really, really look hard, you'll also see a BLACK electrical connector there just above the white plug (yes, I see two white, but there is a BLACK one there also just above the two white ones.
