'86 NA - Help with wiring / plug identification

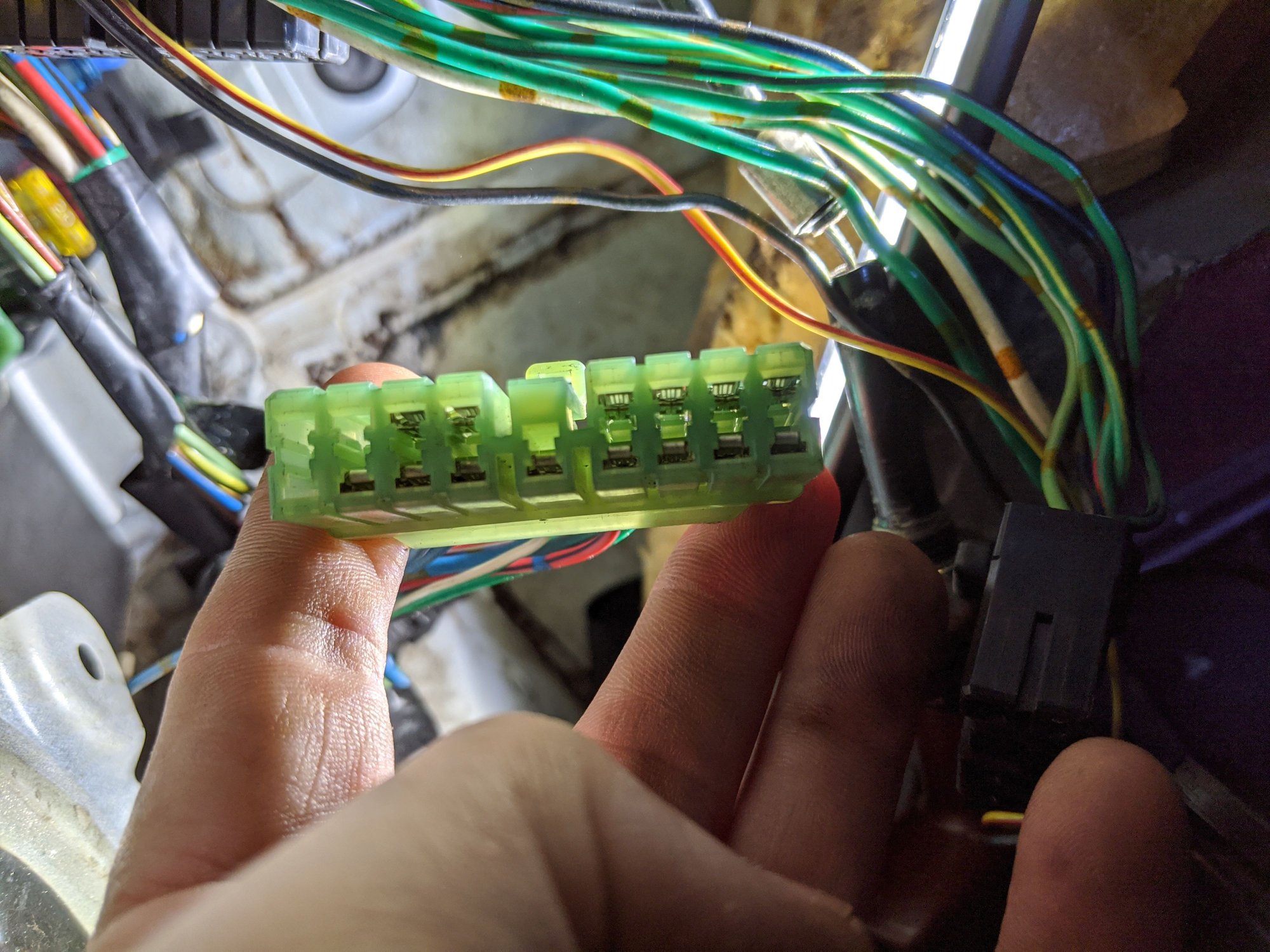

Working through some issues and updates on a '86 NA. Someone has cut a couple of wires and joined them differently. Next to the fuse box are a couple of large green connectors, the lower one looks like and the blue/white wire has been cut on this one. I'm struggling to locate exactly what this connector is in the '88 wiring diagram from foxed.ca. Any pointers please?
#4
Penis Healthy
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 794 Likes
on
452 Posts
Thats FR-02. Its the connector between the front and rear harness. The L/W wire that's cut is the signal from the switch that activates the interior spotlights. I can't remember which switch, but probably somewhere on the headlight switch.
Last edited by FührerTüner; 02-09-20 at 06:40 PM.
#5
Full Member
Thread Starter
Many thanks, that helped me locate it in the manual too.
Seems a little odd, as far as I can work out it was previously cut and looks like joined into what I assume is the connector for the cruise control instead. Interior lights work still and can't understand why this would be done and why (if my assumption is correct as I don't have cruise and connector is floating) to the cruise connector.
I'll dig further this weekend.
Seems a little odd, as far as I can work out it was previously cut and looks like joined into what I assume is the connector for the cruise control instead. Interior lights work still and can't understand why this would be done and why (if my assumption is correct as I don't have cruise and connector is floating) to the cruise connector.
I'll dig further this weekend.
