5th and 6th port

I have a 1987 rx7 and I was looking at the 5th and 6th port actuator and the rod that they connect to seems to be broken( loose). I don't think there even working beacause I did the grease test and nothing mover after a fun ride. So I wanted to see suggestions people had of what to do now? Fix, remover, or ect....
Old 02-06-15, 10:22 AM
  #2
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,950
Received 2,680 Likes on 1,896 Posts
can you push them by hand? i've had a couple where the rod rusted to the actuator, so the fix was really easy, remove actuator, lube, and reinstall.

if the sleeve is actually stuck, the intakes need to come off, so you can remove and clean it. its actually been a while since i saw a stuck sleeve though

i'd recommend fixing it, the car runs better, and it won't cost much, except time
Old 02-06-15, 10:38 AM
  #3
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
The problem is that the rod for the actuator is broken on the one near the firewall.
Old 02-06-15, 11:21 AM
  #4
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,950
Received 2,680 Likes on 1,896 Posts
i think you can change the rod without having to remove anything else. the two screws holding it in, may require a bit of luck
Old 02-06-15, 11:30 AM
  #5
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
I having trouble locating one as of the moment to price it out
Old 02-06-15, 12:32 PM
  #6
Full Member

zak rabbit's Avatar

Join Date: Nov 2011
Location: orange, ca
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
You said you performed the grease test and the actuator didn't move, yes? Which "rod" is broken? Post a pic?
Old 02-06-15, 12:39 PM
  #7
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts

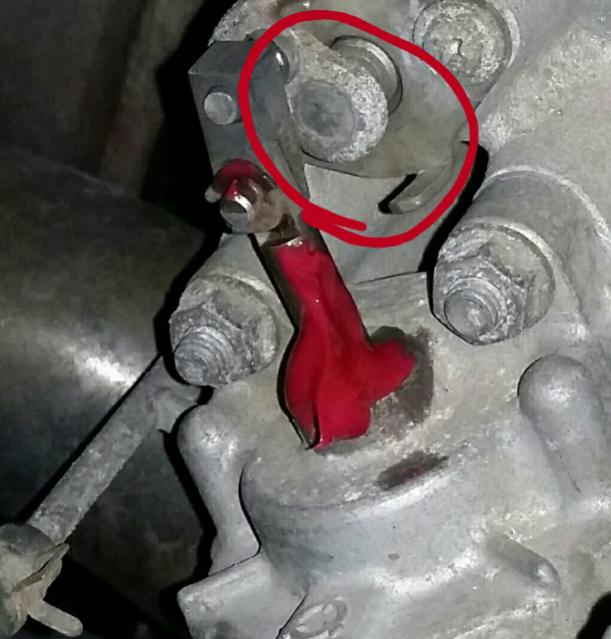

The rod that connects to the sleeve I think
Attached Thumbnails 5th and 6th port-forumrunner_20150206_123855.jpg
Old 02-06-15, 02:48 PM
  #8
Full Member

zak rabbit's Avatar

Join Date: Nov 2011
Location: orange, ca
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
I guess I'm not clear on why you think it's broken, with the actuator removed, it should be very easy to move. Is the actuator not pushing against it? Do you still have the stock exhaust on it?
I'm not trying to be a dick, I just want to help diagnose it so you're not spending money needlessly; mechanic background and all.
Old 02-06-15, 04:45 PM
  #9
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
I think the exhaust does not have the outlet for the actuators. I bought it from high school kid and he put exhaust on. I know that the actuators are frozen up and if I chose to fix it based on the info given.

As for the rod that connects the sleeve to the actuator rod. It's should be a knucle join not a ball joint( it swivels). I can post a video of what I mean later if needed. I am thinking I want to rebuild / replace everything I can. If I go that route I would like info on putting my own port in for the exhaust so I can get these thing working.
Old 02-06-15, 04:51 PM
  #10
Full Member

zak rabbit's Avatar

Join Date: Nov 2011
Location: orange, ca
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Unfortunately, the best way to get the actuation right would be to go back to stock or install the Racing Beat header with the tube. I actually just locked mine open, removing the actuators completely. As I have a lightened flywheel, I don't think I feel the low torque effects everyone complains about when doing this.
Old 02-06-15, 04:54 PM
  #11
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,950
Received 2,680 Likes on 1,896 Posts
Originally Posted by Erifx
I think the exhaust does not have the outlet for the actuators. I bought it from high school kid and he put exhaust on. I know that the actuators are frozen up and if I chose to fix it based on the info given.

As for the rod that connects the sleeve to the actuator rod. It's should be a knucle join not a ball joint( it swivels). I can post a video of what I mean later if needed. I am thinking I want to rebuild / replace everything I can. If I go that route I would like info on putting my own port in for the exhaust so I can get these thing working.
err the actuator rod has the end you see on it, its 1 piece. it pivots in a bushing in the intake, actuator sits on a pin. its very simple
Old 02-07-15, 12:29 PM
  #12
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
Is there a part number or place were I could find that part.
Old 02-07-15, 04:22 PM
  #13
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,950
Received 2,680 Likes on 1,896 Posts
the shafts are NLA new, but they never break. the o ring to seal the shaft is N225-13-188A list price from Mazda is $4.99 each. there is 1 per shaft.
Old 02-24-15, 11:48 PM
  #14
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
Does anyone have a part number for those rods?
Old 02-25-15, 02:18 AM
  #15
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
Well this one fit and function with my car?

89-92 Rx7 6th Port Rear Actuator Rod...
Old 02-25-15, 01:33 PM
  #16
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,950
Received 2,680 Likes on 1,896 Posts
Originally Posted by Erifx
Does anyone have a part number for those rods?
N326-13-B80A is the front rod and
N327-13-B80A is the rear rod

they are NLA from Mazda.

you are better off either finding a used intake and cleaning it, or taking yours apart and cleaning it.

the rods themselves come out without having to take the manifold off
Old 02-25-15, 01:38 PM
  #17
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
One of the rods are broken from previous owner. I was just trying to find a replacement or a solution.
Old 02-25-15, 06:05 PM
  #18
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,950
Received 2,680 Likes on 1,896 Posts
find a used lower intake, should be next to free
Old 02-25-15, 11:56 PM
  #19
Full Member
Thread Starter

Erifx's Avatar

Join Date: Jul 2011
Location: Zimmerman, MN
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
I have been seeing euro-spec LIM any insight to that. What years/models can I attach with out moding. I have a 1987 s4 na.
Old 03-06-15, 08:48 AM
  #20
Rotary Enthusiast

iTrader: (8)

Casual_John's Avatar

Join Date: Jul 2007
Location: London, CANADA
Posts: 893
Likes: 0
Received 1 Like on 1 Post
Originally Posted by j9fd3s
N326-13-B80A is the front rod and
N327-13-B80A is the rear rod

they are NLA from Mazda.

you are better off either finding a used intake and cleaning it, or taking yours apart and cleaning it.

the rods themselves come out without having to take the manifold off
I don't want to hi-jack this thread, but on a similar note, could you please comment on this thread...
https://www.rx7club.com/naturally-as...shaft-1079707/
