2 Quick Questions With Pictures

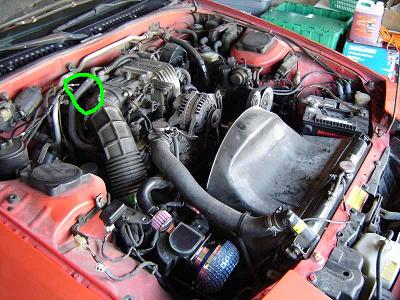

Ok, Just figuring out some loose ends here, both have to do with engine vacuum in a way so here goes, in the first pic, well, i hope its first when this is posted (side view of engine, red car) in the green circled area is a set of vacuum lines connected with a T, however, one of the lines on the T is capped and I noticed that I have a capped brass end by the BAC, just wondering if the caps are supposed to be connected or if you guys have the 2 caps as well.

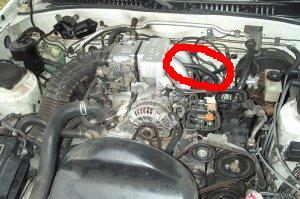

Second, In the red circled area I have a large hose circled, it comes out of the intake between the 2 large runners. Can someone tell me what the hell this hose goes into and is it important?
Thats it, hope i was clear enough on the first one.
Second, In the red circled area I have a large hose circled, it comes out of the intake between the 2 large runners. Can someone tell me what the hell this hose goes into and is it important?
Thats it, hope i was clear enough on the first one.
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

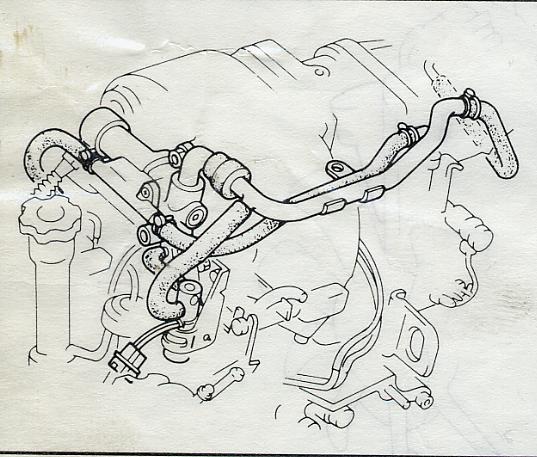

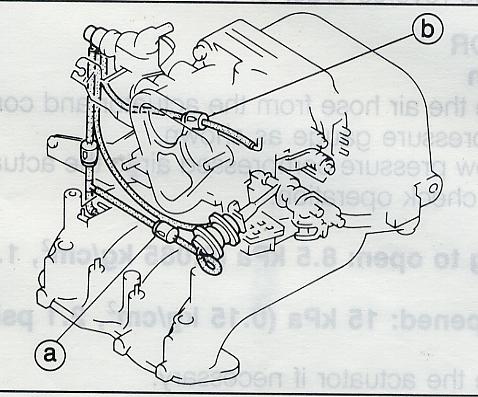

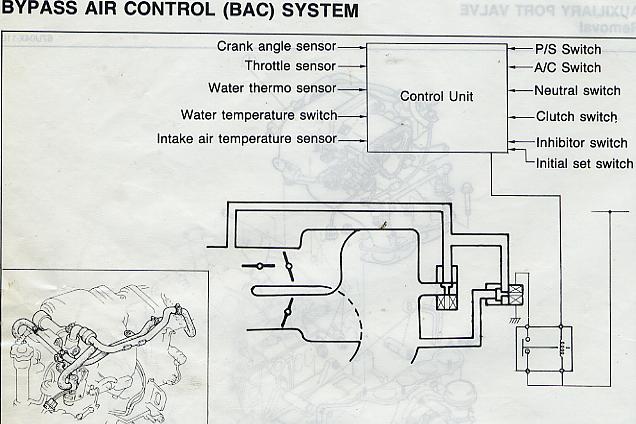

Attached are two jpgs. Can you narrow things down? The first is of the left side....the second of the rear/right side of the manifold/dynamic chamber. The third is a simplified schematic of the air bypass that is related to the second jpg.
#4
Why am I here ?
Join Date: May 2002
Location: Boston, MA
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
S4 NA and S5 NA vacuum diagrams below ...
That should cover most lines for S4 NA:
http://www.geocities.com/huguesdc1/faqvacuum.html
There should be a vacuum diagram somewhere on the hood ... If you have it, please post a picture of it so that I can put it on my site for reference purposes
If you have an S5 NA, somebody took a pic of its vacuum diagram on the underside of the hood and posted it not too long ago.
Here for S5 NA:
https://www.rx7club.com/forum/showthread.php?t=365227
You should take close range pics or be more descriptive.
hugues-
That should cover most lines for S4 NA:
http://www.geocities.com/huguesdc1/faqvacuum.html
There should be a vacuum diagram somewhere on the hood ... If you have it, please post a picture of it so that I can put it on my site for reference purposes
If you have an S5 NA, somebody took a pic of its vacuum diagram on the underside of the hood and posted it not too long ago.
Here for S5 NA:
https://www.rx7club.com/forum/showthread.php?t=365227
You should take close range pics or be more descriptive.
hugues-
