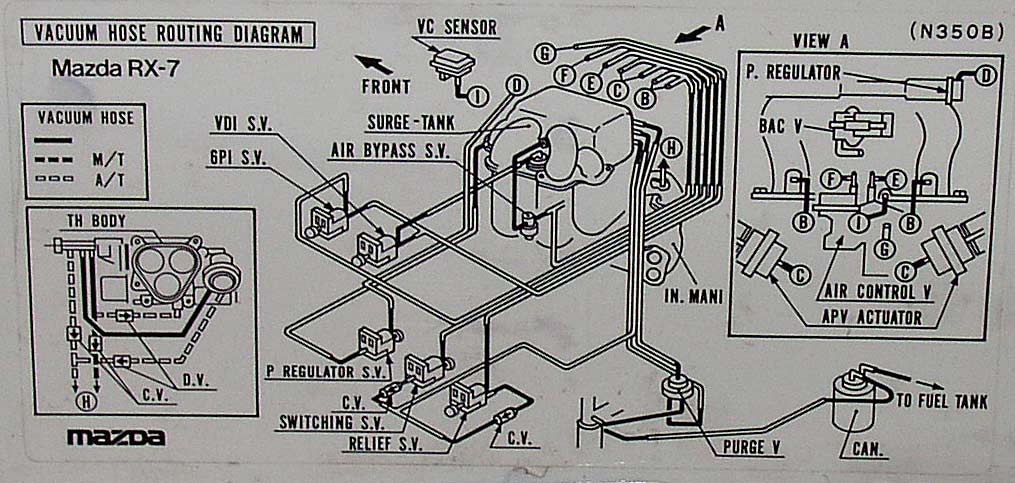

ok so i've been looking for about the past 2 months for a good Vac. diagram for my n/a and have had tons of trouble finding it. Lo and behold there it is right under my hood, i am such a dumbass. The one in the FSM sucks, the haynes manual one isn't any better and instead of taking everythign apart to see where it goes i am uploading this for any future questions on it for our members. it's nothign special but i searched my *** off and couldn't find one so i'm posting it up for everybody else.


Hope this helps some people in the future, because i know i wasn't the only one searching for it in history.
Hope it helps,
Matt



Well, I don't have an S5, but thank you from all the pple who do.

Now, we need someone with an S4, a digi camera and some good will to take a picture of that same item and post it here.

May the rotary gods give you good health and fortune !

hugues-



I love the one I have on the hood of my car. If I had a digital camera I'd take a pic of it. I'd like to know wtf they made those things out of because I wiped it off with a rag and it looked brand new.



Dang. I don't have that one under my hood.



well when i get home i'll take a picture of the s4 n/a one and post it up also, i'd actually like to get a collective of the good diagrams posted up in an archive thread so nobody has to ask anymore, or if they do they can be answered in 1 simple and quick question, good idea eh?
