nyt

iTrader: (1)

almost all the fcs with 13b-re transplants I see are missing either power steering or air conditioning. Not gonna give up either of those

nyt

iTrader: (1)

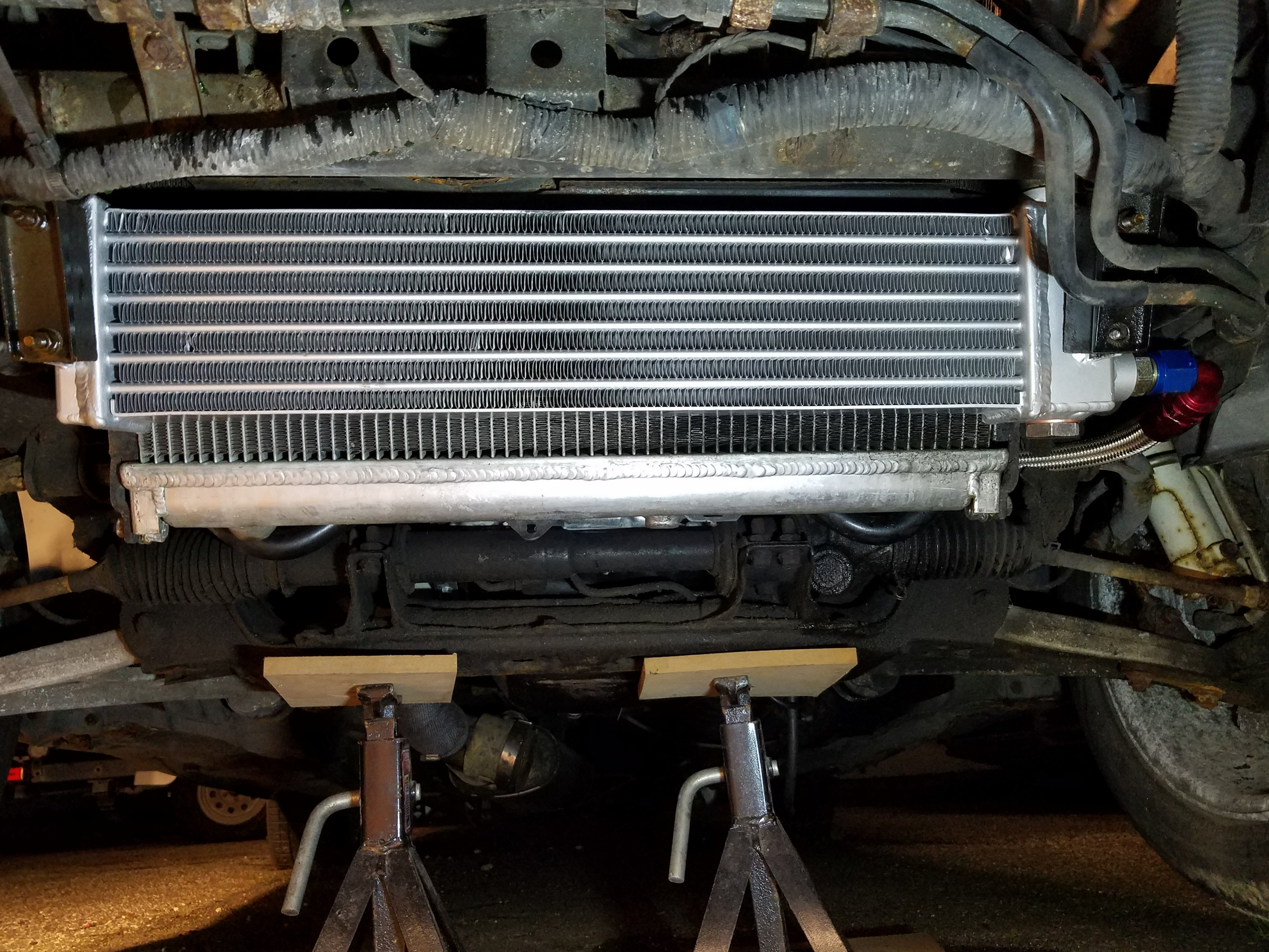

after getting proper gaskets and tapping this to the right thread size, ebay oil cooler installed....

nyt

iTrader: (1)

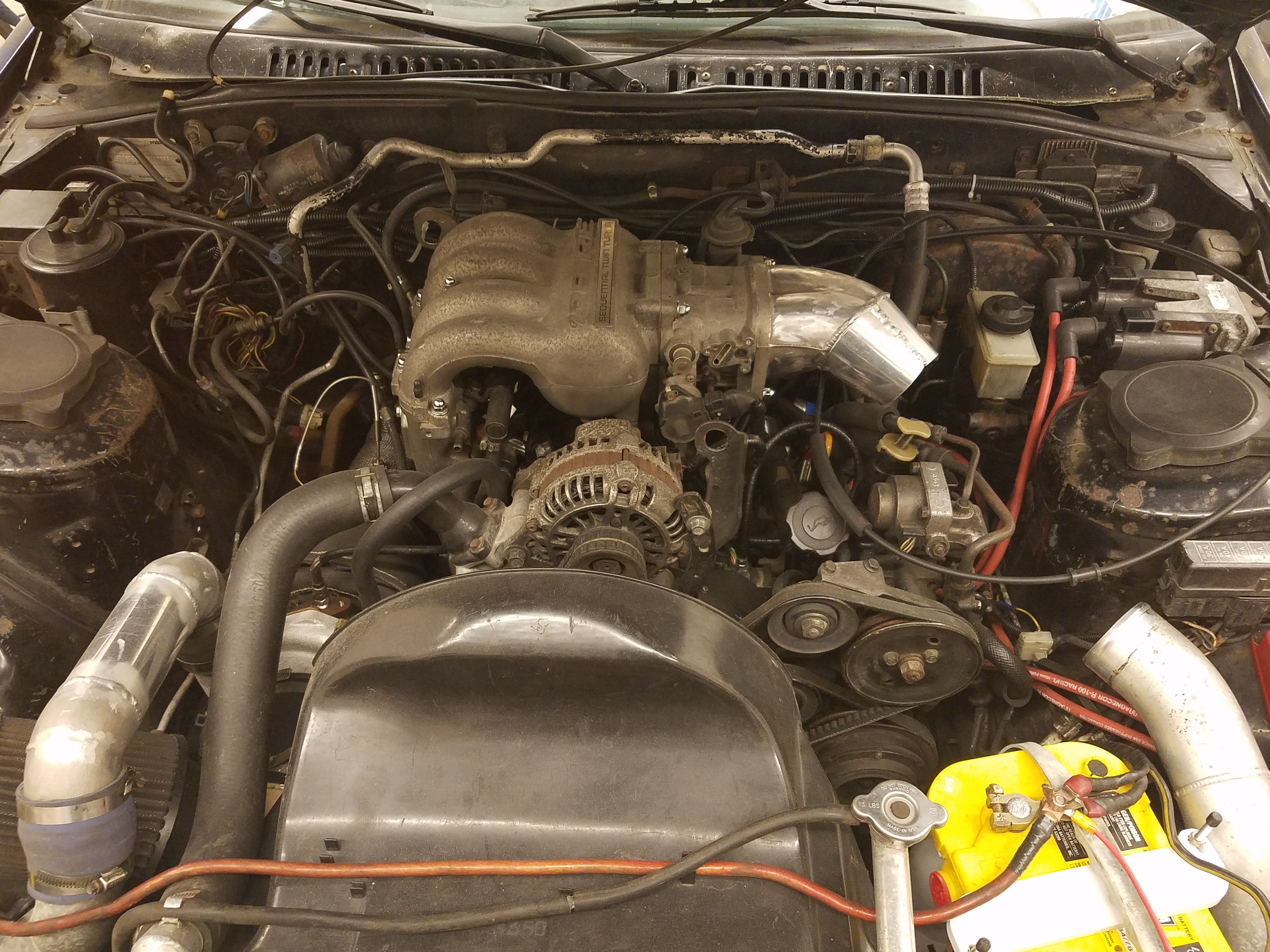

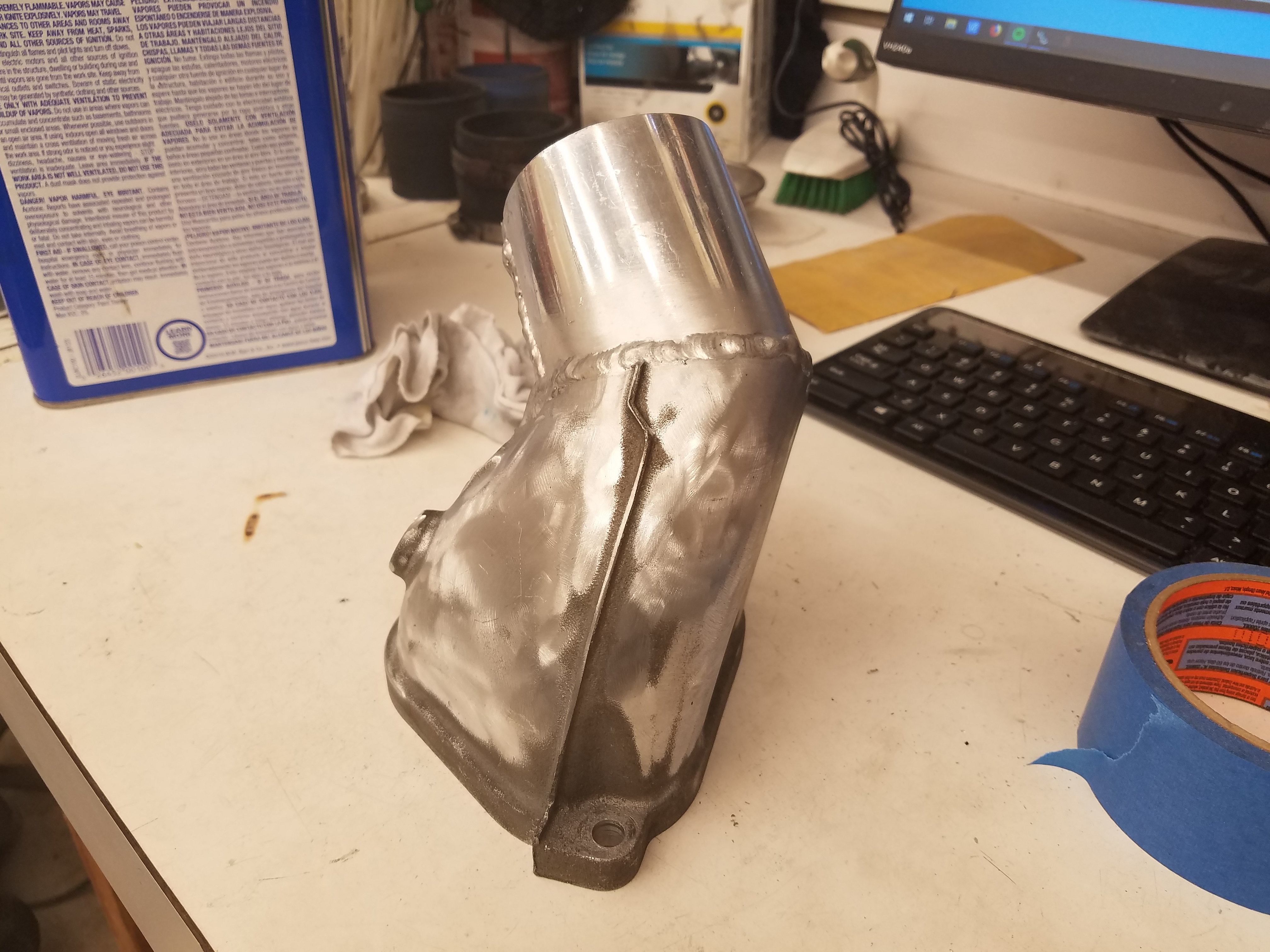

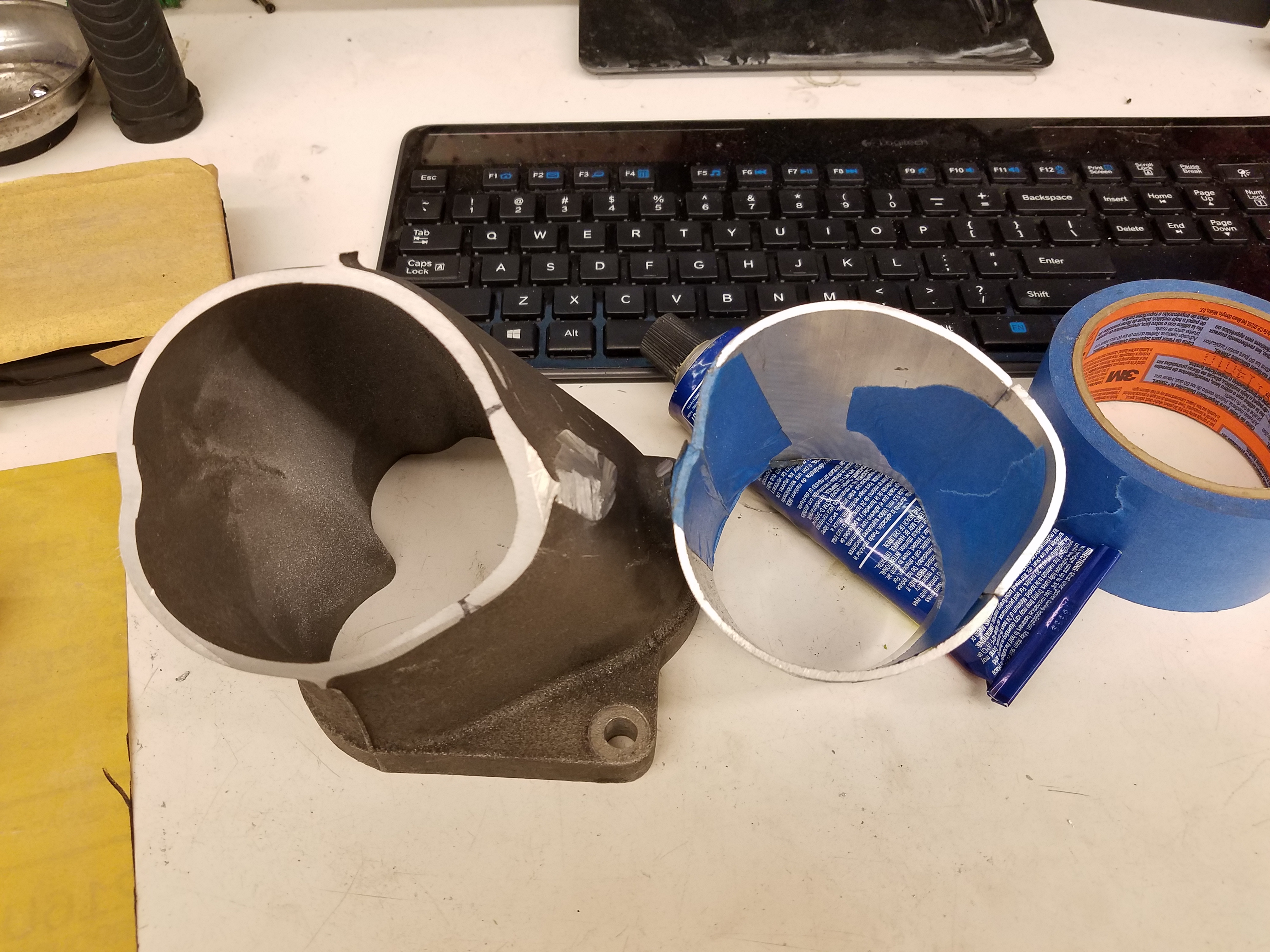

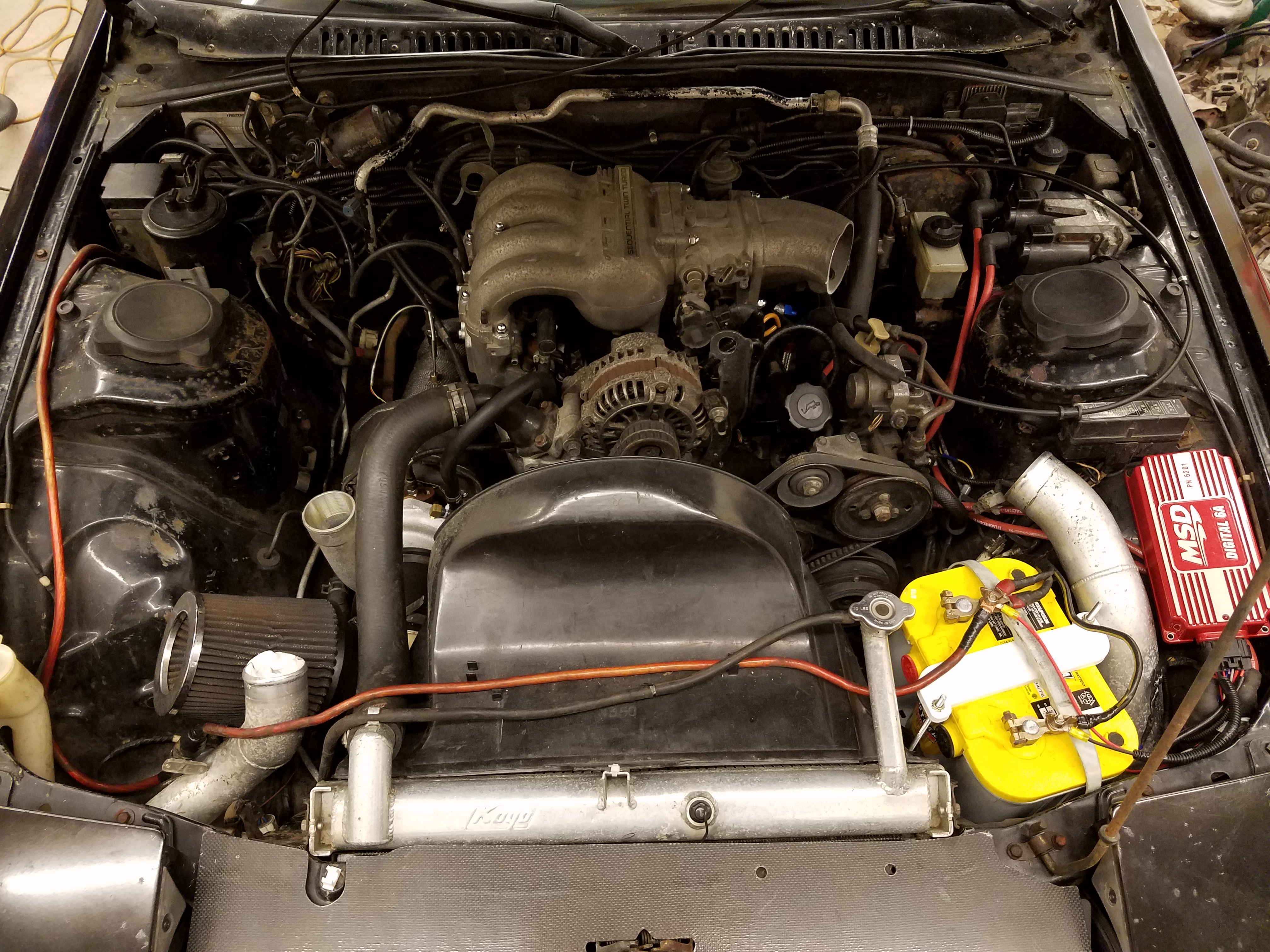

Finally got a chance to do some more work on this and fabbed up all the intake this weekend.

boost soon.

diabolical1

iTrader: (3)

nice work. i never realized the JC engine was such a pain to install. how much more do you have left?

nyt

iTrader: (1)

It's a pain, lot of stuff to adapt to work with all the fc accessories, but that bit's done. I'm quite happy with how the intake piping came out. It was just 2-3 straight days of fabbing and test fitting stuff.

Now I have to find a vac port for the bov, hook up the EGT probe to the wbo2 unit, seal off the fresh air intake to the cabin (rusted out), and a couple of other little small things. Just got tired, have two herniated discs, couldn't keep working on it. I'd mess with it now, but it's late and I don't want to **** off my neighbors. Just got in from dealing with some family obligations. Hoping to have it on the road this week and get a tune in.

nyt

iTrader: (1)

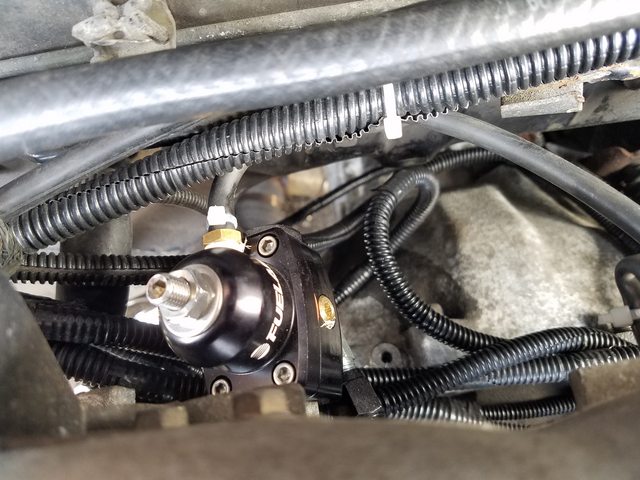

It's running. Has boost. I'm just waiting on rails, injectors, fpr, fittings, and a walbro 485 and going to switch it to run on e85. Bring the boost up around 30psi

nyt

iTrader: (1)

got most of the parts from the FFE 13B kit... just waiting on some tophats that were left out. walbro 485 in the tank now.

nyt

iTrader: (1)

buttoned up once again... get to start/tune tomorrow I hope.

Rob XX 7

iTrader: (8)

whats the rest of this build?

nyt

iTrader: (1)

everything as pictured pretty much. old wolf3d v4 running things, pt67 ball bearing turbo, rb exhaust, and a rebuild of the filthiest 13b-re I've ever seen.

RXparst apex seals, atkins corner seals, RA soft seals. https://imgur.com/a/g75c3gn

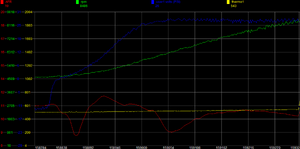

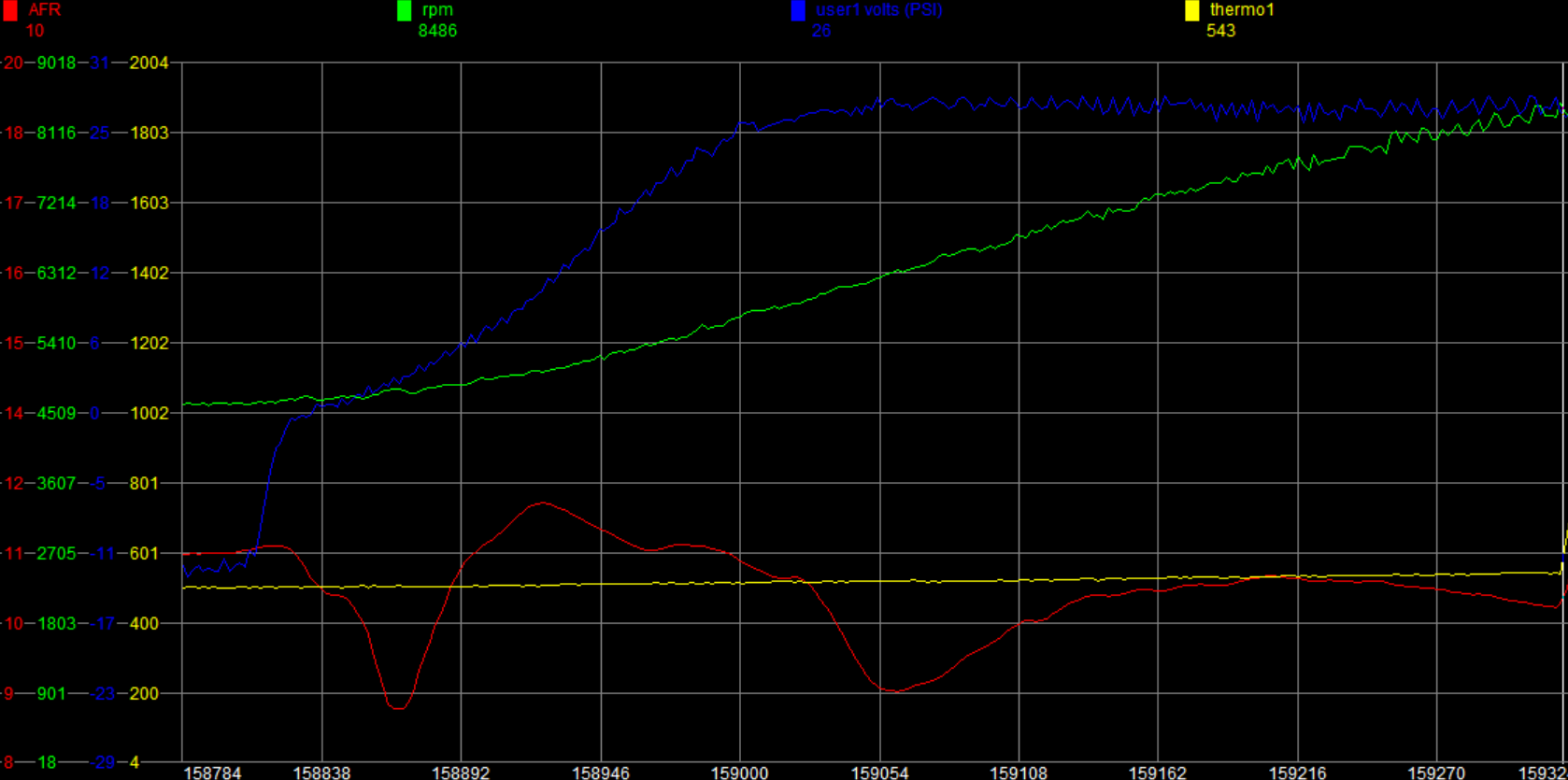

Was just doing some 25psi pulls last night then had a bad idle after, stalled at a light... vac bouncing around a bit and not as much as normal... Still pulled like a freight train, though. I thought something damaged in engine...

Compression sounded fine when cranking and with plugs out the pulses felt the same... but something was still not right.

I just got back from autozone, grabbed a compression tester. Nice even compression.

So after considering one of the trailing plugs was wet and the other was dry, I checked the ignition and sure enough, T1 wasn't firing.

Yet another fd igniter failed.

I'm going to replace ignition setup with ign1as... also considering switching to a haltech 1500 but not sure i want to spend the funds on this old car, so will probably just leave the wolf in there for now.

I like the closed loop O2 and long term tuning in the Haltechs, though. That said, running E85 the safety margins are increased. hm.

Rob XX 7

iTrader: (8)

im more interested in the fuel system what injectors to support 30psi and E85, dont think that pump will be enough
is wayne tuning it?

nyt

iTrader: (1)

I've always done my own tuning. I'll likely bring it to Wayne's shop at some point to see how much power it's making.

I thought I posted the info on the fuel system, but I guess not.

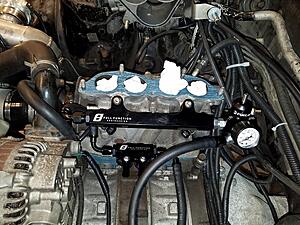

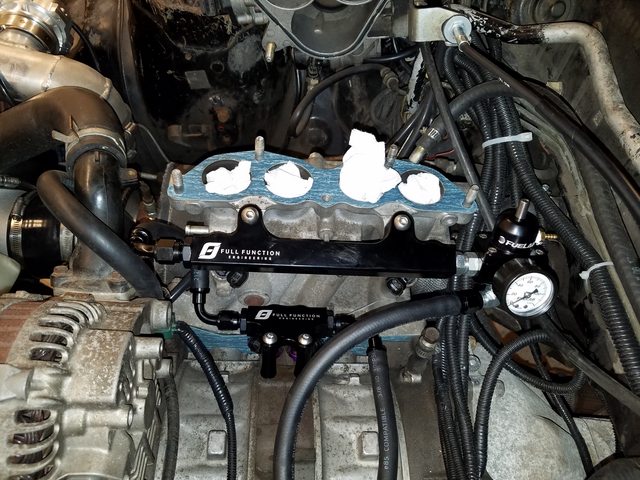

It's the full function rail kit with 4x 2000cc ID injectors.

I'll see how the walbro does. So far I've run the car up to 28psi at 7500 rpm and still had some duty cycle available. If it needs more, I'll add another with some check valves, not a big deal.

nyt

iTrader: (1)

adding a second 485 for safety while i have it down

Jager

iTrader: (10)

Wolf 3D? What a blast from the past!

nyt

iTrader: (1)

Yeah, works well enough... I'd like something more modern like a haltech 1500, but not putting any more money into this at the moment. Just ordered alternator, starter, ign1as, 485, etc.

nyt

iTrader: (1)

alternator and starter replaced... got the ign1as and going to make some brackets in a few mins.

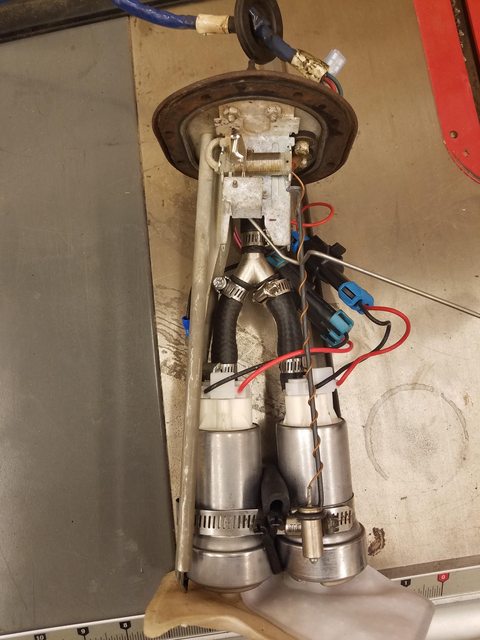

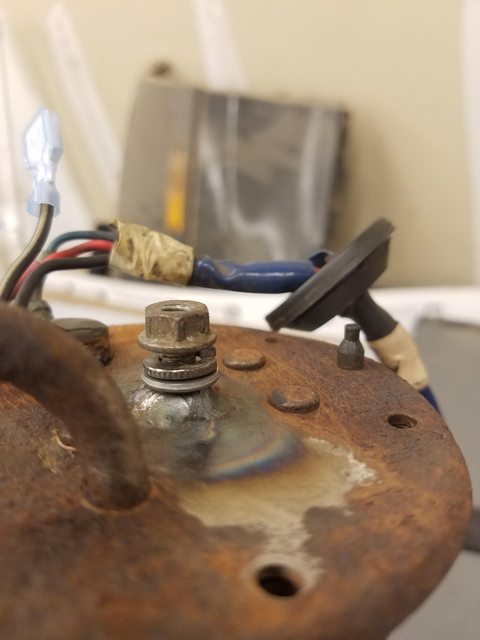

got the dual 485s in tank finally.. added a better grounding point also. this just barely fit in the tank

nyt

iTrader: (1)

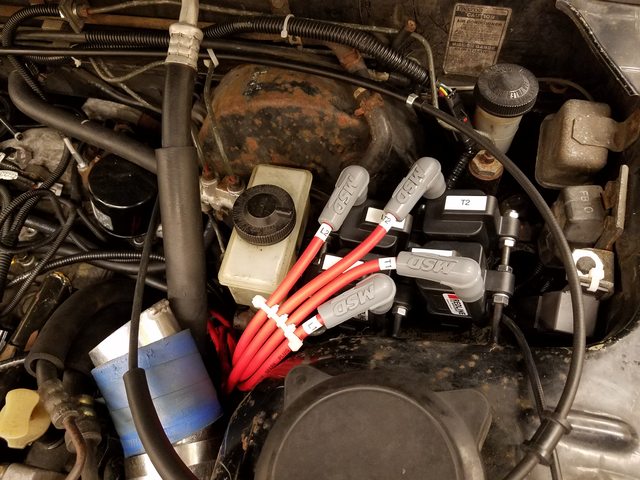

Installed some IGN1As and the car is running again.

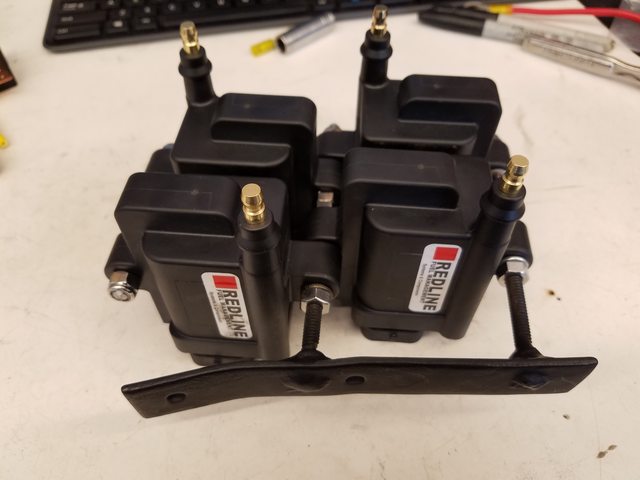

bracket I made up quick

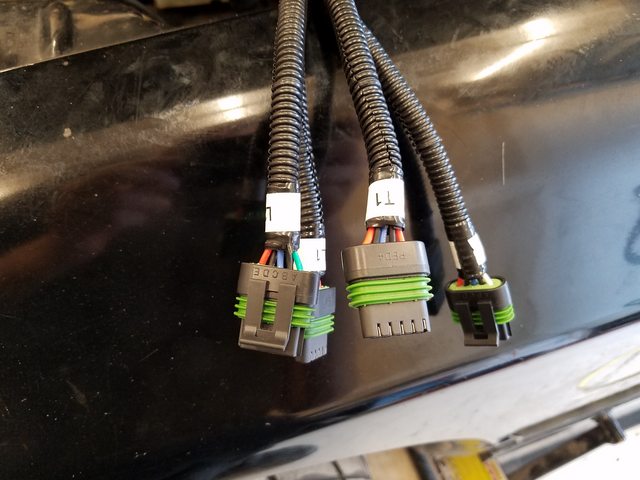

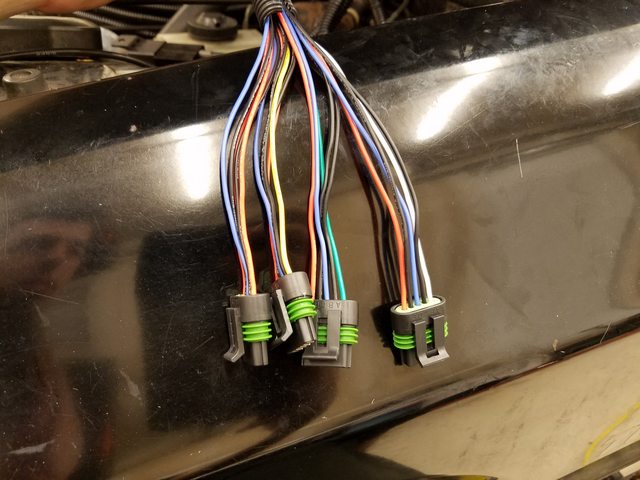

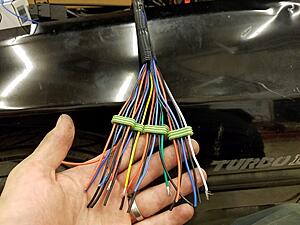

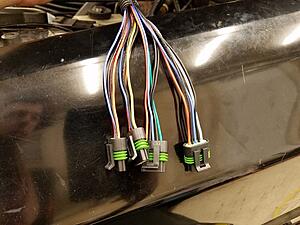

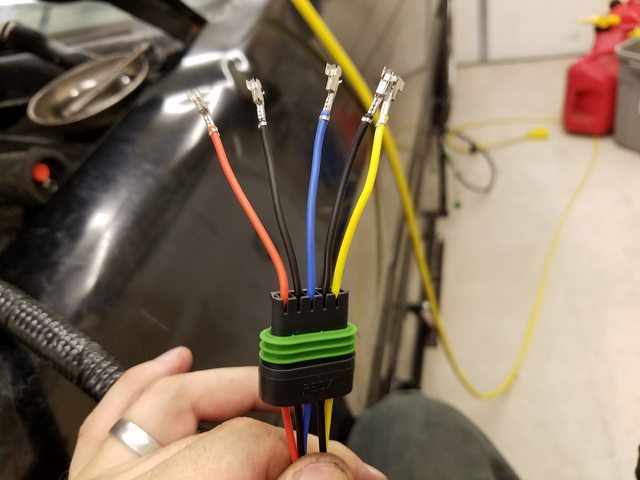

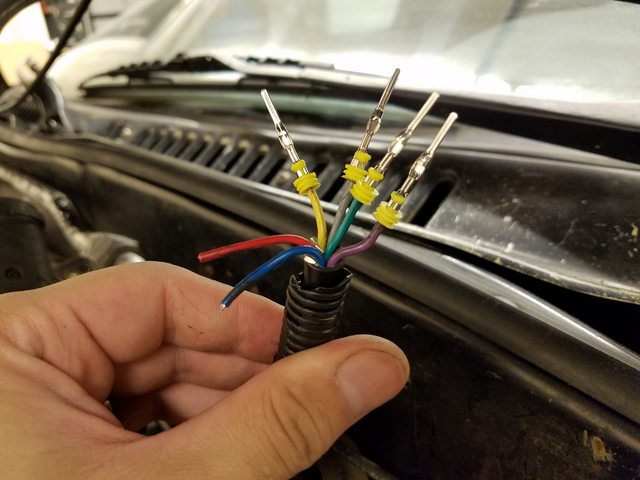

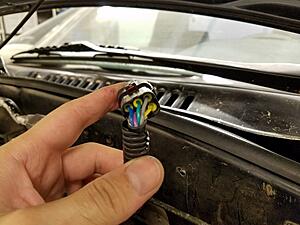

adding a proper harness connector on the ignition wiring from the wolf

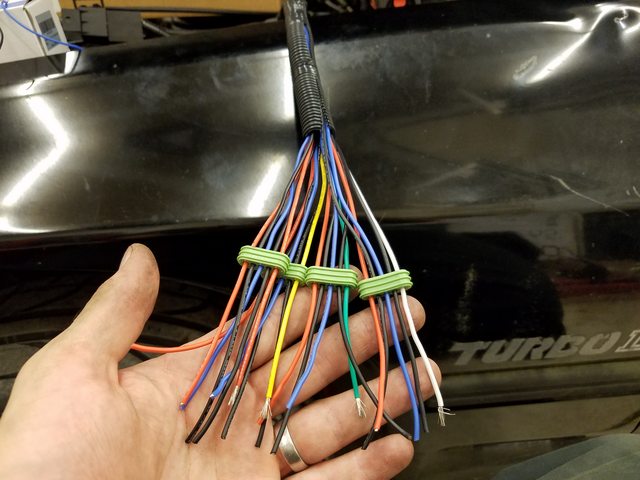

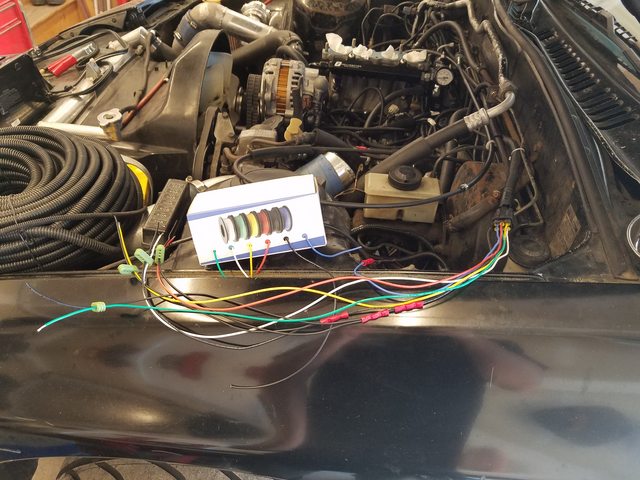

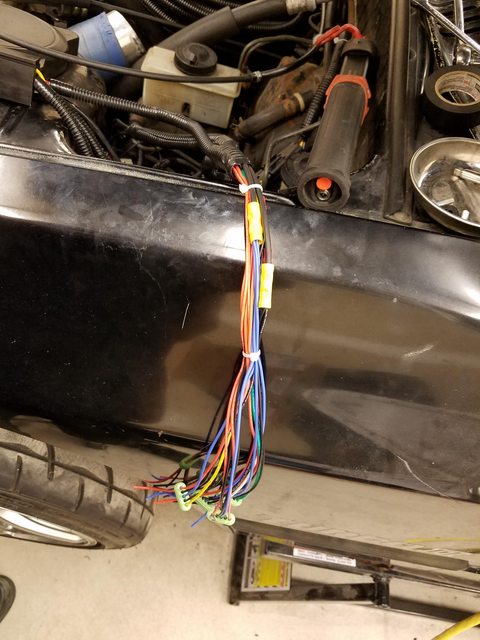

added a relay powering these, and lots of grounds. Had quite the harness to make.

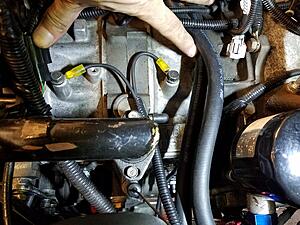

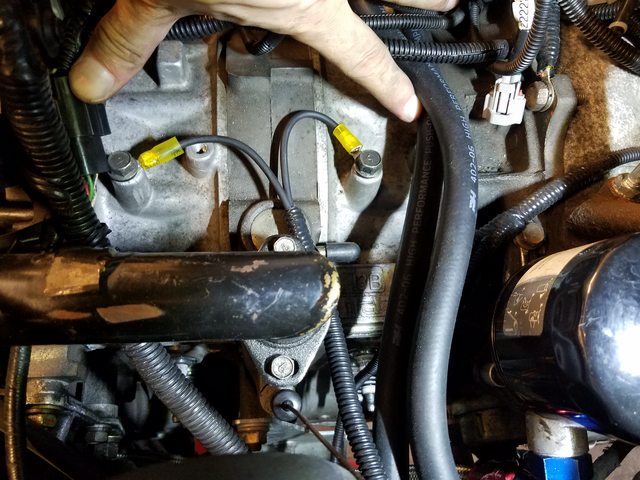

added some more grounds to the rotor housings

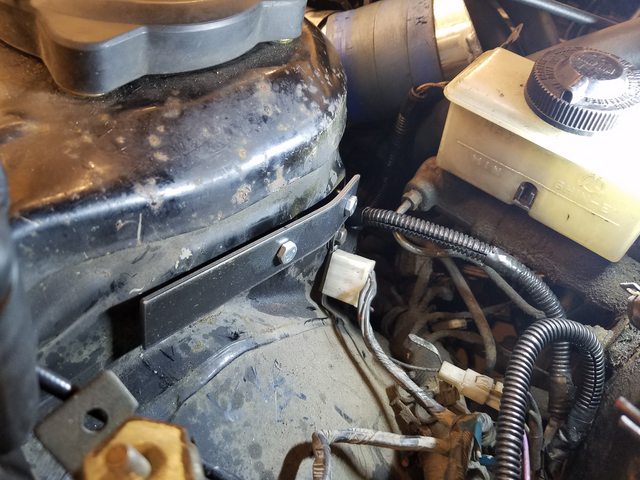

Connected rotor grounds, battery grounds, and the ign1as to this grounding point directly below the bracket. Sorry no pic with everything wired to it.

nyt

iTrader: (1)

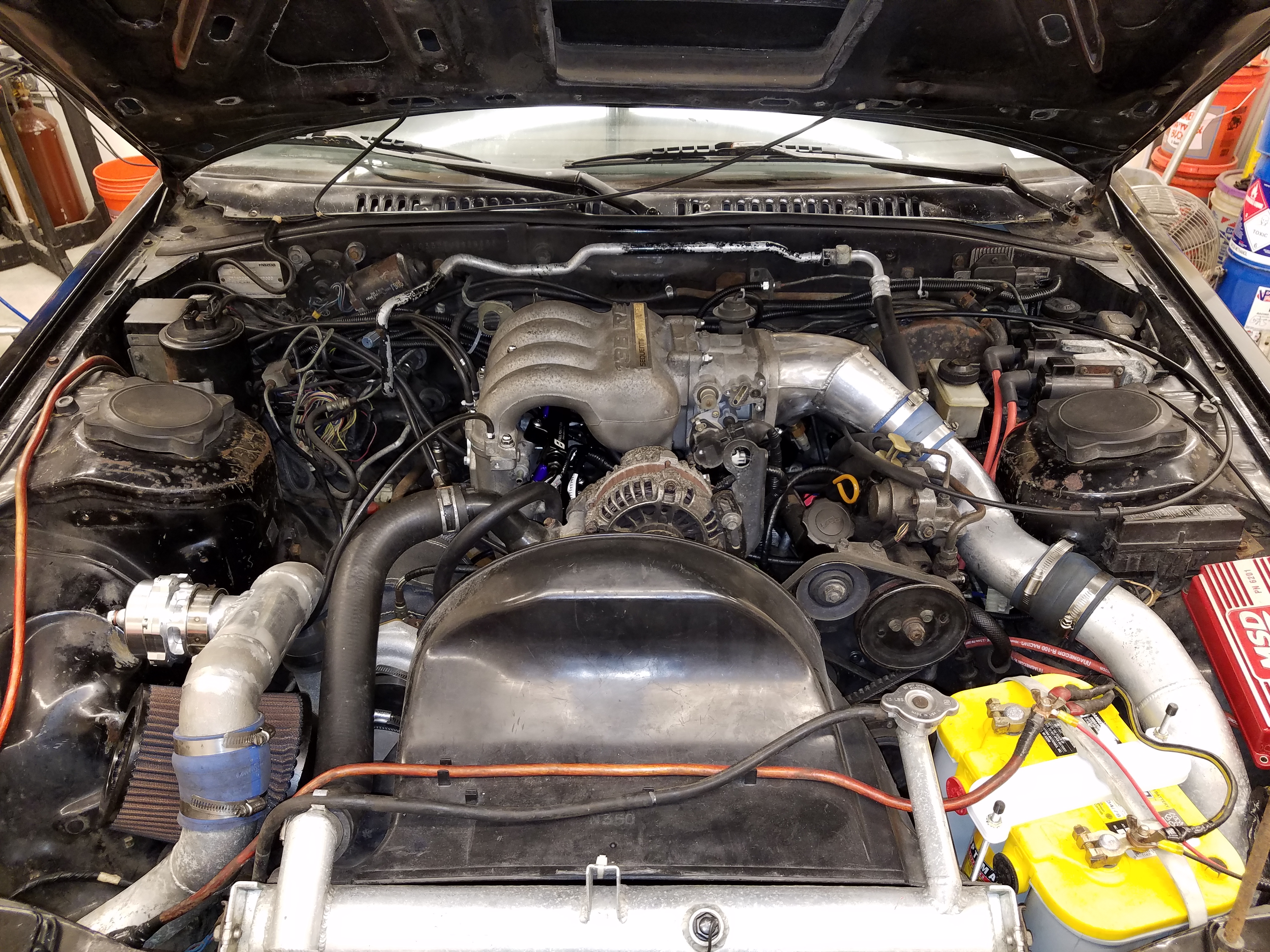

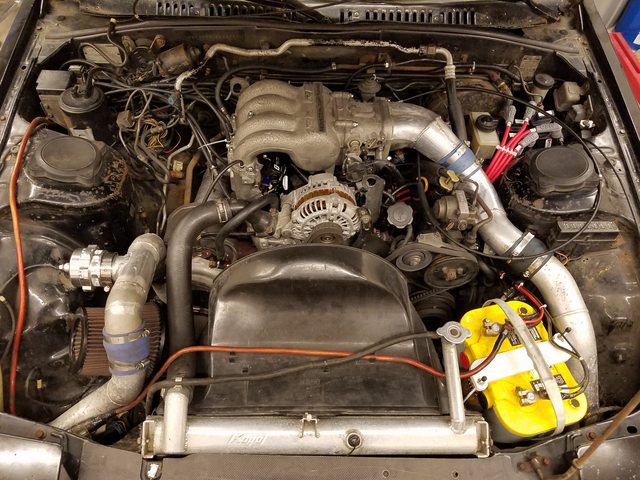

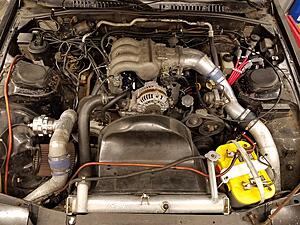

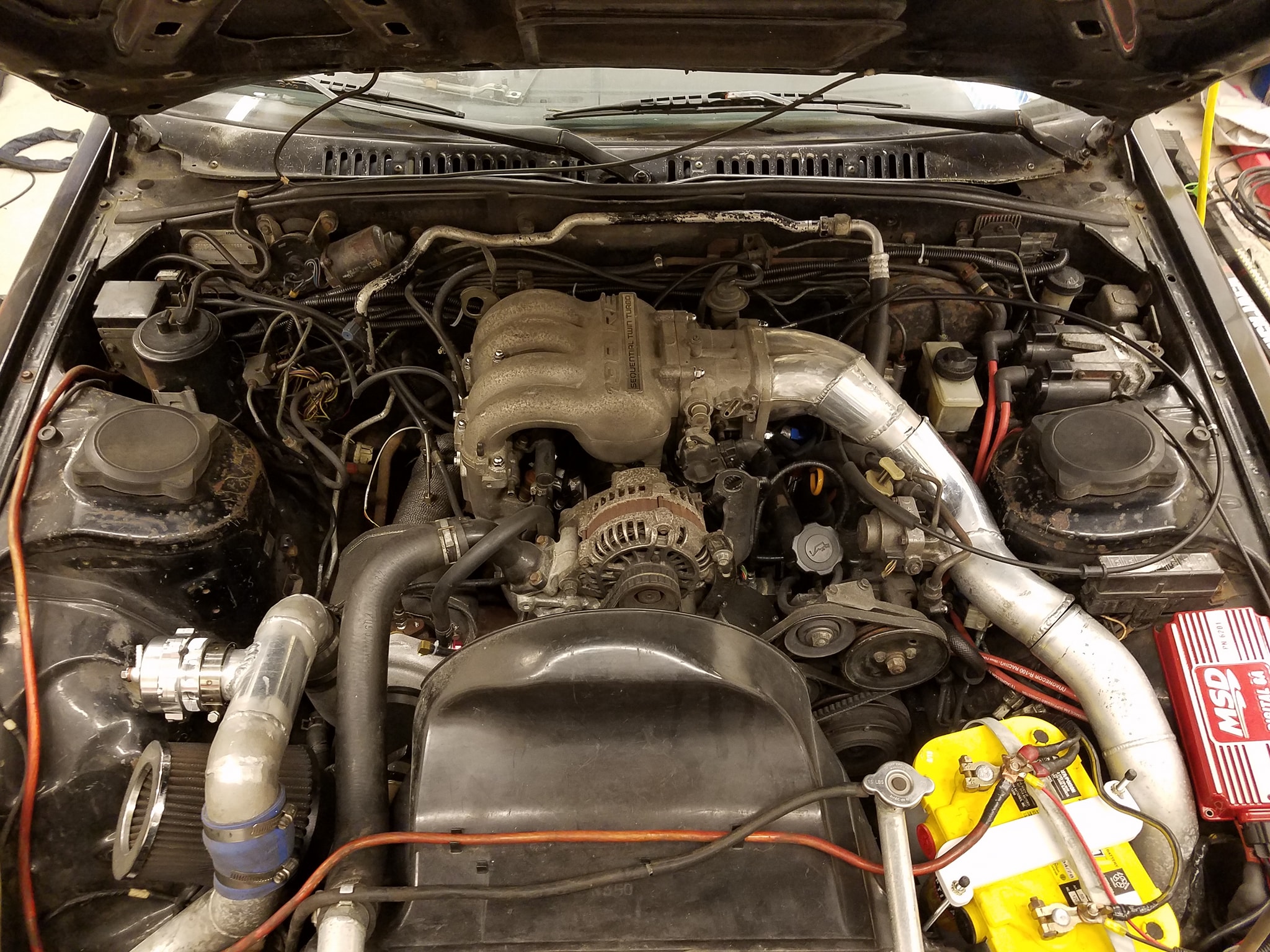

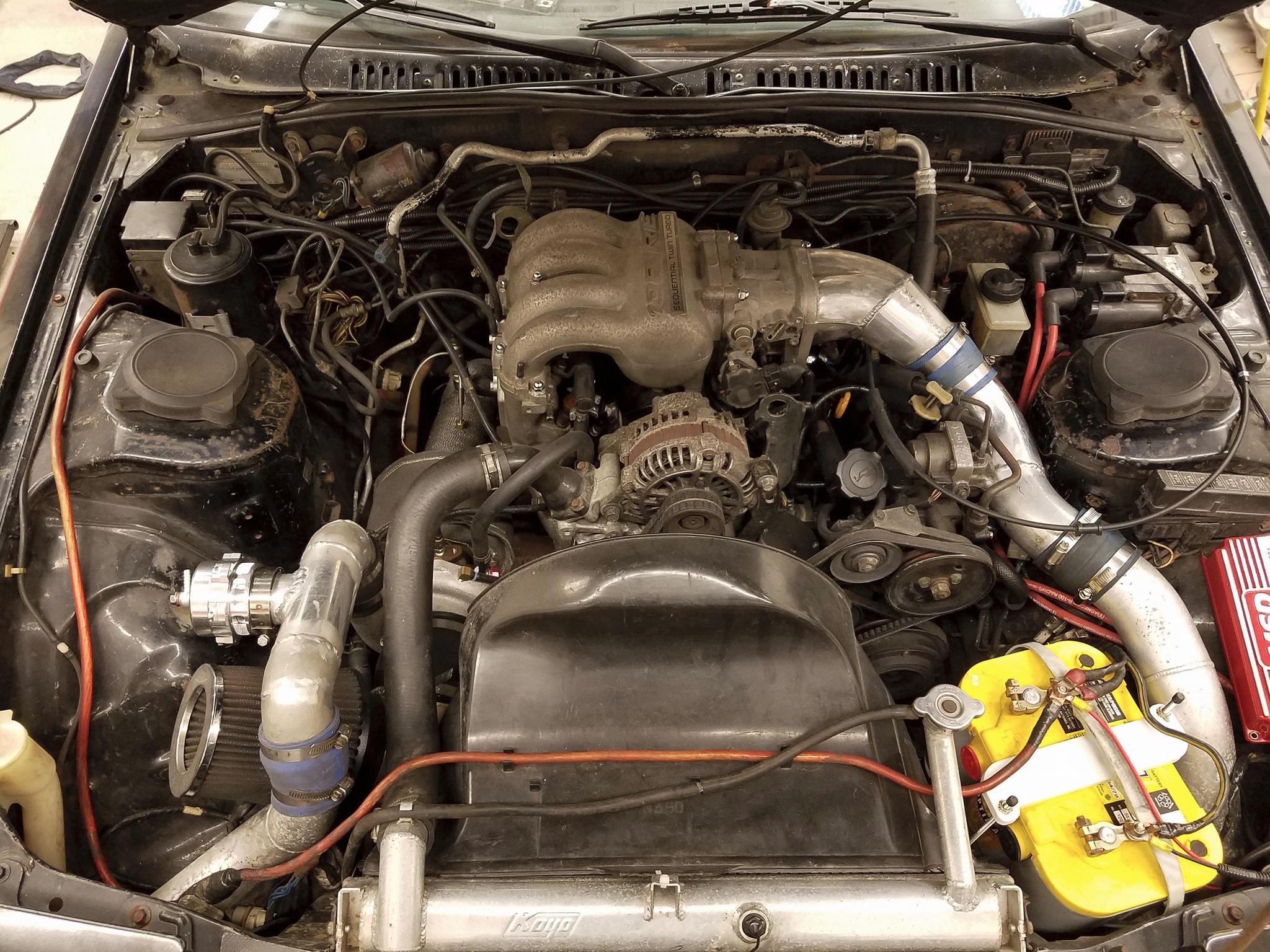

All buttoned up

nyt

iTrader: (1)

little bit of tuning left... would have finished it off, but lost boost.. either solenoid died or blew a hole in a coupler... will figure it out soon enough. I think solenoid related as I ended up on what I think is spring pressure?

nyt

iTrader: (1)

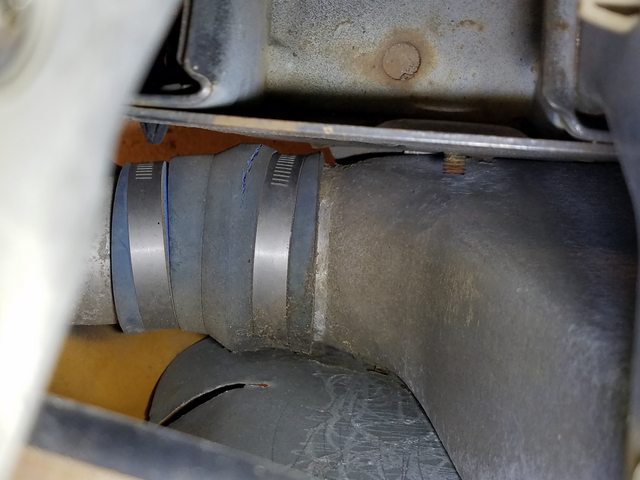

coupler it is

nyt

iTrader: (1)

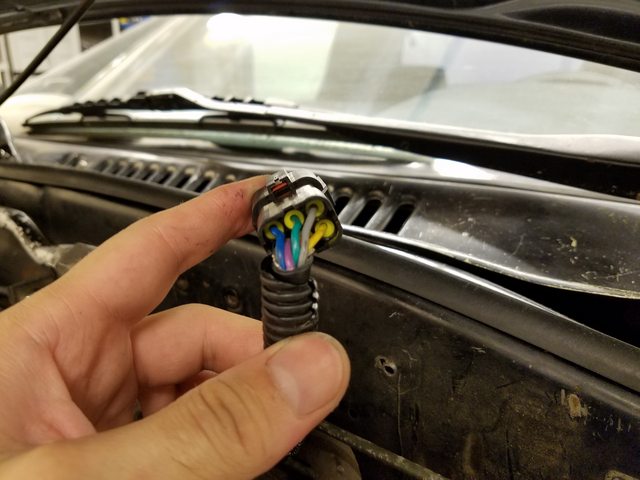

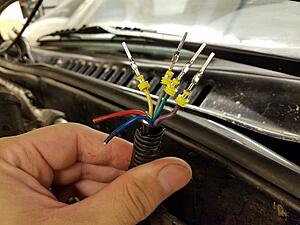

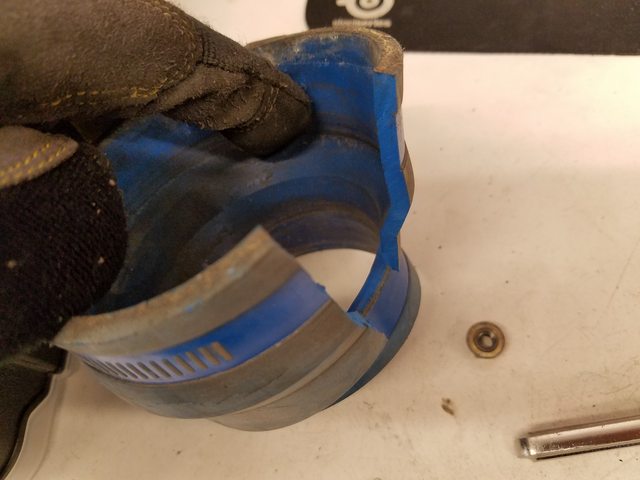

trash reducer, no reinforcement, thanks greedy. Put on a better one today and replaced the harness connector to the cas that kept having wires break.

Rob XX 7

iTrader: (8)

have you tried the e85 yet? curious if the stock fuel lines and fitting come out of the pump cover will be a restriction

nyt

iTrader: (1)

I'm running straight e85. Lots of duty cycle left, not an issue with two pumps.

nyt

iTrader: (1)

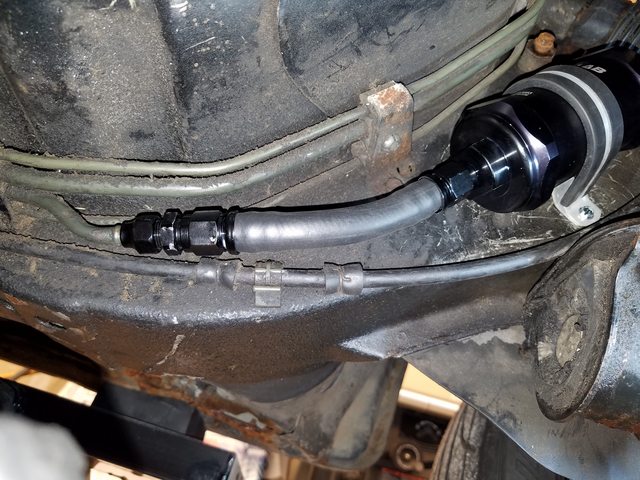

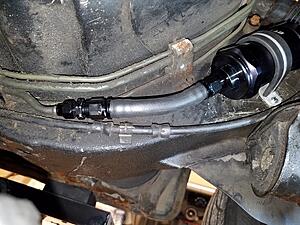

Had a fuel leak, gauge failed, that was no fun.



plugged it off for now.

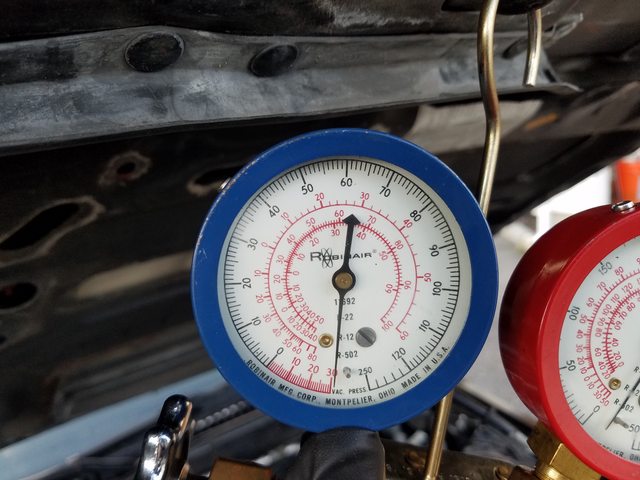

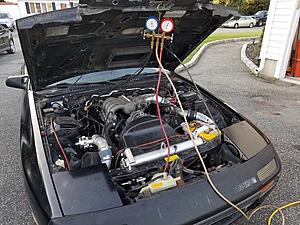

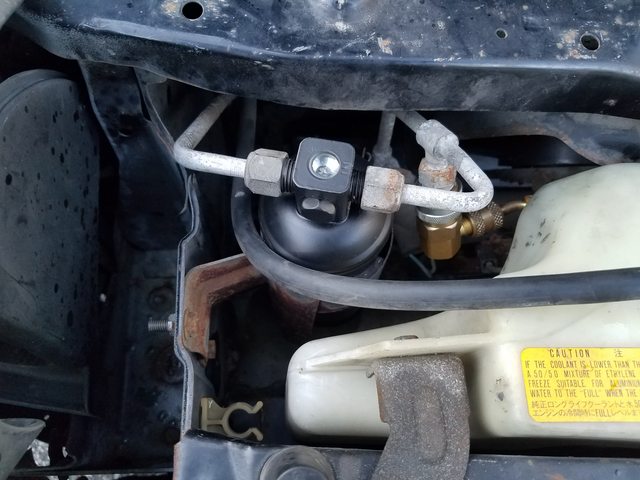

new dryer and vac'd and charged ac, blowin cold.








running nice

nyt

iTrader: (1)

Had a fuel leak, gauge failed, that was no fun.

https://i.imgur.com/52Bzbyg.mp4

plugged it off for now.

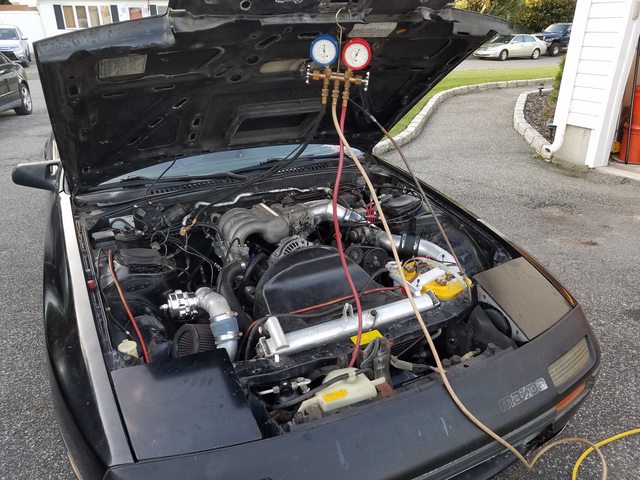

new dryer and vac'd and charged ac, blowin cold.








running nice
https://i.imgur.com/nVuvke2.mp4
